Conductive, not coated

Conductive PCB Racks

Racks made from conductive material, not sprayed with a coating that wears off. Static drains to ground instead of sitting on your boards, in dry winter air and humid summer air alike.

Three-quarter view of the empty RA-20C slotted-edge ESD PCB rack from the other end; 25 slots, 15 mm (0.591 in) pitch, conductive polypropylene, boards to 400 × 220 mm (15.75 × 8.66 in), pack of 10
Slotted conductive rack

RA-20C · Slotted-Edge ESD PCB Rack (Pack of 10)

$41.90 per rack · $419.00 pack of 10
In stock · ships in under 24 h · USA
Material
conductive polypropylene, chemical resistant, 10⁴ to 10⁶ Ω
Positions
25, a double slot at each
Boards
up to 400 × 220 mm (15.75″ × 8.66″)
Temperature
−10 to +80 °C (14 to 176 °F)
Made for
IPC board handling on SMT and PCBA lines, and in storage
Sold
packs of 10, no assembly needed
Full specs Spec sheet (PDF) Ask an engineer
Three-quarter view of the empty RA-20C slotted-edge ESD PCB rack from the other end; 25 slots, 15 mm (0.591 in) pitch, conductive polypropylene, boards to 400 × 220 mm (15.75 × 8.66 in), pack of 10
Conductivity in the material
Ships from the US in under 24 h
5+ packs save 5%, 10+ save 10%
An engineer confirms the fit

For SMT lines

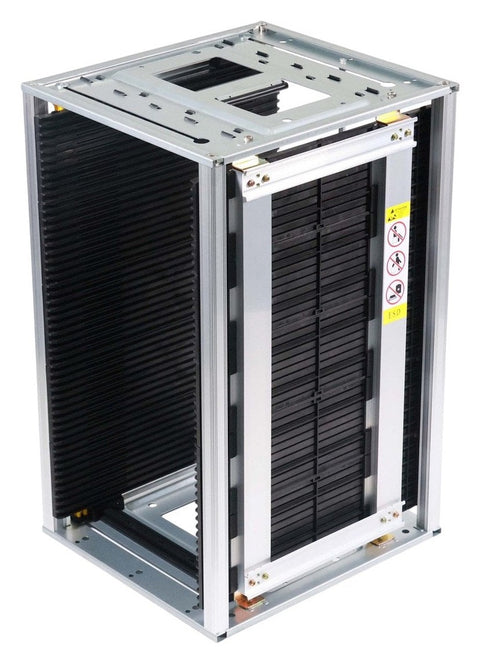

B0103GN-80C ESD PCB magazine rack, three-quarter view: black conductive side panels, aluminum pillars and steel base; 50 slots, 10 mm (0.394 in) pitch, gear-track adjust 50 to 250 mm (1.97 to 9.84 in), rated 80 °C (176 °F)

B0103GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

A 50-slot conductive magazine rack that stores boards between steps and feeds your loader. Width adjusts from 50 to 250 mm (1.97″ to 9.84″).

$188.00 each

See it

Not sure which rack? Enter your board size →

Questions

Ask Sam. Answers in seconds.

Sam is our spec engineer: sizes, part numbers, ESD, shipping. Tap a question or type your own.

Read all the answers

What makes a rack conductive?

The material itself carries charge, so static drains to ground wherever the board touches it. A coated "antistatic" rack only protects while the coating lasts, and handling, cleaning and dry air wear it down.

Conductive or dissipative: which do I need for racks?

A conductive rack in the 10⁴ to 10⁶ Ω range drains charge steadily: fast enough that it never builds up on the board, never so fast that it dumps through a device.

Are all your racks conductive?

Yes. Every rack we sell, slotted and magazine, is conductive, 10⁴ to 10⁶ Ω.

How fast do they ship?

In-stock racks ship from the US in under 24 hours.

Which rack fits my boards?

Enter your board size in the PCB Rack Finder, or send us the size and an engineer confirms the rack before you order.

Replacing coated racks on a whole line?

Send the board sizes and quantities. A bulk quote comes back within one business day.
