Rack Wear Kit · 50-Slot Magazine Rack Consumables
Every wear part for one gear-adjust rack: tracks, latches, stopper bar, gears, slot stoppers.
$99.00
Magazine Rack · 50 Slots · Gear-Adjustable · 80 °C · Standard Format

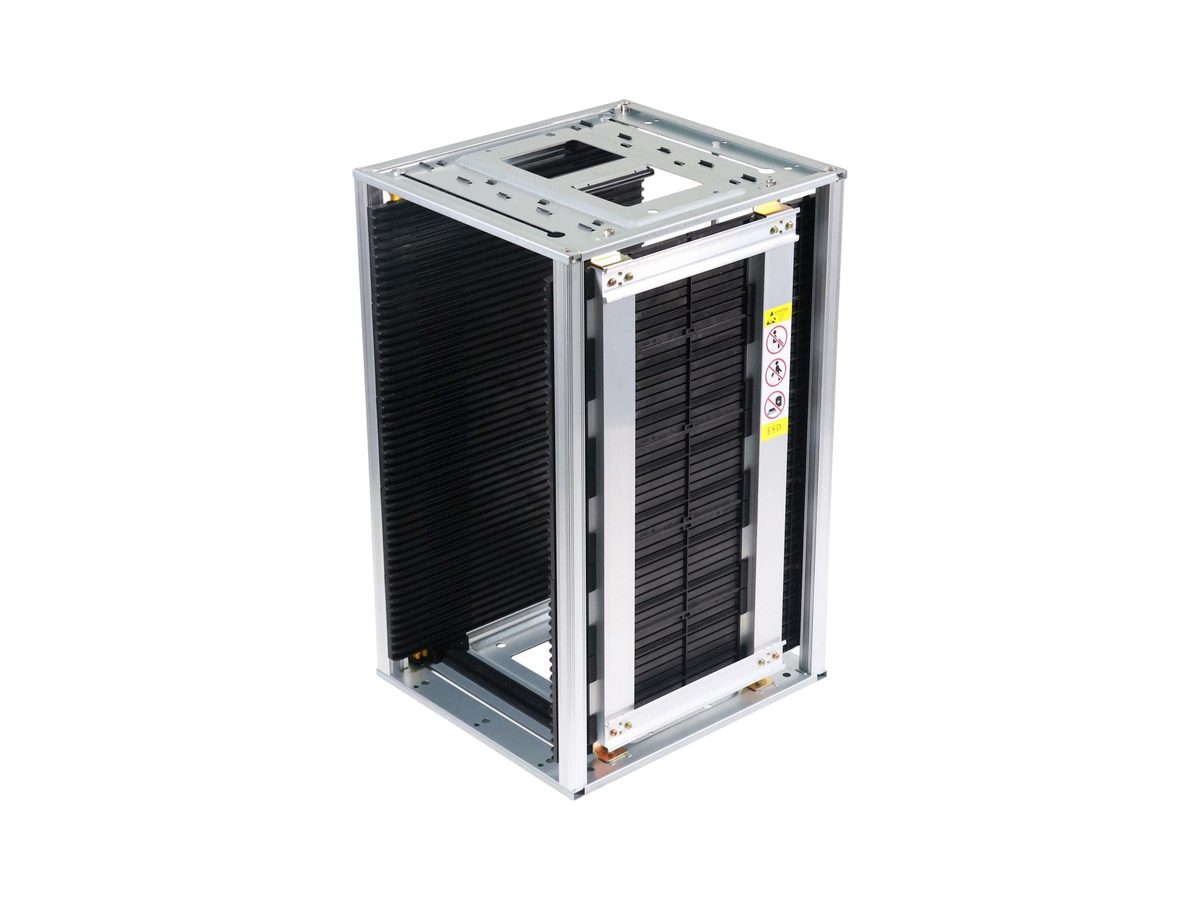

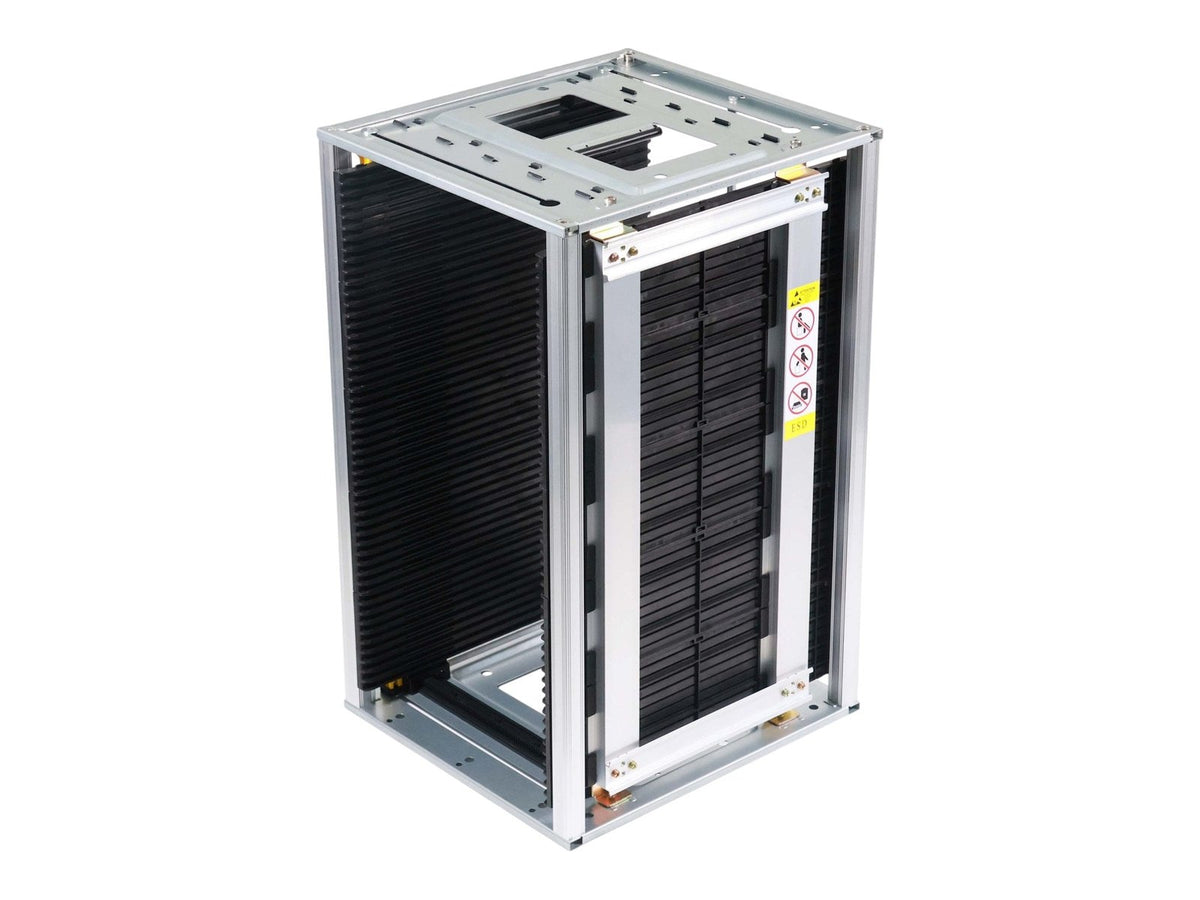

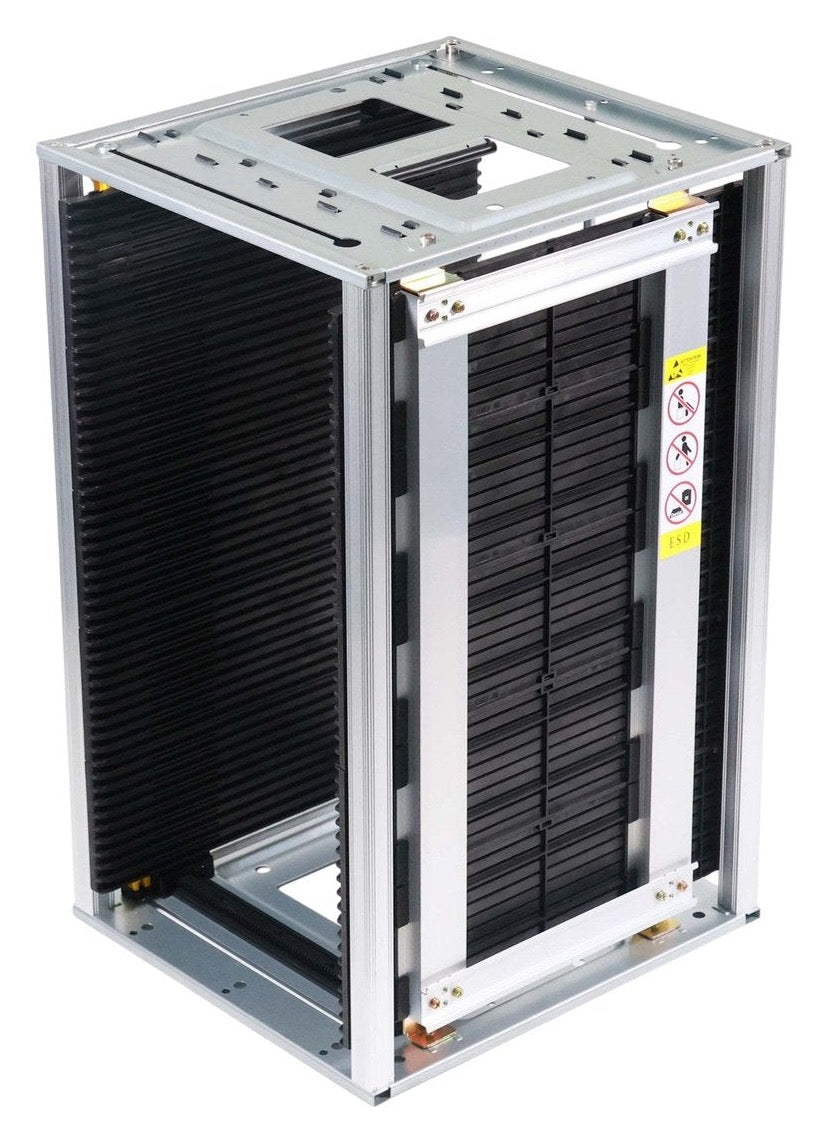

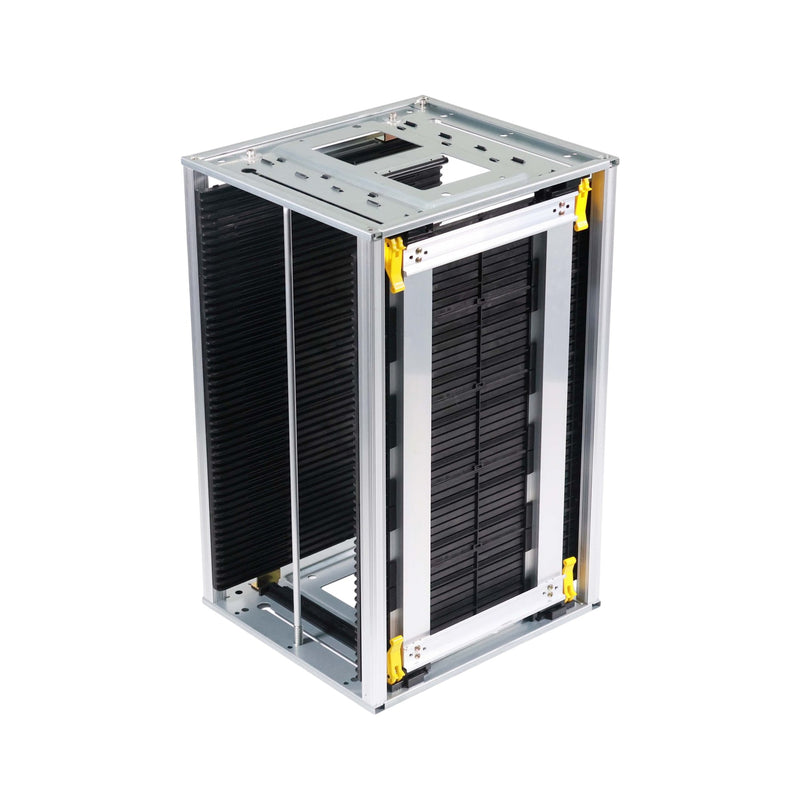

B0103GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
B0103GN-80C80 °CIn stock · ships in under 24 h · USA
The B0103GN-80C is a 50-slot ESD-safe PCB magazine rack with gear-track width adjustment, rated −20 °C to +80 °C (−4 °F to 176 °F). Slot pitch is 10 mm, board width adjusts from 50–250 mm. It ships from California and fits standard in-line SMT loaders.
External dimensions (L × W × H)14″ × 13″ × 22″
355 × 320 × 563 mm
$188.00 per unit
- Adjustable Width: 50–250 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 355 × 250 mm
- Temp Range: −20 / +80 °C
Replacing another maker's part? Cross-reference your part number →
Heads-up: $300 order minimum. Combine spares or add to a rack order.
ESD-safe
Ships from the USA
Spec help included
At a glance
External dimensions (L × W × H)14″ × 13″ × 22″
355 × 320 × 563 mm
355 × 320 × 563 mm
Adjustable Width50–250 mm
Slot Count / Pitch50 @ 10 mm
Max Board (L × W)355 × 250 mm
Temp Range−20 / +80 °C
Stop Swapping Racks Every Time the Board Width Changes.
Fixed-width racks force you to inventory a different rack for every board size. The B0103GN-80C’s gear-track adjustment covers 50–250 mm of board width on the same chassis, with parallelism maintained across all 50 slots. One rack covers the full standard-format range, less inventory, fewer wrong-rack mistakes on the floor.
50 slots @ 10 mm pitch
50–250 mm adjustable
Parallelism monitored
SMT loader compatible
Description
External dimensions (L × W × H): 14″ × 13″ × 22″ · 355 × 320 × 563 mm
What it does on your line

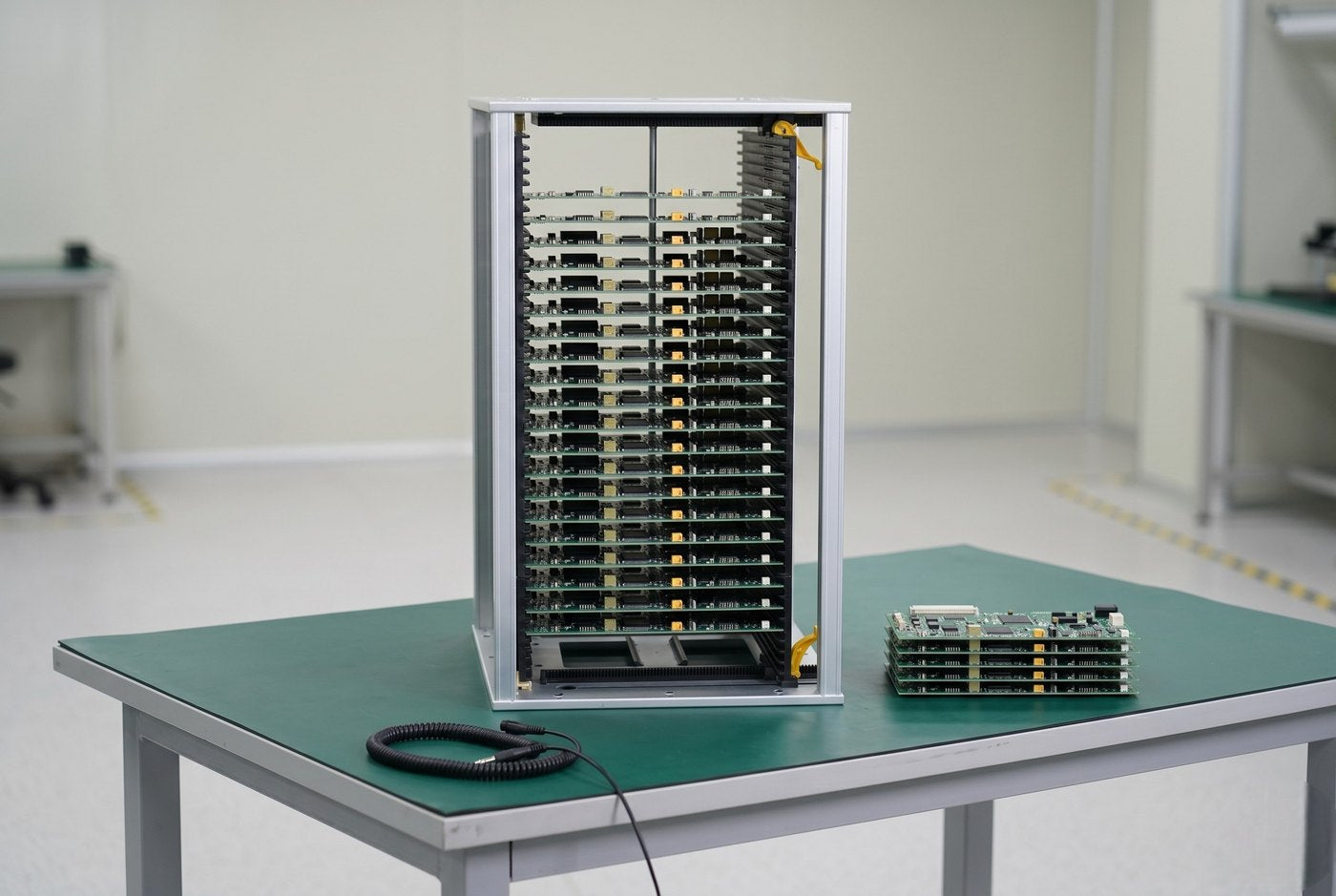

The B0103GN-80C is a 50-slot ESD magazine rack built for in-line SMT automation, board storage, and bench-to-bench transport. Gear-track adjustment sets the board width from 50 to 250 mm in seconds, with parallelism maintained across all 50 slots, one rack covers the full standard-format range without re-tooling.
Construction: 5 interchangeable Conductive PPE side panels per wall, aluminum pillars, galvanized steel base. The mixed-material build provides structural rigidity under repeated loading and inline conveyor handling, while keeping the entire current path in the 10⁴–10⁶ Ω dissipative band under ANSI/ESD S541. Sectioned panels can be swapped individually if one is damaged, the rack stays in service.
Designed for the standard 80 °C ambient envelope (transport, storage, soldering, inspection, cleaning). For bake or cure cycles, see the B0103GM-200C (200 °C) or B0103GL HT-300C (300 °C all-aluminum) siblings on the same chassis.
Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.
See it in motion
360° turntable rendered from the production CAD model. The geometry shown is the part that ships · B0103GN-80C
B0103GN-80C · Technical specifications
| Model | B0103GN-80C |
|---|---|
| Materials | Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · galvanized steel base |
| Dimensions (L × W × H) | 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 3.5 mm (0.138″) |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 50–250 mm (1.97″–9.84″) via gear-track mechanism |
| Max board length | 355 mm (13.98″) |
| Max board size (L × W) | 355 × 250 mm |
| Min board size (L × W) | 50 × 50 mm |
| Reference positions | A = 34 mm · B = 34 mm |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (dissipative band per ANSI/ESD S541) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +80 °C (−4 °F to 176 °F) |
| Adjustment type | Gear track with parallelism monitoring |
| Includes | Stopper bar · carrying handles (top and bottom) |
| Weight | 6.3 kg |
Documentation
Download spec sheet (PDF)
Need drawings or CAD models? Request them by email
Machine compatibility
| Loader / machine | Series | Interface |
|---|---|---|
| ASM SIPLACE | All in-line loaders / unloaders | 563 mm chassis · 10 mm slot pitch |
| Yamaha | YSM series | 563 mm chassis · 10 mm slot pitch |
| Panasonic | NPM series | 563 mm chassis · 10 mm slot pitch |
| Juki | RS series | 563 mm chassis · 10 mm slot pitch |
| Other in-line SMT | Standard-interface loaders | Ask for a fit-check if your line uses a custom fixture |
Not sure your loader is on the list? Send us the model and we confirm fit before you order.
Against the alternatives
| Feature | B0103GC BELT-80C | B0103GM-200C | B0103GL HT-300C | B0103GN-80C |
|---|---|---|---|---|
| Temperature rating | −20 °C to +80 °C (−4 °F to 176 °F) | −20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033 | −20 °C to +300 °C (−4 °F to 572 °F), top of the magazine-rack thermal range | −20 °C to +80 °C (−4 °F to 176 °F) |
| Width adjustment | Continuous belt, no stepped indices | Gear track, parallelism monitored | Gear track, parallelism monitored | Gear track, parallelism monitored |
| MSD bake per J-STD-033 | No. Transfer to a bake-rated rack first | Yes, boards stay in the rack through bake | Yes, boards stay in the rack through bake | No. Transfer to a bake-rated rack first |
| Frame | Conductive PPE panels · aluminum pillars · steel base | Conductive PPE panels · aluminum pillars · steel base | All-aluminum | Conductive PPE panels · aluminum pillars · steel base |
| Pick this one when | Belt-set widths for mixed board runs. | MSD bake at 90–125 °C, one container from storage through bake to the loader. | Lead-free reflow direct loading, aerospace cure, high-heat stress testing. | Standard storage, transport and in-line SMT handling. |
Built for ESD-protected workstations
Materials: 5 × Conductive PPE side panels · aluminum pillars · galvanized steel base
Surface res.: 10⁴ – 10⁶ Ω, dissipative band per ANSI/ESD S541
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all PASS
Thermal range: −20 °C to +80 °C, standard SMT envelope
Capacity: 50 slots · 10 mm pitch · 50–250 mm adjustable · max board 355 × 250 mm
RoHS: PASS, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: SMT in-line automation · standard-temp storage & transport · inspection & QC.
Not for: Bake / cure cycles > 80 °C (use the 200 °C or 300 °C variants on the same chassis).
Standards referenced
- ANSI/ESD S541
- The ESD Association standard for packaging materials in an EPA. It classifies surface resistance into conductive (below 10⁴ Ω), dissipative (10⁴ to below 10¹¹ Ω) and insulative bands. Our measured 10⁴–10⁶ Ω sits in the dissipative band, the range specified for board handling.
- RoHS (EU) 2015/863
- The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. All 20 components of this product were tested and passed (SGS report NGBEC25007648601).
Full IPC and ESD standards reference for handling, storage and depaneling →
What's in the box
- Sold individually. Packaging size 570 × 370 × 100 mm at 6.3 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Includes stopper bar and carrying handles (top + bottom).
Volume pricing
| Quantity | Price per unit | You save |
|---|---|---|
| 1–19 racks | $188 | Factory-direct price |
| 20+ racks | $169.20 | 10% |
Related parts & spares
Side Panel Kit · 10 Strips, One Rack (Pack of 10)
Ten side strips, a full set for one rack. Pick chassis and temp.
$6.00per unit Pack of 10 · $60.00
Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00Further reading
- Sizing a rack to your boardsThe four measurements that decide fit, including component envelope against slot pitch.
- Gear, screw or belt adjustmentWhich mechanism suits your changeover pattern, and what wears out.
- What “ESD safe” actually meansSurface resistance, the S541 bands, and how to read a test report.
- Will the rack fit my SMT loader?Chassis height, slot pitch and footprint, plus custom-fixture checks.
Engineers also bought
Rack Wear Kit · 50-Slot Magazine Rack Consumables
Every wear part for one gear-adjust rack: tracks, latches, stopper bar, gears, slot stoppers.
$99.00Side Panel Kit · 10 Strips, One Rack (Pack of 10)
Ten side strips, a full set for one rack. Pick chassis and temp.
$6.00per unit Pack of 10 · $60.00Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00
B0105GPM-120C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack with conductive PS base rated to 120 °C (248 °F), covers most MSD low-bake profiles (90–110 °C) without stepping up to a metal-base 200 °C rack.
External dimensions (L × W × H)
14″ × 13″ × 22″
355 × 320 × 563 mm
Max board size (L × W)
14″ × 10″
355 × 250 mm
Gear · 120 °C bake ESD-Safe$195.00

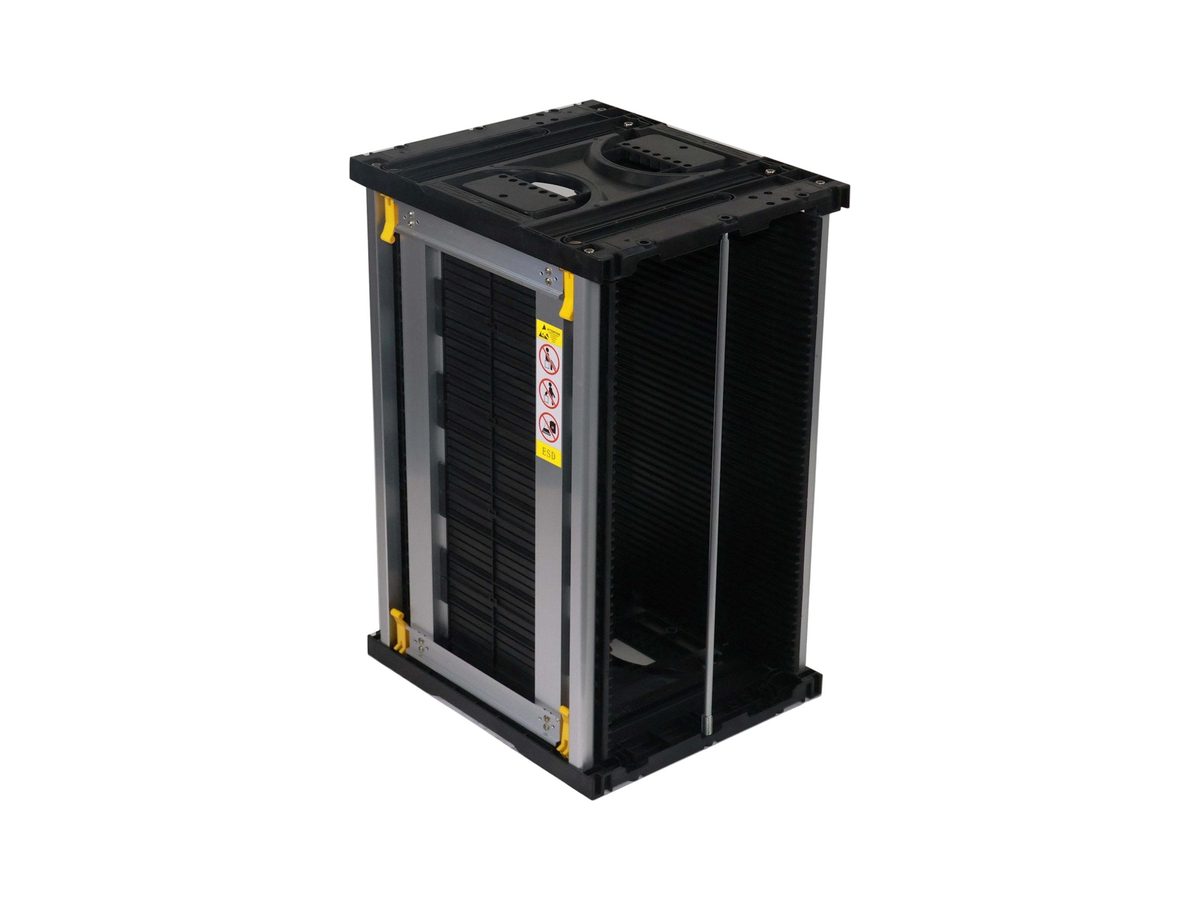

B0105GPN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack with conductive PS base in place of galvanized steel, the lightest rack in the magazine catalog.
External dimensions (L × W × H)
14″ × 13″ × 22″
355 × 320 × 563 mm
Max board size (L × W)
14″ × 10″
355 × 250 mm
Gear track ESD-Safe$179.00
B0106GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack on the large-format chassis, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.
External dimensions (L × W × H)
18″ × 16″ × 22″
460 × 400 × 563 mm
Max board size (L × W)
18″ × 13″
460 × 330 mm
Gear · 200 °C ESD-Safe$333.00

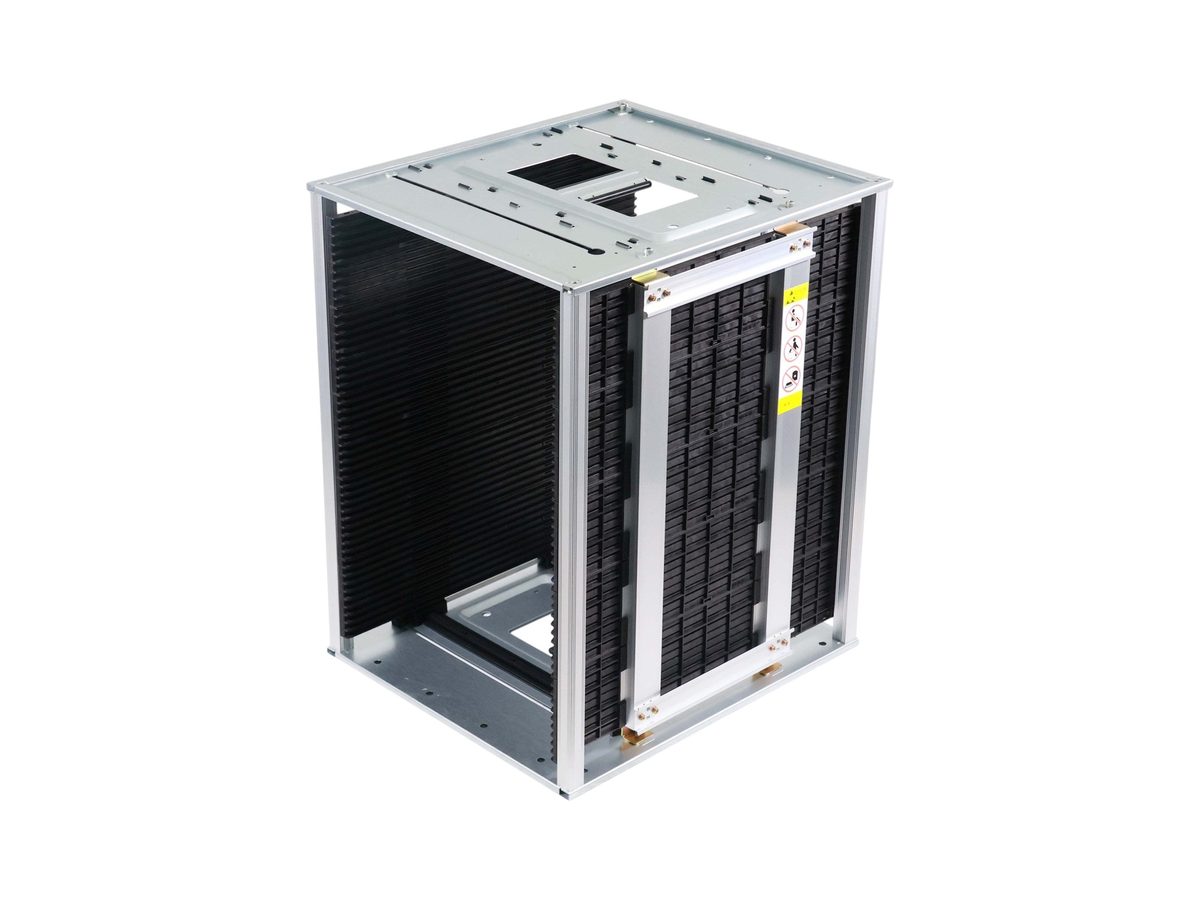

B0106GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack on the large-format chassis, sized for boards up to 460 × 330 mm.
External dimensions (L × W × H)
18″ × 16″ × 22″
460 × 400 × 563 mm
Max board size (L × W)
18″ × 13″
460 × 330 mm
Gear track ESD-Safe$257.00
Questions engineers ask
Will the B0103GN-80C drop into my SMT loader / unloader?
Yes. The 563 mm chassis height and 10 mm slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The 355 × 320 mm footprint is the standard-format chassis, same as the B0103GM-200C, B0103GC BELT-80C, and B0103GL HT-300C variants. If your line uses a non-standard fixture, ask sales for a fit-check before ordering.
What does “parallelism monitored” gear-track adjustment actually do?
Both side panels travel on a synchronized rack-and-pinion gear track. Turn the adjustment knob on either side and the opposite panel travels the same distance in the same direction, parallelism is mechanically monitored, not just operator-eyeballed. The result: a width spec set on Monday loads the same boards on Friday, and both panels stay parallel through the full 50–250 mm travel range.
Can I bake the B0103GN-80C? What’s the temperature ceiling?
The GN-80C variant is rated −20 °C to +80 °C, the standard SMT envelope (transport, storage, soldering, inspection, cleaning). For bake-suitable use, pick the B0103GM-200C (200 °C), which uses the same chassis with the same gear track. For aerospace-grade 300 °C cure, use the B0103GL HT-300C all-aluminum variant.
What’s the difference between this and a slotted-edge rack like RA-18C?
The B0103GN-80C is a magazine rack: 50 slots, 10 mm pitch, designed to drop into in-line SMT loader / unloader equipment. The RA-18C is a slotted-edge transport rack: 25 slots at wider pitch, designed for benchtop / between-bench manual transport, not for in-line equipment. Pick magazine racks for SMT-line integration; pick slotted-edge for hand carry / bench-side WIP.
Can I replace a damaged side panel without buying a whole new rack?
Yes. The side panels are made of 5 interchangeable Conductive PPE sections per wall, each individually replaceable. If one section gets cracked or contaminated, swap that section out and the rest of the rack stays in service. Rack spares are sold separately for every magazine-rack chassis we’ve ever shipped, on a ~1-week lead.
What ships in the box?
One B0103GN-80C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 570 × 370 × 100 mm at 6.3 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. No assembly required.
