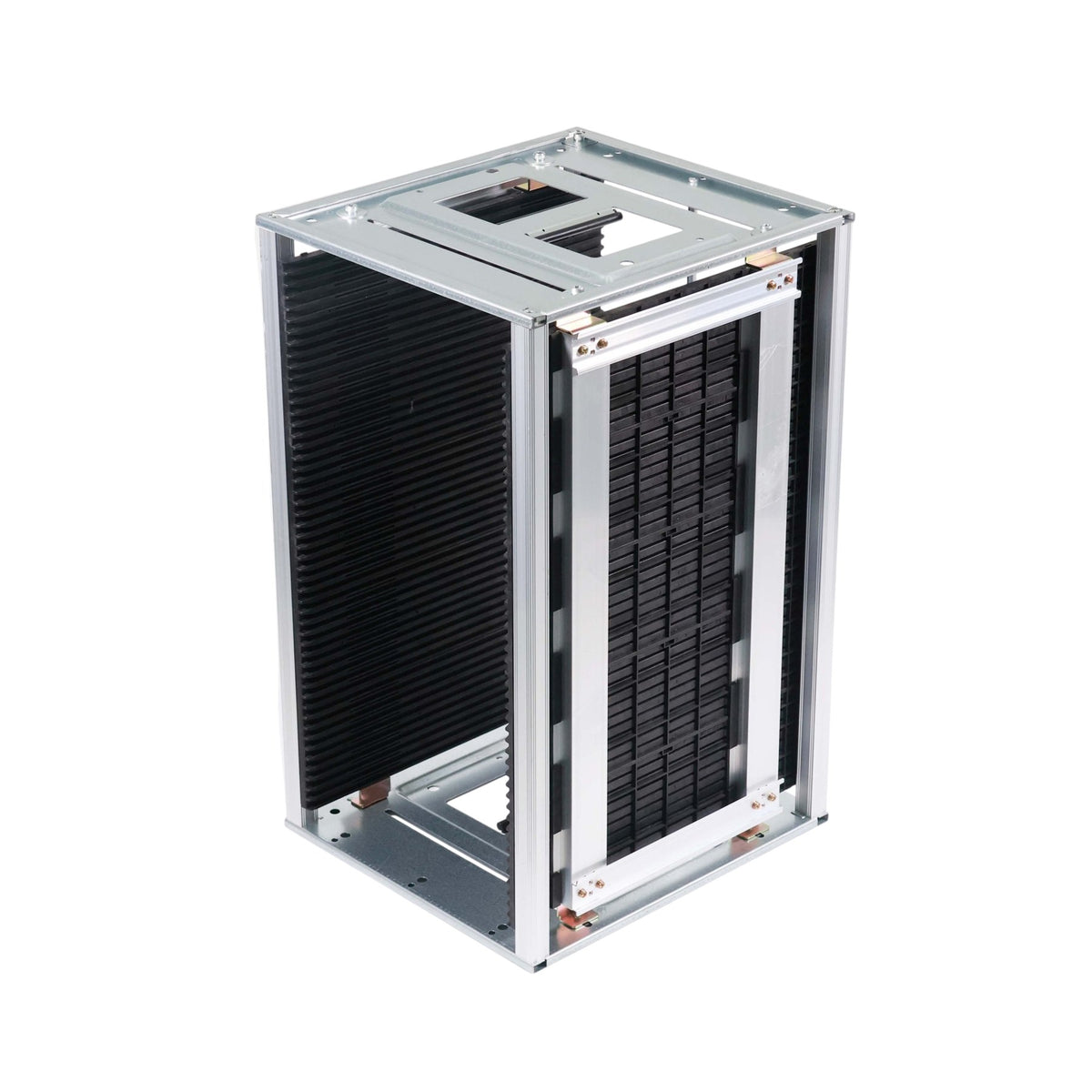

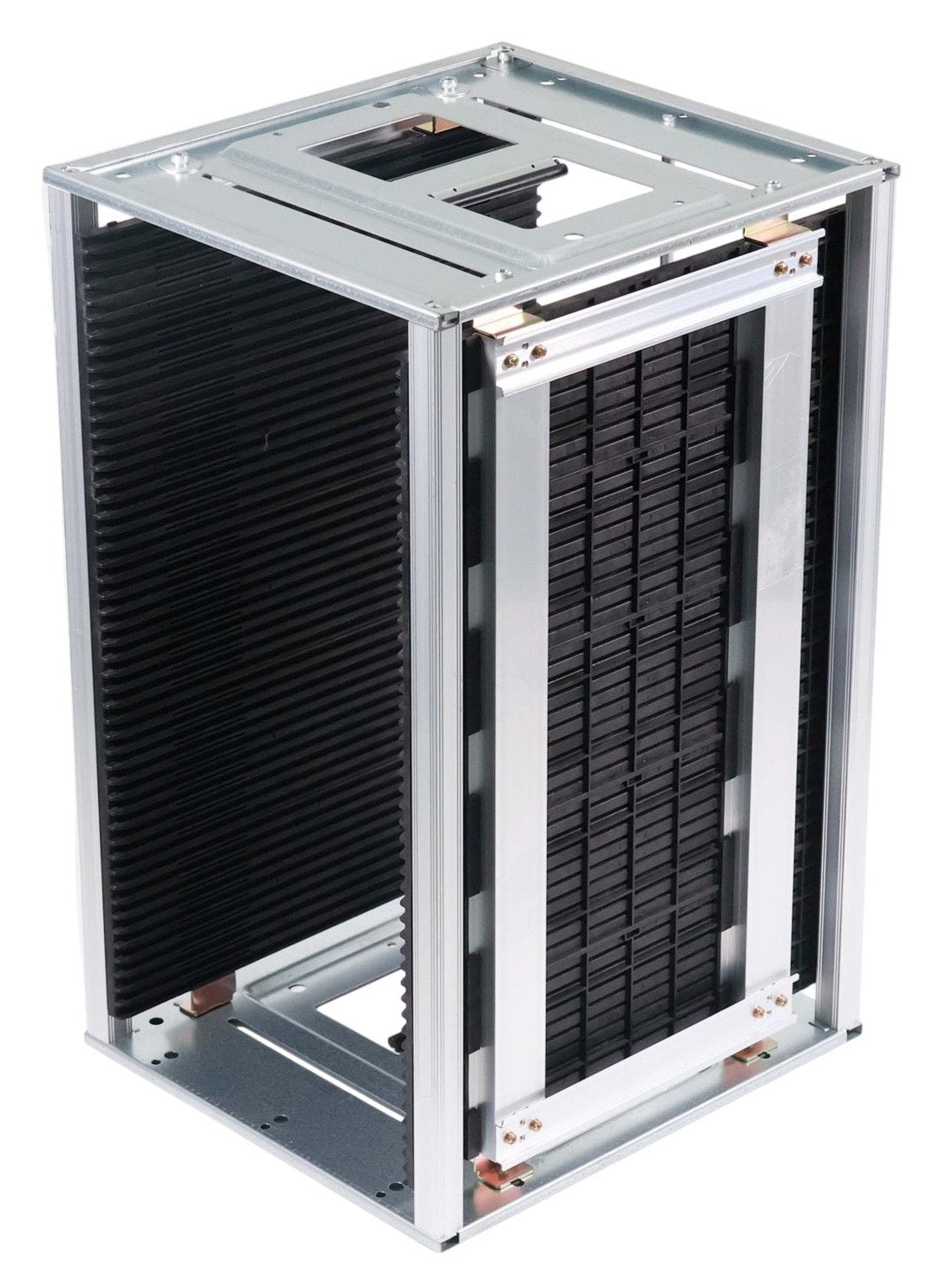

B0104M-200C ESD PCB magazine rack, three-quarter view: black conductive side panels, aluminum pillars and steel base; 50 slots, 10 mm (0.394 in) pitch, screw adjust 50 to 250 mm (1.97 to 9.84 in), rated 200 °C (392 °F)

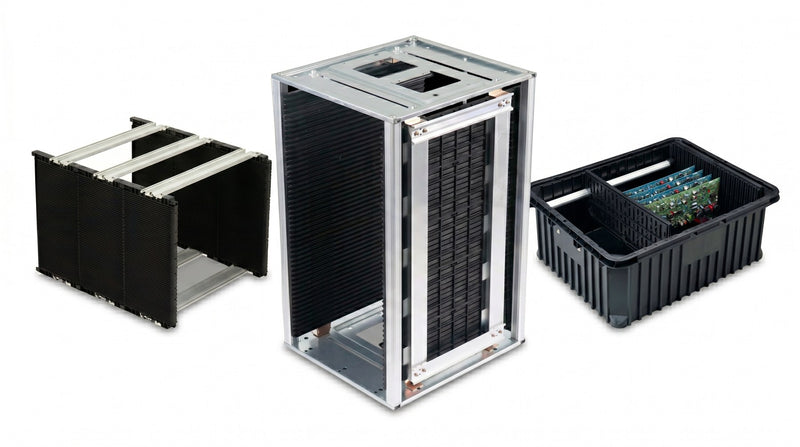

B0104M-200C50-Slot Screw-Adjustable ESD PCB Magazine Rack

Magazine Rack · 50 Slots · Screw-Adjustable · 200 °C (392 °F)

B0104M-200C is a 50-slot ESD PCB magazine rack for SMT loaders, unloaders and MSD bake up to 200 °C (392 °F).

Adjustable PCB Width: 50 to 250 mm (1.97″ to 9.84″)
Slot Pitch: 10 mm (0.394″)
Maximum PCB Size: 355 × 250 mm (13.98″ × 9.84″)
Magazine Rack Size: 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
ESD Rating: Conductive PPE side panels, 10⁴ Ω
Temperature Range: −20 °C to +200 °C (−4 °F to 392 °F)

A clamp screw sets the width once and holds it, run after run. It includes everything you need to use out of the box (assembly required).

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

$253.00per rack · sold individually

ESD safeConductive 10⁴ Ω TemperatureUp to 200 °C (392 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

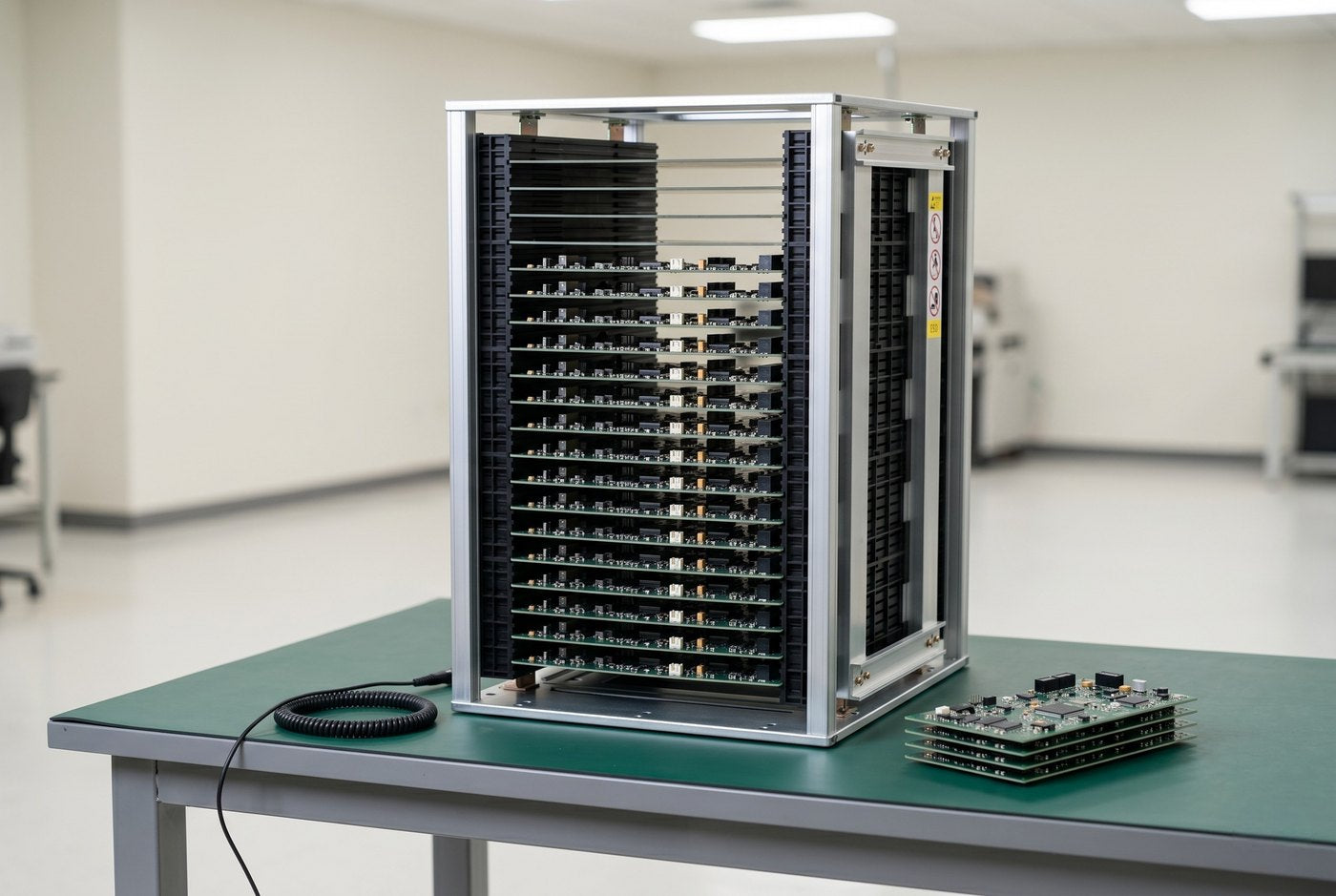

B0104M-200C loaded with circuit boards — Loaded and ready for the line

360° view

At a glance

What it does: Feeds SMT loaders and unloaders, and holds boards safely between process steps.
The problem it solves: Set the width once, from 50 to 250 mm (2 to 9.8 in), and the clamp screw holds it run after run.
What it fits: In-line loaders and unloaders from ASM SIPLACE, Yamaha, Panasonic and Juki.
Key specs: 50 slots · 10 mm (0.4 in) pitch · up to 200 °C (392 °F) · conductive 10⁴ Ω

Details

Set the width once. Run all shift.

The clamp screw holds its setting run after run, through long, high-volume runs.

The engineer, who chooses it: Fits the loaders and unloaders your line already runs, in the heat rating your oven needs. It's the one part of the line you choose once and never think about again.
The operator, who uses it: Set the width, lock it, load the boards. When the line backs up, stack up to five full racks on top of each other.
The buyer, who pays for it: In stock with the price on the page, shipped from the USA in under 24 hours on a card or a PO. When a part wears out years from now, you replace the part, not the rack.

Description

How screw adjustment works through bake

The B0104M-200C is the 200 °C bake-suitable variant on the same screw-clamp mechanism as the B0104N. Width range is the same 50–250 mm (1.97″–9.84″), the chassis dimensions are identical, and the empty weight stays at 6.1 kg, the only difference is the higher-temperature material qualification, which makes the rack bake-suitable per IPC/JEDEC J-STD-033 for moisture-removal cycles (typically 90–125 °C for 24–72 hours).

Construction: 5 interchangeable Conductive PPE side panels per wall, aluminum pillars, galvanized steel base. The screw clamp is a precision threaded mechanism that holds the panel position through repeated thermal cycling, once set, the width does not drift through bake / transport / storage cycles. Conductive, 10⁴ Ω, across all contact points; sectioned panels swap individually if one is damaged.

Pick this variant when MSD baking is part of your workflow and you want the lower-cost set-once mechanism instead of gear-track quick-change. For lines that change widths frequently, the B0103GM-200C gear-track sibling offers the same 200 °C rating with parallelism-monitored quick adjustment. For the standard 80 °C envelope, use the cheaper B0104N-80C.

Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.

Best uses

SMT loading and unloading: Feeds the loader and takes boards off the unloader.
Bake: Boards stay in the rack through bake up to 200 °C (392 °F).
Between process steps: A full lot moves from cell to cell without anyone handling single boards.
Storage: Boards stay upright and apart on the shelf.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
Magazine racks also feed boards straight into SMT loaders and unloaders.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−20 to 200 °C (−4 to 392 °F)

B0104N-80CStorage and in-line SMT handling

80 °C · 176 °F

B0104M-200CThis rackMSD bake at 90 to 125 °C (194 to 257 °F)

200 °C · 392 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Rated to 200 °C (392 °F), so boards stay in the same rack from the line through MSD bake.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

Every side panel is conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

The clamp screw sets the width between the side walls anywhere from 50 to 250 mm (2 to 9.8 in).

Technical data

Model	B0104M-200C
Materials	Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · galvanized steel base
Dimensions (L × W × H)	355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Slot count	50
Slot width	5 mm (0.197″)
Slot depth	3.5 mm (0.138″)
Slot pitch	10 mm (0.394″)
Adjustable board width	50–250 mm (1.97″–9.84″) via screw adjustment mechanism
Max board length	355 mm (13.98″)
Max payload	85 kg (187 lb) spread evenly across the slots
Max board size (L × W)	355 × 250 mm (13.98″ × 9.84″)
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Reference positions	A = 34 mm (1.34″) · B = 34 mm (1.34″)
ESD properties	Surface resistance 10⁴ Ω, conductive
Test reports	ESD and RoHS test reports on request
Temperature range	−20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033
Adjustment type	Screw (precision mechanical, vibration-resistant, holds through bake-oven thermal cycling)
Includes	Stopper bar · carrying handles (top and bottom)
Weight	6.1 kg

Overall size

Machine compatibility

Loader / machine	Series	Interface
ASM SIPLACE	All in-line loaders / unloaders	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Yamaha	YSM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Panasonic	NPM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Juki	RS series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Other in-line SMT	Standard-interface loaders	Ask for a fit-check if your line uses a custom fixture

Not sure your loader is on the list? Send us the model and we confirm fit before you order.

Compared to the other versions

Feature	B0104N-80C	B0104M-200C
Temperature rating	80 °C (176 °F)	−20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033
Width adjustment	Screw set, fixed once	Screw set, fixed once
MSD bake per J-STD-033	No. Transfer to a bake-rated rack first	Yes, boards stay in the rack through bake
Frame	Conductive PPE panels · aluminum pillars · steel base	Conductive PPE panels · aluminum pillars · steel base
Pick this one when	Standard storage, transport and in-line SMT handling.	MSD bake at 90–125 °C, one container from storage through bake to the loader.

Replacing another maker's part? Cross-reference your part number

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.
IPC/JEDEC J-STD-033: The standard for handling, packing and baking moisture-sensitive devices. A rack rated for the bake temperature lets the boards stay in it through the bake.
IPC/JEDEC J-STD-033: The moisture-sensitive-device handling standard. It sets the bake profiles (typically 90–125 °C) used to drive moisture out of MSD boards before reflow, which is why a rack's temperature rating decides whether boards can stay in it through the bake.
RoHS (EU) 2015/863: The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. This product is RoHS compliant; the test report is available on request.

Full IPC and ESD standards reference for handling, storage and depaneling

Features

Turn the clamp screw to set the board width anywhere from 50 to 250 mm (2 to 9.8 in). It holds that setting through vibration and bake-oven heat cycles.
All 50 slots stay parallel at every width, so boards slide in and out cleanly.
Takes boards from 50 × 50 mm (2 × 2 in) up to 355 × 250 mm (14 × 9.8 in).
Conductive PPE side panels, aluminum pillars and a galvanized steel base.
Side panels swap one at a time, so a damaged panel never retires the rack.
Holds up to 85 kg (187 lb) of boards, spread evenly across the slots.
Used at contract manufacturers, at electronics plants in aerospace and defense, automotive and medical devices, and in test and repair labs.
Ships from the USA. In-stock orders placed by noon Pacific ship the same business day.

What's in the box

One B0104M-200C rack, packed flat. It goes together with the supplied screws.
Stopper bar
Carrying handles (top and bottom)
Carton 570 × 370 × 100 mm (22.4 × 14.6 × 3.9 in), 6.1 kg (13.4 lb)

Spares available

Side Panel Kit · 10 Strips, One Rack (Pack of 10)$60.00

Frame & Plate Kit · Rack Structure for One Rack$159.00

FAQ

Questions

What does “bake-suitable per J-STD-033” actually mean for this rack?

IPC/JEDEC J-STD-033 specifies the bake conditions required to remove absorbed moisture from MSDs (Moisture-Sensitive Devices) before reflow. Typical profiles run at 90–125 °C for 24–72 hours, with a 125 °C accelerated cycle option. The B0104M-200C’s 200 °C ceiling provides headroom over the 125 °C accelerated profile, so boards stay in this rack from MSD storage through the full bake cycle without transfer to a separate baking container. The screw clamp holds position through repeated thermal cycling.

What’s the difference between B0104M-200C and B0104N-80C?

Same chassis, same screw mechanism, same materials, same compliance, same weight, the only difference is temperature qualification. The B0104N-80C is rated 80 °C (standard SMT envelope, lower cost). The B0104M-200C is rated 200 °C (bake-suitable per J-STD-033, slightly higher cost). Pick N if your line never sees a bake oven; pick M if any of your line involves moisture-removal bake.

Screw vs gear-track at 200 °C, which one do I pick?

Pick screw (this rack) when your line runs one board width through the bake workflow, lower cost, vibration-resistant, holds position through thermal cycling. Pick the B0103GM-200C gear-track when board widths change between bake cycles and you want quick re-adjustment with parallelism monitoring. Both share the same chassis and materials, conductive at 10⁴ Ω and RoHS compliant.

Will the B0104M-200C drop into my SMT loader / unloader?

Yes. The 563 mm (22.17″) chassis height and 10 mm (0.394″) slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The 355 × 320 mm (13.98″ × 12.60″) footprint is identical to the B0103 family (gear-track, belt, HT) and the B0104N-80C screw sibling. If your line uses a non-standard fixture, ask sales for a fit-check before ordering.

Can I run conformal-coat post-cure or aerospace-grade thermal cycles in this rack?

The B0104M-200C handles conformal-coat post-cure cycles up to 200 °C without panel softening or off-gassing. For aerospace cure or extreme thermal stress testing above 200 °C (typically 250–300 °C), use the B0103GL HT-300C all-aluminum variant on the same chassis, it swaps the Conductive PPE side panels for aluminum to handle the higher temperature.

What ships in the box?

One B0104M-200C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 570 × 370 × 100 mm (22.44″ × 14.57″ × 3.94″) at 6.1 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Ships flat and goes together with the supplied screws.

How much weight can a loaded rack carry?

The load capacity (weight limit) is up to 85 kg (187 lb), spread evenly across the slots. As a check, 50 carrier plates at 1 kg each come to 50 kg, comfortably inside that. The figure is the whole load in the rack, not per slot.

Can I run anodized aluminum carriers or fixtures in this rack?

You can, and the load path here is conductive PPE side panels, the usual choice for bare boards. If you carry anodized aluminum carriers or fixtures and want no polymer touching them at all, the HT version of this chassis replaces every panel with clear anodized aluminum, so anodized rides on anodized, and it stays conductive, 10⁴ Ω.

Is there a 3D model or STEP file for this rack?

Yes, on request. Dimensional drawings and CAD are not posted on the site, so ask through the documentation request page and the team sends the STEP model for this chassis.

Can you ship to our contract manufacturer or an overseas partner?

Yes. Racks ship FOB origin from the US, and we drop ship to a contract manufacturer, a loader vendor, or your own site abroad. Send the delivery address with the order, and if you have a carrier account we book the shipment on it. One order can go to more than one address.
