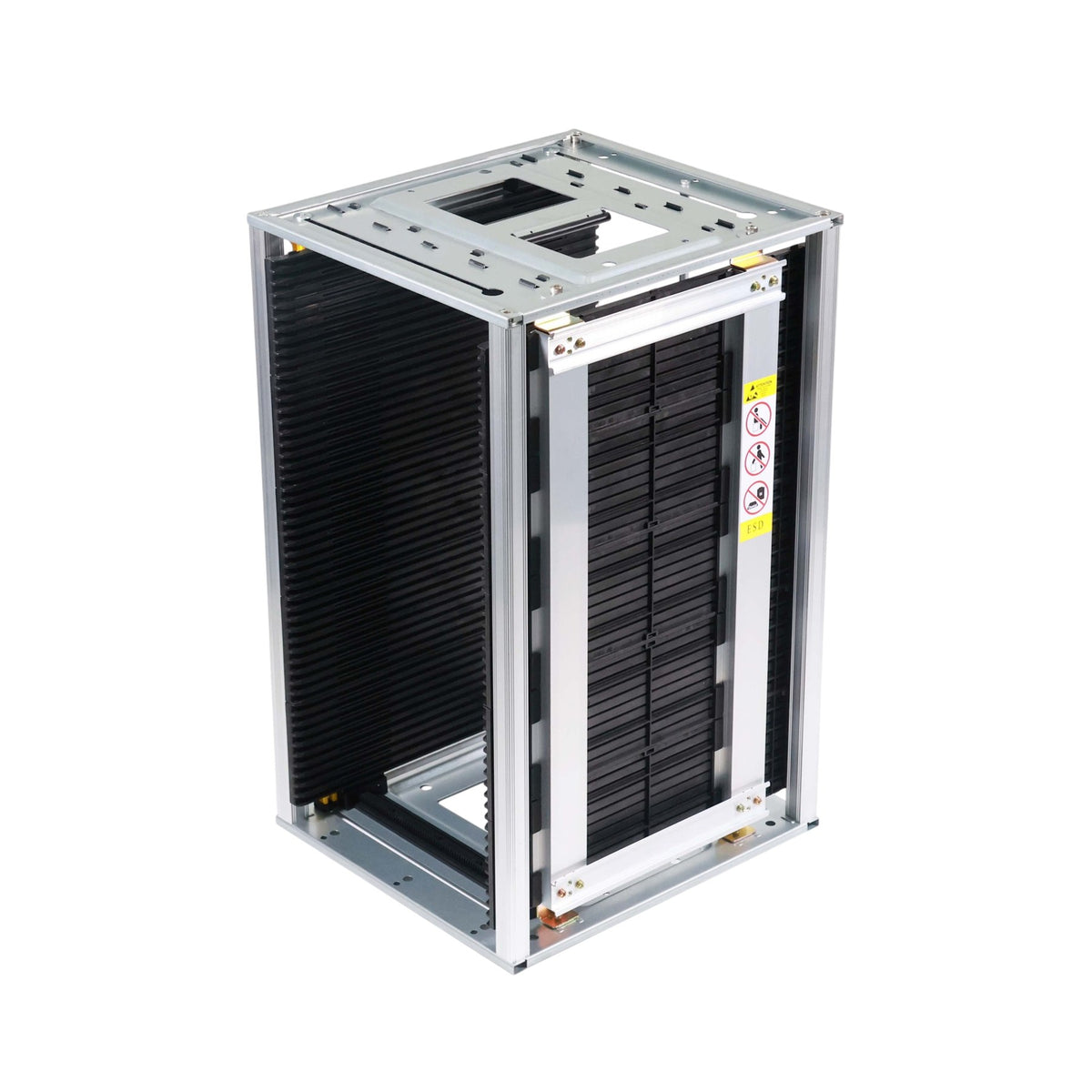

B0103GM-200C ESD PCB magazine rack, three-quarter view: black conductive side panels, aluminum pillars and steel base; 50 slots, 10 mm (0.394 in) pitch, gear-track adjust 50 to 250 mm (1.97 to 9.84 in), rated 200 °C (392 °F)

B0103GM-200C50-Slot Gear-Adjustable ESD PCB Magazine Rack

Magazine Rack · 50 Slots · Gear-Adjustable · 200 °C (392 °F)

B0103GM-200C is a 50-slot ESD PCB magazine rack for SMT loaders, unloaders and MSD bake up to 200 °C (392 °F).

Adjustable PCB Width: 50 to 250 mm (1.97″ to 9.84″)
Slot Pitch: 10 mm (0.394″)
Maximum PCB Size: 355 × 250 mm (13.98″ × 9.84″)
Magazine Rack Size: 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
ESD Rating: Conductive PPE side panels, 10⁴ Ω
Temperature Range: −20 °C to +200 °C (−4 °F to 392 °F)

Gear-track adjustment makes it easy to set the magazine to the required PCB width. It includes everything you need to use out of the box (assembly required).

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

$253.00per rack · sold individually

ESD safeConductive 10⁴ Ω TemperatureUp to 200 °C (392 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

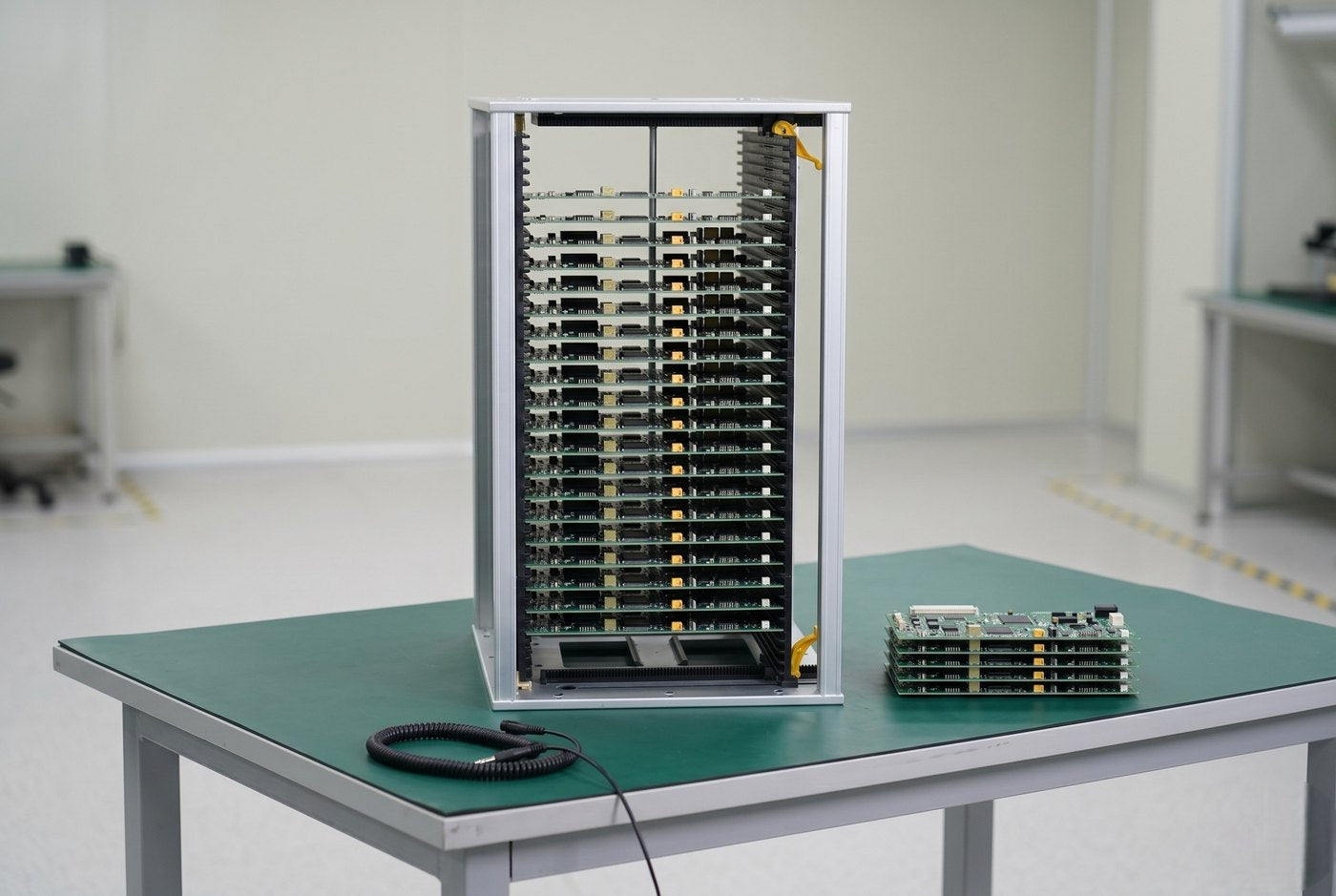

B0103GM-200C loaded with circuit boards — Loaded and ready for the line

360° view

At a glance

What it does: Feeds SMT loaders and unloaders, and holds boards safely between process steps.
The problem it solves: One rack for every board width from 50 to 250 mm (2 to 9.8 in), set with a gear instead of swapping racks.
What it fits: In-line loaders and unloaders from ASM SIPLACE, Yamaha, Panasonic and Juki.
Key specs: 50 slots · 10 mm (0.4 in) pitch · up to 200 °C (392 °F) · conductive 10⁴ Ω

Details

Stop swapping racks every time the board width changes.

One rack for every board width on the line. The shift runs, and nobody calls the engineer to the floor.

The engineer, who chooses it: Fits the loaders and unloaders your line already runs, in the heat rating your oven needs. It's the one part of the line you choose once and never think about again.
The operator, who uses it: Set the width, lock it, load the boards. When the line backs up, stack up to five full racks on top of each other.
The buyer, who pays for it: In stock with the price on the page, shipped from the USA in under 24 hours on a card or a PO. When a part wears out years from now, you replace the part, not the rack.

Description

What it does on your line

The B0103GM-200C is a 50-slot ESD magazine rack rated to 200 °C (392 °F), built for in-line SMT automation plus moisture-sensitive device (MSD) baking. Same chassis and gear-track mechanism as the B0103GN-80C, the difference is the higher-temperature material qualification, which makes the rack bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles (typically 90–125 °C for 24–72 hours).

Construction: 5 interchangeable Conductive PPE side panels per wall, aluminum pillars, galvanized steel base. The mixed-material build maintains structural rigidity through repeated thermal cycling, and keeps the entire current path conductive, at 10⁴ Ω. Boards stay in this rack from MSD storage through bake through the SMT line, no transfer container, no extra ESD exposure points.

Gear-track adjustment sets board width from 50 to 250 mm (1.97″ to 9.84″) with parallelism maintained across all 50 slots. For higher-temperature aerospace or extreme cure cycles (300 °C), use the B0103GL HT-300C all-aluminum sibling on the same chassis.

Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.

Best uses

SMT loading and unloading: Feeds the loader and takes boards off the unloader.
Bake: Boards stay in the rack through bake up to 200 °C (392 °F).
Between process steps: A full lot moves from cell to cell without anyone handling single boards.
Storage: Boards stay upright and apart on the shelf.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
Magazine racks also feed boards straight into SMT loaders and unloaders.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−20 to 200 °C (−4 to 392 °F)

B0103GN-80CStorage and in-line SMT handling

80 °C · 176 °F

B0103GM-200CThis rackMSD bake at 90 to 125 °C (194 to 257 °F)

200 °C · 392 °F

B0103GL HT-300CLead-free reflow loading and aerospace cure

300 °C · 572 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Rated to 200 °C (392 °F), so boards stay in the same rack from the line through MSD bake. For higher heat, the same rack comes in a 300 °C (572 °F) version.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

Every side panel is conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

The gear sets the width between the side walls anywhere from 50 to 250 mm (2 to 9.8 in).

Technical data

Model	B0103GM-200C
Materials	Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · galvanized steel base
Dimensions (L × W × H)	355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Slot count	50
Slot width	5 mm (0.197″)
Slot depth	3.5 mm (0.138″)
Slot pitch	10 mm (0.394″)
Adjustable board width	50–250 mm (1.97″–9.84″) via gear-track mechanism
Max board length	355 mm (13.98″)
Max payload	85 kg (187 lb) spread evenly across the slots
Max board size (L × W)	355 × 250 mm (13.98″ × 9.84″)
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Reference positions	A = 34 mm (1.34″) · B = 34 mm (1.34″)
ESD properties	Surface resistance 10⁴ Ω, conductive
Test reports	ESD and RoHS test reports on request
Temperature range	−20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033
Adjustment type	Gear track with parallelism monitoring
Includes	Stopper bar · carrying handles (top and bottom)
Weight	6.3 kg

Overall size

Machine compatibility

Loader / machine	Series	Interface
ASM SIPLACE	All in-line loaders / unloaders	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Yamaha	YSM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Panasonic	NPM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Juki	RS series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Other in-line SMT	Standard-interface loaders	Ask for a fit-check if your line uses a custom fixture

Not sure your loader is on the list? Send us the model and we confirm fit before you order.

Compared to the other versions

Feature	B0103GC BELT-80C	B0103GN-80C	B0103GL HT-300C	B0103GM-200C
Temperature rating	−20 °C to +80 °C (−4 °F to 176 °F)	−20 °C to +80 °C (−4 °F to 176 °F)	−20 °C to +300 °C (−4 °F to 572 °F), top of the magazine-rack thermal range	−20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033
Width adjustment	Continuous belt, no stepped indices	Gear track, parallelism monitored	Gear track, parallelism monitored	Gear track, parallelism monitored
MSD bake per J-STD-033	No. Transfer to a bake-rated rack first	No. Transfer to a bake-rated rack first	Yes, boards stay in the rack through bake	Yes, boards stay in the rack through bake
Frame	Conductive PPE panels · aluminum pillars · steel base	Conductive PPE panels · aluminum pillars · steel base	All-aluminum	Conductive PPE panels · aluminum pillars · steel base
Pick this one when	Belt-set widths for mixed board runs.	Standard storage, transport and in-line SMT handling.	Lead-free reflow direct loading, aerospace cure, high-heat stress testing.	MSD bake at 90–125 °C, one container from storage through bake to the loader.

Replacing another maker's part? Cross-reference your part number

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.
IPC/JEDEC J-STD-033: The standard for handling, packing and baking moisture-sensitive devices. A rack rated for the bake temperature lets the boards stay in it through the bake.
IPC/JEDEC J-STD-033: The moisture-sensitive-device handling standard. It sets the bake profiles (typically 90–125 °C) used to drive moisture out of MSD boards before reflow, which is why a rack's temperature rating decides whether boards can stay in it through the bake.
RoHS (EU) 2015/863: The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. This product is RoHS compliant; the test report is available on request.

Full IPC and ESD standards reference for handling, storage and depaneling

Features

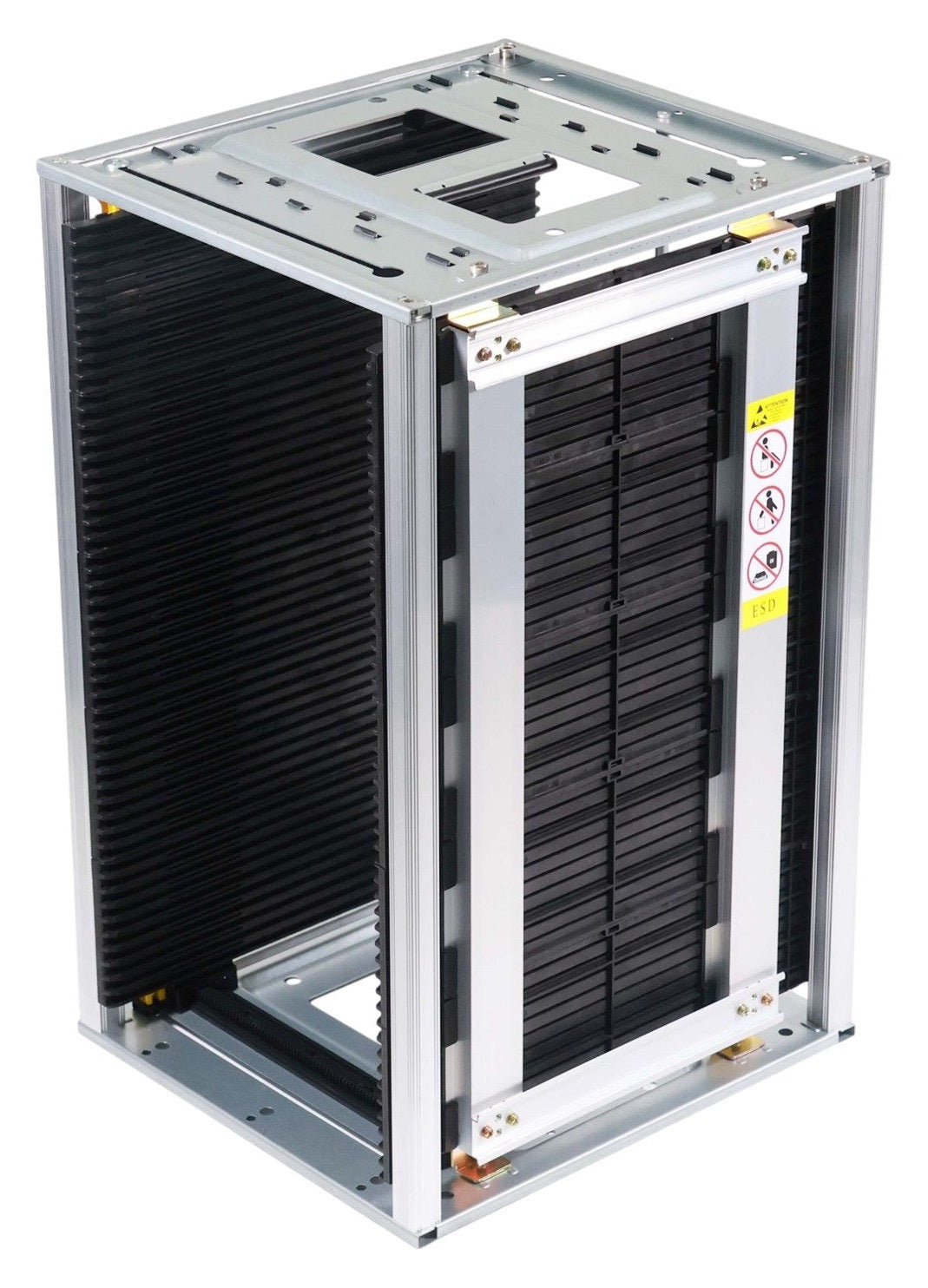

Turn the gear to set the board width anywhere from 50 to 250 mm (2 to 9.8 in). One rack covers every board width in that range.
All 50 slots stay parallel at every width, so boards slide in and out cleanly.
Takes boards from 50 × 50 mm (2 × 2 in) up to 355 × 250 mm (14 × 9.8 in).
Conductive PPE side panels, aluminum pillars and a galvanized steel base.
Side panels swap one at a time, so a damaged panel never retires the rack.
Holds up to 85 kg (187 lb) of boards, spread evenly across the slots.
Used at contract manufacturers, at electronics plants in aerospace and defense, automotive and medical devices, and in test and repair labs.
Ships from the USA. In-stock orders placed by noon Pacific ship the same business day.

What's in the box

One B0103GM-200C rack, packed flat. It goes together with the supplied screws.
Stopper bar
Carrying handles (top and bottom)
Carton 570 × 370 × 100 mm (22.4 × 14.6 × 3.9 in), 6.3 kg (13.9 lb)

Spares available

Rack Wear Kit · Services One 50-Slot Gear-Adjust Rack$99.00

Side Panel Kit · 10 Strips, One Rack (Pack of 10)$60.00

Frame & Plate Kit · Rack Structure for One Rack$159.00

FAQ

Questions

What does “bake-suitable per J-STD-033” actually mean?

IPC/JEDEC J-STD-033 specifies the bake conditions required to remove absorbed moisture from MSDs (Moisture-Sensitive Devices) before reflow. Typical profiles run at 90–125 °C for 24–72 hours, with a 125 °C accelerated cycle option for shorter durations. The GM-200C’s 200 °C ceiling provides headroom over the 125 °C accelerated profile, so boards can stay in this rack from MSD storage through the full bake cycle without transfer to a separate baking container.

What’s the difference between the GM-200C and the GN-80C?

Same chassis, same gear track, same materials, same compliance, same weight, the only difference is temperature qualification. The B0103GN-80C is rated −20 °C to +80 °C (standard SMT envelope, lower cost). The B0103GM-200C is rated −20 °C to +200 °C (bake-suitable per J-STD-033, slightly higher cost). Pick GN if your boards never see a bake cycle; pick GM if any of your line involves moisture-removal bake.

Will the B0103GM-200C drop into my SMT loader / unloader?

Yes. The 563 mm (22.17″) chassis height and 10 mm (0.394″) slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The 355 × 320 mm (13.98″ × 12.60″) footprint is identical to the B0103GN-80C, B0103GC BELT-80C, and B0103GL HT-300C variants. If your line uses a non-standard fixture, ask sales for a fit-check before ordering.

What does “parallelism monitored” gear-track adjustment actually do?

Both side panels travel on a synchronized rack-and-pinion gear track. Turn the adjustment knob on either side and the opposite panel travels the same distance in the same direction, parallelism is mechanically monitored, not just operator-eyeballed. The result: a width spec set on Monday loads the same boards on Friday, and both panels stay parallel through the full 50–250 mm (1.97″–9.84″) travel range.

Can I run conformal coat post-cure or aerospace-grade thermal cycles in this rack?

The GM-200C handles conformal-coat post-cure cycles up to 200 °C without panel softening or off-gassing. For aerospace cure or extreme thermal stress testing above 200 °C (typically 250–300 °C), use the B0103GL HT-300C all-aluminum variant on the same chassis, it swaps the Conductive PPE side panels for aluminum to handle the higher temperature.

What ships in the box?

One B0103GM-200C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 570 × 370 × 100 mm (22.44″ × 14.57″ × 3.94″) at 6.3 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Ships flat and goes together with the supplied screws.

How much weight can a loaded rack carry?

The load capacity (weight limit) is up to 85 kg (187 lb), spread evenly across the slots. As a check, 50 carrier plates at 1 kg each come to 50 kg, comfortably inside that. The figure is the whole load in the rack, not per slot.

Can I run anodized aluminum carriers or fixtures in this rack?

You can, and the load path here is conductive PPE side panels, the usual choice for bare boards. If you carry anodized aluminum carriers or fixtures and want no polymer touching them at all, the HT version of this chassis replaces every panel with clear anodized aluminum, so anodized rides on anodized, and it stays conductive, 10⁴ Ω.

Is there a 3D model or STEP file for this rack?

Yes, on request. Dimensional drawings and CAD are not posted on the site, so ask through the documentation request page and the team sends the STEP model for this chassis.

Can you ship to our contract manufacturer or an overseas partner?

Yes. Racks ship FOB origin from the US, and we drop ship to a contract manufacturer, a loader vendor, or your own site abroad. Send the delivery address with the order, and if you have a carrier account we book the shipment on it. One order can go to more than one address.
