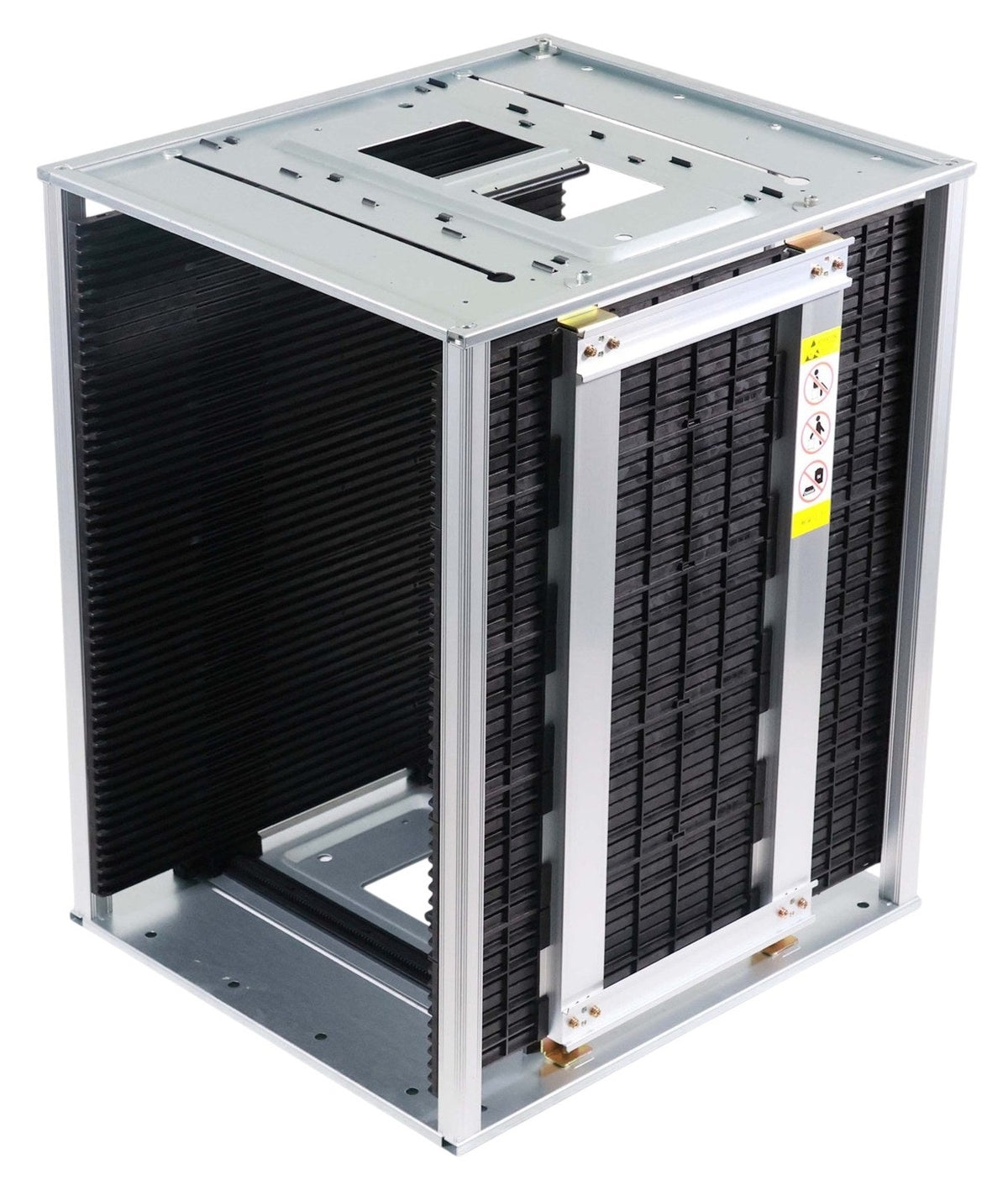

B0106GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
B0106GM-200C200 °CIn stock · ships in under 24 h · USA
The B0106GM-200C is a 50-slot ESD-safe PCB magazine rack with gear-track width adjustment, rated −20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033. Slot pitch is 10 mm, board width adjusts from 50–330 mm. It ships from California and fits standard in-line SMT loaders.
External dimensions (L × W × H)18″ × 16″ × 22″
460 × 400 × 563 mm
$333.00 per unit
- Adjustable Width: 50–330 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 460 × 330 mm
- Temp Range: −20 / +200 °C
Replacing another maker's part? Cross-reference your part number →
ESD-safe
Ships from the USA
Spec help included
At a glance
External dimensions (L × W × H)18″ × 16″ × 22″
460 × 400 × 563 mm
460 × 400 × 563 mm
Adjustable Width50–330 mm
Slot Count / Pitch50 @ 10 mm
Max Board (L × W)460 × 330 mm
Temp Range−20 / +200 °C
Stop Transferring Large MSD Boards Between Bake Tray and Loader.
Standard 80 °C racks can’t enter a bake oven, so MSD boards have to move into a separate baking container and back, extra handling, extra ESD exposure, extra chance of damage on big boards. The B0106GM-200C is rated to 200 °C on the same large-format chassis: boards stay in the same rack from MSD storage through 125 °C bake through the SMT loader. One container, one workflow.
200 °C bake-suitable
J-STD-033 compliant
50–330 mm adjustable
SMT loader compatible
Description
External dimensions (L × W × H): 18″ × 16″ × 22″ · 460 × 400 × 563 mm
What it does on your line

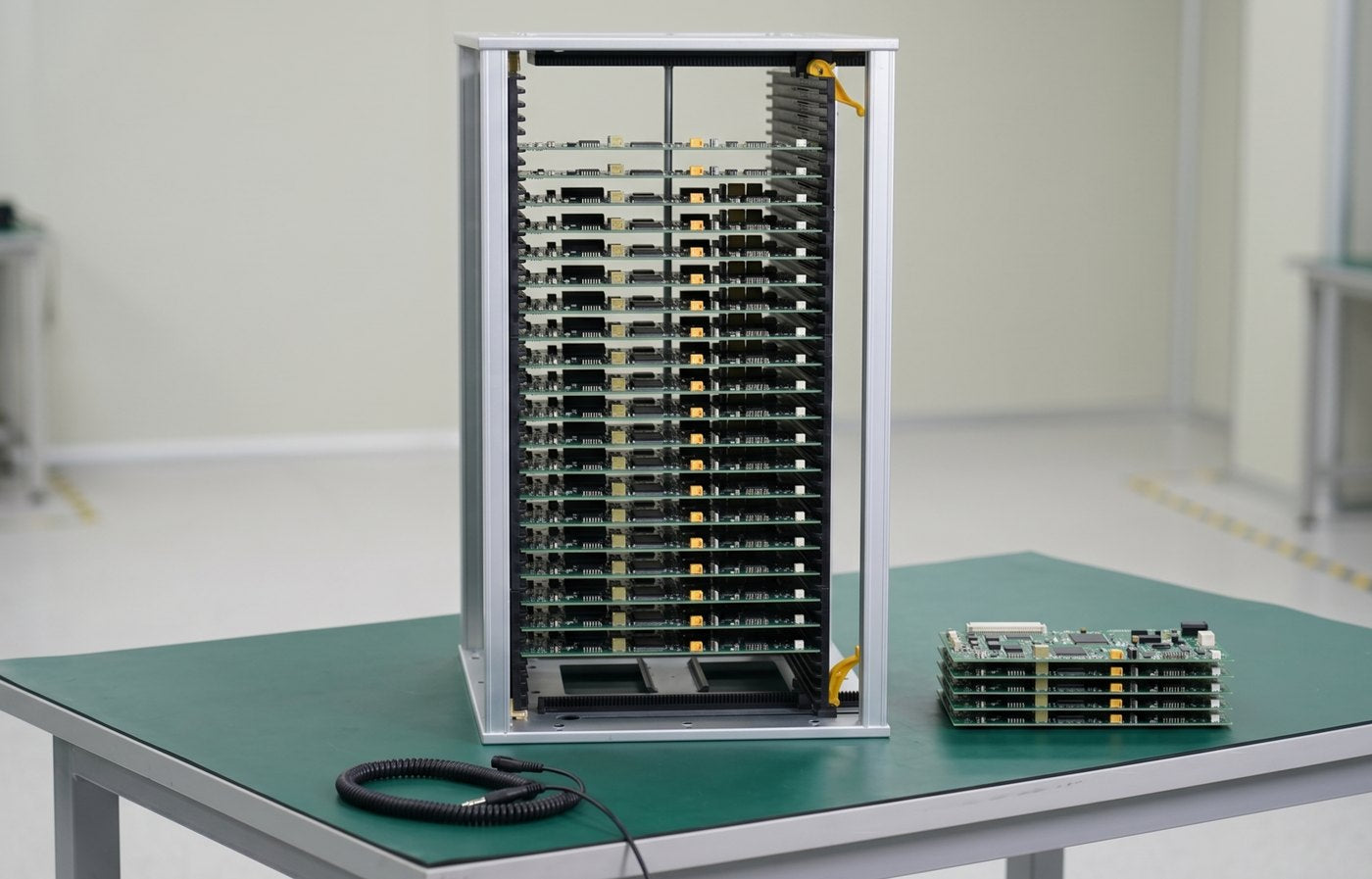

The B0106GM-200C is a large-format 50-slot ESD magazine rack rated to 200 °C (392 °F), built for in-line SMT automation plus moisture-sensitive device (MSD) baking on big boards. Same chassis and gear-track mechanism as the B0106GN-80C, the difference is the higher-temperature material qualification, which makes the rack bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles (typically 90–125 °C for 24–72 hours).
Construction: 5 interchangeable Conductive PPE side panels per wall, aluminum pillars, galvanized steel base. Same 10⁴–10⁶ Ω surface resistance in the dissipative band under ANSI/ESD S541, same NASTC test report. The bake-suitable PPE qualification adds headroom for J-STD-033 accelerated bake (125 °C) and conformal-coat post-cure (typically 150–200 °C) without panel softening or off-gassing.
Gear-track adjustment sets board width from 50 to 330 mm with parallelism maintained across all 50 slots. For aerospace-grade cure cycles above 200 °C, use the B0106GL HT-300C all-aluminum sibling on the same large chassis (300 °C ceiling, swaps PPE for aluminum panels).
Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.
See it in motion
360° turntable rendered from the production CAD model. The geometry shown is the part that ships · B0106GM-200C
B0106GM-200C · Technical specifications
| Model | B0106GM-200C |
|---|---|
| Materials | Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · galvanized steel base |
| Dimensions (L × W × H) | 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 3.5 mm (0.138″) |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 50–330 mm (1.97″–12.99″) via gear-track mechanism |
| Max board length | 460 mm (18.11″) |
| Max board size (L × W) | 460 × 330 mm |
| Min board size (L × W) | 50 × 50 mm |
| Reference positions | A = 34 mm · B = 34 mm |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (dissipative band per ANSI/ESD S541) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033 |
| Adjustment type | Gear track with parallelism monitoring |
| Includes | Stopper bar · carrying handles (top and bottom) |
| Weight | 8.3 kg |
Documentation
Download spec sheet (PDF)
Need drawings or CAD models? Request them by email
Machine compatibility
| Loader / machine | Series | Interface |
|---|---|---|
| ASM SIPLACE | All in-line loaders / unloaders | 563 mm chassis · 10 mm slot pitch |
| Yamaha | YSM series | 563 mm chassis · 10 mm slot pitch |
| Panasonic | NPM series | 563 mm chassis · 10 mm slot pitch |
| Juki | RS series | 563 mm chassis · 10 mm slot pitch |
| Other in-line SMT | Standard-interface loaders | Ask for a fit-check if your line uses a custom fixture |
Not sure your loader is on the list? Send us the model and we confirm fit before you order.
Against the alternatives
| Feature | B0106GC BELT-80C | B0106GN-80C | B0106GL HT-300C | B0106GM-200C |
|---|---|---|---|---|
| Temperature rating | −20 °C to +80 °C (−4 °F to 176 °F) | −20 °C to +80 °C (−4 °F to 176 °F) | −20 °C to +300 °C (−4 °F to 572 °F), top of the magazine-rack thermal range | −20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033 |
| Width adjustment | Continuous belt, no stepped indices | Gear track, parallelism monitored | Gear track, parallelism monitored | Gear track, parallelism monitored |
| MSD bake per J-STD-033 | No. Transfer to a bake-rated rack first | No. Transfer to a bake-rated rack first | Yes, boards stay in the rack through bake | Yes, boards stay in the rack through bake |
| Frame | Conductive PPE panels · aluminum pillars · steel base | Conductive PPE panels · aluminum pillars · steel base | All-aluminum | Conductive PPE panels · aluminum pillars · steel base |
| Pick this one when | Belt-set widths for mixed board runs. | Standard storage, transport and in-line SMT handling. | Lead-free reflow direct loading, aerospace cure, high-heat stress testing. | MSD bake at 90–125 °C, one container from storage through bake to the loader. |
Built for ESD-protected workstations
Materials: 5 × Conductive PPE side panels · aluminum pillars · galvanized steel base
Surface res.: 10⁴ – 10⁶ Ω, dissipative band per ANSI/ESD S541
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all PASS
Thermal range: −20 °C to +200 °C, bake-suitable per IPC/JEDEC J-STD-033
Capacity: 50 slots · 10 mm pitch · 50–330 mm adjustable · max board 460 × 330 mm
RoHS: PASS, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: MSD moisture-removal bake (J-STD-033) · in-line SMT automation · post-cure storage · thermal cycling · large-format (up to 460 × 330 mm) board lines.
Why buy: Aerospace-grade build, stocked in the USA, full B0106 chassis family (GN / GM / GC BELT / GL HT) sharing one footprint, mix variants on one purchase order with the same logistics, same compliance package, same volume tier. One workflow from MSD storage through bake through the loader.
Standards referenced
- IPC/JEDEC J-STD-033
- The moisture-sensitive-device handling standard. It sets the bake profiles (typically 90–125 °C) used to drive moisture out of MSD boards before reflow, which is why a rack's temperature rating decides whether boards can stay in it through the bake.
- ANSI/ESD S541
- The ESD Association standard for packaging materials in an EPA. It classifies surface resistance into conductive (below 10⁴ Ω), dissipative (10⁴ to below 10¹¹ Ω) and insulative bands. Our measured 10⁴–10⁶ Ω sits in the dissipative band, the range specified for board handling.
- RoHS (EU) 2015/863
- The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. All 20 components of this product were tested and passed (SGS report NGBEC25007648601).
Full IPC and ESD standards reference for handling, storage and depaneling →
What's in the box
- Sold individually. Packaging size 570 × 470 × 100 mm at 8.3 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Includes stopper bar and carrying handles (top + bottom).
Volume pricing
| Quantity | Price per unit | You save |
|---|---|---|
| 1–19 racks | $333 | Factory-direct price |
| 20+ racks | $299.70 | 10% |
Related parts & spares
Side Panel Kit · 10 Strips, One Rack (Pack of 10)
Ten side strips, a full set for one rack. Pick chassis and temp.
$6.00per unit Pack of 10 · $60.00
Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00Further reading
- Baking MSD boards per J-STD-033Why a rack's temperature rating decides whether boards change containers for the bake.
- Sizing a rack to your boardsThe four measurements that decide fit, including component envelope against slot pitch.
- Gear, screw or belt adjustmentWhich mechanism suits your changeover pattern, and what wears out.
- Will the rack fit my SMT loader?Chassis height, slot pitch and footprint, plus custom-fixture checks.
Engineers also bought
Rack Wear Kit · 50-Slot Magazine Rack Consumables
Every wear part for one gear-adjust rack: tracks, latches, stopper bar, gears, slot stoppers.
$99.00Side Panel Kit · 10 Strips, One Rack (Pack of 10)
Ten side strips, a full set for one rack. Pick chassis and temp.
$6.00per unit Pack of 10 · $60.00Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00
B0103GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.
External dimensions (L × W × H)
14″ × 13″ × 22″
355 × 320 × 563 mm
Max board size (L × W)
14″ × 10″
355 × 250 mm
Gear · 200 °C ESD-Safe$253.00
B0103GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack built for in-line SMT loaders and unloaders.
External dimensions (L × W × H)
14″ × 13″ × 22″
355 × 320 × 563 mm
Max board size (L × W)
14″ × 10″
355 × 250 mm
Gear track ESD-Safe$188.00
B0105GPM-120C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack with conductive PS base rated to 120 °C (248 °F), covers most MSD low-bake profiles (90–110 °C) without stepping up to a metal-base 200 °C rack.
External dimensions (L × W × H)
14″ × 13″ × 22″
355 × 320 × 563 mm
Max board size (L × W)
14″ × 10″
355 × 250 mm
Gear · 120 °C bake ESD-Safe$195.00
B0105GPN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack with conductive PS base in place of galvanized steel, the lightest rack in the magazine catalog.
External dimensions (L × W × H)
14″ × 13″ × 22″
355 × 320 × 563 mm
Max board size (L × W)
14″ × 10″
355 × 250 mm
Gear track ESD-Safe$179.00
Questions engineers ask
Will the B0106GM-200C drop into my SMT loader / unloader?
The 563 mm chassis height and 10 mm slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The 460 × 400 mm footprint is the large-format chassis (vs the 355 × 320 standard B0103), many loaders are configured for both, but confirm with your loader / unloader vendor before ordering. Reference offsets A=34, B=34 are shared across the B0106 chassis family (GN-80C, GM-200C, GC BELT-80C; GL HT-300C uses A=34 / B=33).
What does “parallelism monitored” gear-track adjustment actually do?
Both side panels travel on a synchronized rack-and-pinion gear track. Turn the adjustment knob on either side and the opposite panel travels the same distance in the same direction, parallelism is mechanically monitored, not just operator-eyeballed. The result: a width spec set on Monday loads the same boards on Friday, and both panels stay parallel through the full 50–330 mm travel range.
What does “bake-suitable per J-STD-033” actually mean?
IPC/JEDEC J-STD-033 specifies the bake conditions required to remove absorbed moisture from MSDs (Moisture-Sensitive Devices) before reflow. Typical profiles run at 90–125 °C for 24–72 hours, with a 125 °C accelerated cycle option for shorter durations. The GM-200C’s 200 °C ceiling provides headroom over the 125 °C accelerated profile, so big boards (up to 460 × 330 mm) can stay in this rack from MSD storage through the full bake cycle without transfer to a separate baking container.
What’s the difference between this and a slotted-edge rack like RA-18C?
The B0106GM-200C is a large-format bake-suitable magazine rack: 50 slots, 10 mm pitch, designed to drop into in-line SMT loader / unloader equipment. The RA-18C is a slotted-edge transport rack: 25 slots at wider pitch, designed for benchtop / between-bench manual transport, not for in-line equipment. Pick magazine racks for SMT-line integration; pick slotted-edge for hand carry / bench-side WIP.
Can I replace a damaged side panel without buying a whole new rack?
Yes. The side panels are made of 5 interchangeable Conductive PPE sections per wall, each individually replaceable. If one section gets cracked or contaminated, swap that section out and the rest of the rack stays in service. Rack spares are sold separately for every magazine-rack chassis we’ve ever shipped, on a ~1-week lead.
What ships in the box?
One B0106GM-200C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 570 × 470 × 100 mm at 8.3 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. No assembly required.
