Frame & Plate Kit contents: top and bottom plates, movable side frame, fixed side frame, four aluminum pillars
STRUCTURE, ONE BOX

Frame & Plate Kit · Rack Structure for One Rack

FRAME-PLATE-KITUsually in stock, else 1 to 2 weeks · USA

The Frame & Plate Kit is a service kit that renews one rack in a single box: 8 parts · 4 part numbers. It fits B0103 · B0104 · B0105 · B0106 / B0107 · B0108 · B0109. One kit covers one complete rack, it is not sold per piece.

$159.00 per kit One kit services one complete rack. Not sold per piece.
  • 1 top plate + 1 bottom plate + 1 movable side frame + 1 fixed side frame + 4 aluminum pillars
  • Chassis-correct sizes with one selector pick
  • Panel strips and wear parts are separate kits

Inside this kit

  • 1 x Top plate. P/N RACK-SPARE-1. Caps the top of the frame.
  • 1 x Bottom plate. P/N RACK-SPARE-1. Caps the base of the frame.
  • 1 x Movable side frame. P/N RACK-SPARE-2. The gear-track side that adjusts board width.
  • 1 x Fixed side frame. P/N RACK-SPARE-3. The stationary side of the rack.
  • 4 x Aluminum pillar. P/N RACK-SPARE-6. Corner posts sized for the chassis.

Not sure which one? Send your spec. We confirm before it ships.

Helps us match the generation and slot pitch. We supply spares for these racks wherever you bought them.

Ask an engineer

Replacing another maker's part? Cross-reference your part number →

Spec sheet (PDF)Drawings / CAD (by email)

Heads-up: $300 order minimum. Combine spares or add to a rack order.

ESD-safe Ships from the USA Spec help included

At a glance

Coversthe complete frame of one rack
FitsB0103 · B0104 · B0105 · B0106 / B0107 · B0108 · B0109
Contents8 parts · 4 part numbers
Not includedpanel strips (Side Panel Kit) and wear parts (Rack Wear Kit)

Description

The structure of one rack in one box. Every structural part of a 50-slot magazine rack:

  • 1 x Top plate. P/N RACK-SPARE-1. Caps the top of the frame.
  • 1 x Bottom plate. P/N RACK-SPARE-1. Caps the base of the frame.
  • 1 x Movable side frame. P/N RACK-SPARE-2. The gear-track side that adjusts board width.
  • 1 x Fixed side frame. P/N RACK-SPARE-3. The stationary side of the rack.
  • 4 x Aluminum pillar. P/N RACK-SPARE-6. The corner posts, sized for the chassis.

Compatibility. Pick your chassis in the selector: B0103 / B0104 / B0105, B0106 / B0107, B0108 or B0109. Every part comes sized for that chassis.

Not included. The 10 small side panel strips are the Side Panel Kit. Wear parts (gear tracks, latches, stopper bar, gears, slot stoppers) are the Rack Wear Kit. One kit is the structure for one rack.

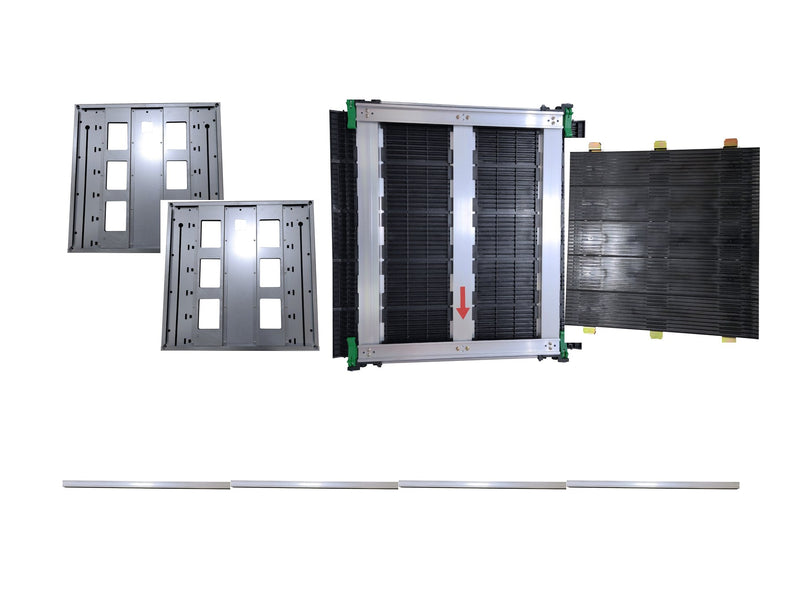

Frame & Plate Kit contents: top and bottom plates, movable side frame, fixed side frame, four aluminum pillars
FIG. 2FRAME-PLATE-KIT

What's in the box

  • 1 x Top plate. P/N RACK-SPARE-1. Caps the top of the frame.
  • 1 x Bottom plate. P/N RACK-SPARE-1. Caps the base of the frame.
  • 1 x Movable side frame. P/N RACK-SPARE-2. The gear-track side that adjusts board width.
  • 1 x Fixed side frame. P/N RACK-SPARE-3. The stationary side of the rack.
  • 4 x Aluminum pillar. P/N RACK-SPARE-6. Corner posts sized for the chassis.

Further reading

Engineers also bought

Questions engineers ask

Does it include the small side panels?
No. The 10 panel strips are the Side Panel Kit, sold separately by chassis and temperature.
Is one kit enough for one rack?
Yes. One kit is the complete structure for one rack.
