B0106GC BELT-80C · 50-Slot Belt-Adjustable ESD Magazine Rack
B0106GC BELT-80C80 °CIn stock · USA
50-slot ESD magazine rack on the large-format chassis, with continuous belt adjustment covering 10–330 mm of board width, no stepped clicks, no fixed indices. The widest belt range in the standard chassis tier, with the same 5× narrower minimum as the B0103GC. Narrow flex circuits, daughter cards, and full 460 × 330 mm boards all run on the same rack inventory. Conductive PS panels + 2 H-type stoppers + galvanized steel base; NASTC ESD-tested, SGS RoHS PASS. Stocked in the USA.
$420.50 per unit
- Adjustable Width: 10–330 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 460 × 330 mm
- Temp Range: −20 / +80 °C
ESD-safe
Ships from the USA
Spec help included

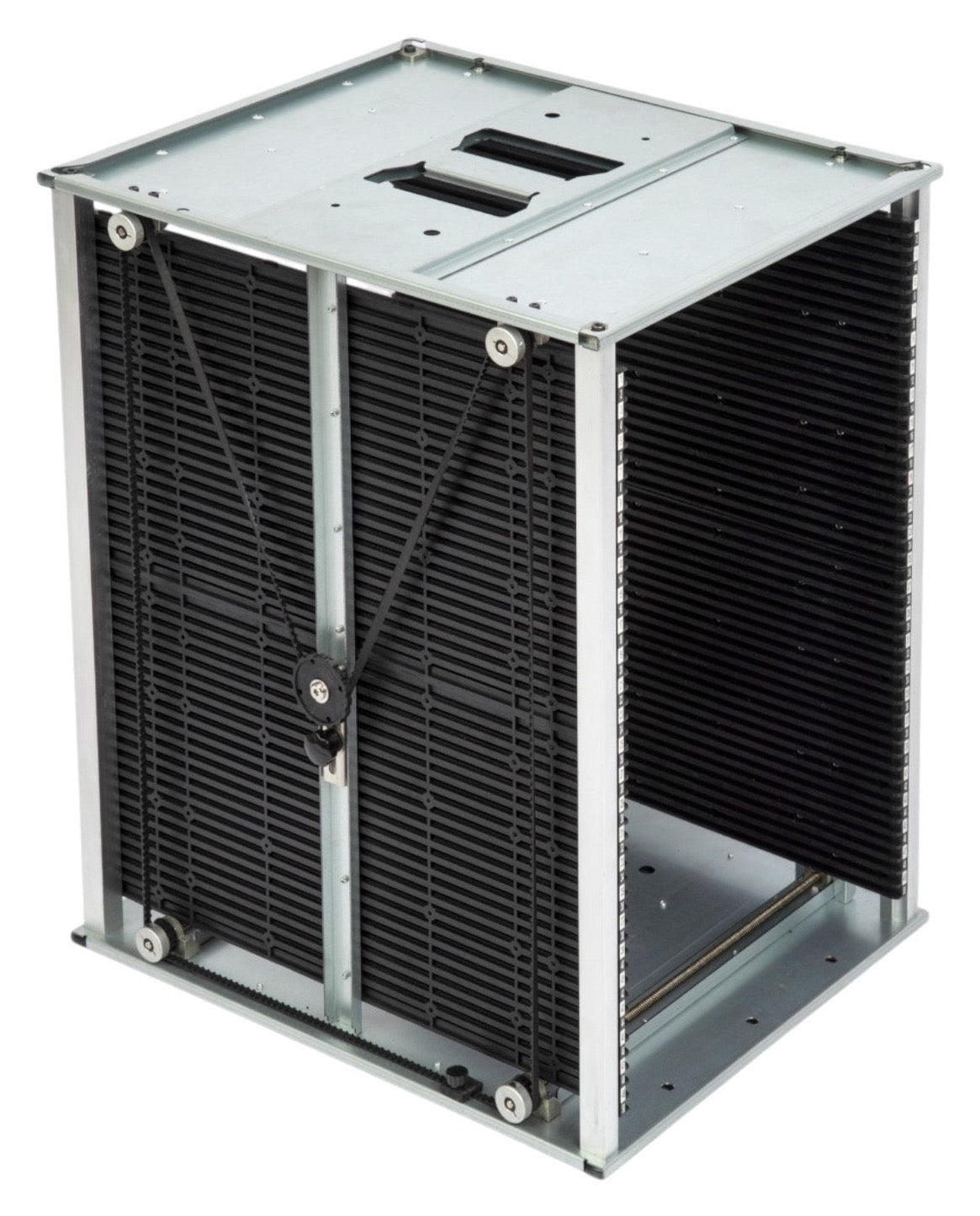

Narrow Flex AND Full Large-Format Boards on One Rack.
REF 01Gear-track racks bottom out at **50 mm board width**. The belt-adjustable B0106GC BELT-80C on the large-format chassis covers the full **10–330 mm** range continuously, the widest belt range in the standard chassis tier. **10 mm flex circuits, 50 mm daughter cards, and 330 mm full-size production boards** all run on the same rack inventory.
10 mm min width
330 mm max width
Continuous belt
SMT loader compatible
At a glance
REF 02Adjustable Width10–330 mm
Slot Count / Pitch50 @ 10 mm
Max Board (L × W)460 × 330 mm
Temp Range−20 / +80 °C
Description
REF 03How belt adjustment works on your line
The B0106GC BELT-80C is a large-format 50-slot ESD magazine rack with continuous belt-driven width adjustment. A hand-driven belt rotates pulleys at the top and bottom of the chassis, turning two captive lead screws in unison, both side panels travel toward or away from each other on the same revolution. The adjustment is continuous (no stepped clicks, no fixed indices), so any board width from 10 mm to 330 mm is reachable on a single rack.
Construction: 2 interchangeable Conductive PS side panels, aluminum pillars, galvanized steel base, and 2 H-type stopper plates (vs. the single stopper bar on gear-track variants). The slot is 5 mm wide × 4 mm deep, deeper than the gear-track 3.5 mm slot, for tighter board retention through inline conveyor handling. Surface resistance stays in the conductive 10⁴–10⁶ Ω band per ESD Association classification.
Designed for the standard 80 °C ambient envelope. For bake or cure cycles, the large-format chassis family also includes the B0106GN-80C / GM-200C gear-track variants and the GL HT-300C all-aluminum sibling.
See it in motion
REF 04360° rotation · B0106GC BELT-80C
Technical specifications
REF 05| Model | B0106GC BELT-80C |
|---|---|
| Materials | Conductive PS side panels (2 × interchangeable) · aluminum pillars · galvanized steel base |
| Dimensions (L × W × H) | 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 4 mm (0.157″), deeper than the gear-track 3.5 mm |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 10–330 mm (0.39″–12.99″) via belt (continuous, no stepped increments) |
| Max board length | 460 mm (18.11″) |
| Max board size (L × W) | 460 × 330 mm |
| Min board size (L × W) | 50 × 10 mm, 5× narrower than gear-track |
| Reference positions | A = 34 mm · B = 34 mm |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (conductive band per ESD Association) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +80 °C (−4 °F to 176 °F) |
| Adjustment type | Belt (continuous, no stepped increments) |
| Includes | 2 H-type stopper plates · carrying handles (top and bottom) |
| Weight | 12.5 kg |
Documentation
Built for ESD-protected workstations
REF 07Materials: 2 × Conductive PS side panels · aluminum pillars · galvanized steel base · 2 H-type stoppers
Surface res.: 10⁴ – 10⁶ Ω, conductive band per ESD Association
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all **PASS**
Thermal range: −20 °C to +80 °C, standard SMT envelope
Capacity: 50 slots · 10 mm pitch · **10–330 mm adjustable** · max board 460 × 330 mm
RoHS: **PASS**, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.

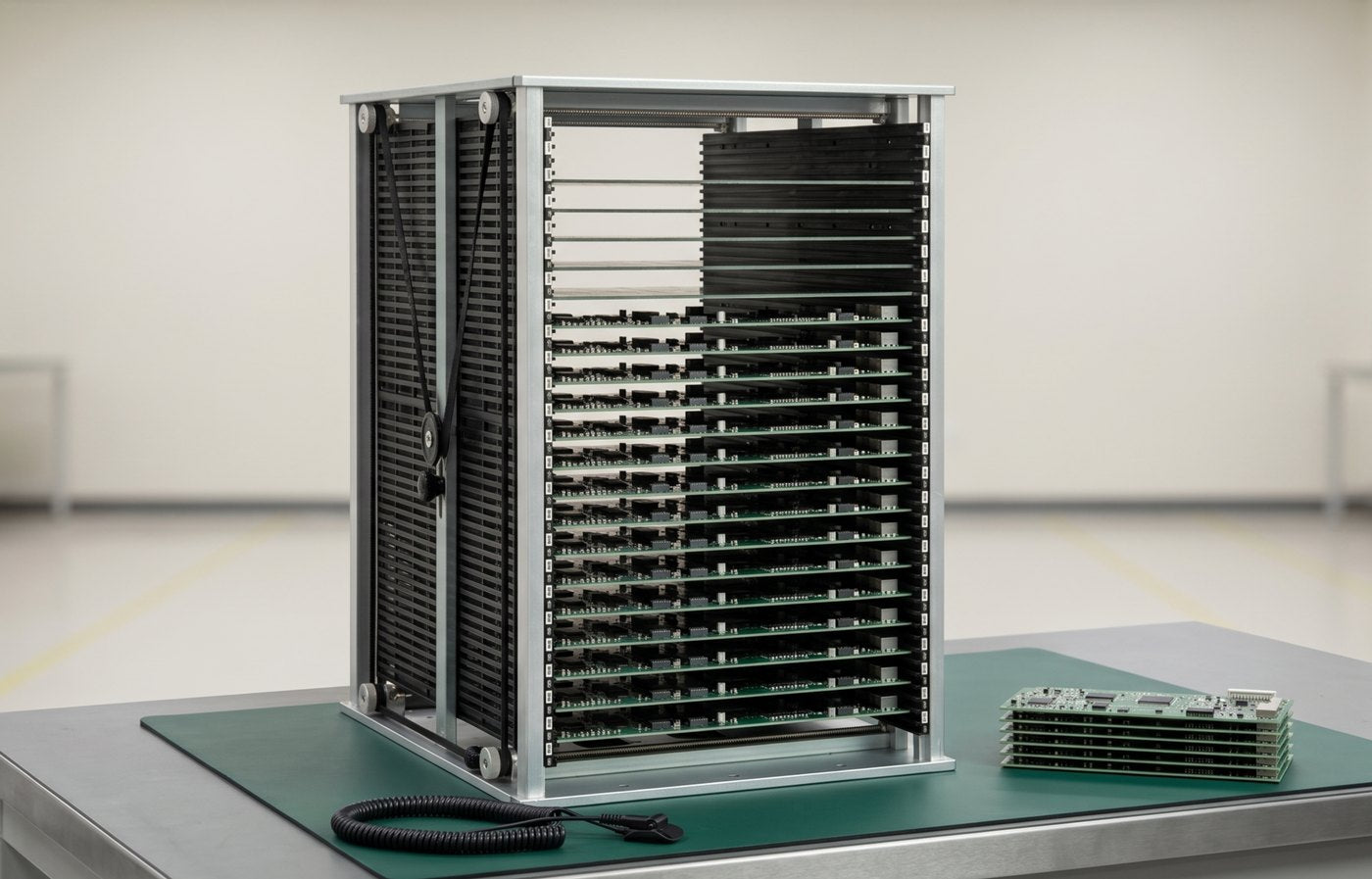

Best for: Mixed board widths (10–330 mm) · narrow flex circuits · small-format panels · large-format production boards · SMT in-line automation.
Why buy: Aerospace-grade build, stocked in the USA, full B0106 large-format chassis family (GN / GM / GC BELT / GL HT) sharing one footprint, mix variants on one purchase order with the same logistics, same compliance package, same volume tier.
What's in the box
REF 08- Sold individually. Packaging size 570 × 470 × 115 mm at 12.5 kg gross. Stocked at the US warehouse for same-week ship on standard orders. Includes 2 H-type stopper plates and carrying handles (top + bottom).
Volume pricing
REF 09| Quantity | Price per unit | You save |
|---|---|---|
| 1–19 | $420.50 | , |
| 20+ | $378.45 | 10% |
Related parts & spares
REF 10
B0106GM-200C · 50-Slot Gear-Adjustable ESD Magazine Rack
50-slot ESD magazine rack on the large-format chassis, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.
200 °C Gear · 200 °C$326.50
B0106GL HT-300C · 50-Slot All-Aluminum 300 °C ESD Magazine Rack
50-slot ESD magazine rack with the same all-aluminum 300 °C build as the standard-format B0103GL HT, just sized for boards up to 460 × 330 mm.
300 °C 300 °C all-aluminum$348.55Engineers also bought
REF 11
B0103GC BELT-80C · 50-Slot Belt-Adjustable ESD Magazine Rack
50-slot ESD magazine rack with continuous belt adjustment covering 10–250 mm of board width, no stepped clicks, no fixed indices.
80 °C Continuous belt$316.20
B0109GC BELT-80C · 50-Slot Belt-Adjustable ESD Magazine Rack
50-slot ESD magazine rack on the maximum-format chassis, with continuous belt adjustment covering 10–460 mm of board width, the widest belt range in the catalog.
80 °C Continuous belt$531.40Questions engineers ask
REF 12Belt vs. gear-track adjustment, which one do I pick?
Pick **belt** (this rack) when board widths vary across the full range, **10 mm flex circuits and 330 mm panels run on the same large-format rack**. The continuous adjustment hits any width without an indexing limit. Pick [gear-track (B0106GN-80C)](pcb-b0106gn-80c-shop-standalone-rev2.html) on the same large chassis when board widths are standardized above 50 mm and you want indexed positions for repeatable setups. Trade-off: gear is slightly cheaper and lighter; belt covers the wider range and the narrow-flex use case.
Why is the slot 4 mm deep instead of 3.5 mm?
The deeper slot, 5 mm wide × **4 mm deep** vs. 3.5 mm on gear-track variants, gives narrow flex circuits and small-format boards more retention surface during inline conveyor handling. Narrow boards have less mass, so they’re more vulnerable to walking out of a shallow slot during transport vibration. The extra 0.5 mm of slot depth keeps them seated.
Will the B0106GC BELT-80C drop into my SMT loader / unloader?
The 563 mm chassis height and 10 mm slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The **460 × 400 mm footprint** is the large-format chassis (vs the 355 × 320 standard B0103GC), many loaders are configured for both, but confirm with your loader vendor before ordering. The 460 × 400 footprint is identical to the B0106GN-80C, B0106GM-200C, and B0106GL HT-300C variants. The narrow-board capability does not change the loader interface, the loader still picks boards from the standard slot positions.
What are the H-type stopper plates, why two instead of a stopper bar?
Standard gear-track racks use a single stopper bar across the rear of the rack. The belt-adjustable B0106GC uses **two H-shaped stopper plates** instead, positioned to clear the belt and lead-screw assembly that runs across the rack interior. Function is identical (prevents boards from sliding through during transport); the H-shape just routes around the belt mechanism without interfering.
Can I bake the B0106GC BELT-80C? What’s the temperature ceiling?
The GC BELT-80C variant is rated −20 °C to +80 °C, the standard SMT envelope. The belt mechanism is not currently qualified for higher temperatures. For **bake-suitable** use on the same large chassis, switch to the gear-track [B0106GM-200C (200 °C)](pcb-b0106gm-200c-shop-standalone-rev2.html). For **aerospace-grade 300 °C cure**, use the [B0106GL HT-300C all-aluminum](pcb-b0106gl-ht-300c-shop-standalone-rev2.html) variant.
What ships in the box?
One B0106GC BELT-80C magazine rack, sold individually. Includes **2 H-type stopper plates** and **carrying handles** (top and bottom). Packaging size 570 × 470 × 115 mm at 12.5 kg gross. Stocked at the US warehouse, most orders ship the same week. No assembly required.
