ESD PCB Racks & Depaneling Equipment
The World's Most Trusted
PCB Racks.
Equipping Contract Manufacturers, OEMs & SMT Production Lines with ESD-Safe PCB Racks and Depaneling Machines.
From the SMT loader to the shelf, our racks keep boards upright, apart and protected from static. Our V-cut depanelers separate them without bending the board.
[ Product Finder ]
Not sure which one fits?
Find it in seconds.
Tell the finder your board or the part you use now. It shows the right product and its price.
ESD-safe racks and V-cut depanelers, stocked in the USA.
ESD-Safe
PCB Handling
Magazine racks for SMT loaders and ovens, ESD trays and angled holders for the bench, turntables, Karry-All carriers, and V-cut depanelers with their blades. Everything that holds, turns and separates the board on its way through the line.
We supply the racks and machines behind the SMT line: magazine racks for loaders and ovens, bench racks and turntables, and V-cut depanelers.
[ Product Families ]
PCB racks built for the SMT line.
Conductive, adjustable, and
stocked in the USA.
Family 1 · Magazine racks

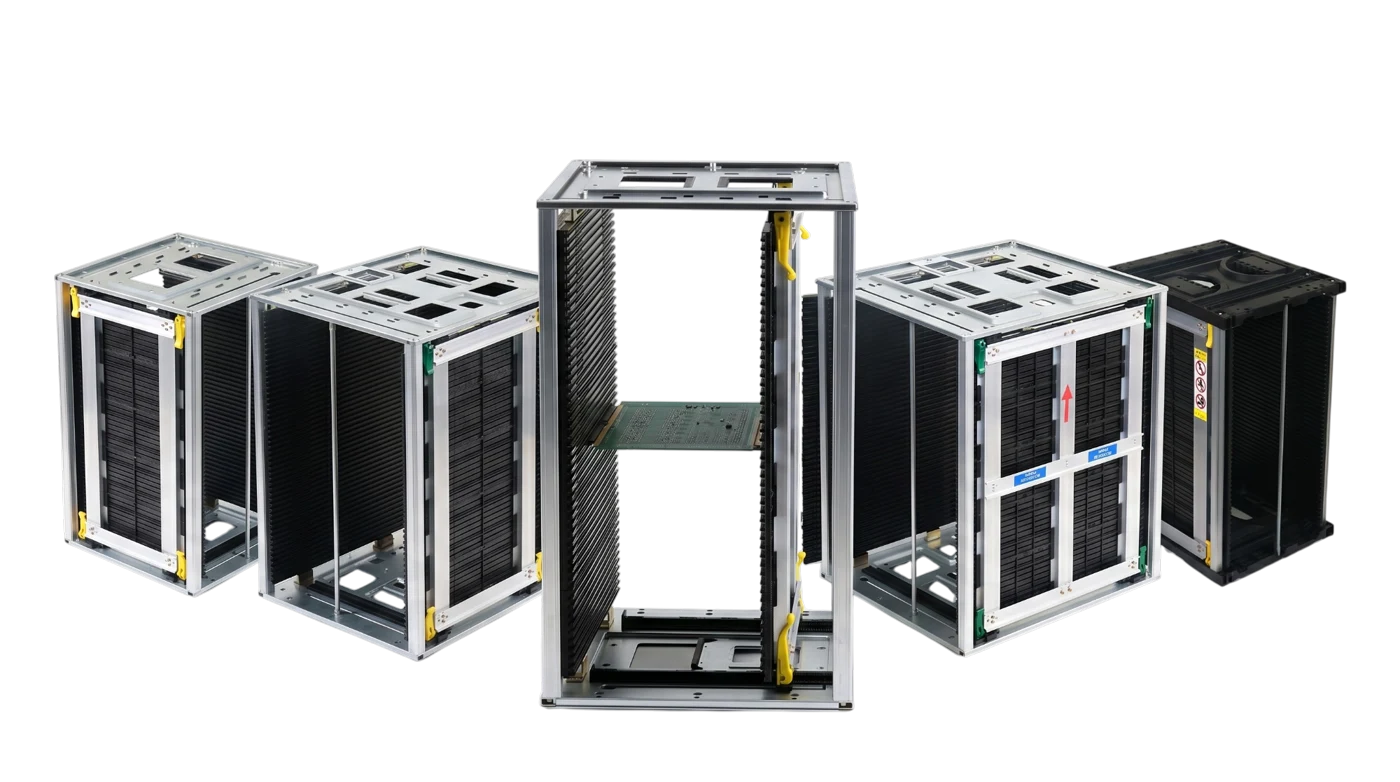

In-line SMT magazine racks
For SMT loaders, unloaders and ovens. Belt, gear and screw width adjustment, heat ratings up to 300 °C (572 °F), boards up to 620 × 460 mm (24.4 × 18.1 in).
Browse magazine racks
Family 2 · Universal racks
Bench-side handling

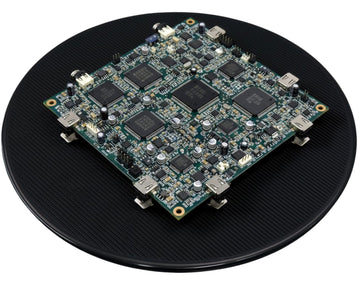

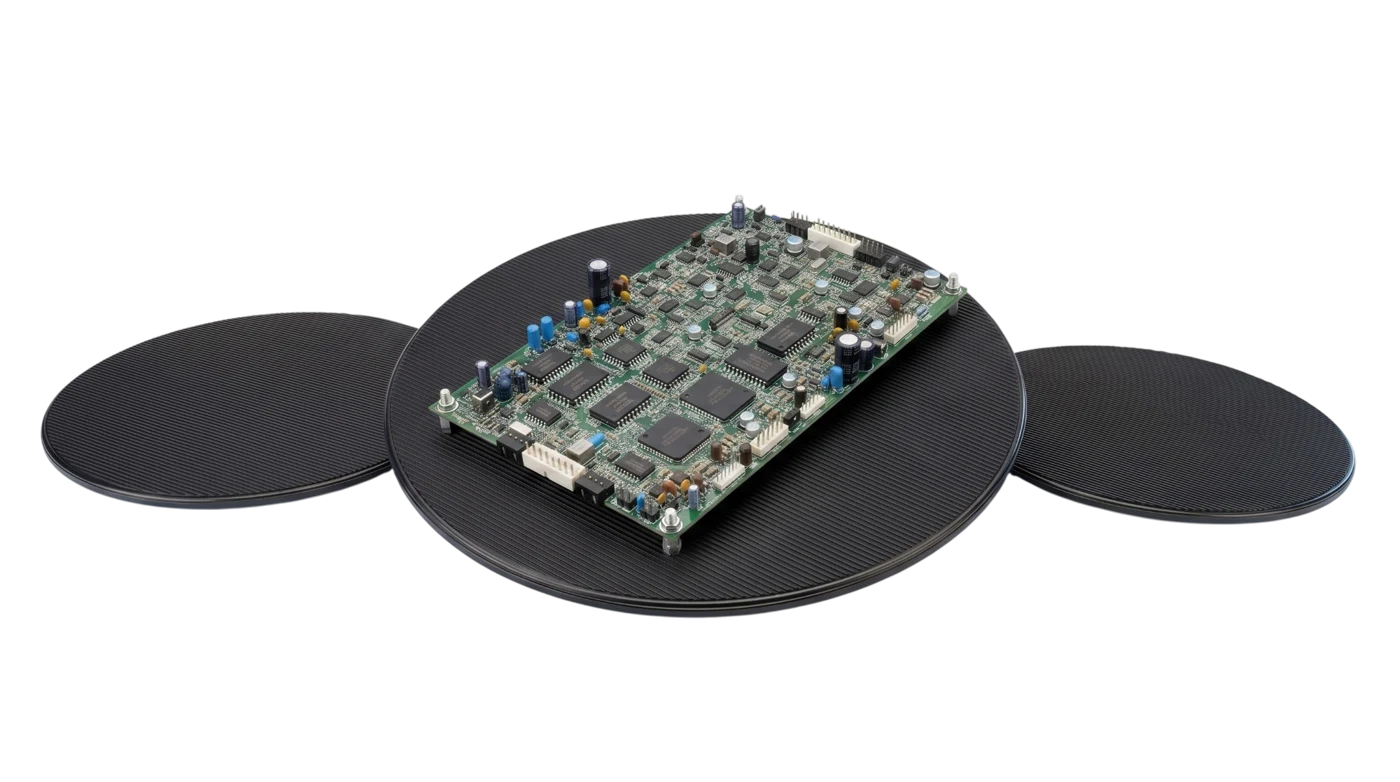

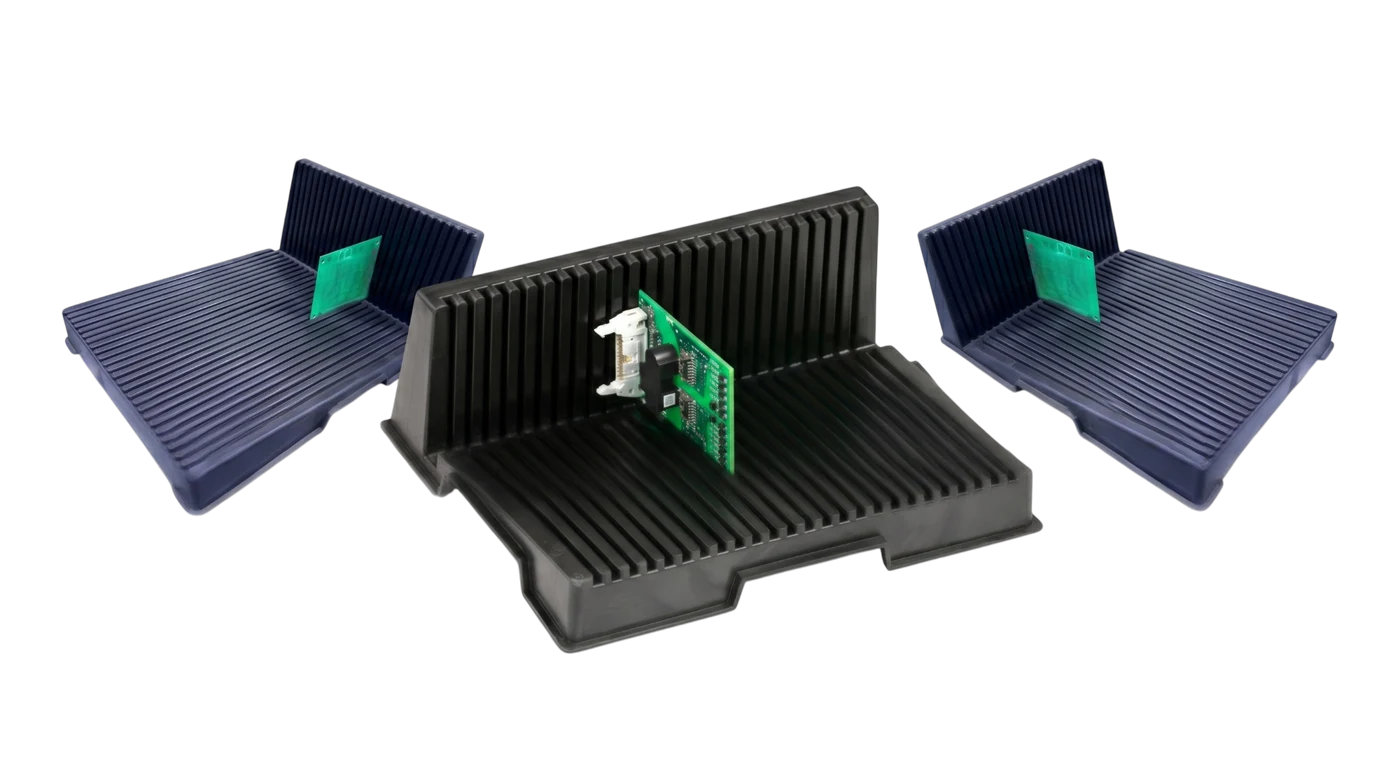

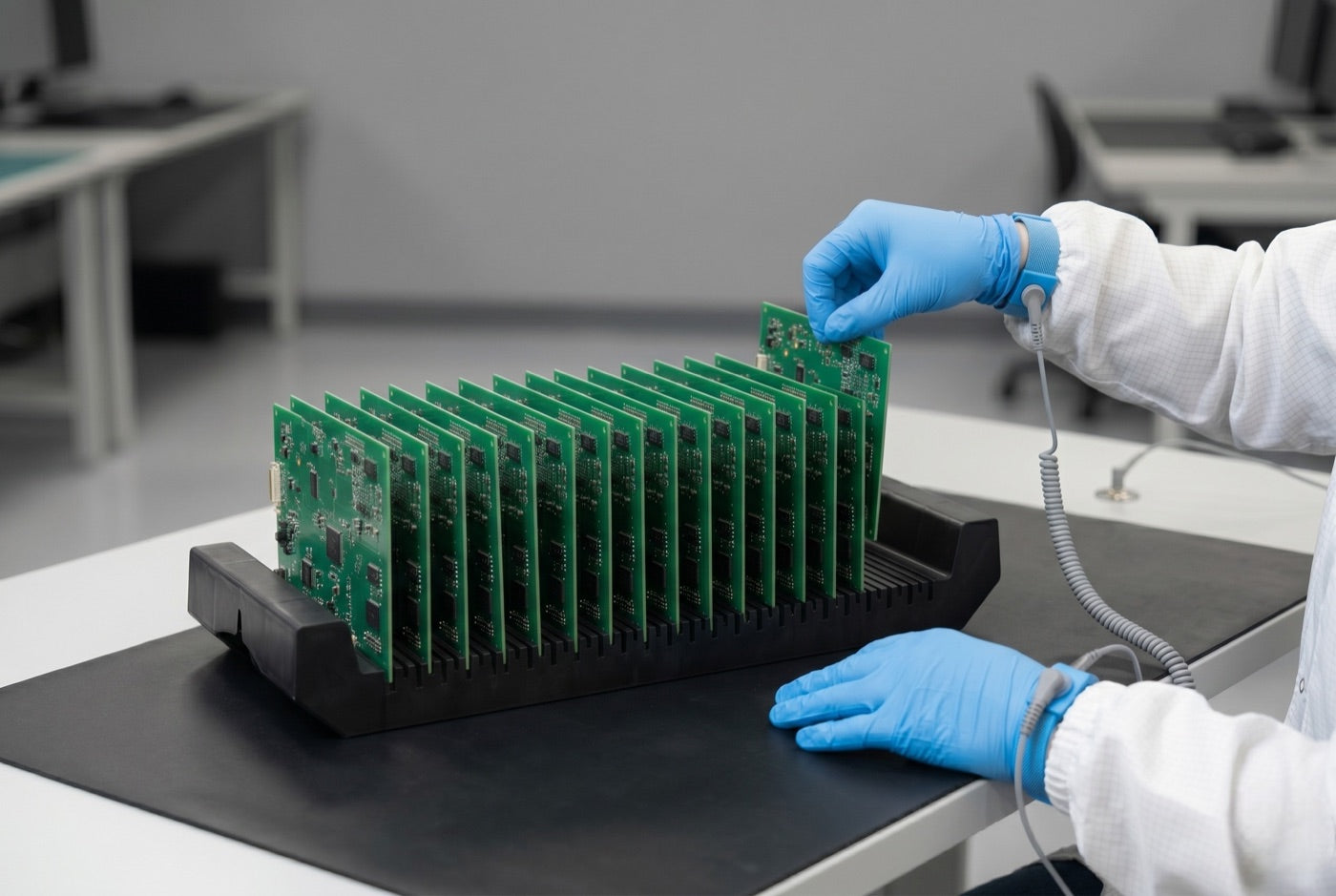

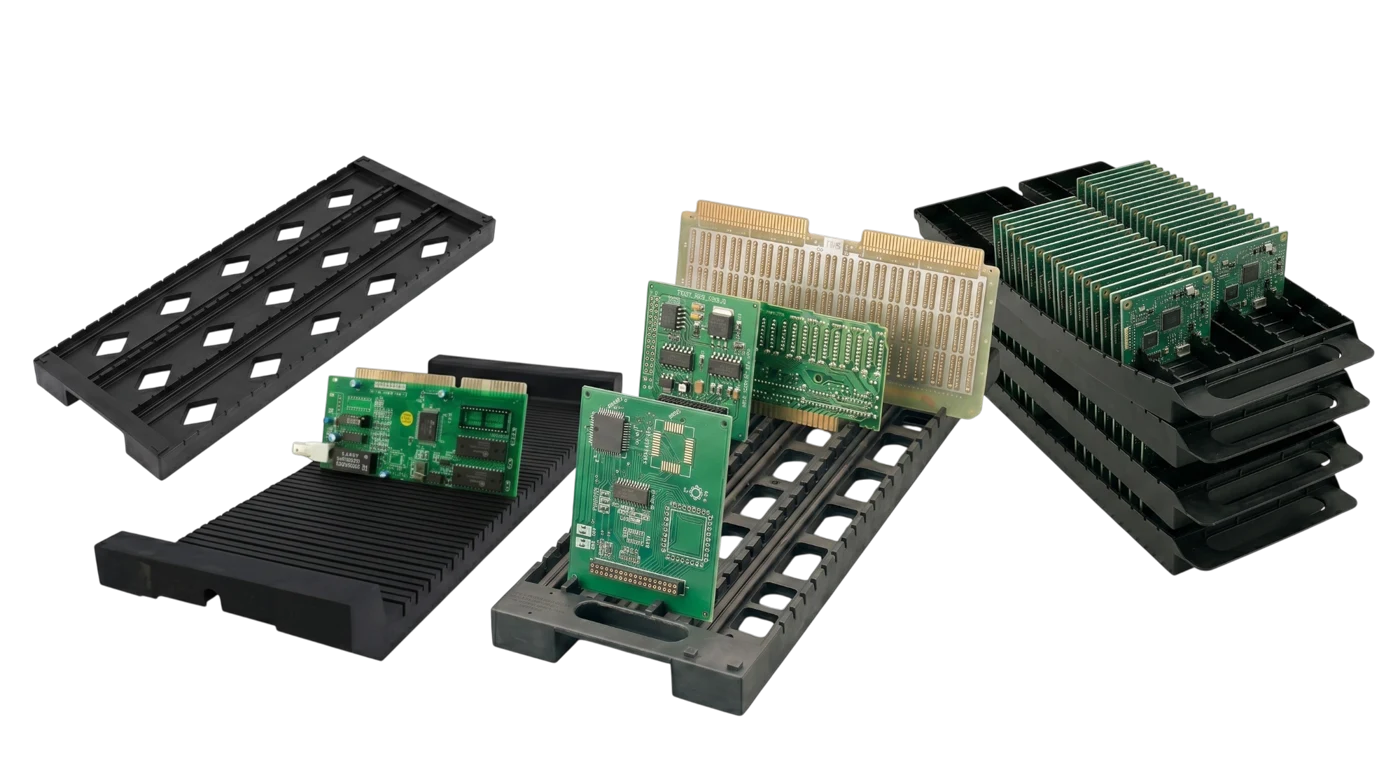

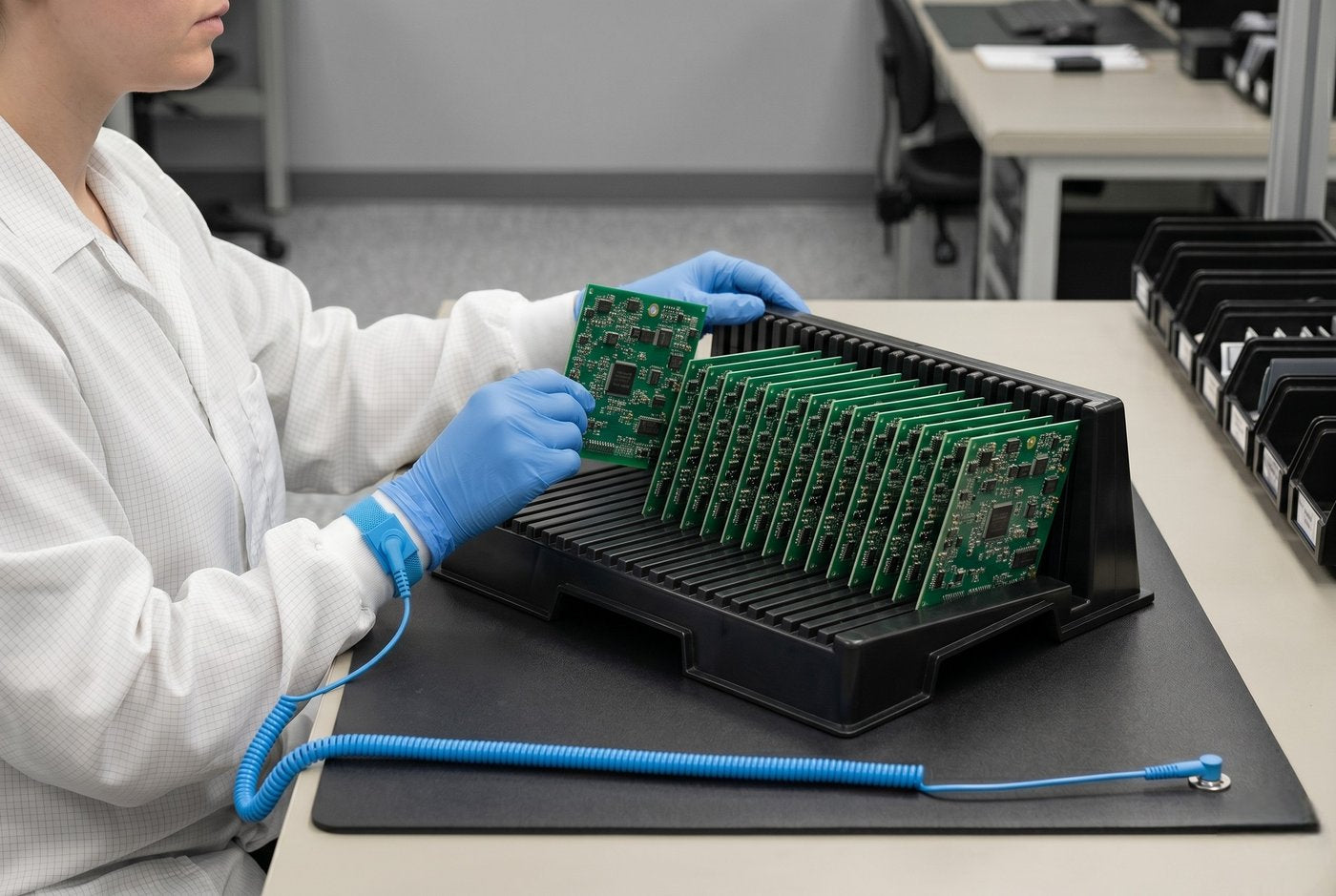

ESD trays, angled holders, 380 and 500 mm (15 and 20 in) ESD turntables, and the Karry-All 35 carrier.
Browse universal racks
Family 3 · Depaneling

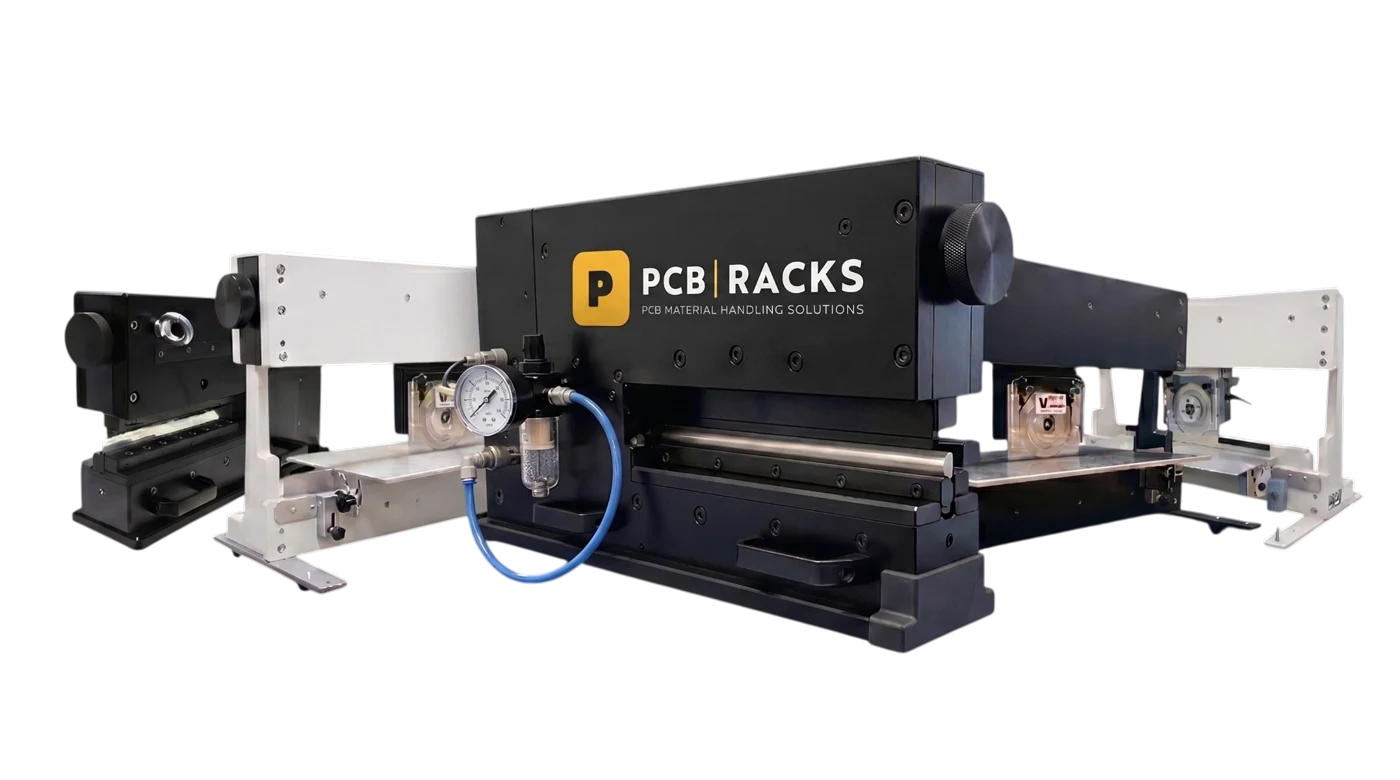

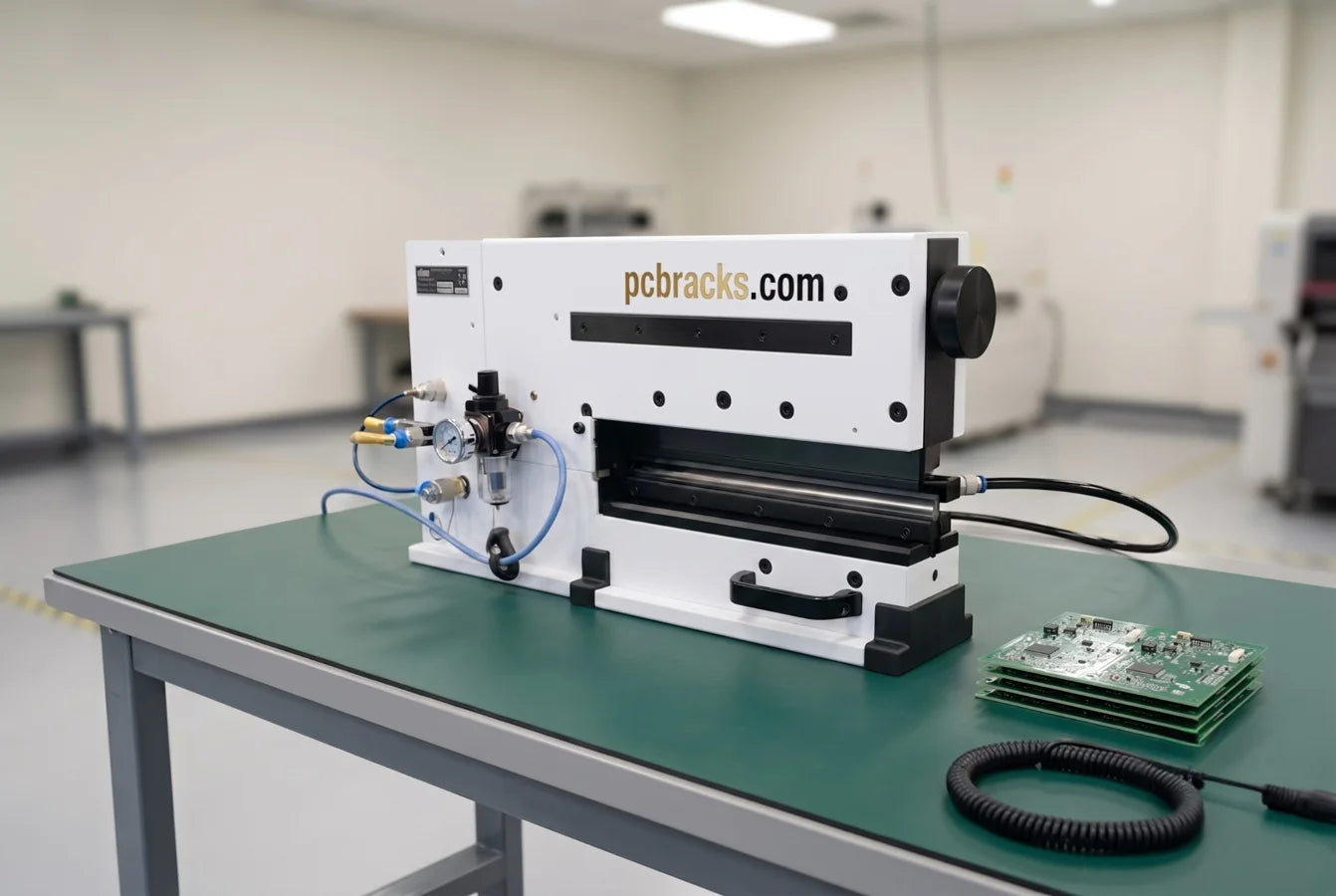

V-cut depanelers

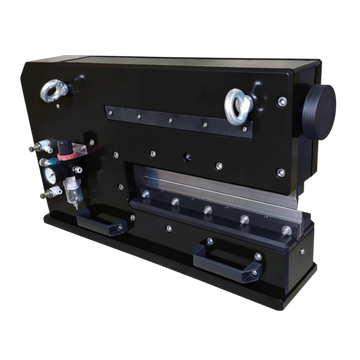

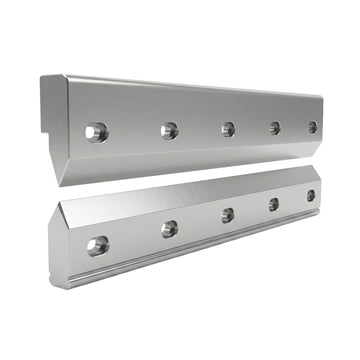

The manual VPD3-1M for low-mix and repair work, the pneumatic VPD5-330 for higher-volume cells. Blades and spares ship from the USA.
Browse depaneling
[ Heat Ratings ]
Rated for
Every Process
Magazine racks come in four heat ratings, from 80 °C to 300 °C (176 °F to 572 °F), so boards can stay in one rack from storage through bake. Pick a rack inside its bar.

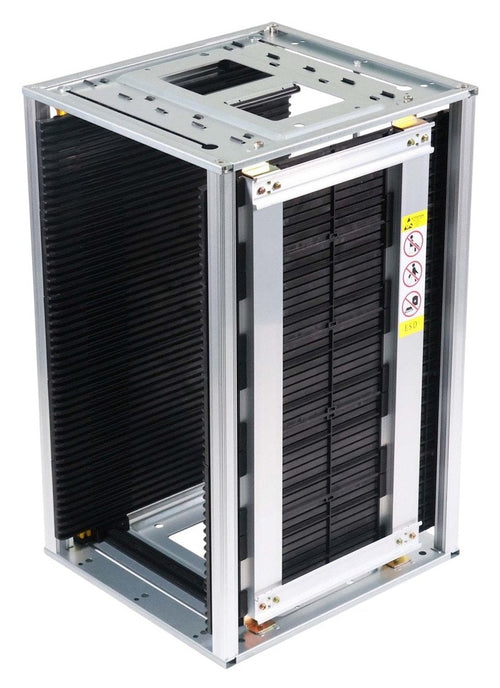

B0103GN-80C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$188.00

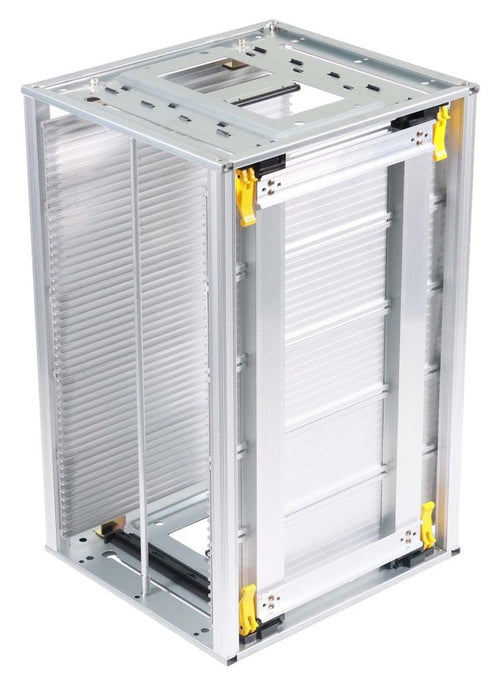

B0103GL HT-300C
50-Slot All-Aluminum 300 °C ESD PCB Magazine Rack
$282.00

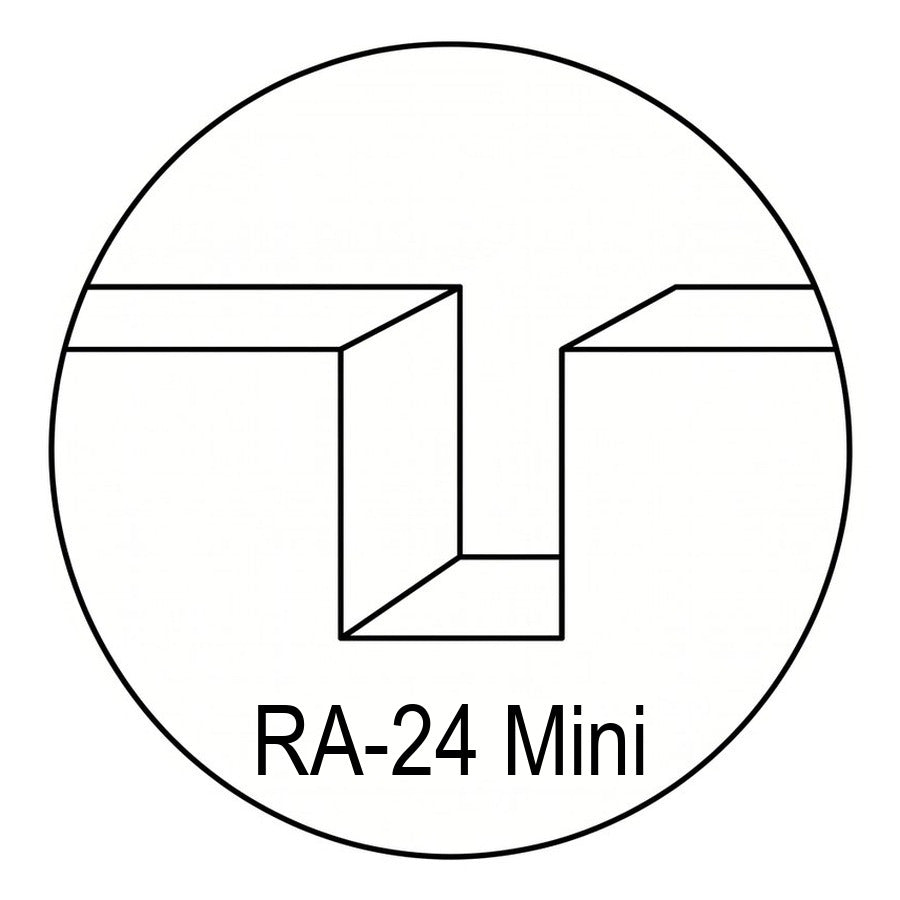

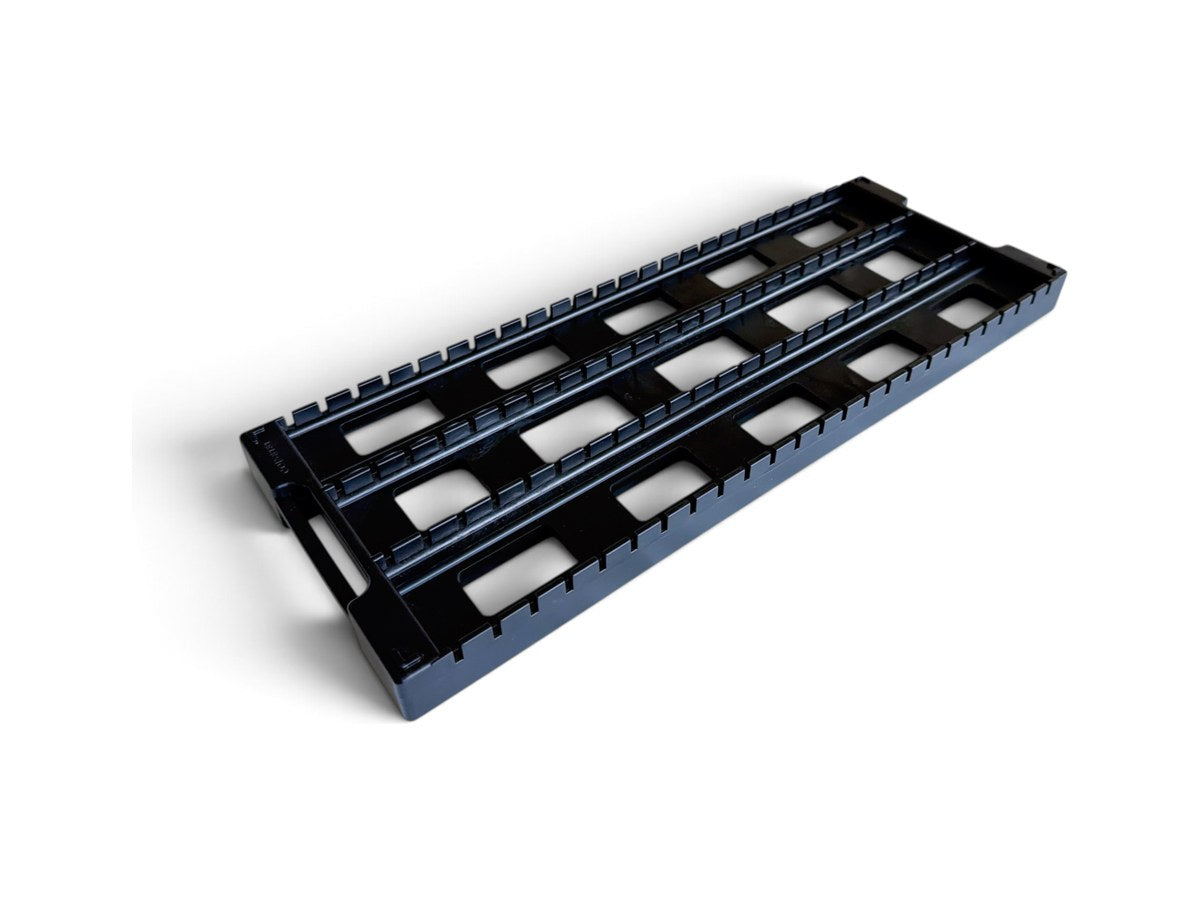

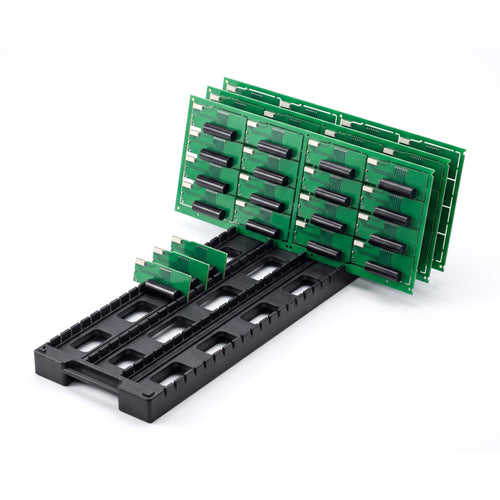

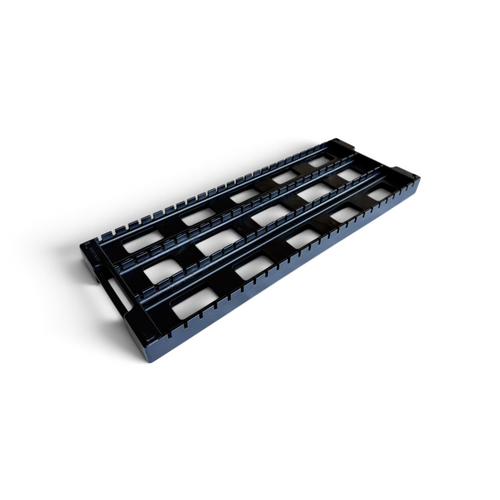

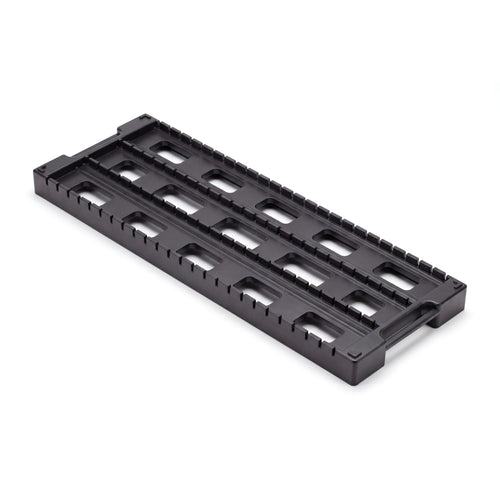

RA-24 Mini
Slotted-Edge ESD PCB Rack (Pack of 10)
$34.70 per rack · pack of 10

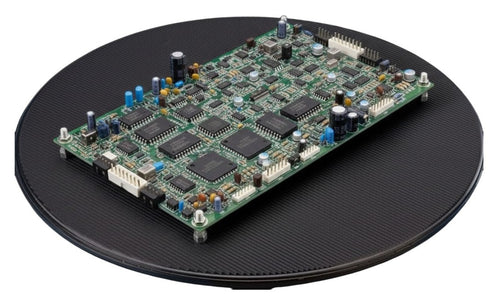

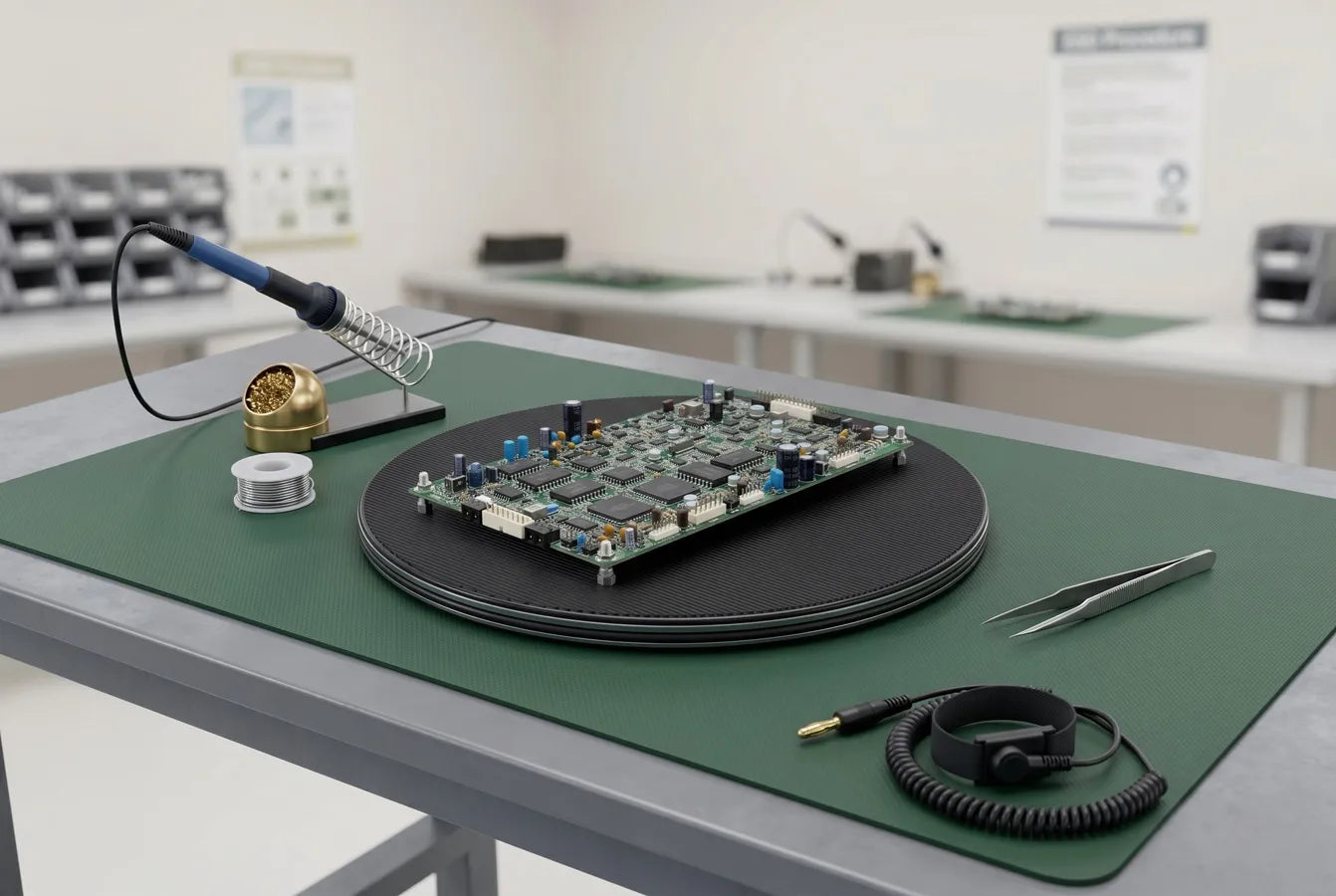

D380
ESD PCB Turntable
$133.00

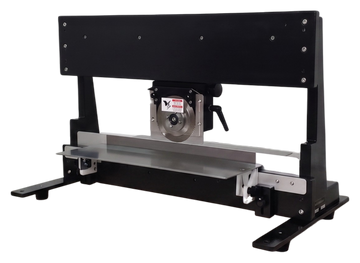

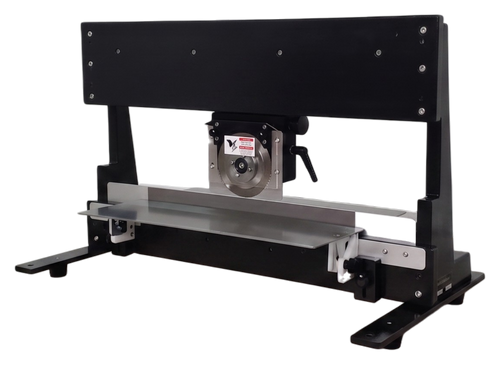

VPD3-1M
Manual V-Cut PCB Depaneler
Price on request
[ 360° View ]
[ Prices Online ]
Industrial PCB racks and depaneling equipment,
without the long quote cycle.
See prices online. Order by card or PO. Volume discounts apply themselves at checkout. Depaneling machines are quoted within one business day.

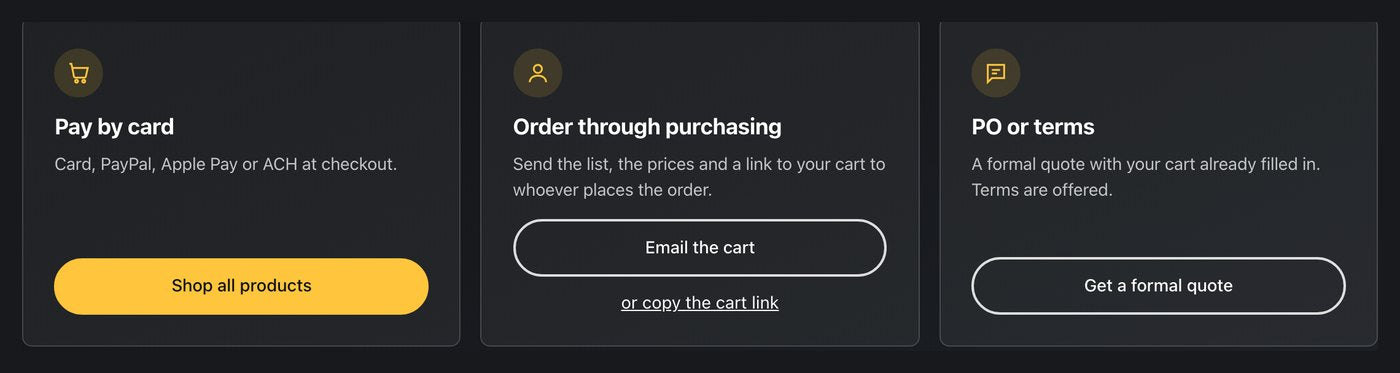

Card, PayPal, Apple Pay or ACH at checkout.
Shop all productsSend the list, the prices and a link to your cart to whoever places the order.
Send your cartA formal quote with your cart already filled in. Terms are offered.
Get a formal quoteA formal quote with price and freight within one business day. PO and terms are offered.
Get a machine quote[ Why PCBRacks ]
Why professionals
buy PCBRacks
Find the right rack

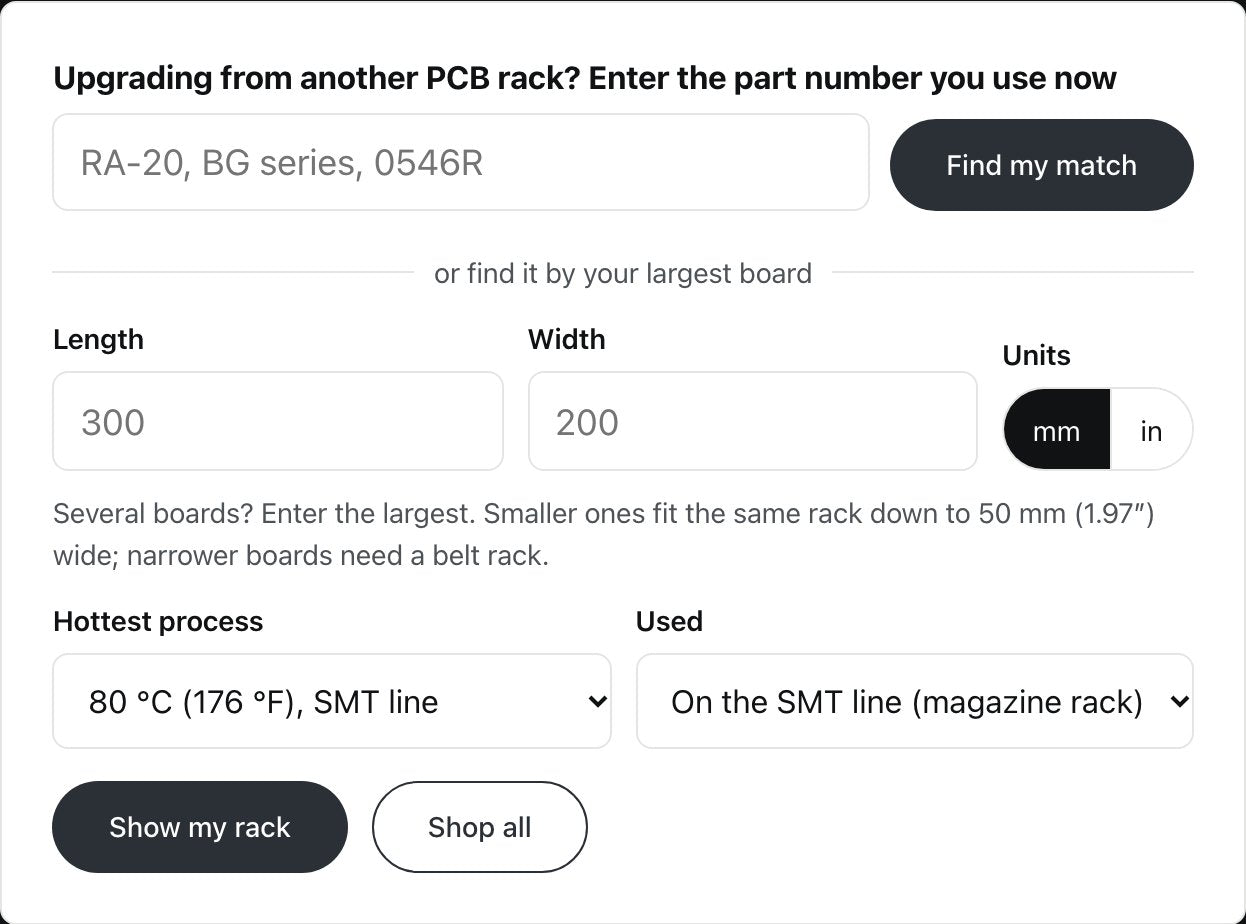

Type the part number of the rack you use now, or the size of your largest board. The finder shows the rack that fits and its price, in seconds.
Go to the product finder
Know the specs
Every rack shows its dimensions, slot pitch, temperature and ESD rating on its page. Spec sheets and drawings are free with a short form.
Go to the IPC and ESD guides

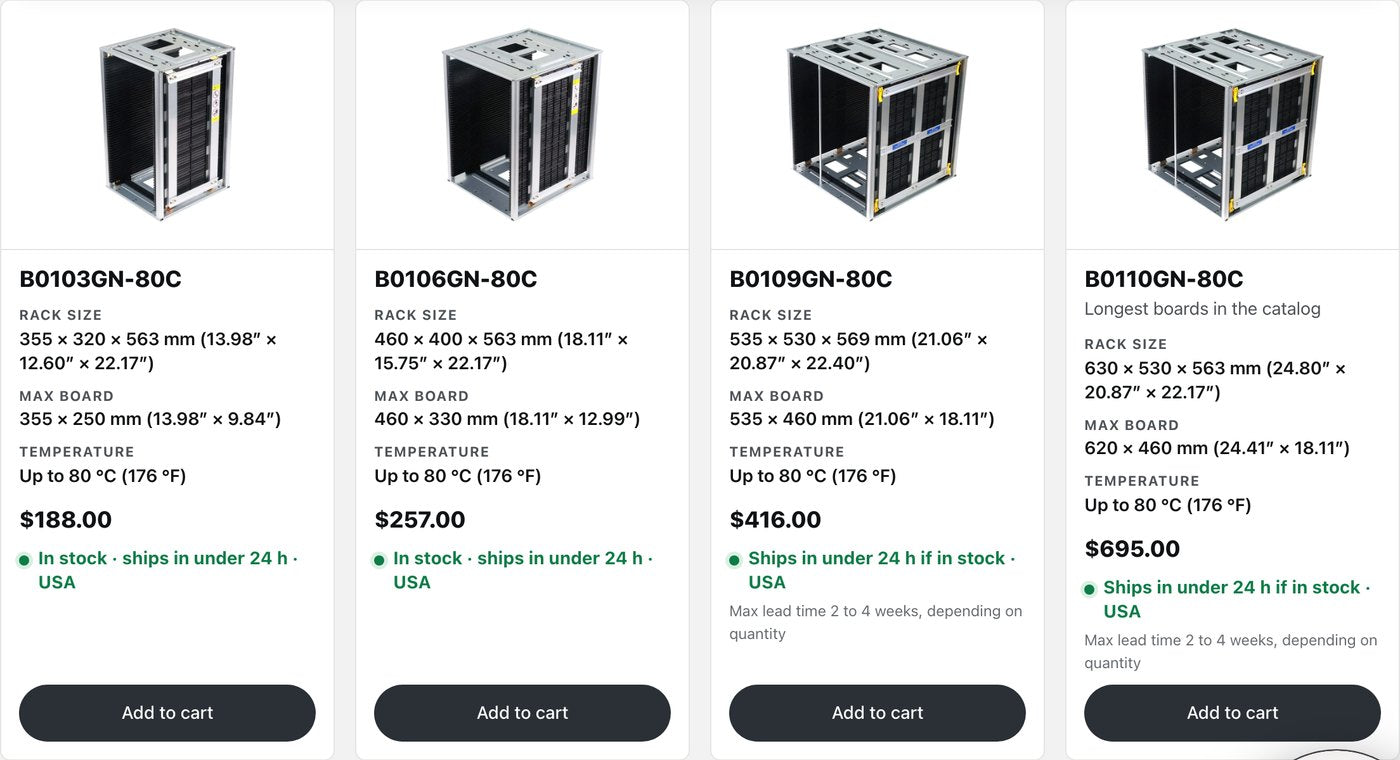

See the price
Racks, trays, holders, turntables, blades and spares all show their price, per rack and per pack. Depaneling machines are quoted.
See the best sellers
Order online
Pay by card, PayPal, Apple Pay or ACH at checkout. Need a PO? Send the cart to purchasing or ask for a formal quote. Terms are offered.
See the ways to order
Ship fast

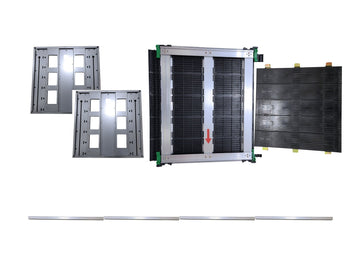

In-stock racks ship from the US in under 24 hours. Magazine racks ship flat with every part and screw, ready to assemble.
Shipping and delivery
Need help?
Ask Sam, our AI spec engineer, any time. Or send us your board size and process, and we confirm the exact part number before you buy.
Ask SamEvery order gives back.
5% of every dollar PCBRacks.com earns goes directly to charities supporting children, veterans, and people recovering from addiction. It is not a marketing line. It is why we show up every day.
[ Our Commitment ]
Racks and depanelers stocked in the USA, with the right part number confirmed before you order.
Contact us
