B0108GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
B0108GM-200C200 °CIn stock · ships in under 24 h · USA
The B0108GM-200C is a 50-slot ESD-safe PCB magazine rack with gear-track width adjustment, rated −20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033. Slot pitch is 10 mm, board width adjusts from 50–390 mm. It ships from California and fits standard in-line SMT loaders.
External dimensions (L × W × H)21″ × 18″ × 22″
535 × 460 × 569 mm
$429.00 per unit
- Adjustable Width: 50–390 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 535 × 390 mm
- Temp Range: −20 / +200 °C
Replacing another maker's part? Cross-reference your part number →
ESD-safe
Ships from the USA
Spec help included
At a glance
External dimensions (L × W × H)21″ × 18″ × 22″
535 × 460 × 569 mm
535 × 460 × 569 mm
Adjustable Width50–390 mm
Slot Count / Pitch50 @ 10 mm
Max Board (L × W)535 × 390 mm
Temp Range−20 / +200 °C
Stop Transferring Long MSD Boards Between Bake Tray and Loader.
Standard 80 °C racks can’t enter a bake oven, so MSD boards have to move into a separate baking container and back, extra handling, extra ESD exposure, extra chance of damage on long boards that flex in the wrong support fixture. The B0108GM-200C is rated to 200 °C on the same in-between extra-large chassis: long boards (up to 535 × 390 mm) stay in the same rack from MSD storage through 125 °C bake through the SMT loader. One container, one workflow.
200 °C bake-suitable
J-STD-033 compliant
50–390 mm adjustable
SMT loader compatible

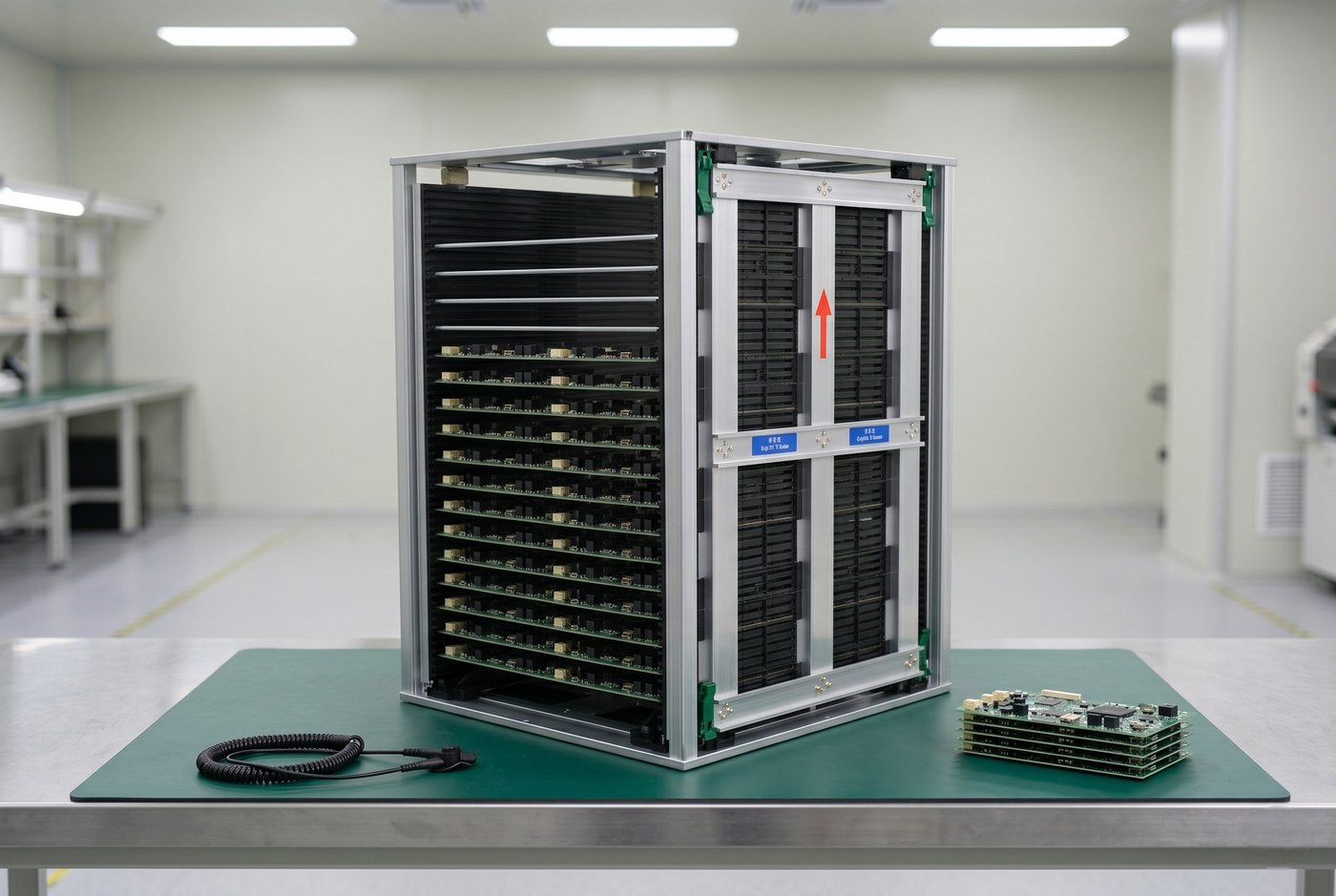

Description
External dimensions (L × W × H): 21″ × 18″ × 22″ · 535 × 460 × 569 mm
What it does on your line
The B0108GM-200C is an extra-large-format 50-slot ESD magazine rack rated to 200 °C (392 °F), built for in-line SMT automation plus moisture-sensitive device (MSD) baking on long boards. Same chassis and gear-track mechanism as the B0108GN-80C, the difference is the higher-temperature material qualification, which makes the rack bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles (typically 90–125 °C for 24–72 hours).
Construction: 5 interchangeable Conductive PPE side panels per wall, aluminum pillars, galvanized steel base. Same 10⁴–10⁶ Ω surface resistance in the dissipative band under ANSI/ESD S541, same NASTC test report. The bake-suitable PPE qualification adds headroom for J-STD-033 accelerated bake (125 °C) and conformal-coat post-cure (typically 150–200 °C) without panel softening or off-gassing.
Gear-track adjustment sets board width from 50 to 390 mm with parallelism maintained across all 50 slots. Note: the B0108 chassis is the only B-series chassis without a 300 °C HT variant, for aerospace-grade cure cycles above 200 °C, step up to the B0109GL HT-300C all-aluminum on the maximum-format chassis or step down to the B0106GL HT-300C on the large-format chassis.
Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.
See it in motion

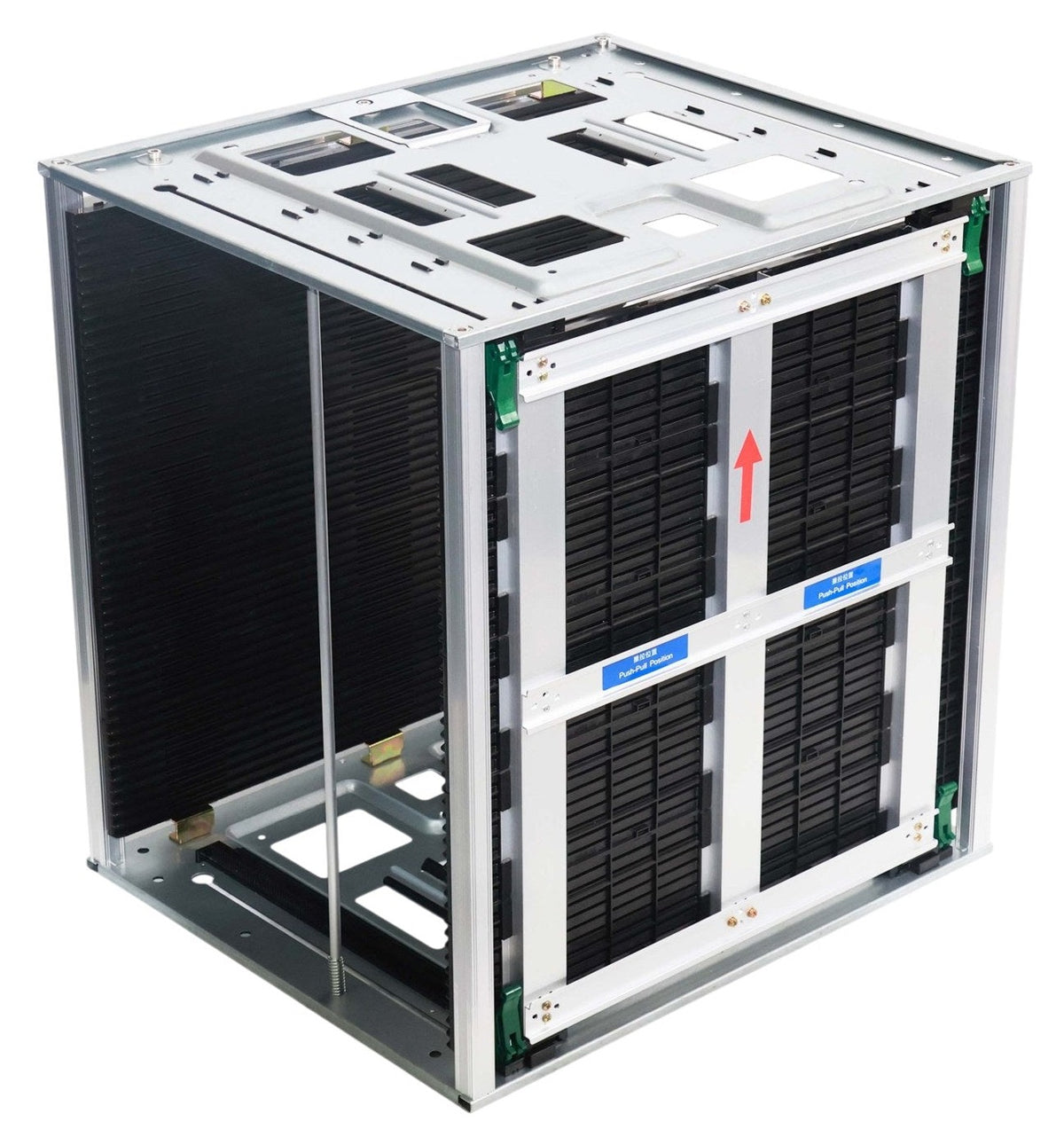

360° turntable rendered from the production CAD model. The geometry shown is the part that ships · B0108GM-200C
B0108GM-200C · Technical specifications
| Model | B0108GM-200C |
|---|---|
| Materials | Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · galvanized steel base |
| Dimensions (L × W × H) | 535 × 460 × 569 mm (21.06″ × 18.11″ × 22.40″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 3.5 mm (0.138″) |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 50–390 mm (1.97″–15.35″) via gear-track mechanism |
| Max board length | 535 mm (21.06″) |
| Max board size (L × W) | 535 × 390 mm |
| Min board size (L × W) | 50 × 50 mm |
| Reference positions | A = 34 mm · B = 40 mm, B = 40 shared with the B0109 chassis |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (dissipative band per ANSI/ESD S541) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033 |
| Adjustment type | Gear track with parallelism monitoring (screw adjustment configuration also available) |
| Includes | Stopper bar · carrying handles (top and bottom) |
| Weight | 11 kg |
Documentation
Download spec sheet (PDF)
Need drawings or CAD models? Request them by email
Machine compatibility
| Loader / machine | Series | Interface |
|---|---|---|
| ASM SIPLACE | All in-line loaders / unloaders | 563 mm chassis · 10 mm slot pitch |
| Yamaha | YSM series | 563 mm chassis · 10 mm slot pitch |
| Panasonic | NPM series | 563 mm chassis · 10 mm slot pitch |
| Juki | RS series | 563 mm chassis · 10 mm slot pitch |
| Other in-line SMT | Standard-interface loaders | Ask for a fit-check if your line uses a custom fixture |
Not sure your loader is on the list? Send us the model and we confirm fit before you order.
Against the alternatives
| Feature | B0108GN-80C | B0108GM-200C |
|---|---|---|
| Temperature rating | −20 °C to +80 °C (−4 °F to 176 °F) | −20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033 |
| Width adjustment | Gear track, parallelism monitored | Gear track, parallelism monitored |
| MSD bake per J-STD-033 | No. Transfer to a bake-rated rack first | Yes, boards stay in the rack through bake |
| Frame | Conductive PPE panels · aluminum pillars · steel base | Conductive PPE panels · aluminum pillars · steel base |
| Pick this one when | Standard storage, transport and in-line SMT handling. | MSD bake at 90–125 °C, one container from storage through bake to the loader. |
Built for ESD-protected workstations
Materials: 5 × Conductive PPE side panels · aluminum pillars · galvanized steel base
Surface res.: 10⁴ – 10⁶ Ω, dissipative band per ANSI/ESD S541
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all PASS
Thermal range: −20 °C to +200 °C, bake-suitable per IPC/JEDEC J-STD-033
Capacity: 50 slots · 10 mm pitch · 50–390 mm adjustable · max board 535 × 390 mm
RoHS: PASS, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: MSD moisture-removal bake (J-STD-033) · in-line SMT automation · post-cure storage · thermal cycling · extra-large-format (up to 535 × 390 mm) board lines · long-board / narrow-width form factors that exceed B0106’s 460 mm length.
Why buy: Aerospace-grade build, stocked in the USA. The B0108 in-between chassis bridges B0106 (460 mm long) and B0109 (535 × 530 with 460 mm width capacity), pay only for the footprint your boards actually need. One workflow from MSD storage through bake through the loader. Volume tiers stack across mixed B0103 / B0106 / B0108 / B0109 chassis orders.
Standards referenced
- IPC/JEDEC J-STD-033
- The moisture-sensitive-device handling standard. It sets the bake profiles (typically 90–125 °C) used to drive moisture out of MSD boards before reflow, which is why a rack's temperature rating decides whether boards can stay in it through the bake.
- ANSI/ESD S541
- The ESD Association standard for packaging materials in an EPA. It classifies surface resistance into conductive (below 10⁴ Ω), dissipative (10⁴ to below 10¹¹ Ω) and insulative bands. Our measured 10⁴–10⁶ Ω sits in the dissipative band, the range specified for board handling.
- RoHS (EU) 2015/863
- The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. All 20 components of this product were tested and passed (SGS report NGBEC25007648601).
Full IPC and ESD standards reference for handling, storage and depaneling →
What's in the box
- Sold individually. Packaging size 570 × 550 × 100 mm at 11 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Includes stopper bar and carrying handles (top + bottom).
Volume pricing
| Quantity | Price per unit | You save |
|---|---|---|
| 1–19 racks | $429 | Factory-direct price |
| 20+ racks | $386.10 | 10% |
Related parts & spares
Side Panel Kit · 10 Strips, One Rack (Pack of 10)
Ten side strips, a full set for one rack. Pick chassis and temp.
$6.00per unit Pack of 10 · $60.00
Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00Further reading
- Baking MSD boards per J-STD-033Why a rack's temperature rating decides whether boards change containers for the bake.
- Sizing a rack to your boardsThe four measurements that decide fit, including component envelope against slot pitch.
- Gear, screw or belt adjustmentWhich mechanism suits your changeover pattern, and what wears out.
- Will the rack fit my SMT loader?Chassis height, slot pitch and footprint, plus custom-fixture checks.
Engineers also bought
