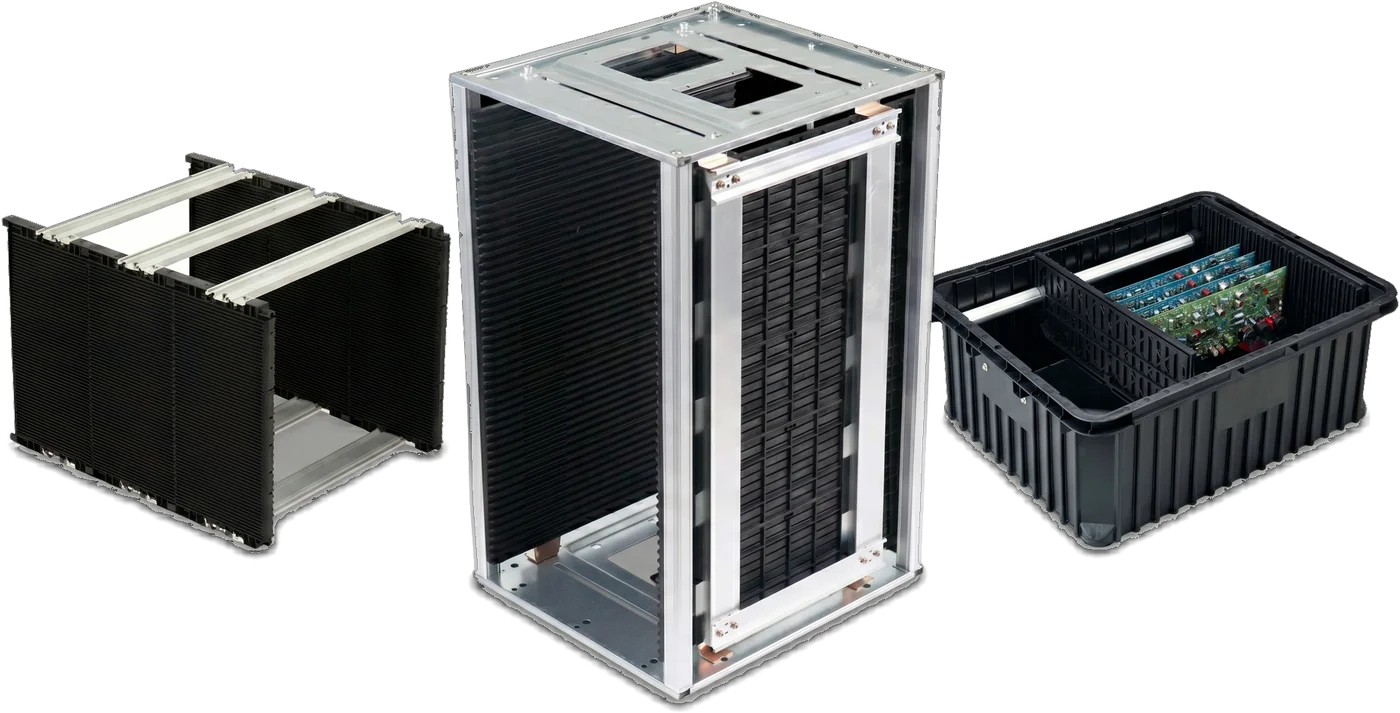

Screw-Adjustable ESD PCB Magazine Racks
Screw adjustment.
Set it once. Run all shift.
A clamp screw sets the board width once and holds it, run after run. Boards up to 355 × 250 mm (13.98 × 9.84 in), rated 80 or 200 °C (176 or 392 °F). In stock, they ship from the USA in under 24 hours.
- Models
- 2 80 and 200 °C
- Board width
- 50 to 250 mm 1.97 to 9.84 in
- Largest board
- 355 × 250 mm 13.98 × 9.84 in
- Heat ratings
- 80 or 200 °C 176 or 392 °F
Free shipping on US orders of $1,000 and up.
Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.
[ Heat Ratings ]
Pick the rack
by heat rating.
The same screw-adjustable rack at 80 °C (176 °F) for storage and SMT handling, or 200 °C (392 °F) for MSD bake.
[ Racks ]
Both screw racks.
Pick yours.
Both take boards from 50 × 50 mm up to 355 × 250 mm (1.97 × 1.97 in to 13.98 × 9.84 in).
Pick a heat rating
Rated 80 °C (176 °F)
For storage, SMT handling and moving boards between steps.
B0104N-80C
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$188.00
In stock · ships in under 24 h · USARated 200 °C (392 °F)
For MSD bake: the screw holds its setting through bake-oven heat cycles.
B0104M-200C
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Temperature Range
- −20 °C to +200 °C (−4 °F to 392 °F)
$253.00
In stock · ships in under 24 h · USA
[ Further information ]
[ Next step ]
Find the right screw rack
for your line.

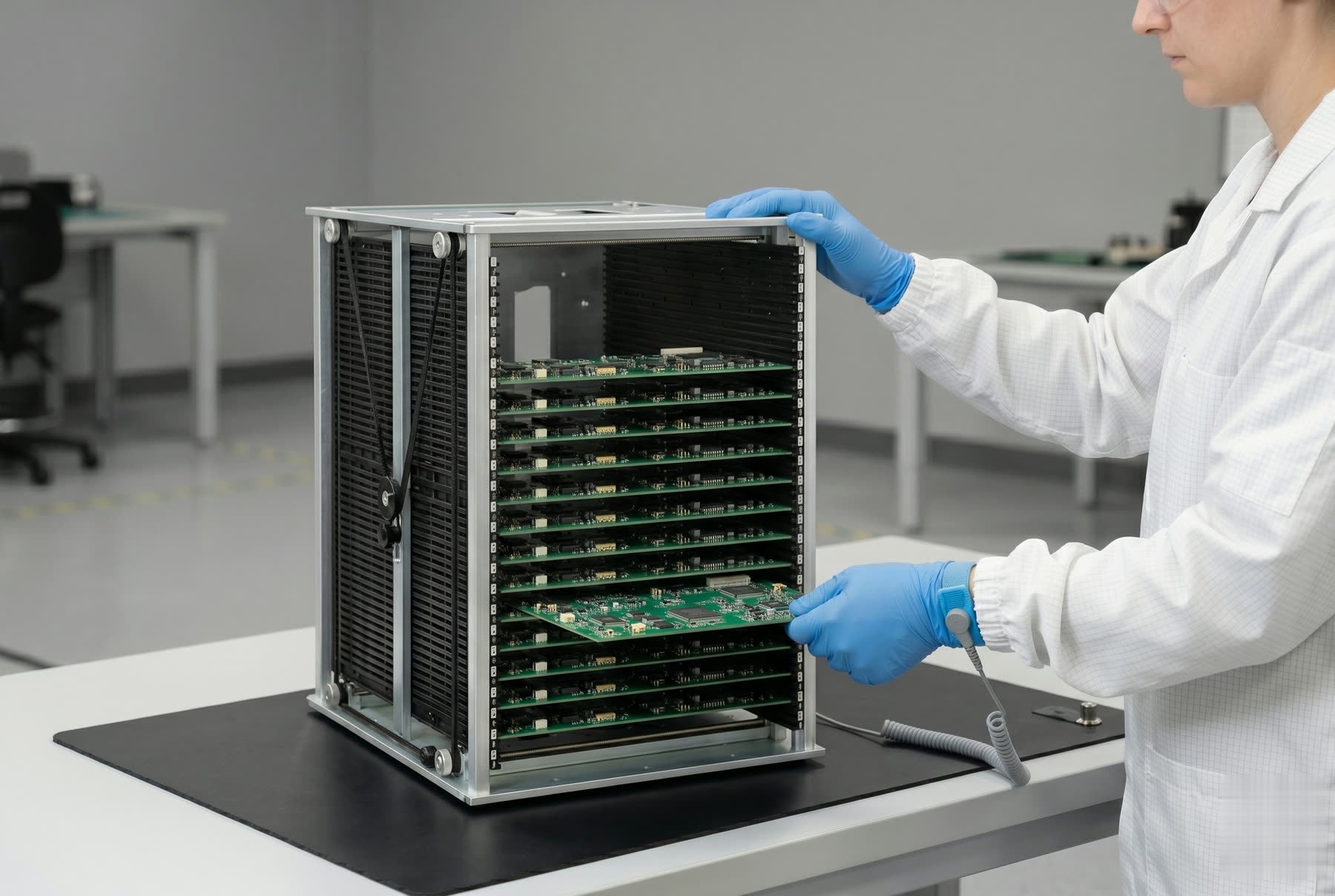

50-Slot Screw-Adjustable ESD PCB Magazine Rack
$188.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Magazine Rack Size
- 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
50-Slot Screw-Adjustable ESD PCB Magazine Rack
$253.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Magazine Rack Size
- 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +200 °C (−4 °F to 392 °F)
Order the right part the first time.
Send us your board size and process, we confirm the exact part number before you buy. Standard manufacturer warranty applies · spares ship from the USA.
