ESD Turntable · 15″ Diameter · 200 lb · No Power Required

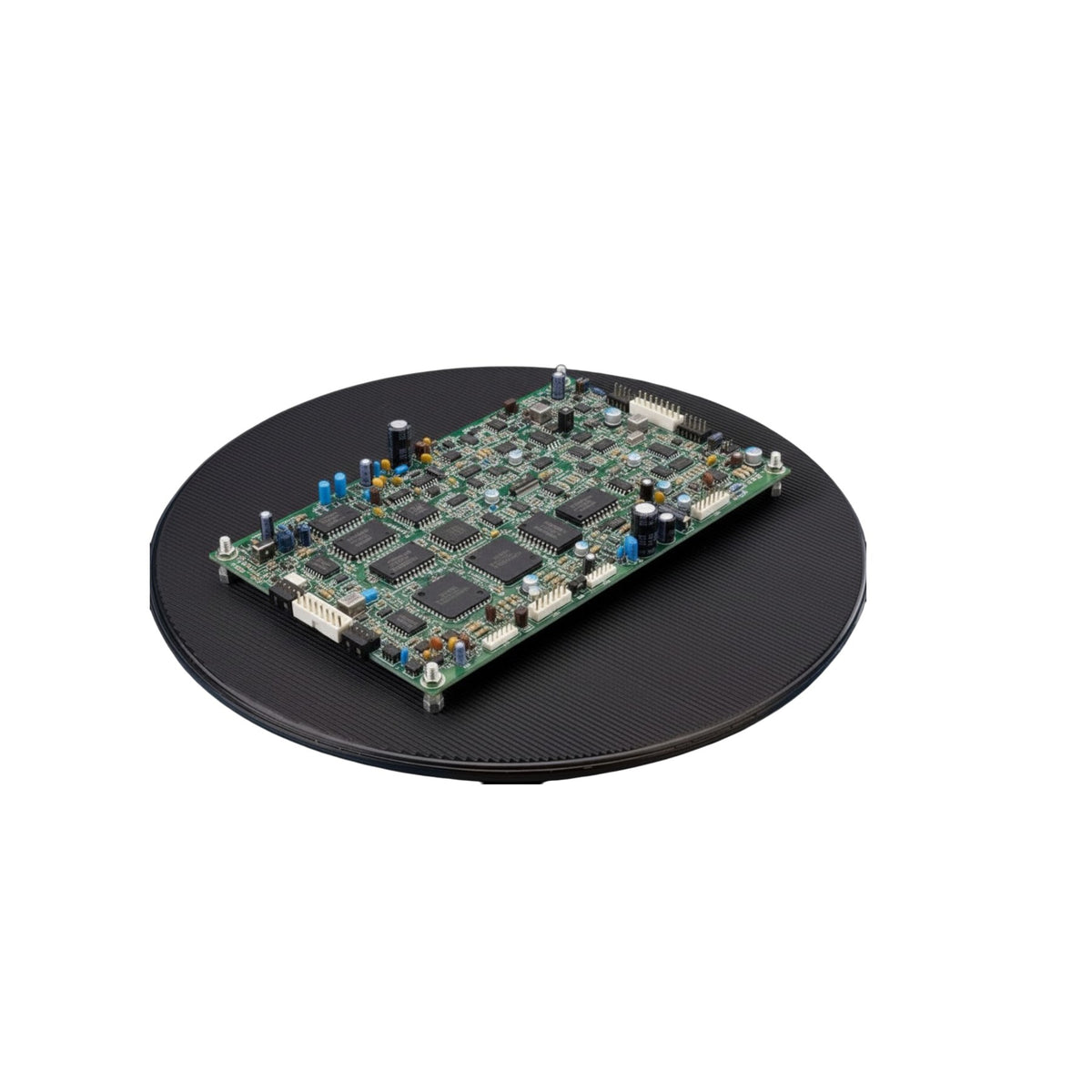

D380 · ESD Turntable
D380In stock · USA
ESD-safe rotating work platform, place the assembly, spin it, work all 360 degrees without picking up the board. 380 mm (15″) disc, 12 mm low profile, 200 lb (91 kg) capacity. Conductive rubber on plastic disc keeps the assembly grounded the whole time. No power, no air, no setup, drop it on the bench and start using it. Stocked in the USA.
$117.65 per unit
- 200 lb capacity
- 360° free-spin
- Conductive rubber
- 5 × 10⁶ Ω surface
- 85 °C tolerance
- ANSI/ESD S20.20
Heads-up: $250 order minimum. Combine spares or add to a rack order.
ESD-safe
Ships from the USA
Spec help included

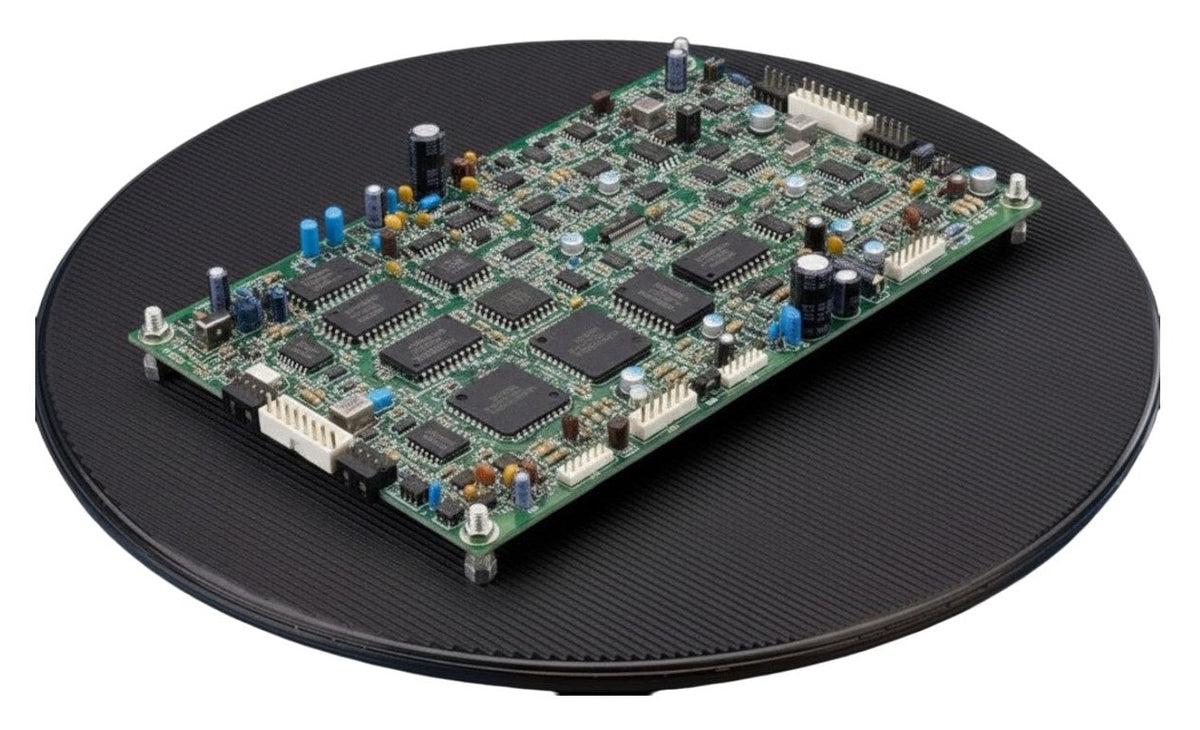

Every Lift Is a Chance to Drop It.
REF 01Heavy or awkward assemblies get rotated by hand, and every lift is a chance to drop the board, discharge static into a sensitive component, or bump a freshly soldered joint. The D380 keeps the assembly on the bench and rotates it for you. Operator’s hands stay on the work, not under it.
360° free-spin
200 lb capacity
No power / no air
12 mm low profile
At a glance
REF 02Disc Diameter380 mm (15″)
Load Capacity200 lb (91 kg)
Profile Height12 mm (0.5″)
Temp Tolerance−10 / +85 °C
Description
REF 03The D380 is a 380 mm (15″) diameter ESD-safe turntable rated for loads up to 200 lbs (91 kg). The top surface is conductive rubber bonded to a durable plastic disc; the unit sits flat on any workbench at just 12 mm (0.5″) tall and rotates 360 degrees freely on a smooth bearing.
The conductive rubber surface provides continuous ESD protection with a surface resistivity of 5 × 10⁶ Ω and volume resistivity of 1 × 10⁷ Ω, squarely in the dissipative range required by ANSI/ESD S20.20 work areas. Compatible with assemblies coming off reflow or selective solder that have not fully cooled (rated to 85 °C / 185 °F).
No power. No compressed air. No setup. Drop it on the bench and start using it. The 1.63 kg (3.6 lb) unit weight keeps the turntable planted under load without sliding around when the operator works at the edge of the disc.
Technical specifications
REF 05| Model | D380 |
|---|---|
| Diameter | 380 mm (15″) |
| Profile height | 12 mm (0.5″), sits flat on any workbench |
| Rotation | 360°, free-spinning on smooth bearing |
| Load capacity | 200 lbs (91 kg) |
| Surface material | Conductive rubber (bonded to plastic disc) |
| Disc material | Durable plastic |
| Surface resistivity | 5 × 10⁶ Ω |
| Volume resistivity | 1 × 10⁷ Ω |
| Performance range | 5 × 10⁶ Ω/cm² |
| Temperature tolerance | −10 °C to +85 °C (14 °F to 185 °F) |
| Electrical power | None required |
| Compressed air | None required |
| Product weight | 1.63 kg (3.6 lbs) |
Documentation
Built for ESD-protected workstations
REF 07Surface: Conductive rubber bonded to durable plastic disc
Surface res.: 5 × 10⁶ Ω, dissipative band per ANSI/ESD S20.20
Volume res.: 1 × 10⁷ Ω · performance range 5 × 10⁶ Ω/cm²
Thermal range: −10 °C to +85 °C, handles assemblies still warm from reflow
Capacity: 360° free-spin · 200 lb (91 kg) load · 380 mm (15″) disc
EPA work-surface ready
ANSI/ESD S20.20: Compliant, surface resistivity in the dissipative range required for EPA work surfaces in ESD-controlled environments.
Best for: PCB assembly & rework · mechanical assembly · inspection & QC · computer / electronics assembly.
Not for: Sustained temperatures above 85 °C · use as a structural fixture under press / clamping loads beyond the 200 lb capacity.
Origin: Stocked in the USA, USA.
What's in the box
REF 08- Shipped individually. 1.63 kg (3.6 lb) unit weight. Stocked at the US warehouse for same-week ship on standard orders. No assembly required, drop it on the bench and use it.
Volume pricing
REF 09| Quantity | Price per unit | You save |
|---|---|---|
| 1–19 | $117.65 | , |
| 20+ | $105.89 | 10% |
Related parts & spares
REF 10
D500 · ESD Turntable
ESD-safe rotating work platform sized for larger PCB assemblies and mechanical builds, 500 mm (20″) disc, 15 mm low profile, 250 lb (113 kg) capacity.
ESD turntable$181.63
PCBH-2L-C · Angled ESD PCB Holder (Pack of 10)
Wide-base, L-shaped, double wide-angle board holder built for inspection and QC.
Angled holderPack of 10 units$319.03Engineers also bought
REF 11
PCBH-C · Angled ESD PCB Holder (Pack of 10)
Compact vertical-angled board holder built for the bench, 265 × 205 mm footprint, 95 mm tall, fits next to a soldering iron or microscope without crowding the workspace.
Angled holderPack of 10 units$319.03
RA-17C · Slotted-Edge ESD PCB Rack (Pack of 10)
Conductive polypropylene rack for storing, handling, and transporting up to 25 PCBs at up to 2.4 mm thick.
Slotted edgePack of 10 units$359.86
RA-18C · Slotted-Edge ESD PCB Rack (Pack of 10)
Conductive polypropylene rack with double-sided slots (boards engaged from both edges) and integrated carry handles on both ends.
Slotted edgePack of 10 units$359.86
RA-19C · Slotted-Edge ESD PCB Rack (Pack of 10)
Conductive polypropylene rack with the tightest pitch (12.2 mm) and deepest slot (8 mm) in the slotted-edge series.
Slotted edgePack of 10 units$375.64Questions engineers ask
REF 12Does the D380 need power, compressed air, or batteries?
No. The turntable spins on a smooth bearing under board weight alone. Place it on the bench, set your assembly on top, push it to rotate. No power outlet, no air supply, no batteries to replace, no maintenance schedule. The grounding to the bench’s ESD mat happens through normal contact, the conductive rubber surface is continuous with the disc body and the disc body sits flat on your work surface.
Can I put a hot board on it, just out of reflow or selective solder?
Yes, up to 85 °C (185 °F). That’s above the typical hand-touch threshold for cooled-down boards but below sustained reflow / oven temperatures. If your assembly is still hot enough that the operator needs gloves, give it 30–60 seconds to drop into the safe range before placing it on the disc. The conductive rubber surface is durable but not designed for direct in-oven use.
What does ANSI/ESD S20.20 compliance mean for my EPA work area?
ANSI/ESD S20.20 specifies the surface-resistivity range required for any work surface used inside an ESD Protected Area (EPA). The D380’s 5 × 10⁶ Ω surface resistivity falls squarely in the dissipative band required by the standard, meaning charges drain off the work surface fast enough to prevent damaging discharge into ESD-sensitive components, but slowly enough not to spike from sudden grounding. Drop it onto your existing ESD mat, the disc bottom maintains the EPA continuity.
D380 (15″) vs D500 (20″), which one do I pick?
Pick the D380 for benchtop hand soldering, mid-size PCB assembly, and rework where 200 lb capacity is enough, the smaller disc takes less bench real estate and is easier to grab one-handed. Pick the D500 for larger PCB assemblies, mechanical builds with multiple sub-components, or any rework where the load might approach 250 lb. Both share the same surface material, ESD spec, and no-power design, the only differences are disc diameter and load rating.
How heavy can the load be? Will it slow down or stop spinning?
Rated 200 lbs (91 kg). The bearing is sized to spin freely under that load, rotation is smooth and controlled, not free-fall. For loads under 50 lb the turntable is essentially frictionless; for loads near the 200 lb rating it has more controlled resistance, which is what you want during precision rework so the board doesn’t over-rotate when you push it.
What ships in the box?
One D380 turntable, fully assembled and ready to use. 1.63 kg (3.6 lb) unit weight. Stocked at the US warehouse, most orders ship the same week. No assembly required, drop it on the bench and start using it.
