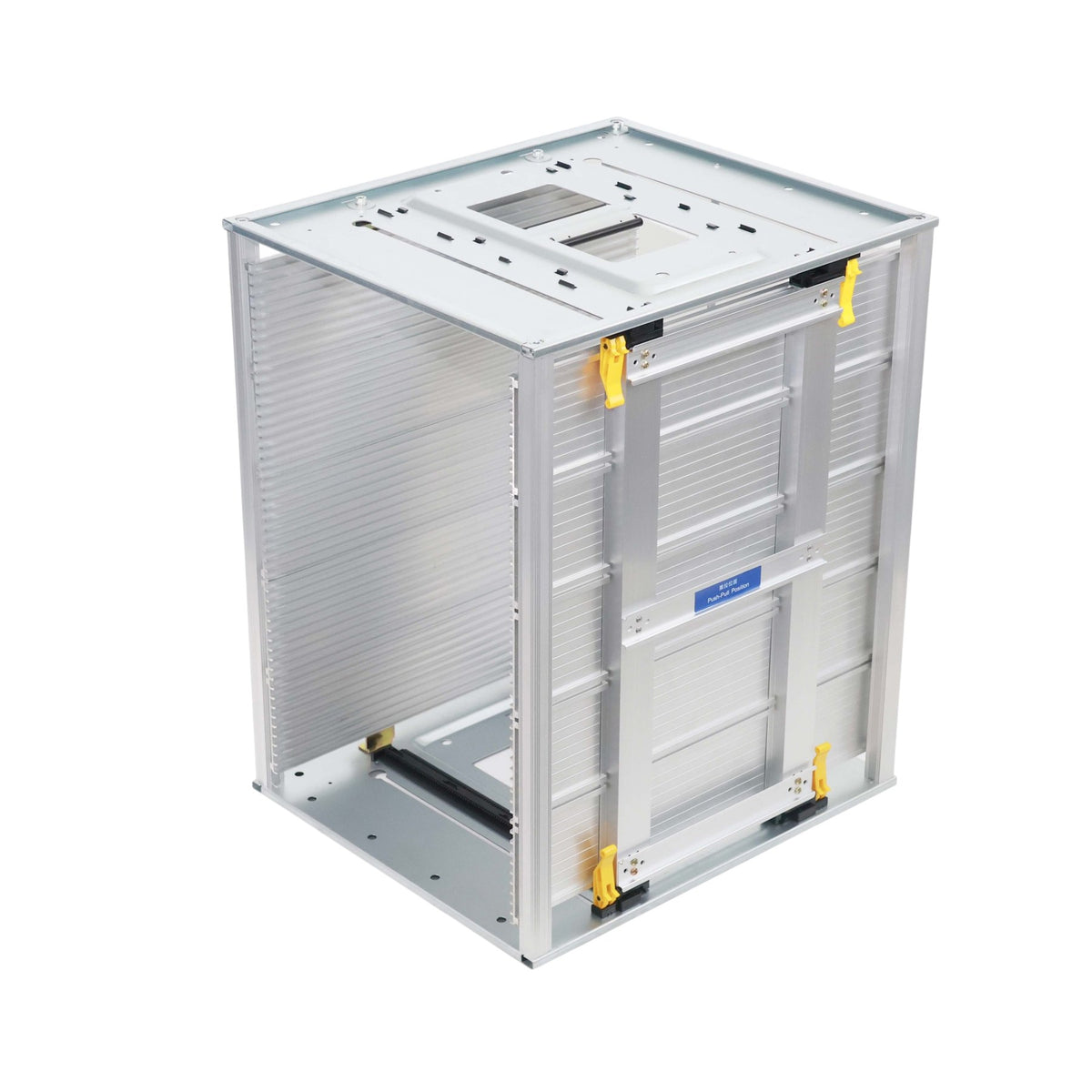

B0106GL HT-300C · 50-Slot All-Aluminum 300 °C ESD Magazine Rack
B0106GL HT-300C300 °CIn stock · USA
50-slot ESD magazine rack with the same all-aluminum 300 °C build as the standard-format B0103GL HT, just sized for boards up to 460 × 330 mm. Lead-free reflow direct loading, aerospace cure, full IPC/JEDEC J-STD-033 bake. 460 × 400 × 563 mm chassis, 7.5 mm wide slot, gear-track adjustable 50–330 mm. NASTC ESD-tested, SGS RoHS PASS. Stocked in the USA.
$348.55 per unit
- Adjustable Width: 50–330 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 460 × 330 mm
- Temp Range: −20 / +300 °C
ESD-safe
Ships from the USA
Spec help included
Large-Format Boards Need Large-Format High-Temp Racks.
REF 01The standard-format B0103GL HT-300C tops out at 355 mm board length and 250 mm board width. Large-format boards (up to **460 × 330 mm**) running through lead-free reflow, aerospace cure, or J-STD-033 bake need a chassis that fits them, with the same all-aluminum, polymer-free 300 °C qualification.
460 × 330 mm boards
300 °C ceiling
All-aluminum panels
7.5 mm wide slot
At a glance
REF 02Adjustable Width50–330 mm
Slot Count / Pitch50 @ 10 mm
Max Board (L × W)460 × 330 mm
Temp Range−20 / +300 °C
Description

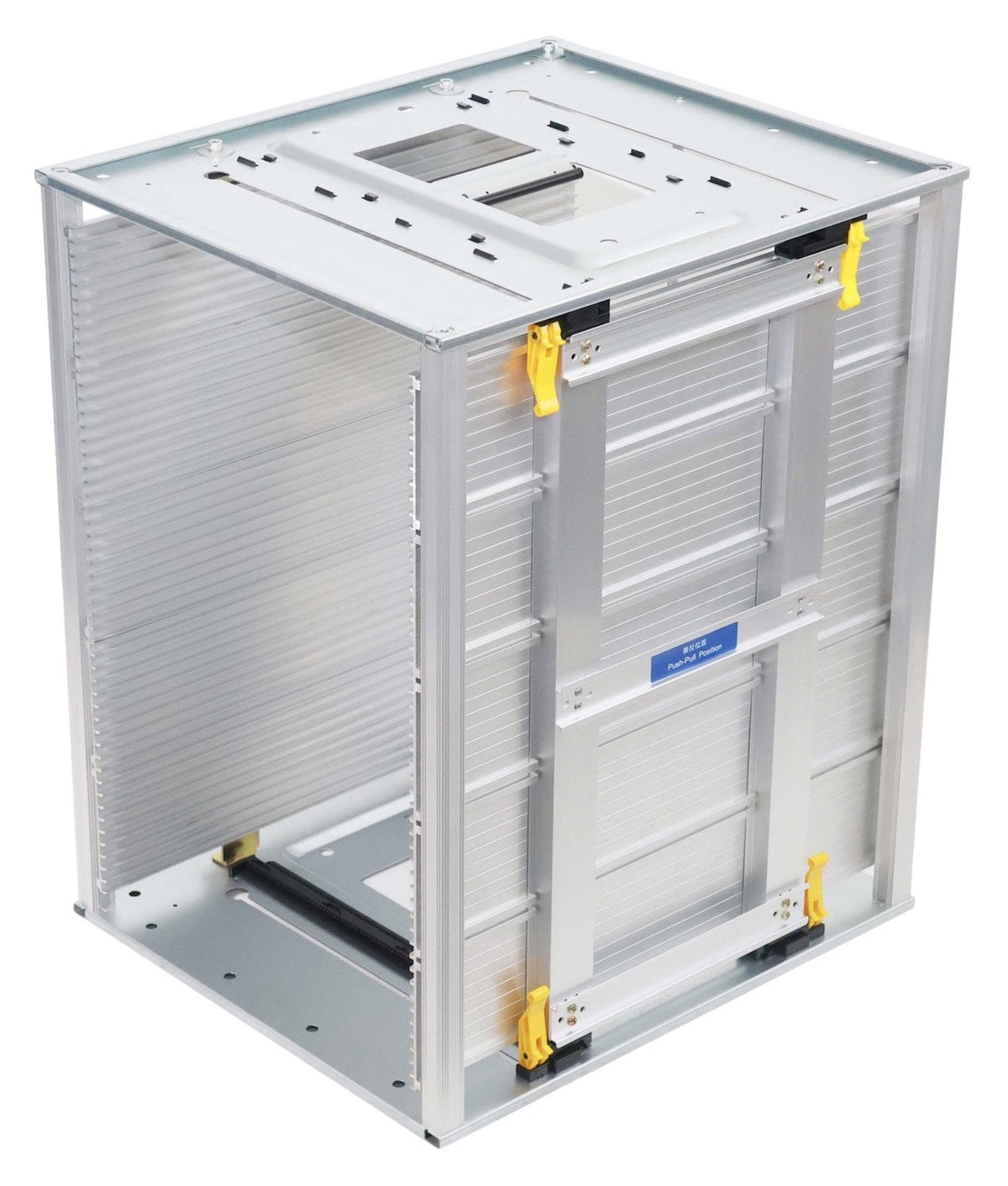

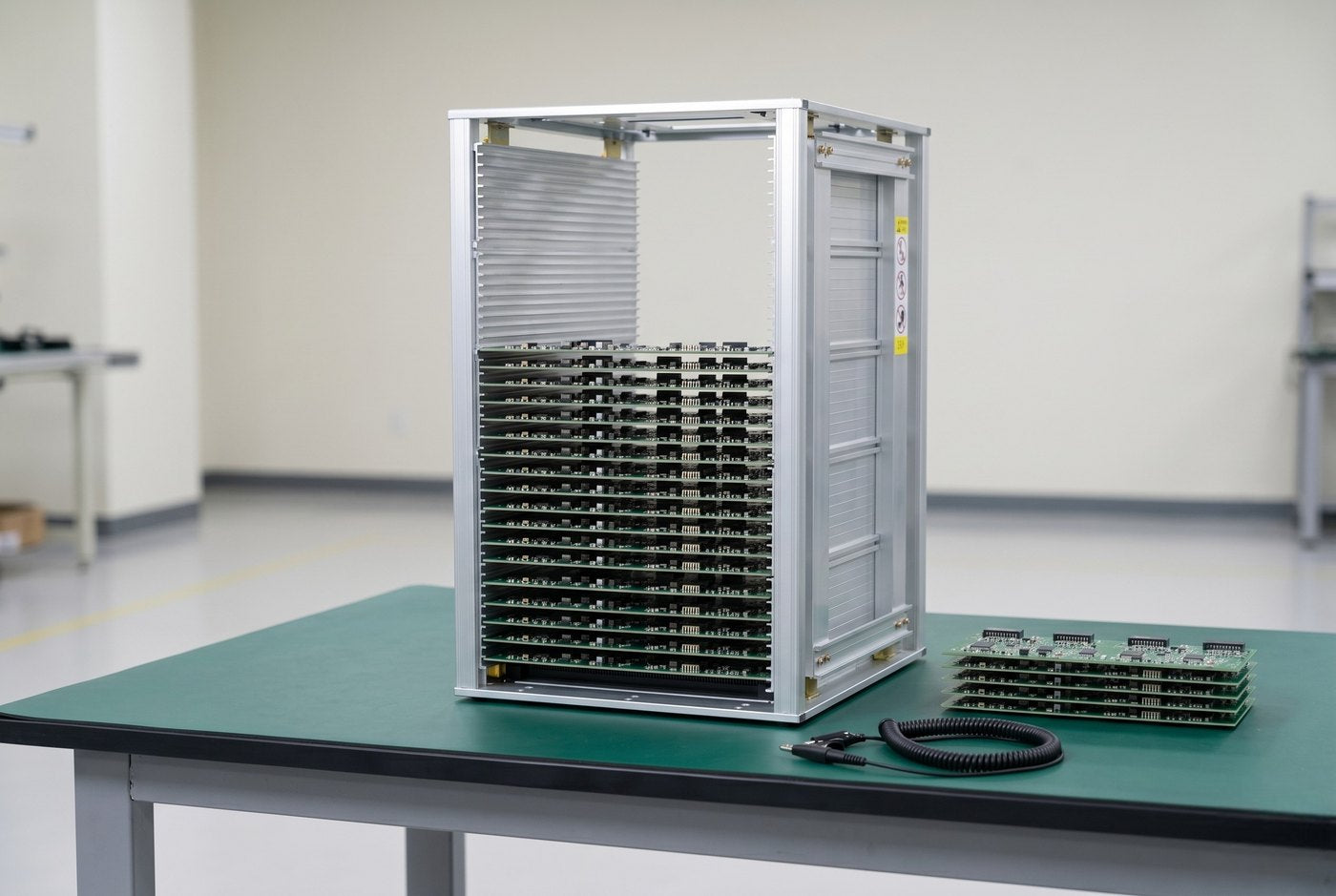

REF 03Large-format chassis with the all-aluminum 300 °C build
The B0106GL HT-300C is the large-format sibling of the B0103GL HT-300C, same all-aluminum 300 °C qualification, same 7.5 mm wide slot, same gear-track mechanism, same compliance. The only difference is the chassis: 460 × 400 × 563 mm instead of 355 × 320 × 563 mm, with adjustable board width up to 330 mm and max board length to 460 mm.
5 × interchangeable aluminum side panels per wall, no polymer in the thermal path, so the rack stays dimensionally stable through cycles to 300 °C. Lead-free reflow direct loading, IPC/JEDEC J-STD-033 accelerated bake, conformal-coat post-cure, and aerospace high-heat stress testing all run inside the rack’s thermal envelope.
The aluminum-panel construction across the larger chassis brings the empty weight to 10.6 kg (vs 8 kg on the standard-format HT, and 8.3 kg on the B0106GN-80C standard-temp cousin). Gear track is the standard adjustment mechanism; screw adjustment configuration is also available. Same NASTC ESD report and SGS RoHS certificate as the rest of the B0106 chassis family.
See it in motion
REF 04360° rotation · B0106GL HT-300C
Technical specifications
REF 05| Model | B0106GL HT-300C |
|---|---|
| Materials | Aluminum side panels (5 × interchangeable per wall, no polymer) · aluminum pillars · galvanized steel base |
| Dimensions (L × W × H) | 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″) |
| Slot count | 50 |
| Slot width | 7.5 mm (0.295″), wider than gear-track 5 mm; clears thicker / warped / populated boards |
| Slot depth | 3.5 mm (0.138″) |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 50–330 mm (1.97″–12.99″) via gear-track mechanism |
| Max board length | 460 mm (18.11″) |
| Max board size (L × W) | 460 × 330 mm |
| Min board size (L × W) | 50 × 50 mm |
| Reference positions | A = 34 mm · B = 33 mm |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (conductive band per ESD Association) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +300 °C (−4 °F to 572 °F), top of the magazine-rack thermal range |
| Adjustment type | Gear track with parallelism monitoring (screw adjustment configuration also available) |
| Includes | Stopper bar · carrying handles (top and bottom) |
| Weight | 10.6 kg |
Documentation
Built for ESD-protected workstations
REF 07Materials: 5 × Aluminum side panels · aluminum pillars · galvanized steel base (no polymer in the thermal path)
Surface res.: 10⁴ – 10⁶ Ω, conductive band per ESD Association
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all **PASS**
Thermal range: −20 °C to +300 °C, top of the magazine-rack thermal range
Capacity: 50 slots · 10 mm pitch · 50–330 mm adjustable · 7.5 mm wide slot · max board 460 × 330 mm
RoHS: **PASS**, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: Lead-free reflow direct loading · aerospace cure · conformal-coat post-cure · J-STD-033 accelerated bake · high-heat stress testing.
Not for: Standard 80 °C envelopes where 300 °C capability is unused (cheaper variants on the same chassis: [GN-80C](pcb-b0103gn-80c-shop-standalone-rev2.html) / [GM-200C](pcb-b0103gm-200c-shop-standalone-rev2.html)).
What's in the box
REF 08- Sold individually. Packaging size 570 × 470 × 100 mm at 10.6 kg gross. Stocked at the US warehouse for same-week ship on standard orders. Includes stopper bar and carrying handles (top + bottom).
Volume pricing
REF 09| Quantity | Price per unit | You save |
|---|---|---|
| 1–19 | $348.55 | , |
| 20+ | $313.70 | 10% |
Related parts & spares
REF 10
B0103GL HT-300C · 50-Slot All-Aluminum 300 °C ESD Magazine Rack
50-slot all-aluminum ESD magazine rack rated to 300 °C, built for aerospace cure, lead-free reflow direct loading, and high-heat stress testing.
300 °C 300 °C all-aluminum$275.52
B0109GL HT-300C · 50-Slot All-Aluminum 300 °C ESD Magazine Rack
50-slot ESD magazine rack, the widest 300 °C rack in the catalog.
300 °C 300 °C all-aluminum$509.75Engineers also bought
REF 11
B0106GC BELT-80C · 50-Slot Belt-Adjustable ESD Magazine Rack
50-slot ESD magazine rack on the large-format chassis, with continuous belt adjustment covering 10–330 mm of board width, no stepped clicks, no fixed indices.
80 °C Continuous belt$420.50
B0106GM-200C · 50-Slot Gear-Adjustable ESD Magazine Rack
50-slot ESD magazine rack on the large-format chassis, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.
200 °C Gear · 200 °C$326.50Questions engineers ask
REF 12How is this different from the standard-format B0103GL HT-300C?
**Same all-aluminum 300 °C build, same 7.5 mm slot, same compliance, just a bigger chassis.** The B0106GL HT-300C uses the large-format **460 × 400 × 563 mm** body (vs 355 × 320 × 563 on B0103), with adjustable width up to **330 mm** and max board **460 × 330 mm** (vs 355 × 250 on B0103). Empty weight goes from 8 kg to 10.6 kg. Pick this rack when your boards exceed B0103’s 355 × 250 mm envelope; pick the [B0103GL HT-300C](pcb-b0103gl-ht-300c-shop-standalone-rev2.html) when they fit.
What does “all-aluminum” actually change vs the standard 200 °C gear-track racks?
Standard gear-track racks (GN/GM variants) use 5 × **Conductive PPE** side-panel sections per wall. PPE softens above ~200 °C and starts off-gassing in cure ovens. The HT series swaps every PPE panel for an **aluminum panel**, same five interchangeable slots per wall, same gear-track mechanism, no polymer in the thermal path. The rack stays dimensionally stable through 300 °C cycles.
Why is the slot 7.5 mm wide instead of 5 mm?
Boards that have just come out of reflow or post-cure are often slightly **thicker, warped, or populated with tall components** on the bottom side. The 5 mm gear-track slot is fine for raw bare boards, but a 1.6 mm board with 2 mm of solder paste + 1 mm of warp + a populated underside can exceed 5 mm. The 7.5 mm HT slot accommodates these without forcing operators to angle boards in.
Will the B0106GL HT-300C drop into my SMT loader / unloader?
Yes, the chassis height (563 mm) and 10 mm slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The **460 mm chassis length** is wider than the standard B0103 (355 mm); confirm your loader / unloader is configured for large-format racks before ordering. Reference offsets **A=34, B=33** match the B0103GL HT and the rest of the HT family.
Do I need 300 °C if my bake only runs at 125 °C?
Probably not. For 125 °C accelerated bake or anything below 200 °C on the large-format chassis, the [B0106GM-200C (200 °C)](pcb-b0106gm-200c-shop-standalone.html) is a lower-cost option on the same chassis, same NASTC ESD report, same SGS RoHS. Pick the GL HT-300C when the process actually needs 200–300 °C (lead-free reflow direct loading, conformal-coat post-cure 150–200 °C, aerospace cure, or thermal stress testing).
What ships in the box?
One B0106GL HT-300C magazine rack, sold individually. Includes **stopper bar** and **carrying handles** (top and bottom). Packaging size 570 × 470 × 100 mm at 10.6 kg gross. Stocked at the US warehouse, most orders ship the same week. No assembly required.
