RA-20C double-slot ESD PCB tray loaded with circuit boards

RA-20CSlotted-Edge ESD PCB Rack, 25 Double Slots (Pack of 10)

Slotted-Edge Rack · 25 Positions · Double Slot · Pack of 10

RA-20C is a slotted-edge ESD PCB rack with a double slot at each of its 25 positions, for boards waiting at the bench, on the cart and on the shelf.

Positions: 25, with two slots at each
Slot A: 3 mm wide, 7.7 mm deep (0.118″ × 0.303″)
Slot B: 2.1 mm wide, 3 mm deep (0.083″ × 0.118″)
Maximum PCB Size: 400 × 220 mm (15.75″ × 8.66″)
Rack Size: 484 × 172 × 50 mm (19.06″ × 6.77″ × 1.97″)
ESD Rating: Conductive polypropylene, 10⁴ Ω
Temperature Range: −10 °C to +80 °C (14 °F to 176 °F)

Slot A holds a board firmly on a moving cart; slot B takes quick one-handed picks. Sold in packs of 10, no assembly.

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

$41.90per rack · pack of 10: $419.00

ESD safeConductive 10⁴ Ω TemperatureUp to 80 °C (176 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

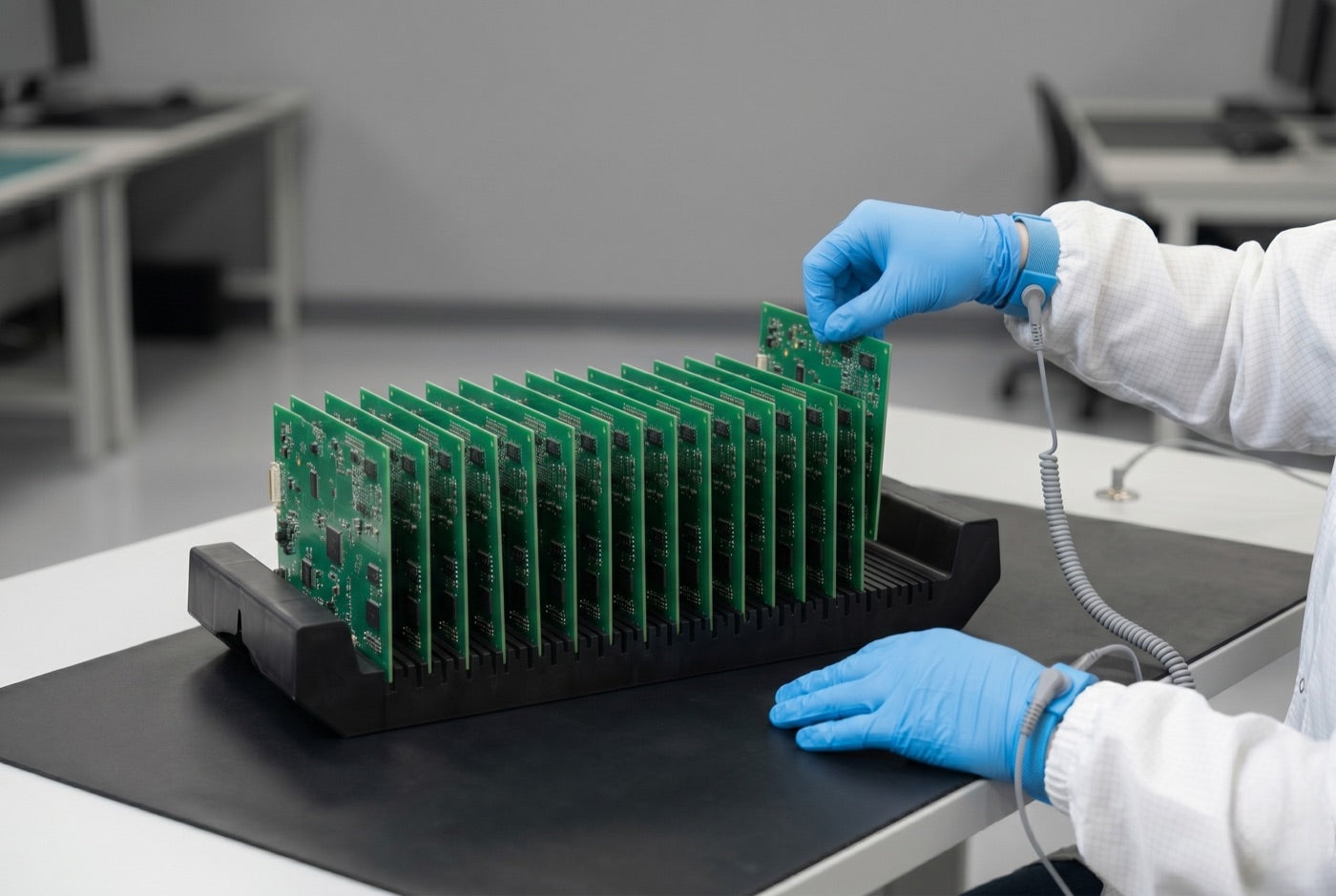

RA-20C loaded with circuit boards — Loaded and ready for the line

360° view

At a glance

What it does: Holds 25 boards on edge and apart, at the bench, on the cart and on the shelf.
The problem it solves: Thin and thick boards of a mixed job fit one rack: a deep slot and a shallow slot at every position.
What it fits: Boards from 50 × 50 mm to 400 × 220 mm (2 × 2 in to 15.7 × 8.7 in), up to about 2.2 mm (0.087 in) thick.
Key specs: 25 positions · 15 mm (0.59 in) set pitch · conductive 10⁴ Ω · packs of 10

Details

Thin and thick boards, one rack.

A double slot at every position: a deep one that holds on a moving cart, a shallow one for quick picks.

The engineer, who chooses it: Two slots at every position take thin and thick boards in the same rack. One rack serves every job on a mixed line.
The operator, who uses it: Deep slots hold each board while the cart rolls, so nothing bounces out between steps.
The buyer, who pays for it: One rack instead of two means one part to stock and reorder. A pack of ten, priced on the page, in stock and shipped within a day.

Description

The RA-20C is an ESD PCB tray: a 25-position conductive polypropylene slotted-edge rack with a double slot at every position.

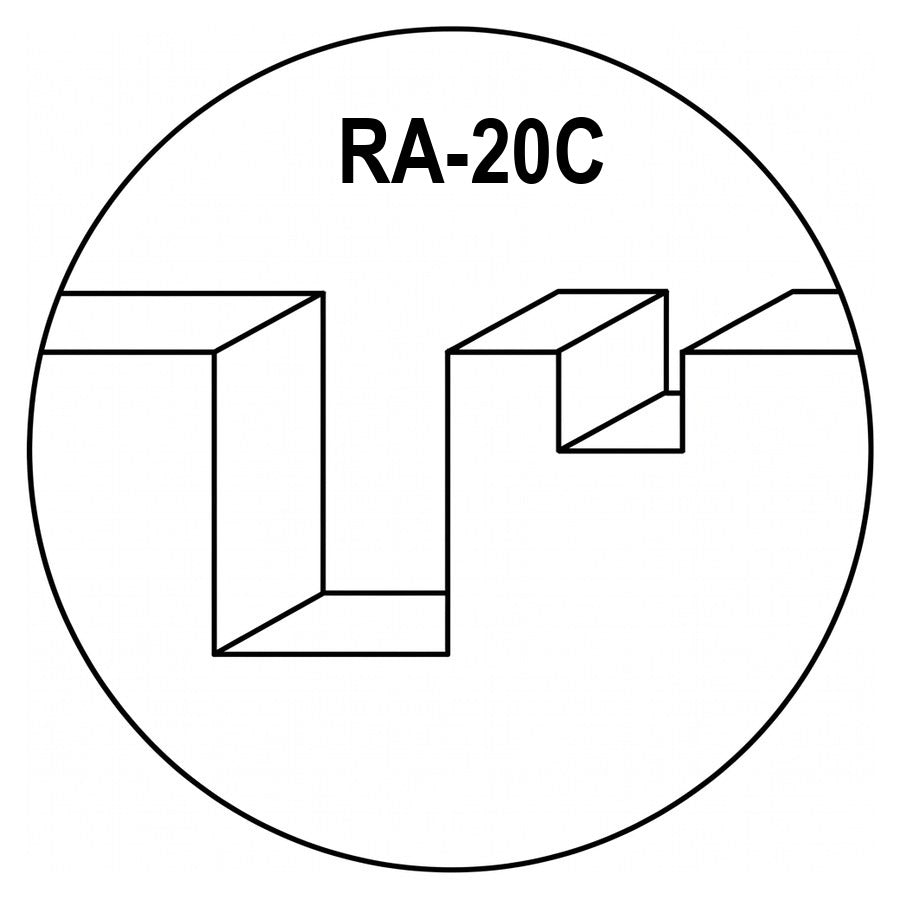

Slot A is 3 mm (0.118″) wide and 7.7 mm (0.303″) deep. Boards seat deep and stay put during cart transport.
Slot B is 2.1 mm (0.083″) wide and 3 mm (0.118″) deep. Thin boards sit shallow for quick, one-handed picks at the bench.

Slot pitch is 15 mm (0.591″) across 25 positions. Boards up to 400 × 220 mm (15.75″ × 8.66″) and 2.2 mm (0.087″) thick span the 172 mm (6.77″) rack width and may overhang both sides. Conductive PP at 10⁴ Ω keeps boards protected through production, inspection and storage.

Where it is used: inspection and QC, hand soldering and rework, test benches and repair depots, and on the shelf between process steps. It is a bench and storage rack for manual work at electronics manufacturers and contract manufacturers.

Buying for a line? 5 or more packs take 5% off and 10 or more take 10% off, automatically at checkout. See our volume and fleet pricing.

Best uses

At the bench: Boards wait on edge, apart, between process steps.
On the cart: Slot A holds each board while the cart moves.
On the shelf: Boards stay upright and apart in storage.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−10 to 80 °C (14 to 176 °F)

RA-20CThis product−10 to 80 °C

80 °C · 176 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Made for production, storage and bench work at normal factory temperatures.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

The polypropylene itself is conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

Boards stand on edge, up to about 2.2 mm (0.087 in) thick in slot A.

Technical data

Model	RA-20C
Material	Conductive polypropylene (PP)
Dimensions (L × W × H)	484 × 172 × 50 mm (19.06″ × 6.77″ × 1.97″)
Slot count	25
Slot type	Double slot per position: Slot A 3 × 7.7 mm (0.118″ × 0.303″), Slot B 2.1 × 3 mm (0.083″ × 0.118″)
Slot width	Slot A 3 mm (0.118″) · Slot B 2.1 mm (0.083″)
Slot depth	Slot A 7.7 mm (0.303″) · Slot B 3 mm (0.118″)
Set pitch (the A+B slot pair repeats)	15 mm (0.591″)
Max board thickness	~2.2 mm (0.087″)
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Max board size (L × W)	400 × 220 mm (15.75″ × 8.66″)
ESD properties	System resistance 10⁴ Ω, conductive
RoHS	Compliant, EU Directive (EU) 2015/863
Test reports	ESD and RoHS test reports on request
Temperature range	−10 °C to +80 °C (14 °F to 176 °F)
Chemical resistance	Resistant to non-oxidizing acids, alkalis, and most organic solvents. Not suitable for halogenated hydrocarbons, aromatic solvents, or strong oxidizing acids.
Weight	0.32 kg (0.71 lb) per rack

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.
RoHS (EU) 2015/863: The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. This rack is RoHS compliant; the test report is available on request.

Full IPC and ESD standards reference for handling, storage and depaneling

FAQ

Questions

What is the difference between the RA-20C and the RA-24 Mini?

The RA-20C has two slots at each of its 25 positions: Slot A, 3 mm (0.118″) wide and 7.7 mm (0.303″) deep, and Slot B, 2.1 mm (0.083″) wide and 3 mm (0.118″) deep, for boards up to 2.2 mm (0.087″) thick. The RA-24 Mini has one deep slot per position, 3.2 mm (0.126″) wide and 7.7 mm (0.303″) deep, for boards up to 2.4 mm (0.094″). Both take boards up to 400 × 220 mm (15.75″ × 8.66″). The RA-20C is $41.90 a rack, the RA-24 Mini $34.70.

Which stations is the RA-20C made for?

At electronics manufacturers and contract manufacturers, any bench where boards are handled by hand: inspection and QC, hand soldering and rework, test benches and repair depots. Next to a depaneler it holds panels and separated boards, and on the shelf it keeps boards apart between process steps.

What size and thickness of board does the RA-20C take?

Boards from 50 × 50 mm (1.97″ × 1.97″) to 400 × 220 mm (15.75″ × 8.66″), up to 2.2 mm (0.087″) thick, at −10 °C to +80 °C (14 °F to 176 °F). Boards span the 172 mm (6.77″) rack body and may overhang on both sides, so panels wider than the rack are still fully supported. Thicker or heavily populated boards go in the RA-24 Mini.

How do RA-20C volume discounts work?

$41.90 a rack, sold in packs of 10 at $419.00 a pack. From 5 packs, 5% comes off automatically ($39.81 a rack); from 10 packs, 10% ($37.71 a rack). For a whole line, ask for a fleet quote. Pay by card, or send a PO.

Which slot do I use, A or B?

Use Slot A (3 mm (0.118″) wide, 7.7 mm (0.303″) deep) when boards travel: the deep seat keeps them from tipping or walking out on a cart. Use Slot B (2.1 mm (0.083″) wide, 3 mm (0.118″) deep) at the bench: the shallow seat lets you pick a board out with one hand. The A+B pair repeats every 15 mm (0.591″), so you can mix uses in one rack.

Can our quality team get ESD and RoHS test reports for the RA-20C?

Yes. The RA-20C is conductive polypropylene, 10⁴ Ω, and RoHS compliant under EU Directive (EU) 2015/863. ESD and RoHS test reports go to your quality team on request for the audit file.

How are RA-20C racks packed?

In packs of 10 racks, ready to use with no assembly. Bulk cartons (40+ units) measure 525 × 370 × 565 mm (20.67″ × 14.57″ × 22.24″) at 17 kg (37.5 lb) gross. In-stock packs ship from the USA in under 24 hours, and shipping is calculated at checkout from the weight of the order.

What temperature range is the RA-20C rated for?

−10 °C to +80 °C (14 °F to 176 °F), which covers bench work and storage between process steps. For bake or cure, use the magazine racks: 200 °C (392 °F) in the GM and M models, or the all-aluminum 300 °C (572 °F) HT Series.

Does it work with SMT loaders and unloaders?

No, the RA-20C is a bench-side and shelving rack for manual handling, not an in-line magazine. If you need loader compatibility, look at the B0103–B0109 magazine racks with the 50-slot loader interface.

How do I clean it without ruining the ESD surface?

Warm water with a mild pH-neutral detergent; IPA 70% for spot cleaning. Never use acetone, aromatic or halogenated solvents, or abrasives: they attack the conductive surface, and the damage does not reverse. Dry fully before boards go back in.

Where do I get the spec sheet or CAD?

The spec sheet PDF is behind the Download spec sheet button on this page, one short form unlocks the whole document library. Drawings and CAD are handled personally: request them by email and the team follows up.
