Magazine Rack · 50 Slots · Gear-Adjustable · All-Plastic · 80 °C
B0105GPN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
B0105GPN-80C80 °CIn stock · ships in under 24 h · USA
The B0105GPN-80C is a 50-slot ESD-safe PCB magazine rack with gear-track width adjustment, rated −20 °C to +80 °C (−4 °F to 176 °F). Slot pitch is 10 mm, board width adjusts from 50–250 mm. It ships from California and fits standard in-line SMT loaders.
External dimensions (L × W × H)14″ × 13″ × 22″
355 × 320 × 563 mm
$179.00 per unit
- Adjustable Width: 50–250 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 355 × 250 mm
- Temp Range: −20 / +80 °C
Replacing another maker's part? Cross-reference your part number →
Heads-up: $300 order minimum. Combine spares or add to a rack order.
ESD-safe
Ships from the USA
Spec help included
At a glance
External dimensions (L × W × H)14″ × 13″ × 22″
355 × 320 × 563 mm
355 × 320 × 563 mm
Adjustable Width50–250 mm
Slot Count / Pitch50 @ 10 mm
Max Board (L × W)355 × 250 mm
Temp Range−20 / +80 °C

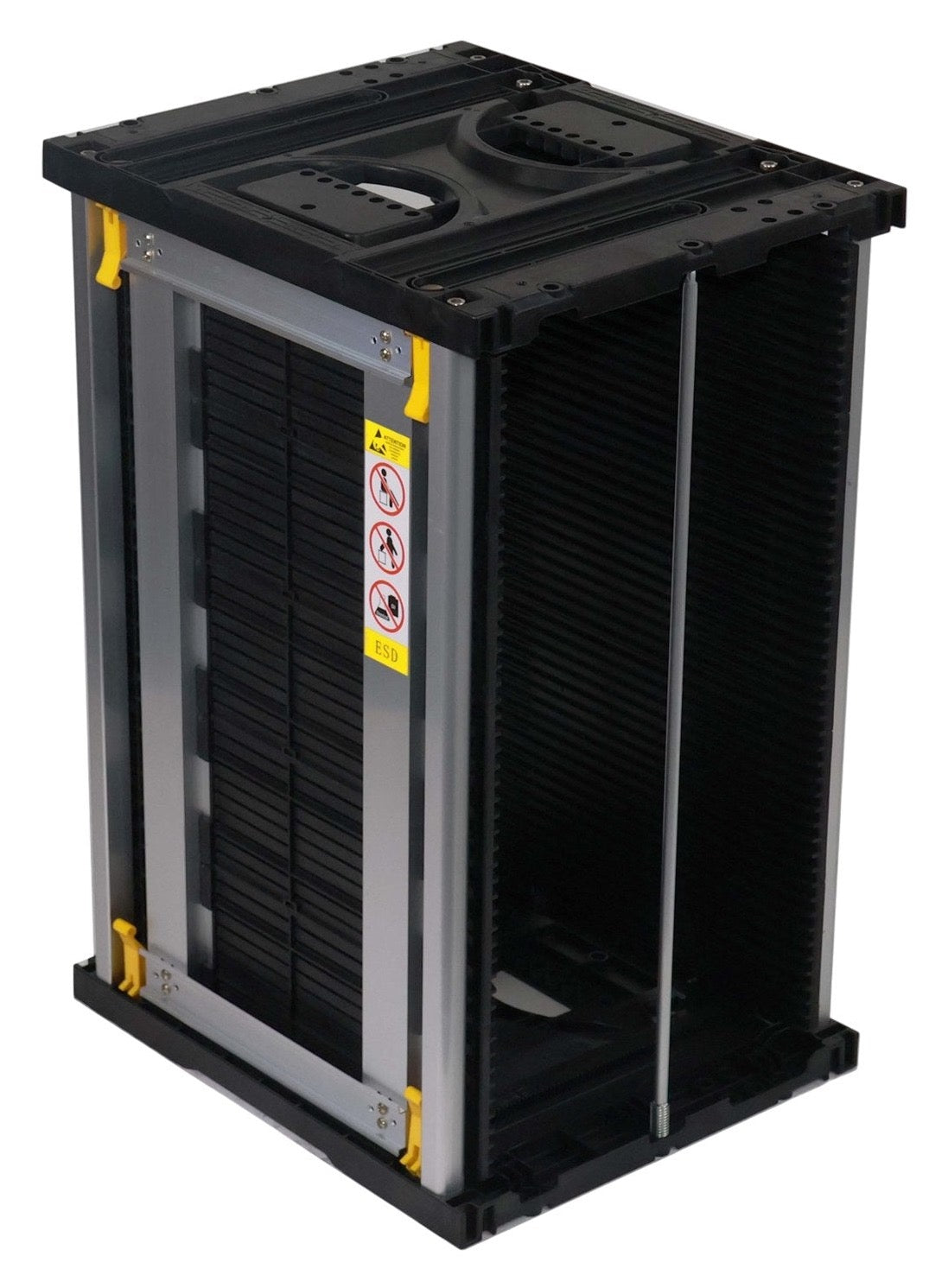

Operator Fatigue Compounds Across a Floor of Loaded Racks.
Metal-base magazine racks add weight that compounds across every cart trip, every shelf load, every line transfer. The B0105GPN swaps the galvanized-steel base for a conductive PS base, same 50-slot capacity, same gear-track adjustment, same ESD spec, but 1.5 kg lighter per rack. Multiply by 50 racks on a floor and the labor delta is real.
4.8 kg empty
Conductive PS base
No galvanized steel
SMT loader compatible

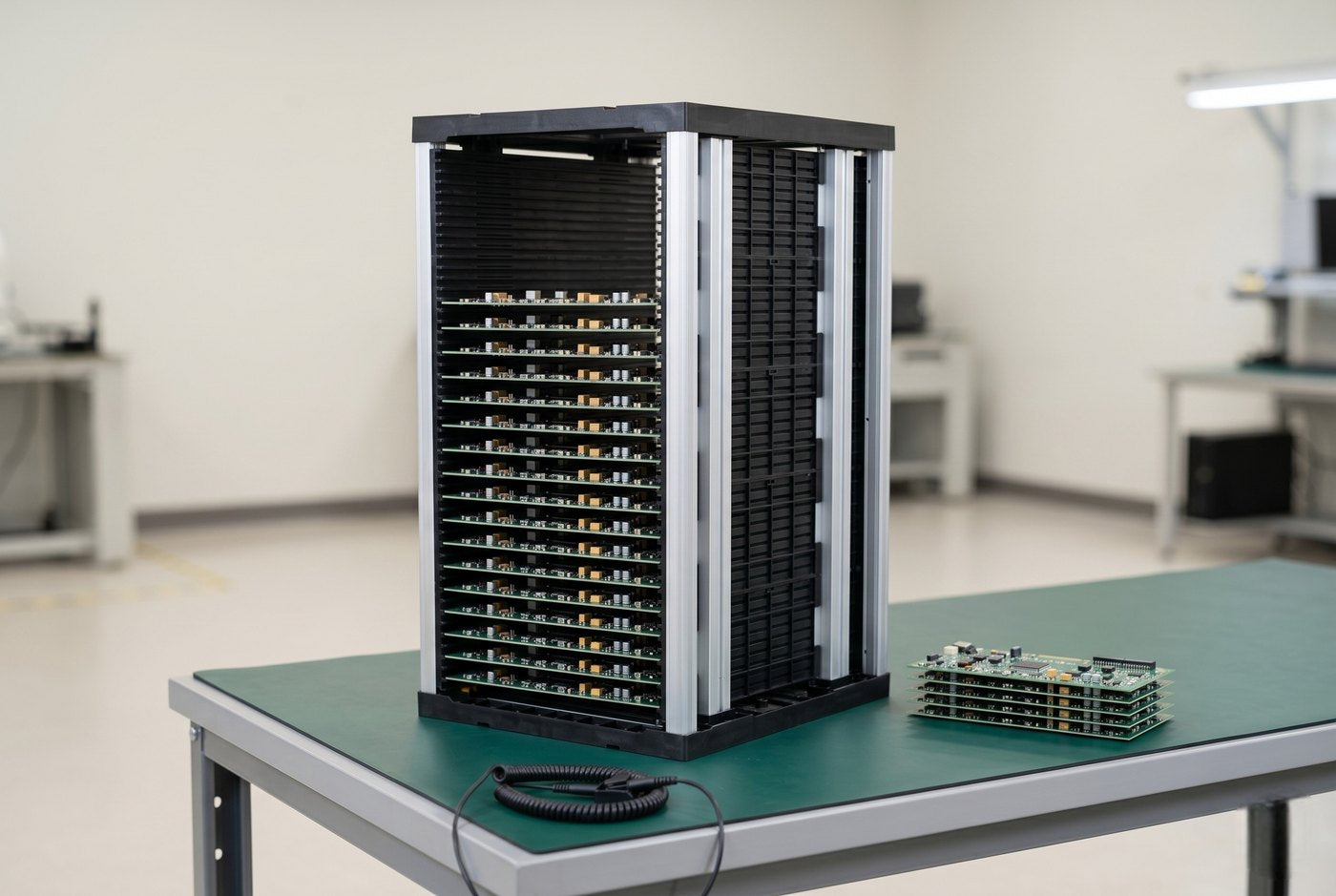

Description
External dimensions (L × W × H): 14″ × 13″ × 22″ · 355 × 320 × 563 mm
What “all-plastic” actually changes
The B0105GPN-80C is a 50-slot ESD magazine rack with all-plastic construction. The chassis swaps the galvanized-steel base of the B0103 family for a Conductive PS (polystyrene) base, while keeping the same 5 × Conductive PPE side panels and aluminum pillars. Result: same 50-slot capacity, same gear-track mechanism, same 50–250 mm width range, 1.5 kg lighter per rack.
Why it matters: across a production floor with 30–50 racks moving daily between stations, 1.5 kg per rack is a meaningful operator-fatigue savings. The all-plastic chassis is also the right pick when your environment requires a non-metallic chassis (cleanroom, high-RF, or specific contamination protocols), and when minimum-weight per loaded transport matters (cart capacity, shelf load).
The plastic base preserves the conductive 10⁴–10⁶ Ω band across the entire current path, same NASTC ESD report and SGS RoHS certificate as the metal-base B0103 family. Standard 80 °C envelope; for bake-suitability on the same all-plastic chassis, use the B0105GPM-120C. For higher temperatures, switch to a metal-base sibling on the B0103 chassis.
Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.
See it in motion
360° turntable rendered from the production CAD model. The geometry shown is the part that ships · B0105GPN-80C
B0105GPN-80C · Technical specifications
| Model | B0105GPN-80C |
|---|---|
| Materials | Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · Conductive PS base (no galvanized steel, all-plastic chassis) |
| Dimensions (L × W × H) | 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 3.5 mm (0.138″) |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 50–250 mm (1.97″–9.84″) via gear-track mechanism |
| Max board length | 355 mm (13.98″) |
| Max board size (L × W) | 355 × 250 mm |
| Min board size (L × W) | 50 × 50 mm |
| Reference positions | A = 34 mm · B = 34 mm |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (dissipative band per ANSI/ESD S541) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +80 °C (−4 °F to 176 °F) |
| Adjustment type | Gear track with parallelism monitoring (screw adjustment configuration also available) |
| Includes | Stopper bar · carrying handles (top and bottom) |
| Weight | 4.8 kg, lightest in the magazine catalog (vs 6.3 kg gear / 6.1 kg screw) |
Documentation
Download spec sheet (PDF)
Need drawings or CAD models? Request them by email
Machine compatibility
| Loader / machine | Series | Interface |
|---|---|---|
| ASM SIPLACE | All in-line loaders / unloaders | 563 mm chassis · 10 mm slot pitch |
| Yamaha | YSM series | 563 mm chassis · 10 mm slot pitch |
| Panasonic | NPM series | 563 mm chassis · 10 mm slot pitch |
| Juki | RS series | 563 mm chassis · 10 mm slot pitch |
| Other in-line SMT | Standard-interface loaders | Ask for a fit-check if your line uses a custom fixture |
Not sure your loader is on the list? Send us the model and we confirm fit before you order.
Against the alternatives
| Feature | B0105GPM-120C | B0105GPN-80C |
|---|---|---|
| Temperature rating | −20 °C to +120 °C (−4 °F to 248 °F), covers MSD low-bake profiles (90–110 °C) | −20 °C to +80 °C (−4 °F to 176 °F) |
| Width adjustment | Gear track, parallelism monitored | Gear track, parallelism monitored |
| MSD bake per J-STD-033 | No. Transfer to a bake-rated rack first | Yes, covers MSD low-bake profiles at 90–110 °C |
| Frame | Conductive PPE panels · aluminum pillars · conductive PS base (no steel) | Conductive PPE panels · aluminum pillars · conductive PS base (no steel) |
| Pick this one when | Warm processes and short low-temperature bake. | Standard storage, transport and in-line SMT handling. |
Built for ESD-protected workstations
Materials: 5 × Conductive PPE side panels · aluminum pillars · Conductive PS base (all-plastic chassis)
Surface res.: 10⁴ – 10⁶ Ω, dissipative band per ANSI/ESD S541
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all PASS
Thermal range: −20 °C to +80 °C, standard SMT envelope (note −10 °C low end)
Capacity: 50 slots · 10 mm pitch · 50–250 mm adjustable · max board 355 × 250 mm · 4.8 kg empty
RoHS: PASS, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: Weight-sensitive lines · non-metallic chassis requirements · SMT in-line automation · standard-temp storage & transport.
Not for: Bake / cure cycles > 80 °C (use the 200 °C or 300 °C variants on the same chassis).
Standards referenced
- IPC/JEDEC J-STD-033
- The moisture-sensitive-device handling standard. It sets the bake profiles (typically 90–125 °C) used to drive moisture out of MSD boards before reflow, which is why a rack's temperature rating decides whether boards can stay in it through the bake.
- ANSI/ESD S541
- The ESD Association standard for packaging materials in an EPA. It classifies surface resistance into conductive (below 10⁴ Ω), dissipative (10⁴ to below 10¹¹ Ω) and insulative bands. Our measured 10⁴–10⁶ Ω sits in the dissipative band, the range specified for board handling.
- RoHS (EU) 2015/863
- The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. All 20 components of this product were tested and passed (SGS report NGBEC25007648601).
Full IPC and ESD standards reference for handling, storage and depaneling →
What's in the box
- Sold individually. Packaging size 570 × 370 × 120 mm at 4.8 kg gross, slightly taller carton than metal-base siblings. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Includes stopper bar and carrying handles (top + bottom).
Volume pricing
| Quantity | Price per unit | You save |
|---|---|---|
| 1–19 racks | $179 | Factory-direct price |
| 20+ racks | $161.10 | 10% |
Related parts & spares
Side Panel Kit · 10 Strips, One Rack (Pack of 10)
Ten side strips, a full set for one rack. Pick chassis and temp.
$6.00per unit Pack of 10 · $60.00
Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00Further reading
- Sizing a rack to your boardsThe four measurements that decide fit, including component envelope against slot pitch.
- Gear, screw or belt adjustmentWhich mechanism suits your changeover pattern, and what wears out.
- What “ESD safe” actually meansSurface resistance, the S541 bands, and how to read a test report.
- Will the rack fit my SMT loader?Chassis height, slot pitch and footprint, plus custom-fixture checks.
Engineers also bought
Rack Wear Kit · 50-Slot Magazine Rack Consumables
Every wear part for one gear-adjust rack: tracks, latches, stopper bar, gears, slot stoppers.
$99.00Side Panel Kit · 10 Strips, One Rack (Pack of 10)
Ten side strips, a full set for one rack. Pick chassis and temp.
$6.00per unit Pack of 10 · $60.00Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00
B0103GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.
External dimensions (L × W × H)
14″ × 13″ × 22″
355 × 320 × 563 mm
Max board size (L × W)
14″ × 10″
355 × 250 mm
Gear · 200 °C ESD-Safe$253.00
B0106GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack on the large-format chassis, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.
External dimensions (L × W × H)
18″ × 16″ × 22″
460 × 400 × 563 mm
Max board size (L × W)
18″ × 13″
460 × 330 mm
Gear · 200 °C ESD-Safe$333.00
B0106GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack on the large-format chassis, sized for boards up to 460 × 330 mm.
External dimensions (L × W × H)
18″ × 16″ × 22″
460 × 400 × 563 mm
Max board size (L × W)
18″ × 13″
460 × 330 mm
Gear track ESD-Safe$257.00
B0108GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack on the extra-large-format chassis, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.
External dimensions (L × W × H)
21″ × 18″ × 22″
535 × 460 × 569 mm
Max board size (L × W)
21″ × 15″
535 × 390 mm
Gear · 200 °C ESD-Safe$429.00
Questions engineers ask
Why pick all-plastic instead of metal-base?
Three reasons. (1) Weight: 4.8 kg vs 6.3 kg per rack. Across 30–50 racks moving daily on a floor, that compounds to real operator-fatigue savings and lighter cart loads. (2) Non-metallic chassis: cleanroom, high-RF, or specific contamination protocols sometimes require no exposed metal in the current path. The B0105GPN’s Conductive PS base satisfies that requirement. (3) Cost: the all-plastic chassis is a touch lower cost than the equivalent metal-base B0103GN. Trade-off: slightly less rigid than the galvanized-steel base, pick metal if you stack heavy loads on top of loaded racks.
Why is the temperature range −10 °C instead of −20 °C?
The Conductive PS base’s low-temperature qualification reaches −20 °C, same as the metal-base racks, vs −20 °C for the galvanized-steel-base B0103 family. For most factory floors this is irrelevant (production environments rarely drop below 10 °C indoors), but if your shipping or staging environment regularly hits below −10 °C, switch to the metal-base B0103GN-80C.
Will the B0105GPN-80C drop into my SMT loader / unloader?
Yes. The 563 mm chassis height and 10 mm slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The 355 × 320 mm footprint is identical to the B0103 / B0104 family. The all-plastic base does not change the loader interface, the loader picks boards from the same standard slot positions.
Can I bake the B0105GPN-80C? What’s the temperature ceiling?
The GPN-80C variant is rated −20 °C to +80 °C. For low-temperature MSD bake on the same all-plastic chassis, pick the B0105GPM-120C (120 °C), suitable for 90–110 °C moisture-removal profiles. For full IPC/JEDEC J-STD-033 bake (up to 125 °C), use the metal-base B0103GM-200C (200 °C) instead. The all-plastic chassis does not currently have a 200 °C variant.
Can I replace a damaged side panel without buying a whole new rack?
Yes. The side panels are made of 5 interchangeable Conductive PPE sections per wall, each individually replaceable, same as the metal-base mag racks. Rack spares are sold separately for every magazine-rack chassis we’ve ever shipped, on a ~1-week lead.
What ships in the box?
One B0105GPN-80C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 570 × 370 × 120 mm at 4.8 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. No assembly required.
