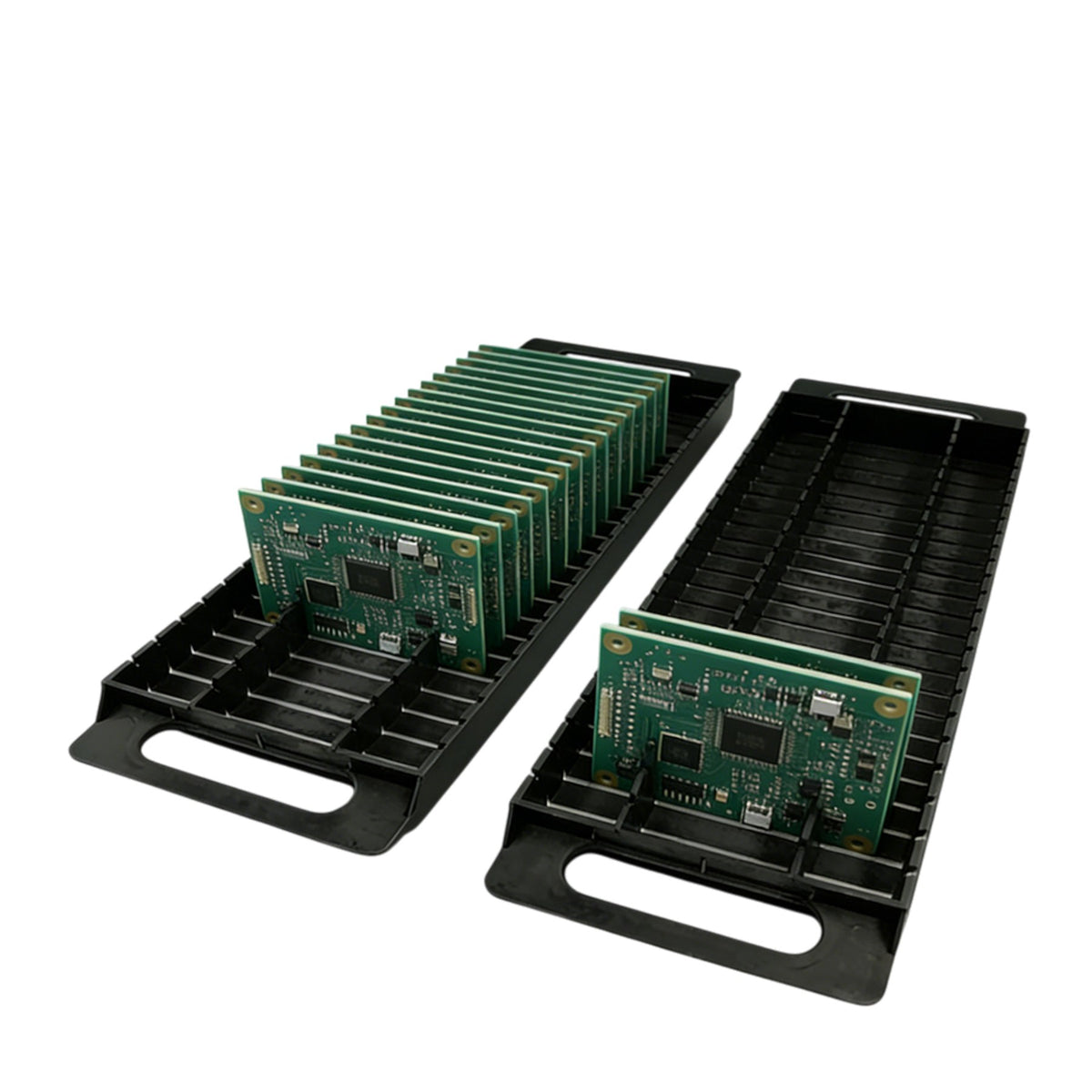

RA-18C ESD PCB tray with handles loaded with circuit boards

RA-18CESD PCB Tray, Slotted-Edge with Handles (Pack of 10)

Slotted-Edge Rack · 25 Slots · Double-Sided · Carry Handles · Pack of 10

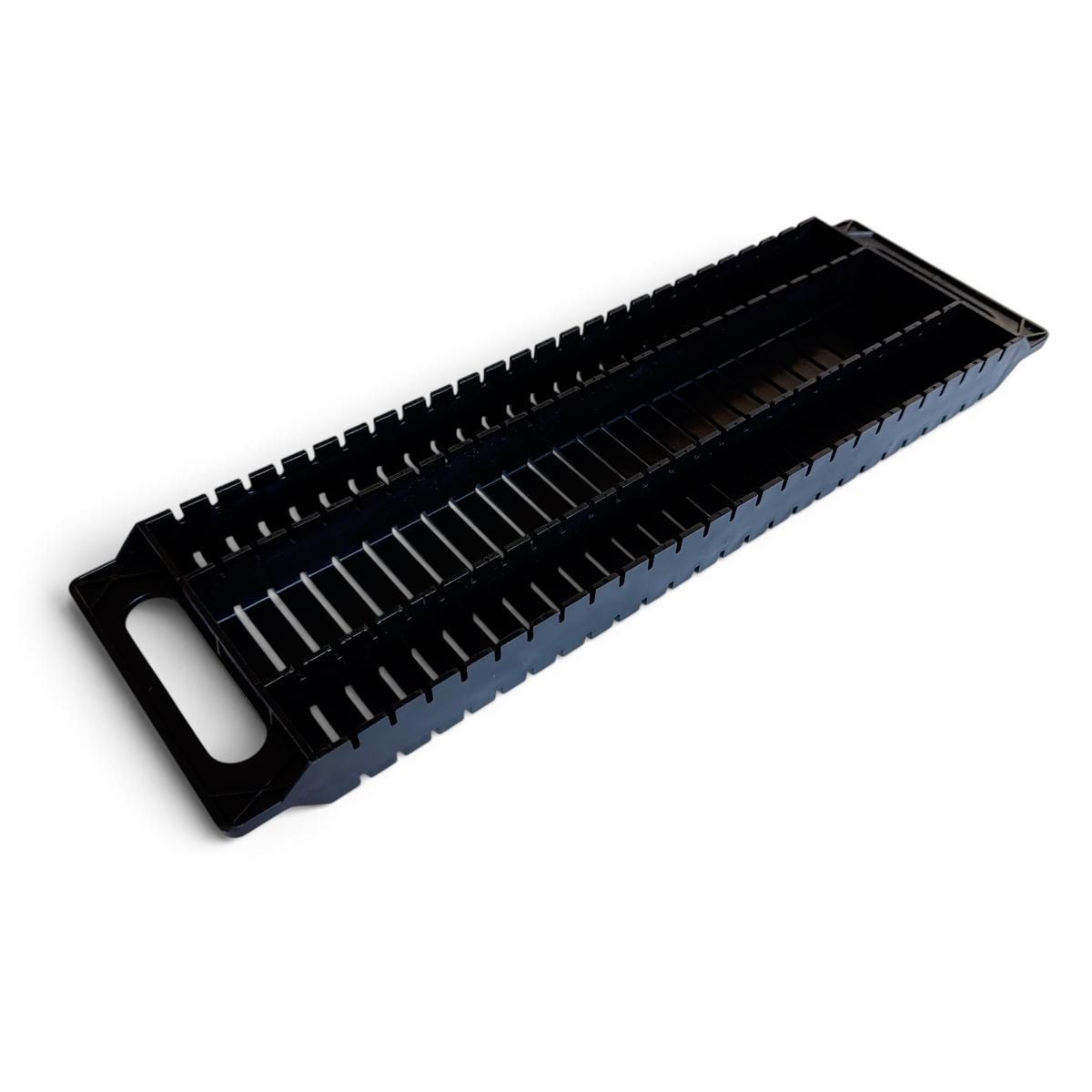

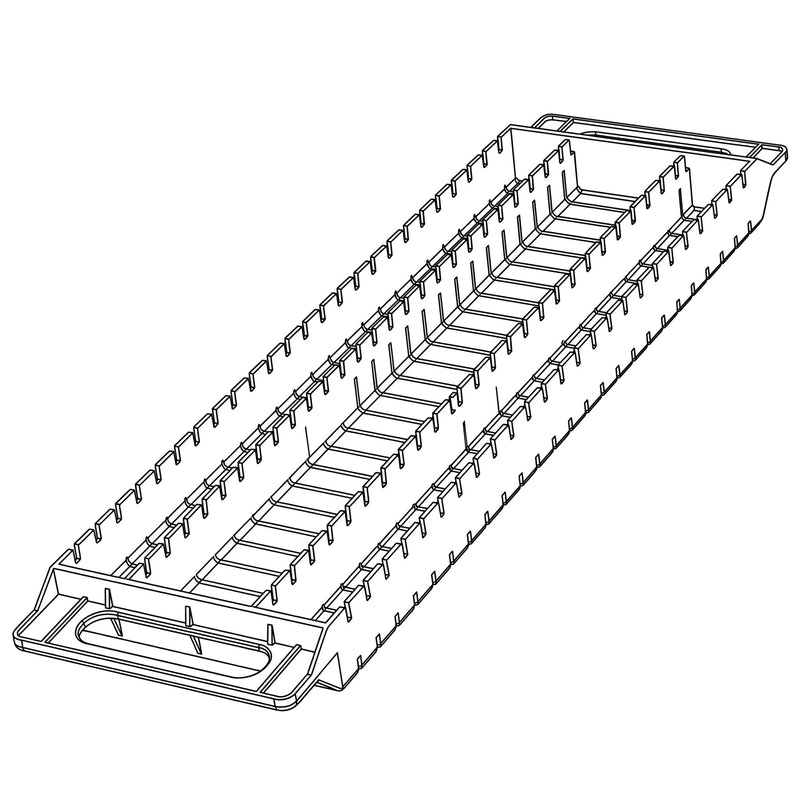

RA-18C is a double-sided slotted-edge ESD PCB rack with 25 slots and carry handles molded into both ends.

Slots: 25, on a 15 mm (0.591″) pitch
Slot Width: 3 mm (0.118″)
Slot Depth: 7 mm (0.276″) on the top side, 7.5 mm (0.295″) on the bottom side
Board Thickness: Up to about 2.4 mm (0.094″)
Maximum PCB Size: 320 × 180 mm (12.60″ × 7.09″)
Rack Size: 480 × 140 × 35 mm (18.90″ × 5.51″ × 1.38″)
ESD Rating: Conductive polypropylene, 10⁴ Ω
Temperature Range: −10 °C to +80 °C (14 °F to 176 °F)

Slotted on both sides, with handles at both ends for carrying a loaded rack with two hands. Sold in packs of 10, no assembly.

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

$35.10per rack · pack of 10: $351.00

ESD safeConductive 10⁴ Ω TemperatureUp to 80 °C (176 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

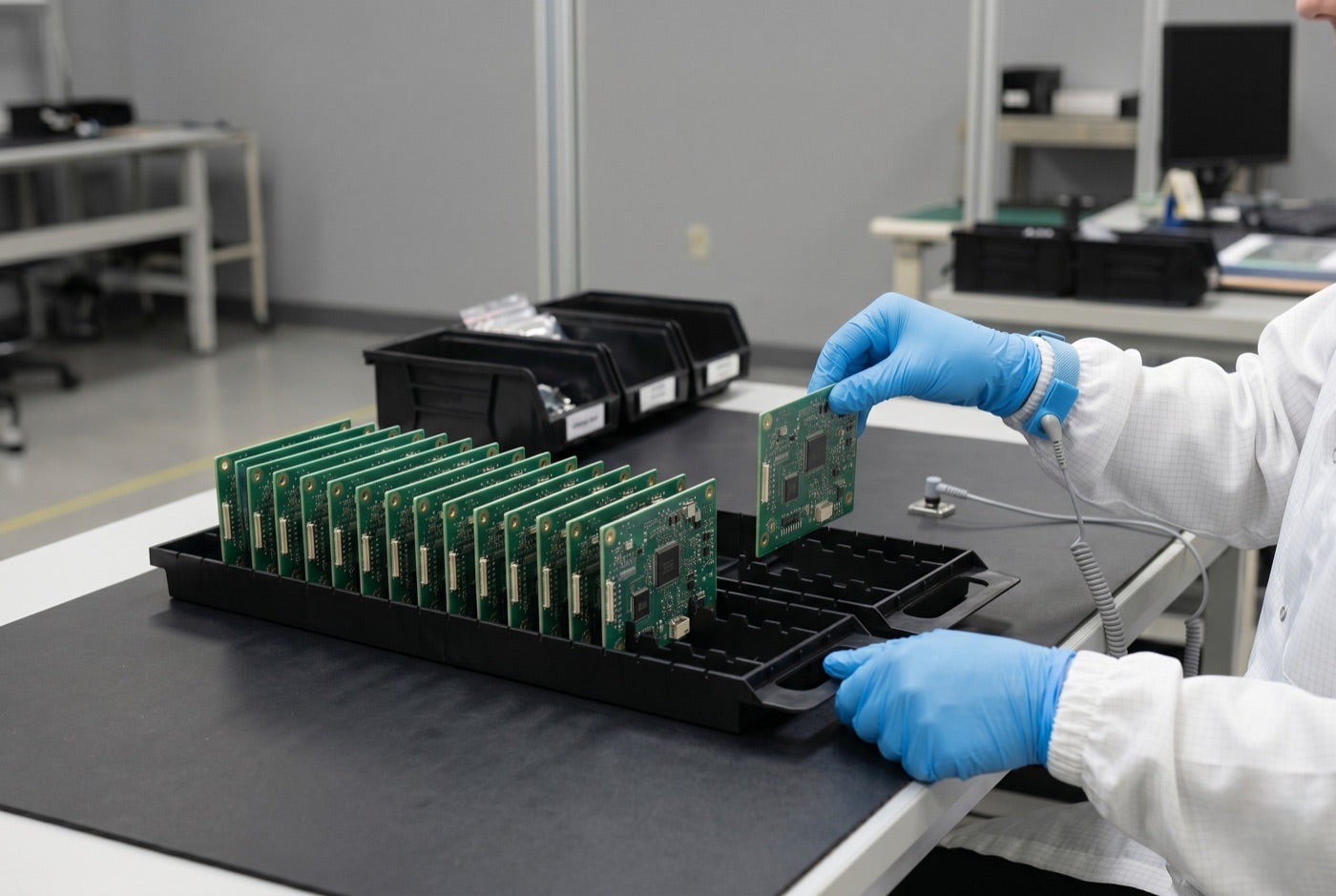

RA-18C loaded with circuit boards — Loaded and ready for the line

360° view

At a glance

What it does: Holds 25 boards on edge and apart, and carries them between stations by its molded handles.
The problem it solves: A loaded rack moves by its handles, with two hands, instead of by the boards.
What it fits: Boards from 50 × 50 mm to 320 × 180 mm (2 × 2 in to 12.6 × 7.1 in), up to about 2.4 mm (0.094 in) thick.
Key specs: 25 slots · 15 mm (0.59 in) pitch · carry handles · conductive 10⁴ Ω · packs of 10

Details

Carry a full rack by its handles.

Handles molded into both ends, and slots deep enough for boards up to 2.4 mm (0.094 in) thick.

The engineer, who chooses it: Slots 3 mm (0.118 in) wide take boards up to about 2.4 mm (0.094 in) thick, from 50 × 50 mm to 320 × 180 mm (2 × 2 in to 12.6 × 7.1 in).
The operator, who uses it: Pick up a loaded rack by the handles at both ends and walk it to the next station.
The buyer, who pays for it: A pack of ten, priced on the page, in stock and shipped within a day. Conductive 10⁴ Ω, with ESD and RoHS test reports on request.

Description

The RA-18C is an ESD PCB tray: a 25-slot conductive polypropylene slotted-edge rack with double-sided slots, boards engage from both edges, and carry handles molded into both ends.

Slots are 3 mm (0.118″) wide: 7 mm (0.276″) deep on the top side and 7.5 mm (0.295″) on the bottom side with a rounded profile, on a 15 mm (0.591″) pitch. The two-edge grip keeps two-side-populated assemblies and heavy-copper boards from rocking or walking out mid-transport, and the molded handles let one operator carry a fully loaded rack two-handed across doors, carts, and elevators.

Boards up to 320 × 180 mm (12.60″ × 7.09″) and 2.4 mm (0.094″) thick span the 140 mm (5.51″) rack width and may overhang both sides. Conductive PP at 10⁴ Ω. Best seller in the slotted-edge series, the rack of choice when transport stability matters more than maximum board face area.

Buying for a line? 5 or more packs take 5% off and 10 or more take 10% off, automatically at checkout. See our volume and fleet pricing.

Best uses

At the bench: Boards wait on edge, apart, between process steps.
Between stations: A loaded rack is carried by its handles to the next step.
On the shelf: Boards stay upright and apart in storage.
Next to the depaneler: Single boards go straight into a slot as they come off the panel.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−10 to 80 °C (14 to 176 °F)

RA-18CThis product−10 to 80 °C

80 °C · 176 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Made for production, storage and bench work at normal factory temperatures.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

The polypropylene itself is conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

Boards stand on edge, up to about 2.4 mm (0.094 in) thick.

Technical data

Model	RA-18C
Material	Conductive polypropylene (PP)
Dimensions (L × W × H)	480 × 140 × 35 mm (18.90″ × 5.51″ × 1.38″)
Slot type	Double-sided (boards engage from both edges)
Slot count	25
Slot width	3 mm (0.118″)
Slot depth	7 mm (0.276″) / 7.5 mm (0.295″), top side / bottom side
Slot pitch	15 mm (0.591″)
Max board thickness	~2.4 mm (0.094″)
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Max board size (L × W)	320 × 180 mm (12.60″ × 7.09″)
ESD properties	System resistance 10⁴ Ω, conductive
Temperature range	−10 °C to +80 °C (14 °F to 176 °F)
Chemical resistance	Resistant to non-oxidizing acids, alkalis, and most organic solvents. Not suitable for halogenated hydrocarbons, aromatic solvents, or strong oxidizing acids.
Features	Integrated carry handles on both ends, two-hand transport of loaded racks
Weight	0.32 kg (0.71 lb) per rack

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.

Full IPC and ESD standards reference for handling, storage and depaneling

FAQ

Questions

Will my boards fit?

Boards up to 320 × 180 mm (12.60″ × 7.09″) fit, down to 50 × 50 mm (1.97″ × 1.97″), at up to 2.4 mm (0.094″) thick. Boards span the 140 mm (5.51″) rack body and may overhang on both sides.

What does the double-sided grip actually do?

A single-sided rack holds one edge and lets the board lean. The RA-18C engages both edges, 7 mm (0.276″) deep top side, 7.5 mm (0.295″) bottom, so two-side-populated assemblies and heavy-copper boards can't rock or walk out during transport. It's the best seller in the slotted-edge series for exactly that reason.

Why are the two sides different depths?

The top slot is a 7 mm (0.276″) square seat; the bottom slot is 7.5 mm (0.295″) with a rounded profile. Together they lock the board while still letting it drop in and out freely: the round bottom guides insertion, the square top holds alignment.

Is it ESD-safe for our EPA workstations?

Yes. Conductive polypropylene, 10⁴ Ω. ESD and RoHS test reports are available on request for your audit file.

How does it ship, and how fast?

It ships as a pack of 10 racks from US stock; in-stock orders ship in under 24 hours. Shipping is calculated at checkout from the weight of the order.

Can it go through an oven or reflow?

No. This is a room-temperature bench and shelf rack rated −10 °C to +80 °C. For bake, cure, or reflow, use the magazine racks: 200 °C (GM/M) or the all-aluminum 300 °C HT Series.

How do I clean it without ruining the ESD surface?

Warm water with a mild pH-neutral detergent; IPA 70% for spot cleaning. Never use acetone, aromatic or halogenated solvents, or abrasives: they attack the conductive surface, and the damage does not reverse. Dry fully before boards go back in.

Where do I get the spec sheet or CAD?

The spec sheet PDF is behind the Download spec sheet button on this page, one short form unlocks the whole document library. Drawings and CAD are handled personally: request them by email and the team follows up.
