PCB Magazine Rack Spare Parts
Rack spares.
The part that puts a rack back in service.
Kits and single parts for 50-slot magazine racks, sized to your chassis, for racks bought anywhere. Send your rack model and we confirm the part before it ships.
- Kits
- 3 Wear parts, side panels, frame
- Chassis
- B0103 to B0109 sized to your rack
- Racks bought
- Anywhere we supply spares for any source
- Ships
- From the USA in-stock orders ship fast
Free shipping on US orders of $1,000 and up.
Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.
[ Rebuild a Rack ]
Three kits
rebuild a rack.
Each kit services one rack. Single parts cover a damaged panel or a missing board.
[ Spares ]
Kits and parts.
Pick your chassis.
Kits and parts come sized for the chassis you pick on the product page.
Kits or single parts
Rack kits
One kit services one rack: wear parts, side panels or the whole frame.

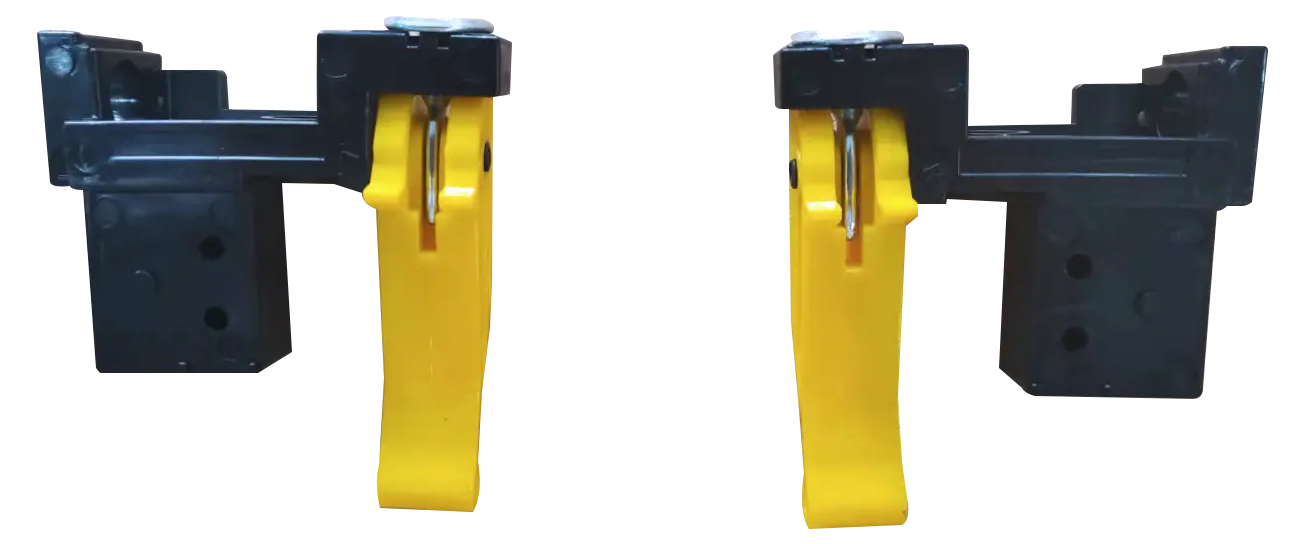

Rack Wear Kit
- Services
- One gear-adjustable rack
- Contents
- 25 parts, 5 part numbers
- Fits
- B0103G to B0109G racks
Side Panel Kit
- Covers
- Both side-panel frames
- Contents
- 10 side panel strips
- Rating
- 80 or 120 °C (176 or 248 °F)
Frame & Plate Kit
- Covers
- The complete frame
- Contents
- 8 parts, 4 part numbers
- Fits
- B0103 to B0109 chassis
Top & Bottom Board
- Fits
- B0103 to B0109 chassis
- Sold
- Per board
- Part no.
- RACK-SPARE-1
Movable Side Panel
- Fits
- Gear racks, B0103 to B0109
- Sold
- Per panel
- Rating
- 80 or 120 °C (176 or 248 °F)
Fixed Side Panel
- Fits
- B0103 to B0109 chassis
- Sold
- Per panel
- Rating
- 80 or 120 °C (176 or 248 °F)
[ Further information ]
[ Next step ]
Not sure which part?
Send us your rack model.
Frame & Plate Kit
From $159.00 per kit · one rack
If in stock, ships today. Ships from the USA.
- Covers
- The complete frame of one rack
- Fits
- B0103 / B0104 / B0105, B0106 / B0107, B0108 and B0109 chassis
- Contents
- 8 parts, 4 part numbers

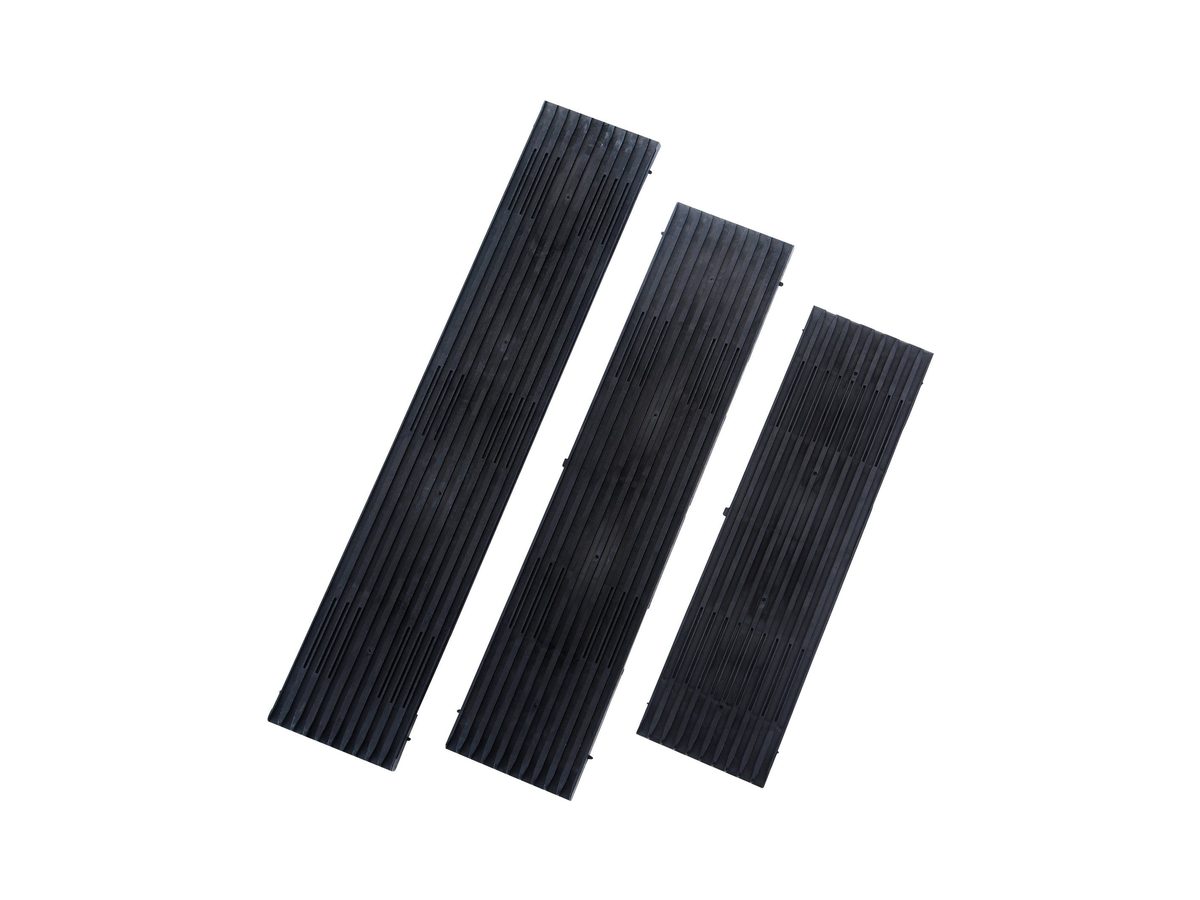

Side Panel Kit (Pack of 10)
From $60.00 per kit · one rack
If in stock, ships today. Ships from the USA.
- Covers
- Both side-panel frames of one rack
- Fits
- B0101, B0103 / B0104, B0106 / B0107 and B0108 / B0109 chassis
- Rating
- 80 °C (176 °F) or 120 °C (248 °F)
- Contents
- 10 small side panel strips (RACK-SPARE-4)
Rack Wear Kit
$99.00 per kit · one rack
If in stock, ships today. Ships from the USA.
- Services
- One gear-adjustable rack
- Fits
- B0103G, B0105GP, B0106G, B0108G and B0109G racks
- Contents
- 25 parts, 5 part numbers

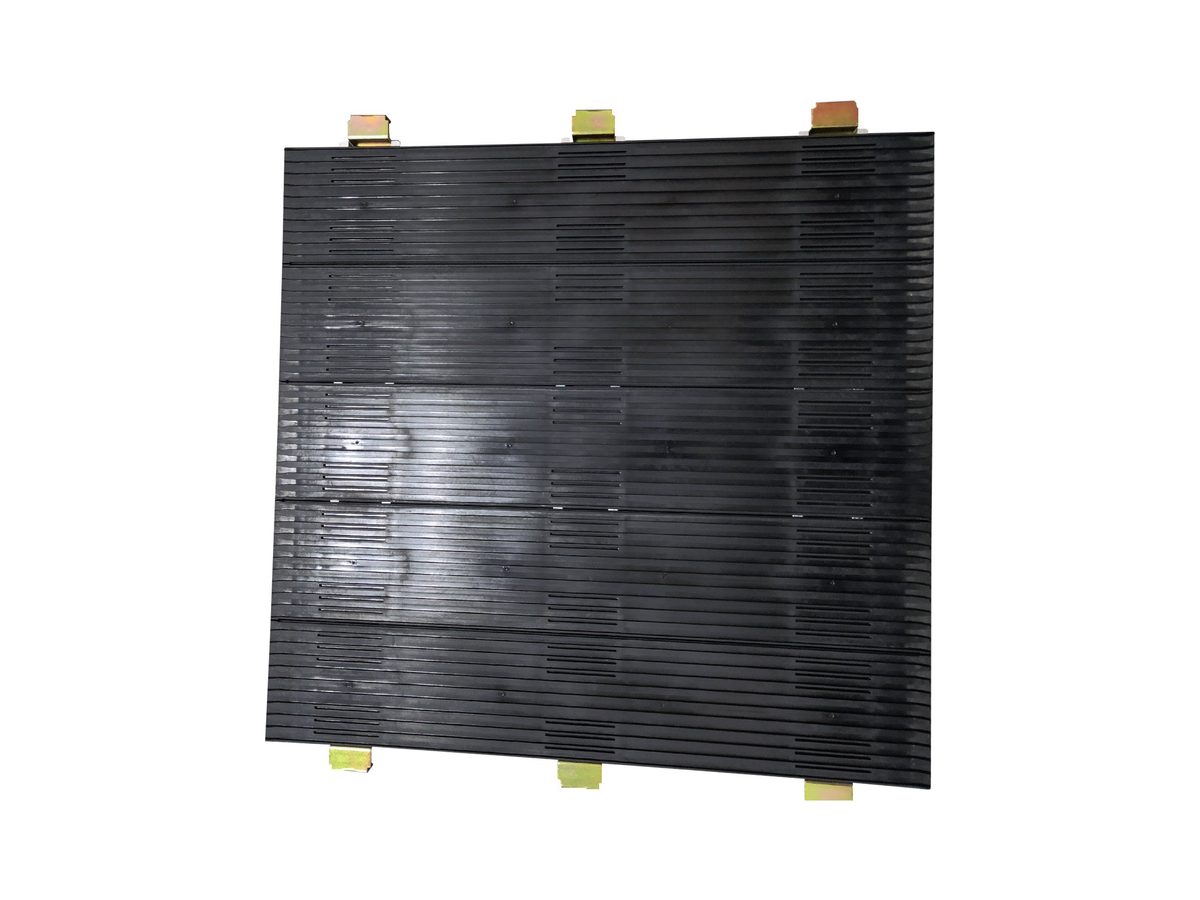

Fixed Side Panel
From $86.00 per panel
If in stock, ships today. Ships from the USA.
- Fits
- B0103 / B0104, B0106 / B0107 and B0108 / B0109 chassis
- Rating
- 80 °C (176 °F), or 120 °C (248 °F) for B0103 / B0104 and B0106 / B0107
- Sold
- Per panel

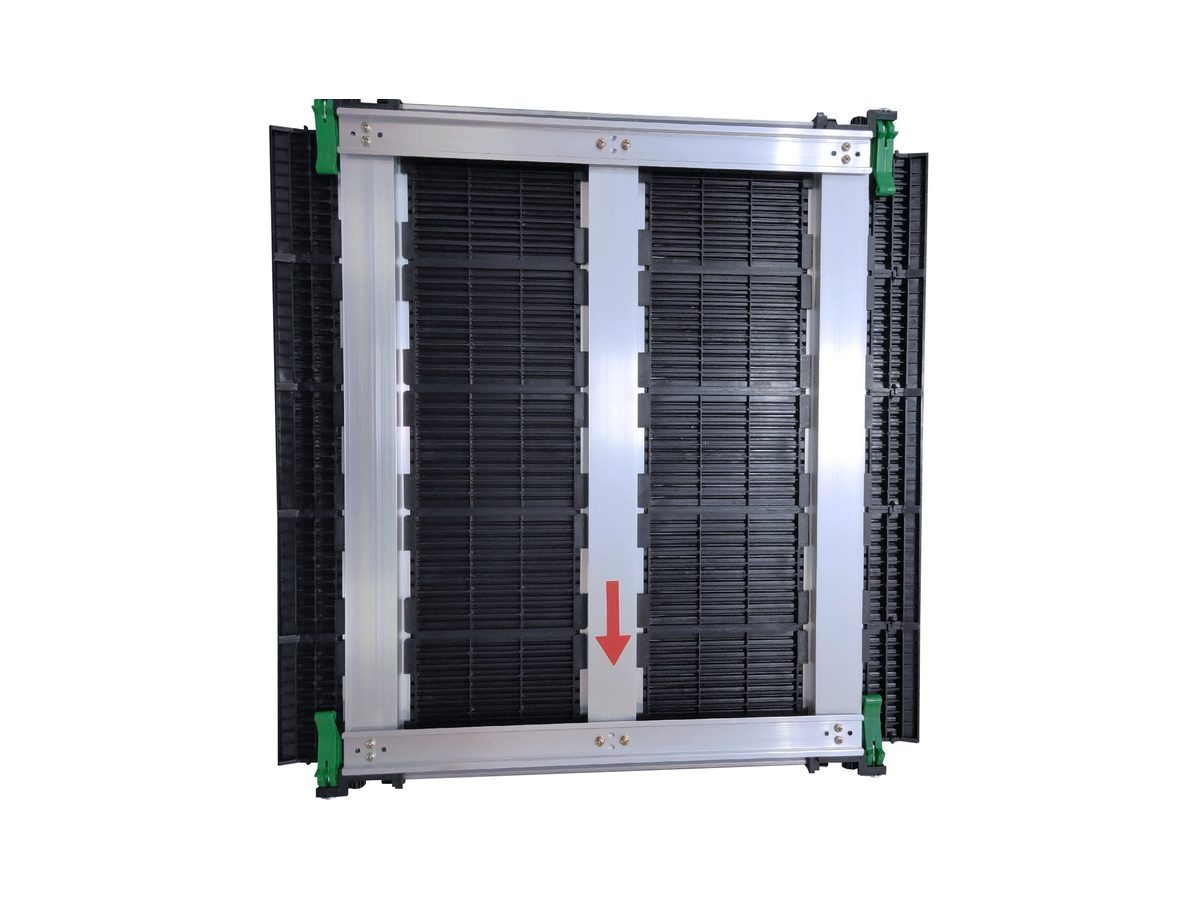

Movable Side Panel
From $97.00 per panel
If in stock, ships today. Ships from the USA.
- Fits
- Gear-adjustable B0103, B0106, B0108 and B0109 racks
- Rating
- 80 °C (176 °F), or 120 °C (248 °F) for B0103 and B0106
- Sold
- Per panel

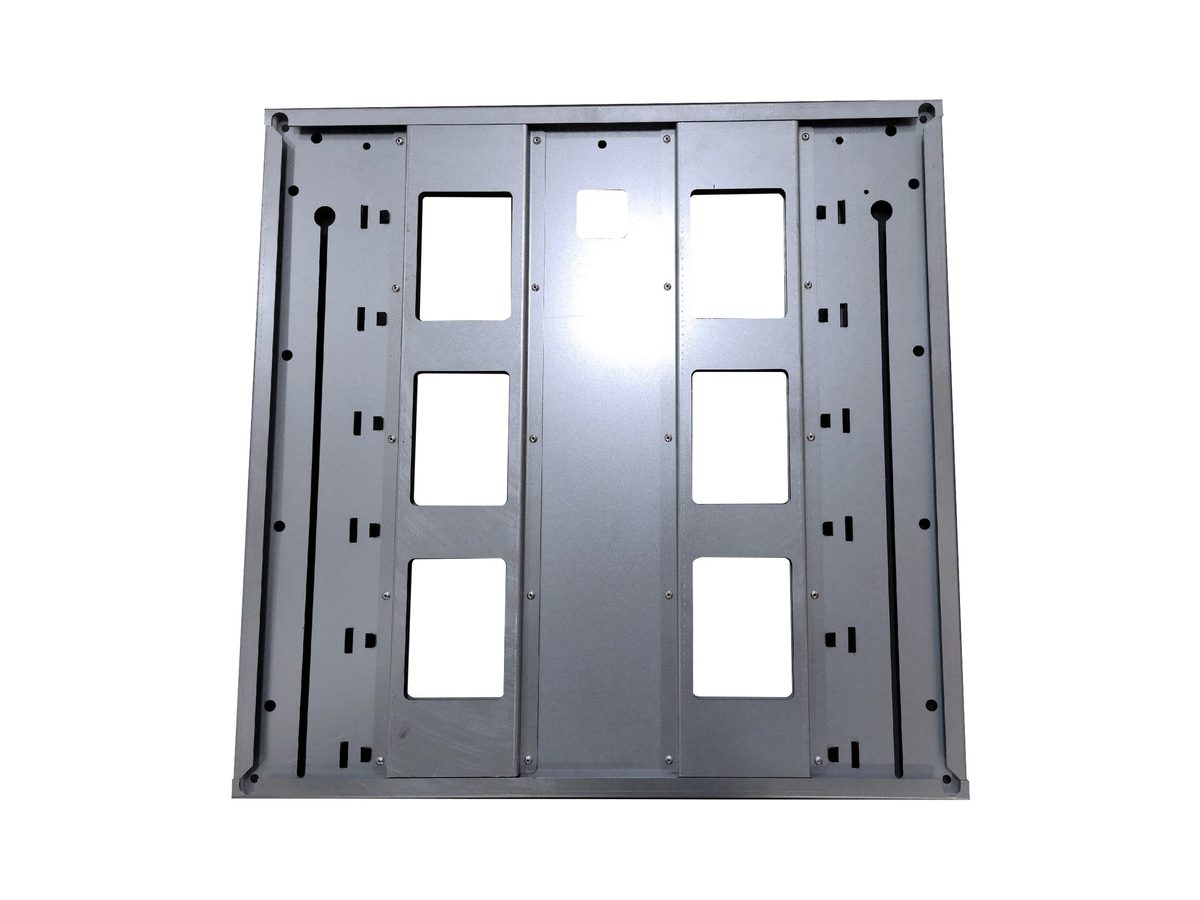

Top & Bottom Board
From $54.00 per board
If in stock, ships today. Ships from the USA.
- Fits
- B0103 / B0104, B0105, B0106 / B0107, B0108 and B0109 chassis
- Sold
- Per board. A rack uses two, top and bottom
The part that puts a rack back in service.
Order the right part the first time.
Send us your board size and process, we confirm the exact part number before you buy. Standard manufacturer warranty applies · spares ship from the USA.
