Every PCBRacks Product

All products.
Racks, depanelers and spares.

ESD PCB magazine racks, universal racks and holders, ESD turntables, V-cut depanelers, blades, spare parts and bundles, in one place. Racks in stock ship from the USA in under 24 hours.

Find my rack Full catalog Get a quote
ESD PCB magazine racks
Families
6 magazine, universal, depaneling, spares, bundles
Ships
From the USA in-stock racks in under 24 hours
ESD rating
10⁴ Ω conductive racks
Heat ratings
80 to 300 °C 176 to 572 °F
Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

[ Families ]

Every product,
by family.

Pick a family to see its products, or open the family page for the full guide.

Pick a family

ESD PCB magazine racks

50 slots for SMT loaders and unloaders, rated 80 to 300 °C (176 to 572 °F).

20 SKUs See the family page

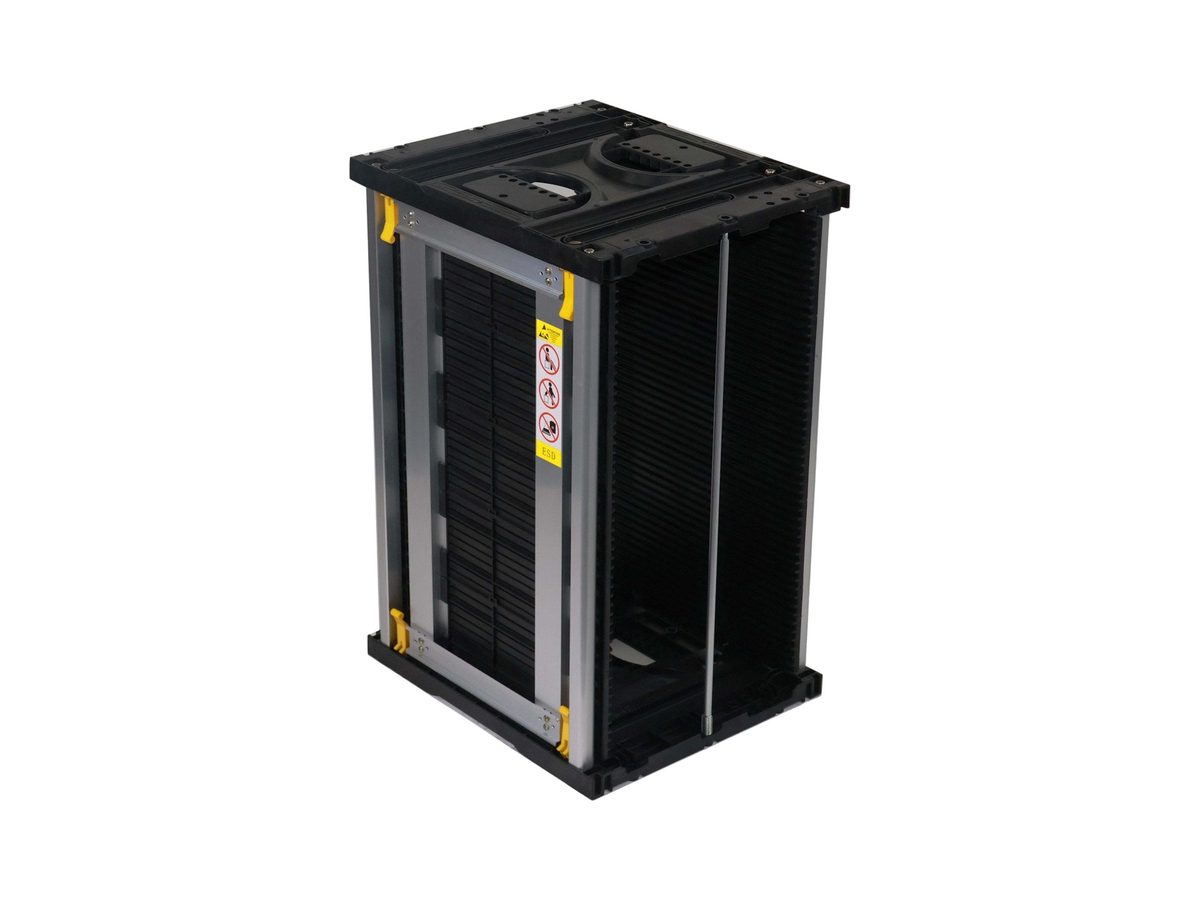

B0105GPN-80C ESD PCB magazine rack B0105GPN-80C
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$179.00

In stock · ships in under 24 h · USA

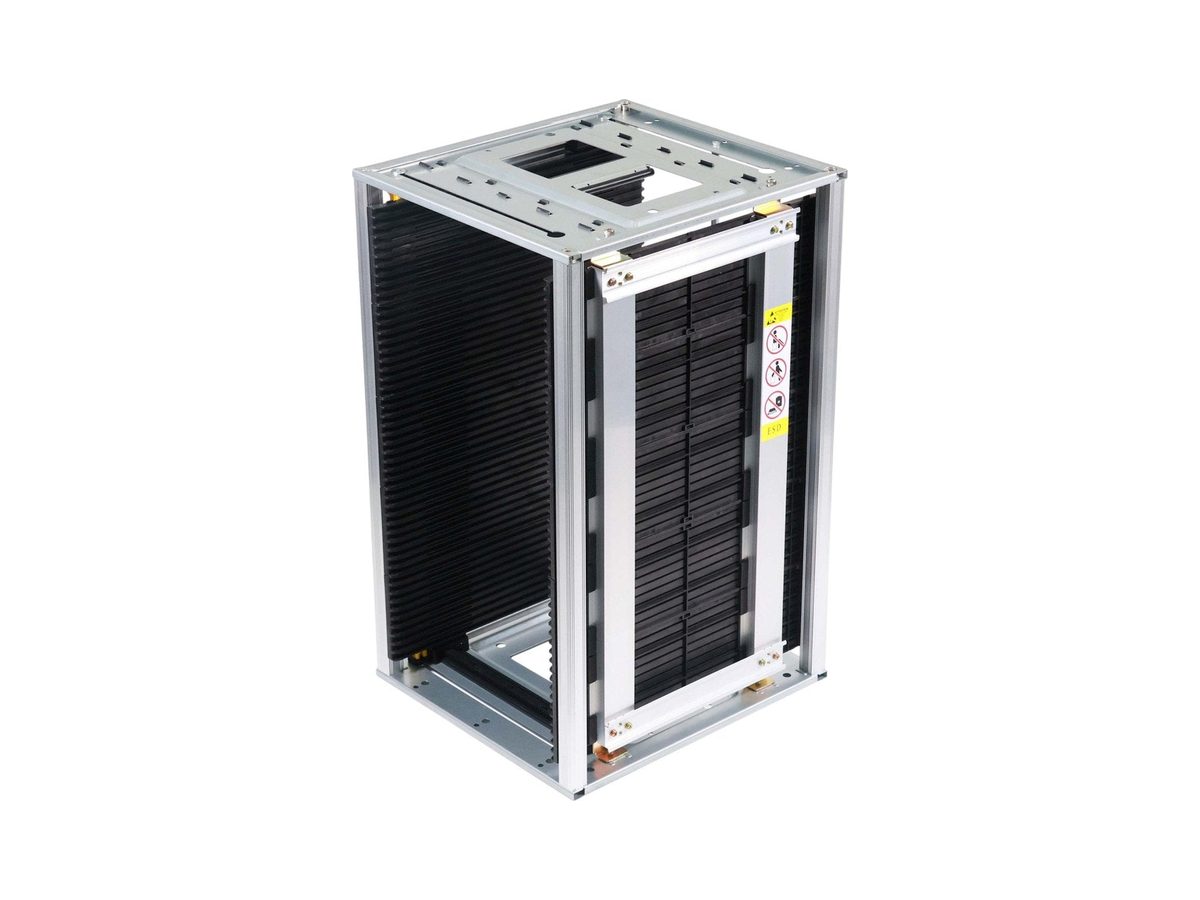

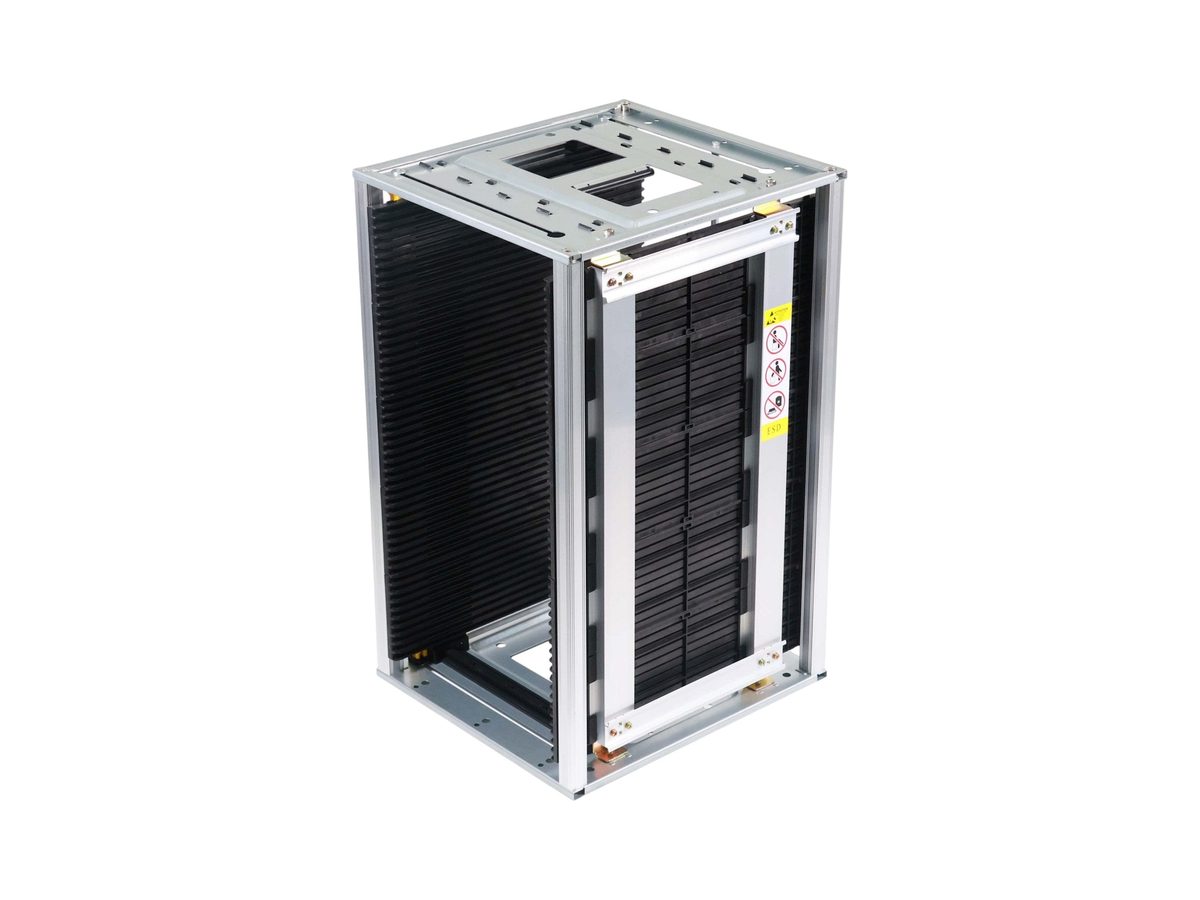

B0103GN-80C ESD PCB magazine rack B0103GN-80C
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$188.00

In stock · ships in under 24 h · USA

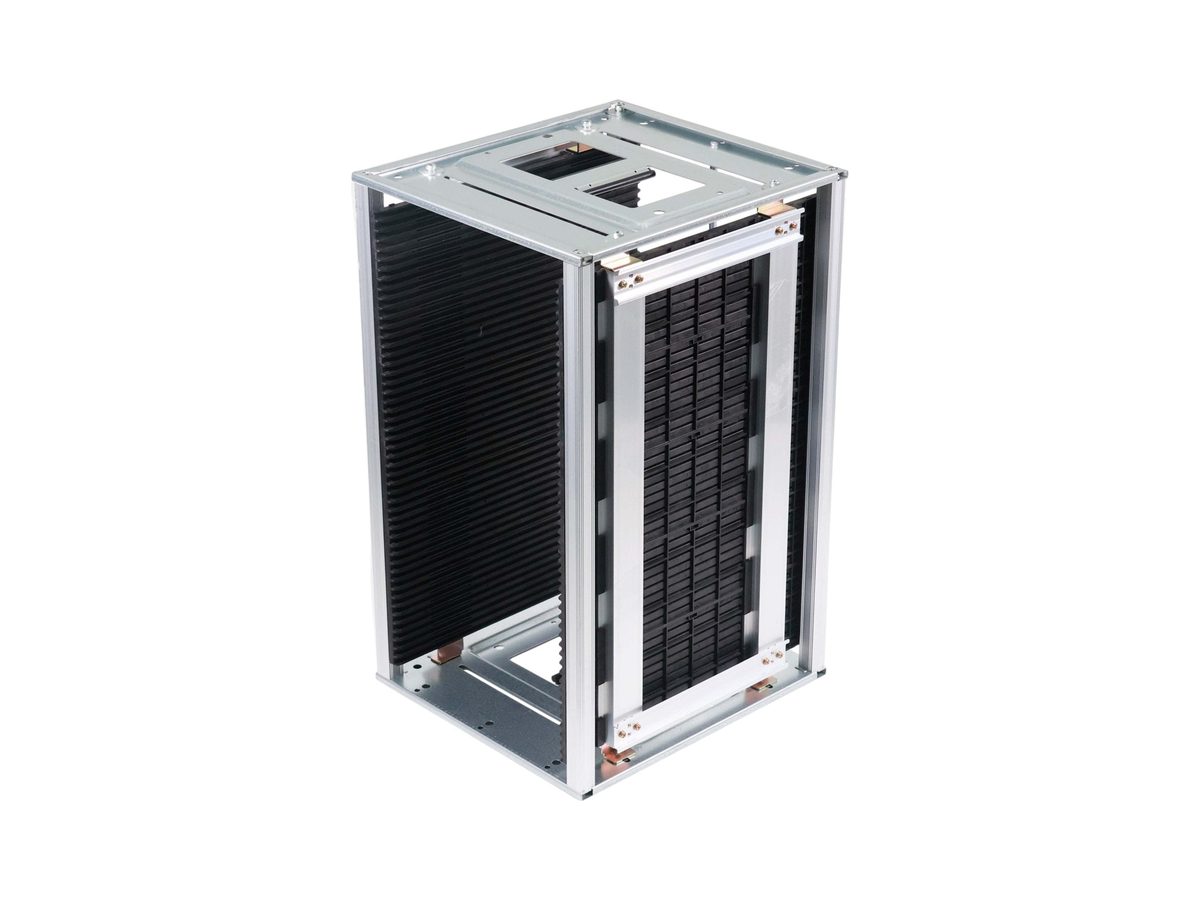

B0104N-80C ESD PCB magazine rack B0104N-80C
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$188.00

In stock · ships in under 24 h · USA
B0105GPM-120C ESD PCB magazine rack B0105GPM-120C
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +120 °C (−4 °F to 248 °F)

$195.00

In stock · ships in under 24 h · USA
B0103GM-200C ESD PCB magazine rack B0103GM-200C
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +200 °C (−4 °F to 392 °F)

$253.00

In stock · ships in under 24 h · USA
B0104M-200C ESD PCB magazine rack B0104M-200C
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +200 °C (−4 °F to 392 °F)

$253.00

In stock · ships in under 24 h · USA

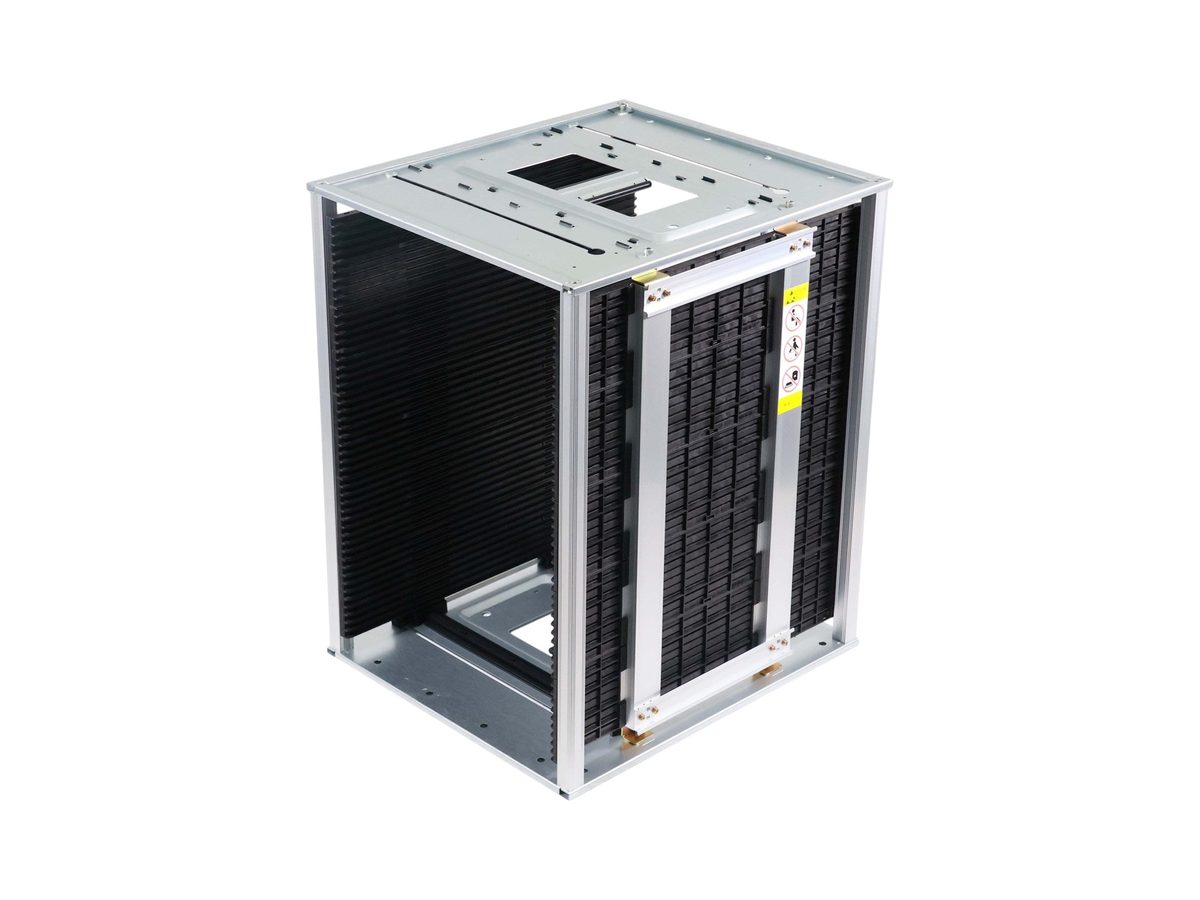

B0106GN-80C ESD PCB magazine rack B0106GN-80C
Adjustable PCB Width
50 to 330 mm (1.97″ to 12.99″)
Maximum PCB Size
460 × 330 mm (18.11″ × 12.99″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$257.00

In stock · ships in under 24 h · USA

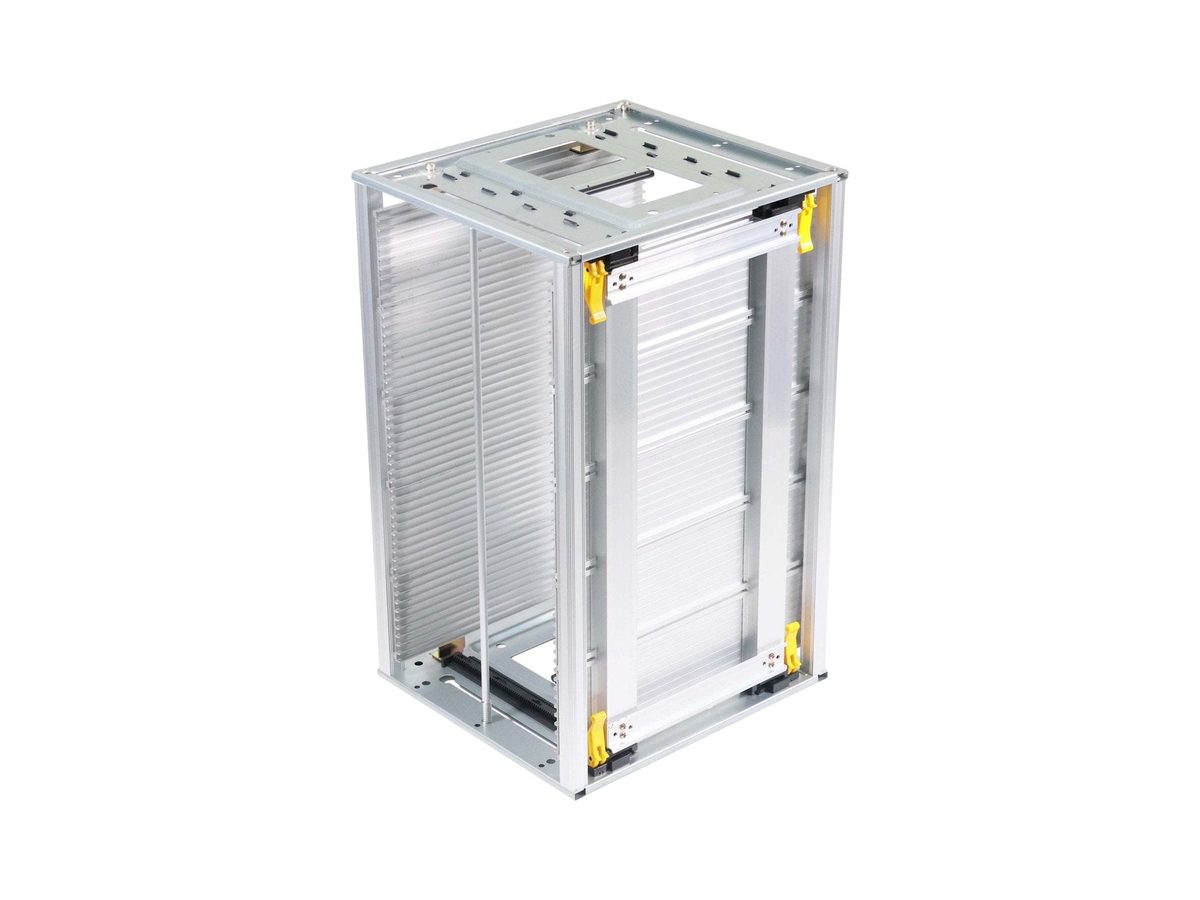

B0103GL HT-300C ESD PCB magazine rack B0103GL HT-300C
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +300 °C (−4 °F to 572 °F)

$282.00

In stock · ships in under 24 h · USA
B0103GC BELT-80C ESD PCB magazine rack B0103GC BELT-80C
Adjustable PCB Width
10 to 250 mm (0.39″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$322.00

In stock · ships in under 24 h · USA
B0106GM-200C ESD PCB magazine rack B0106GM-200C
Adjustable PCB Width
50 to 330 mm (1.97″ to 12.99″)
Maximum PCB Size
460 × 330 mm (18.11″ × 12.99″)
Temperature Range
−20 °C to +200 °C (−4 °F to 392 °F)

$333.00

In stock · ships in under 24 h · USA

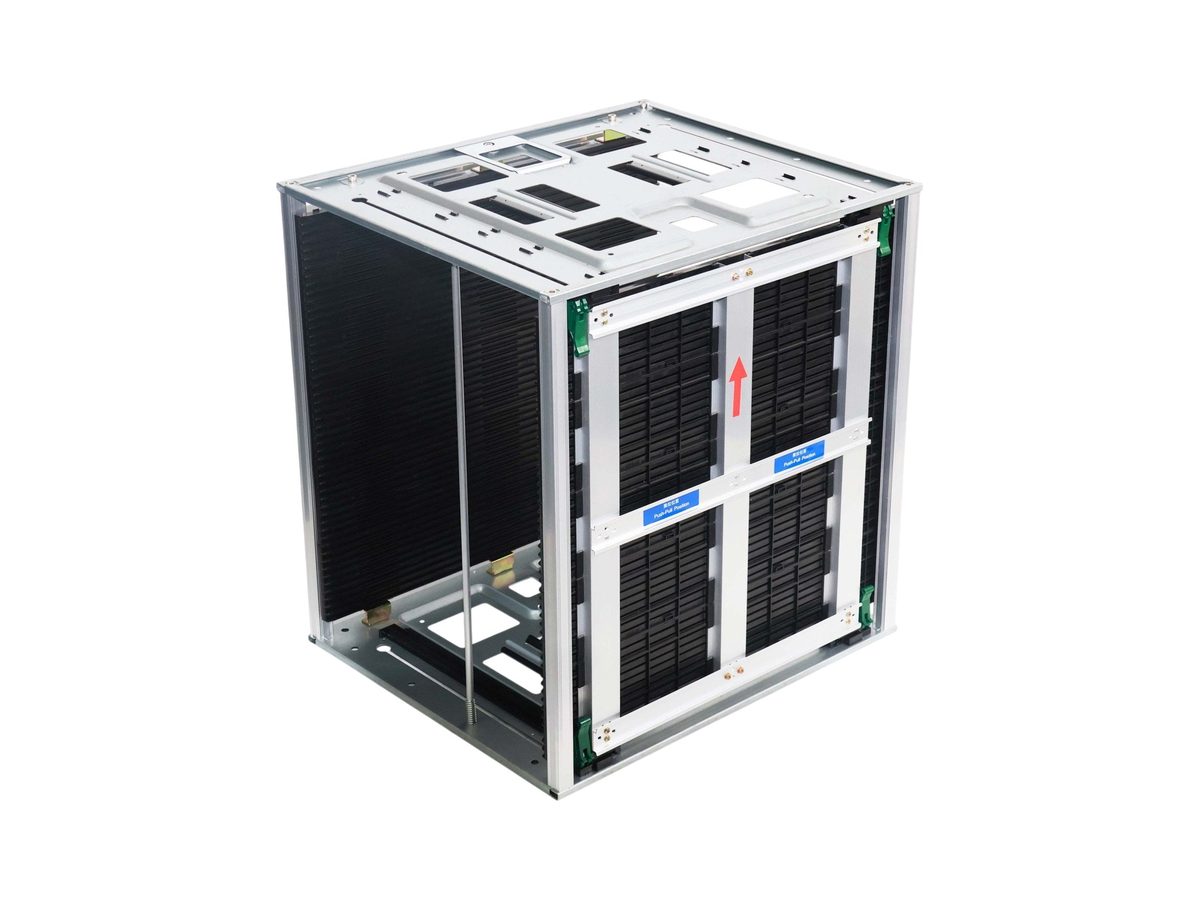

B0108GN-80C ESD PCB magazine rack B0108GN-80C
Adjustable PCB Width
50 to 390 mm (1.97″ to 15.35″)
Maximum PCB Size
535 × 390 mm (21.06″ × 15.35″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$336.00

Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity

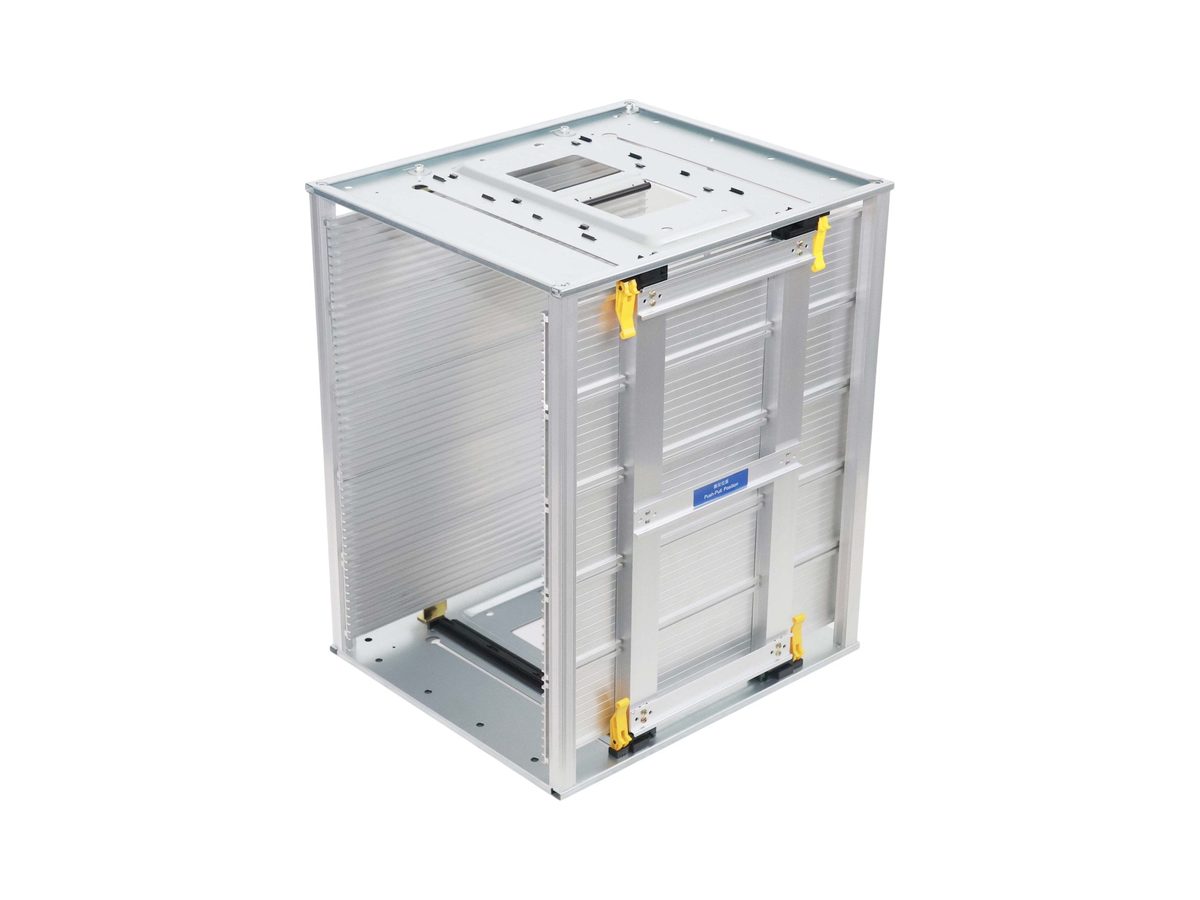

B0106GL HT-300C ESD PCB magazine rack B0106GL HT-300C
Adjustable PCB Width
50 to 330 mm (1.97″ to 12.99″)
Maximum PCB Size
460 × 330 mm (18.11″ × 12.99″)
Temperature Range
−20 °C to +300 °C (−4 °F to 572 °F)

$356.00

In stock · ships in under 24 h · USA

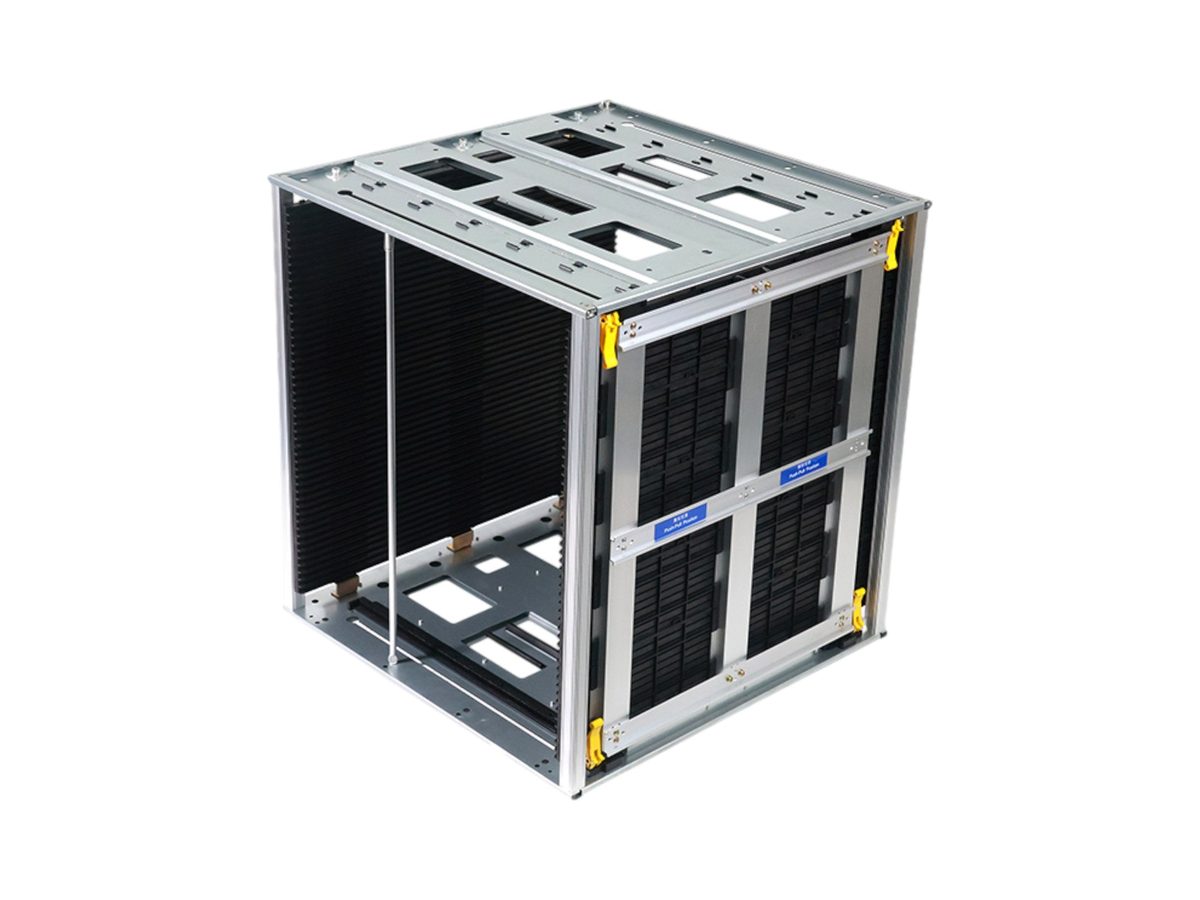

B0109GN-80C ESD PCB magazine rack B0109GN-80C
Adjustable PCB Width
50 to 460 mm (1.97″ to 18.11″)
Maximum PCB Size
535 × 460 mm (21.06″ × 18.11″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$416.00

Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
B0106GC BELT-80C ESD PCB magazine rack B0106GC BELT-80C
Adjustable PCB Width
10 to 330 mm (0.39″ to 12.99″)
Maximum PCB Size
460 × 330 mm (18.11″ × 12.99″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$427.00

In stock · ships in under 24 h · USA
B0108GM-200C ESD PCB magazine rack B0108GM-200C
Adjustable PCB Width
50 to 390 mm (1.97″ to 15.35″)
Maximum PCB Size
535 × 390 mm (21.06″ × 15.35″)
Temperature Range
−20 °C to +200 °C (−4 °F to 392 °F)

$429.00

In stock · ships in under 24 h · USA
B0109GM-200C ESD PCB magazine rack B0109GM-200C
Adjustable PCB Width
50 to 460 mm (1.97″ to 18.11″)
Maximum PCB Size
535 × 460 mm (21.06″ × 18.11″)
Temperature Range
−20 °C to +200 °C (−4 °F to 392 °F)

$499.00

Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity

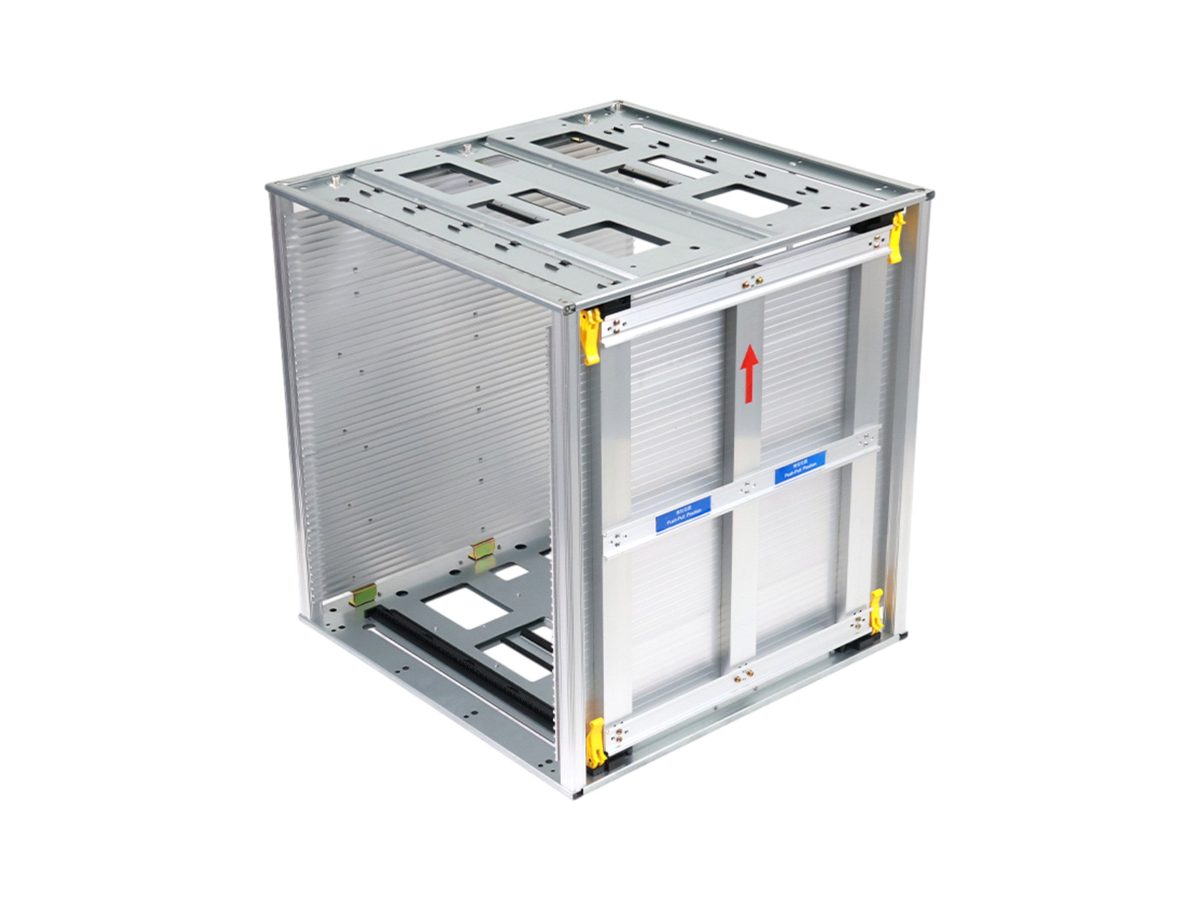

B0109GL HT-300C ESD PCB magazine rack B0109GL HT-300C
Adjustable PCB Width
50 to 460 mm (1.97″ to 18.11″)
Maximum PCB Size
535 × 460 mm (21.06″ × 18.11″)
Temperature Range
−20 °C to +300 °C (−4 °F to 572 °F)

$519.00

Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity

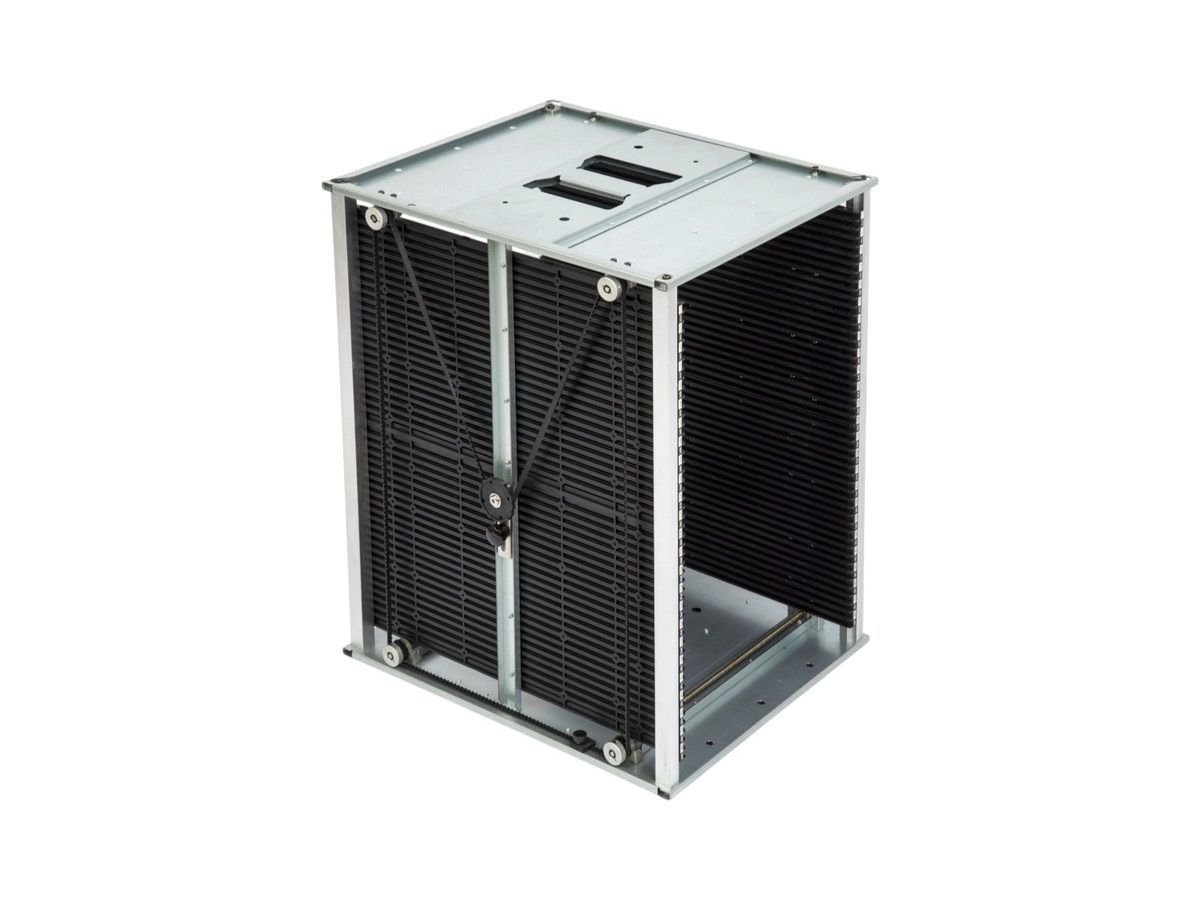

B0109GC BELT-80C ESD PCB magazine rack B0109GC BELT-80C
Adjustable PCB Width
10 to 460 mm (0.39″ to 18.11″)
Maximum PCB Size
535 × 460 mm (21.06″ × 18.11″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$541.00

Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
B0110GN-80C ESD PCB magazine rack B0110GN-80C
Adjustable PCB Width
50 to 460 mm (1.97″ to 18.11″)
Maximum PCB Size
620 × 460 mm (24.41″ × 18.11″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$695.00

Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
B0110GC BELT-80C ESD PCB magazine rack B0110GC BELT-80C
Adjustable PCB Width
10 to 460 mm (0.39″ to 18.11″)
Maximum PCB Size
620 × 460 mm (24.41″ × 18.11″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$955.00

Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity

Universal racks

Slotted-edge racks, angled holders, ESD turntables and a karrier.

9 SKUs See the family page

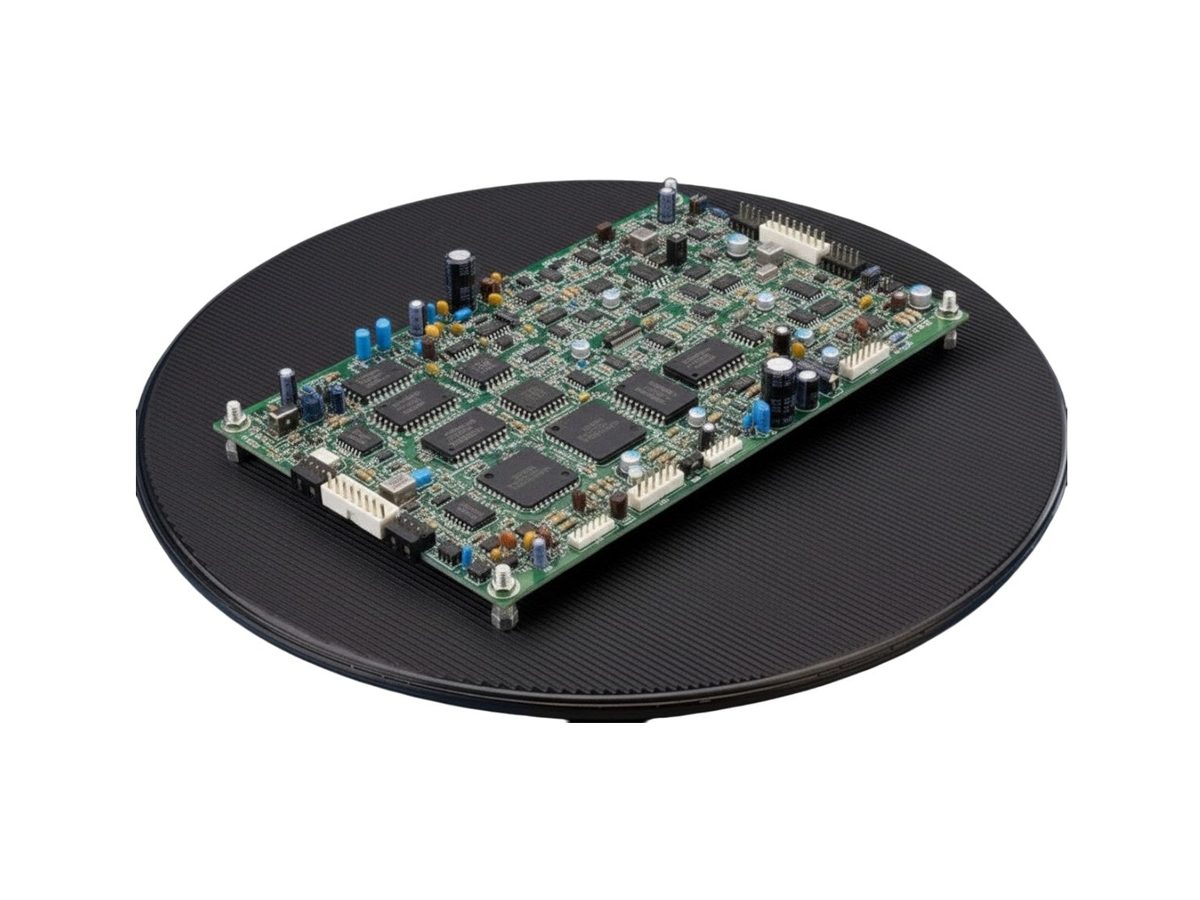

D380 ESD PCB rack D380
Disc
Ø 380 mm (15″), 12 mm (0.5″) tall
Load Capacity
91 kg (200 lb)
Largest Board
300 × 250 mm (11.81″ × 9.84″)

$133.00

In stock · ships in under 24 h · USA

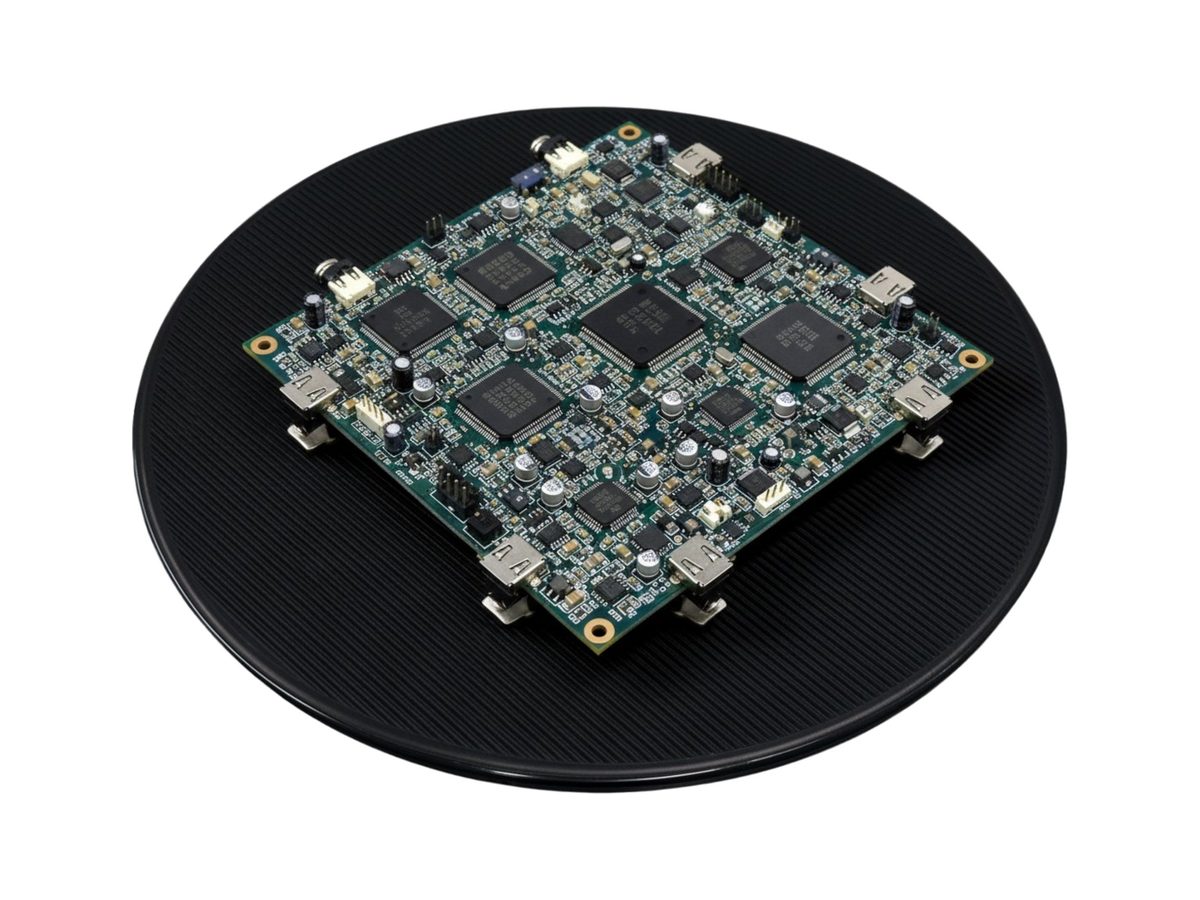

D500 ESD PCB rack D500
Disc
Ø 500 mm (19.69″), 15 mm (0.59″) tall
Load Capacity
113 kg (250 lb)
Largest Board on the Disc
400 × 350 mm (15.75″ × 13.78″)

$192.00

In stock · ships in under 24 h · USA

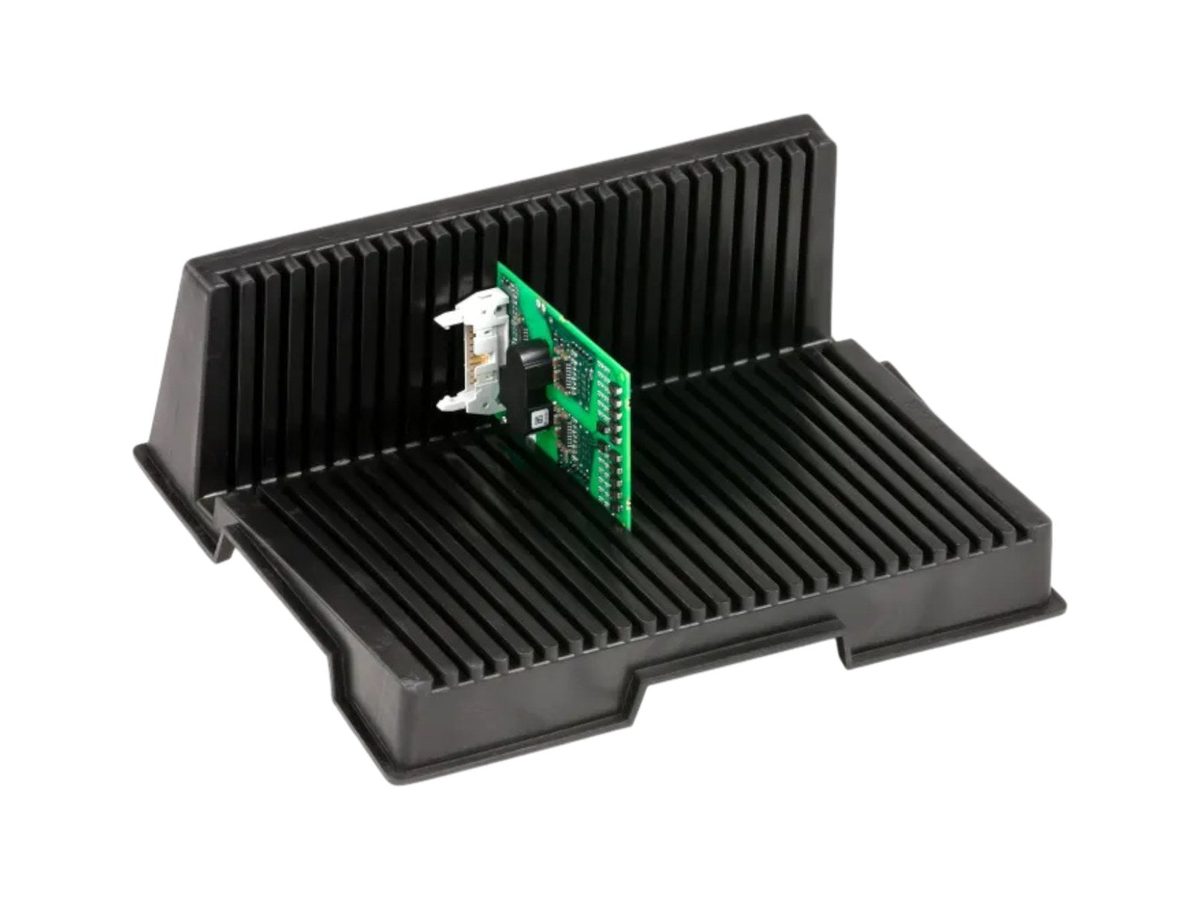

PCBH-C ESD PCB rack PCBH-C
Slots
25, on a 10 mm (0.394″) pitch
Slot Size
3 mm wide, 5 mm deep (0.118″ × 0.197″)
Maximum PCB Size
152 × 152 mm (5.98″ × 5.98″)

$32.50 per rack · $325.00 pack of 10

In stock · ships in under 24 h · USA
RA-24 Mini ESD PCB rack RA-24 Mini
Slots
25, on a 16 mm (0.630″) pitch
Slot Size
3.2 mm wide, 7.7 mm deep (0.126″ × 0.303″)
Board Thickness
Up to about 2.4 mm (0.094″)

$34.70 per rack · $347.00 pack of 10

In stock · ships in under 24 h · USA

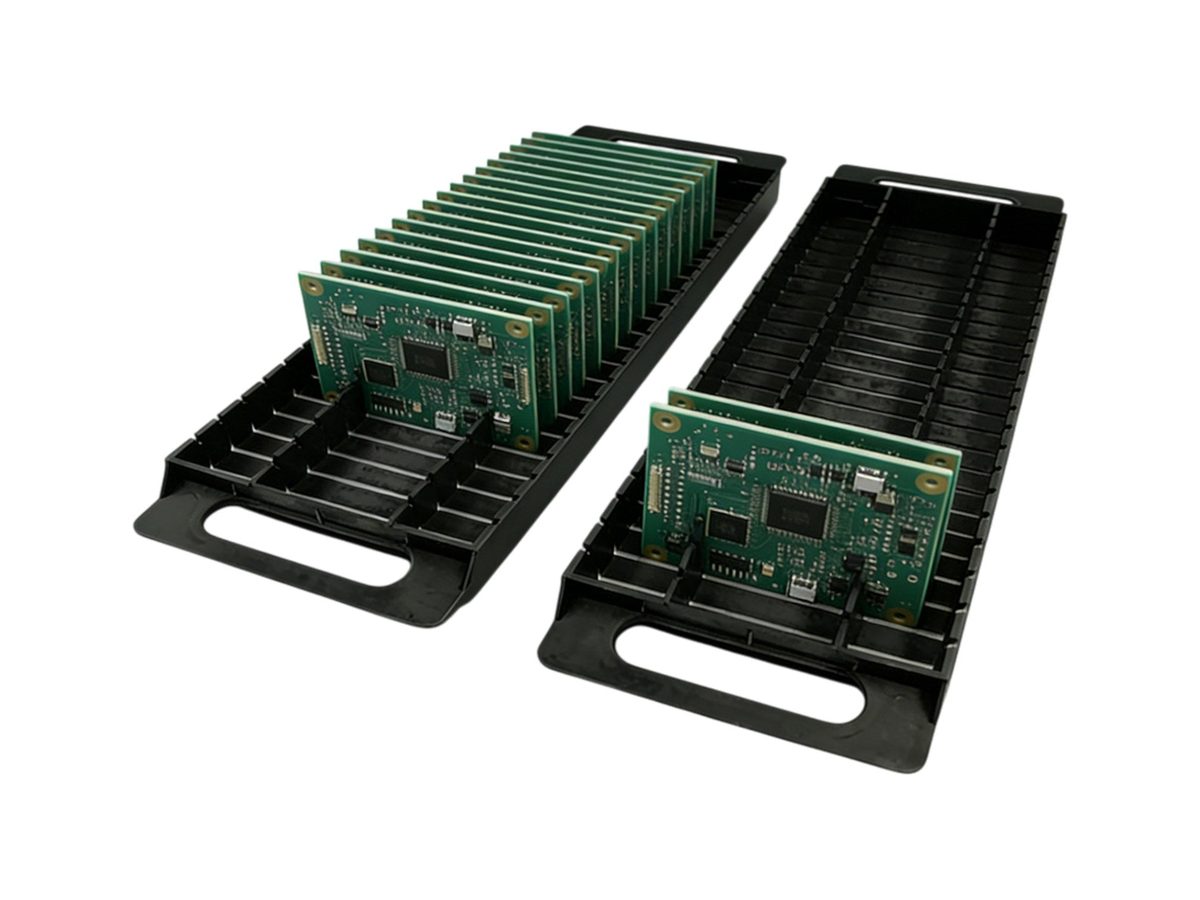

RA-18C ESD PCB rack RA-18C
Slots
25, on a 15 mm (0.591″) pitch
Slot Width
3 mm (0.118″)
Slot Depth
7 mm (0.276″) on the top side, 7.5 mm (0.295″) on the bottom side

$35.10 per rack · $351.00 pack of 10

In stock · ships in under 24 h · USA

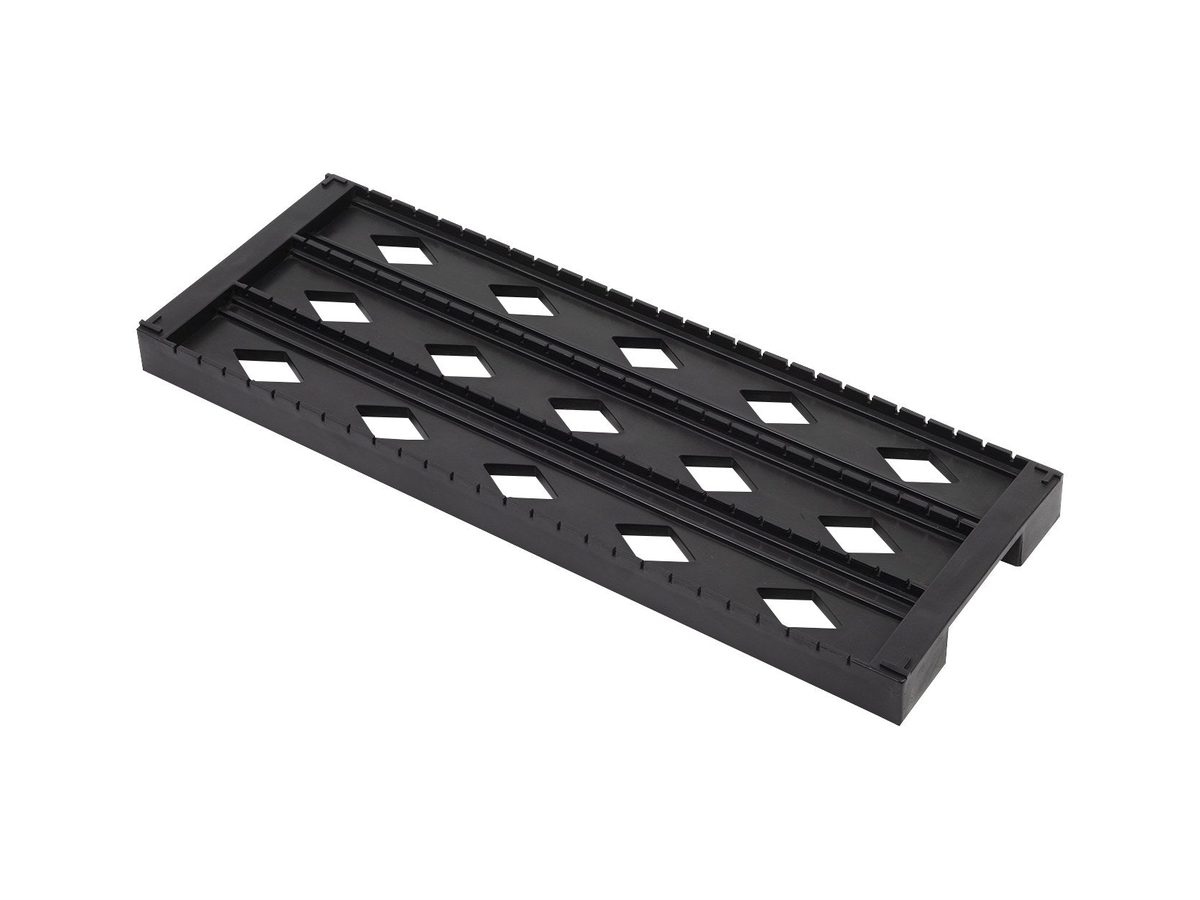

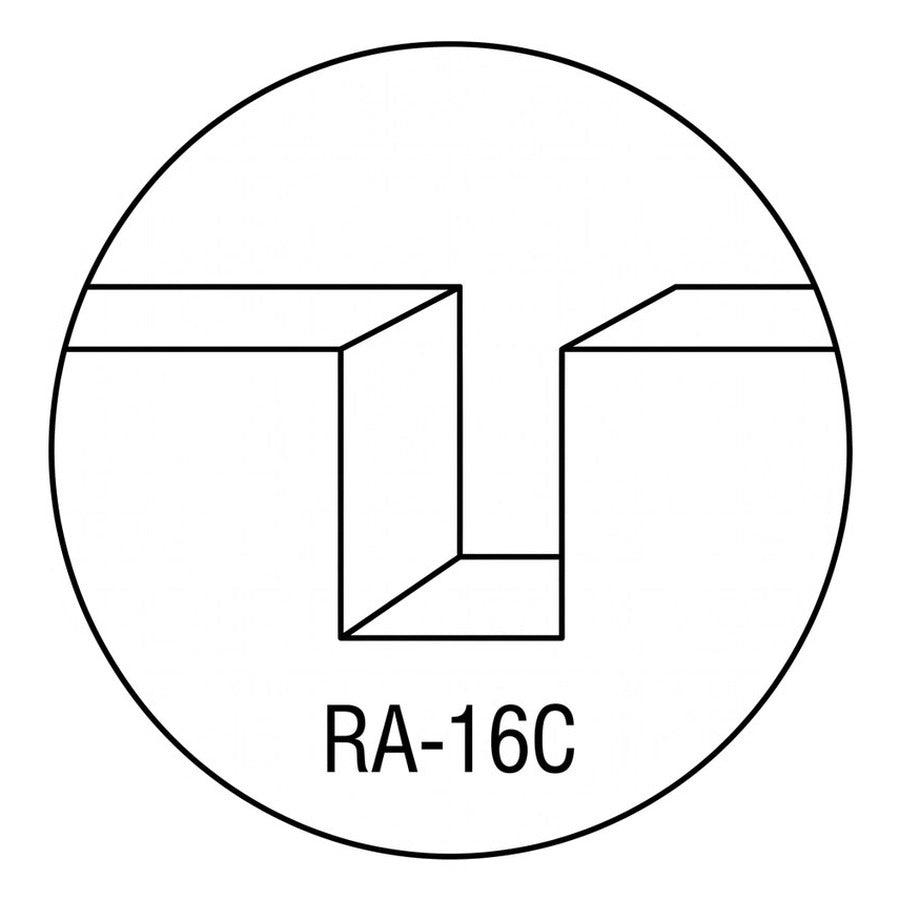

RA-16C ESD PCB rack RA-16C
Slots
25, on a 15 mm (0.591″) pitch
Slot Size
1.7 mm wide, 4 mm deep (0.067″ × 0.157″)
Board Thickness
Up to about 1.6 mm (0.063″)

$35.40 per rack · $354.00 pack of 10

In stock · ships in under 24 h · USA

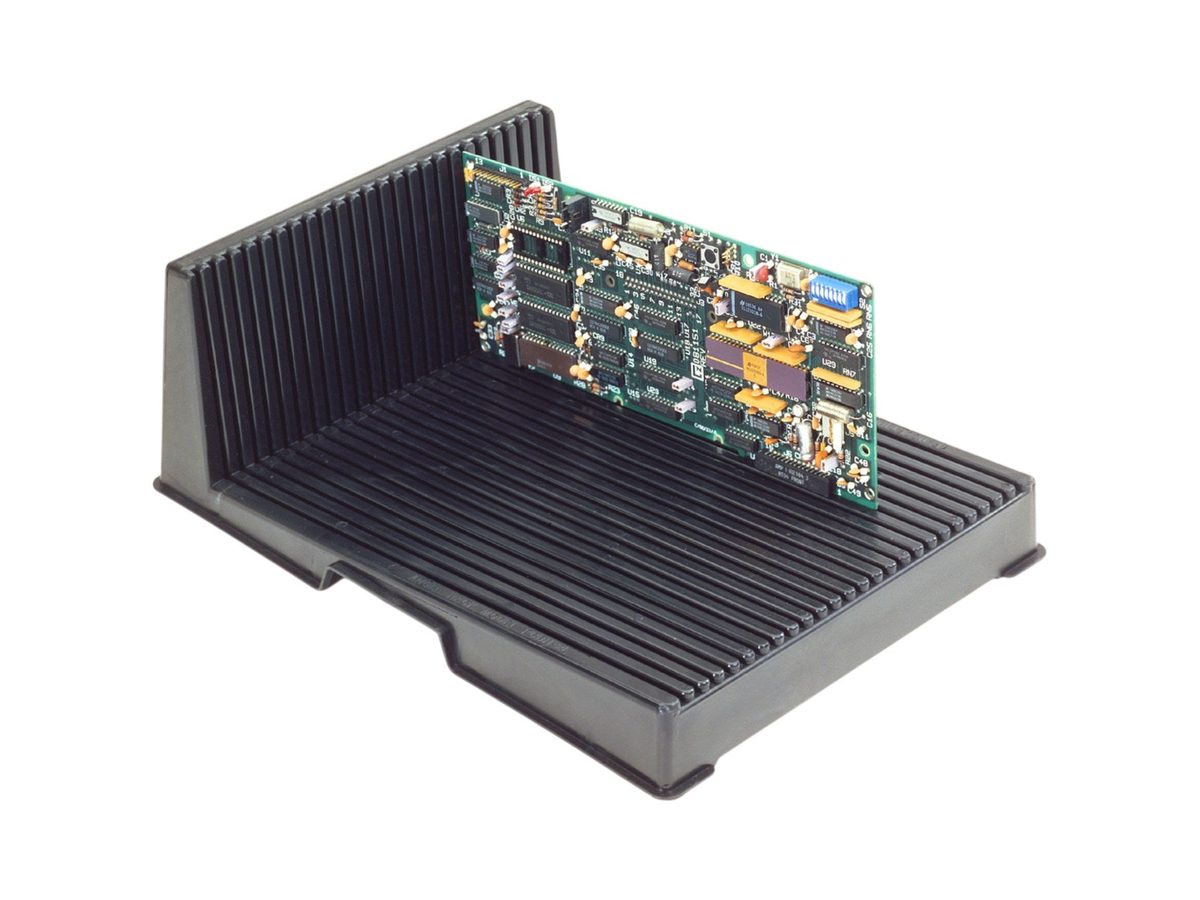

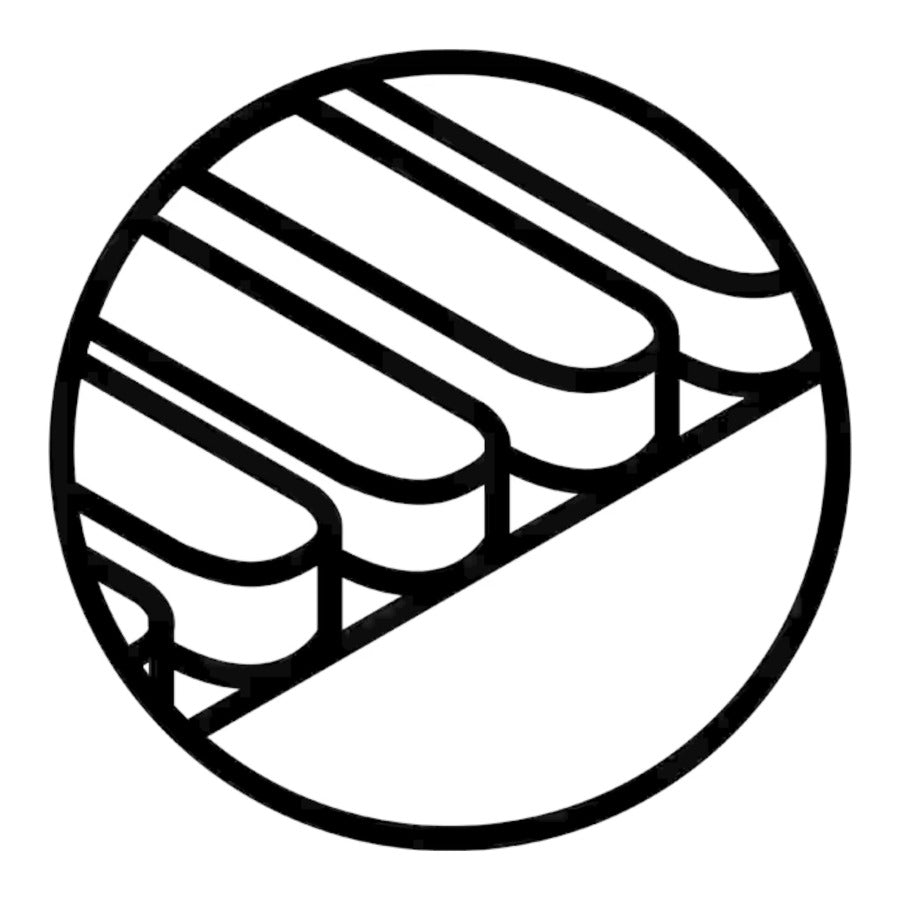

PCBH-2L-C ESD PCB rack PCBH-2L-C
Slots
25, on a 10 mm (0.394″) pitch
Slot Size
3 mm wide, 5 mm deep (0.118″ × 0.197″)
Maximum PCB Size
305 × 203 mm (12.01″ × 7.99″)

$37.60 per rack · $376.00 pack of 10

In stock · ships in under 24 h · USA
RA-20C ESD PCB rack RA-20C
Positions
25, with two slots at each
Slot A
3 mm wide, 7.7 mm deep (0.118″ × 0.303″)
Slot B
2.1 mm wide, 3 mm deep (0.083″ × 0.118″)

$41.90 per rack · $419.00 pack of 10

In stock · ships in under 24 h · USA

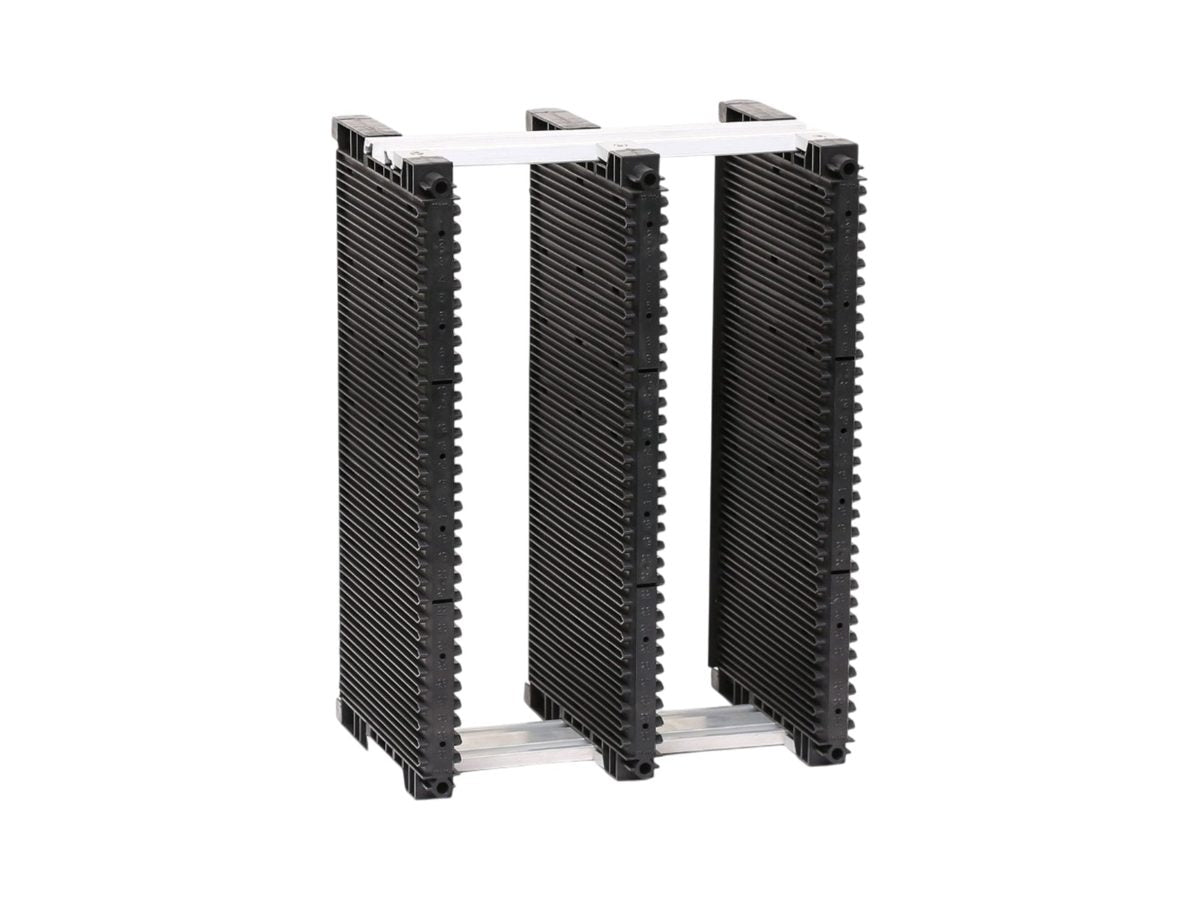

Karry-All 35 ESD PCB rack Karry-All 35
Slots
30, numbered, on a 10 mm (0.394″) pitch
Slot Size
4 mm wide, 3.8 mm deep (0.157″ × 0.150″)
Board Thickness
Up to about 3.2 mm (0.126″)

$44.90 per rack · $449.00 pack of 10

In stock · ships in under 24 h · USA

Depaneling

V-cut depanelers and starter kits, quoted with a ship date.

4 SKUs See the family page

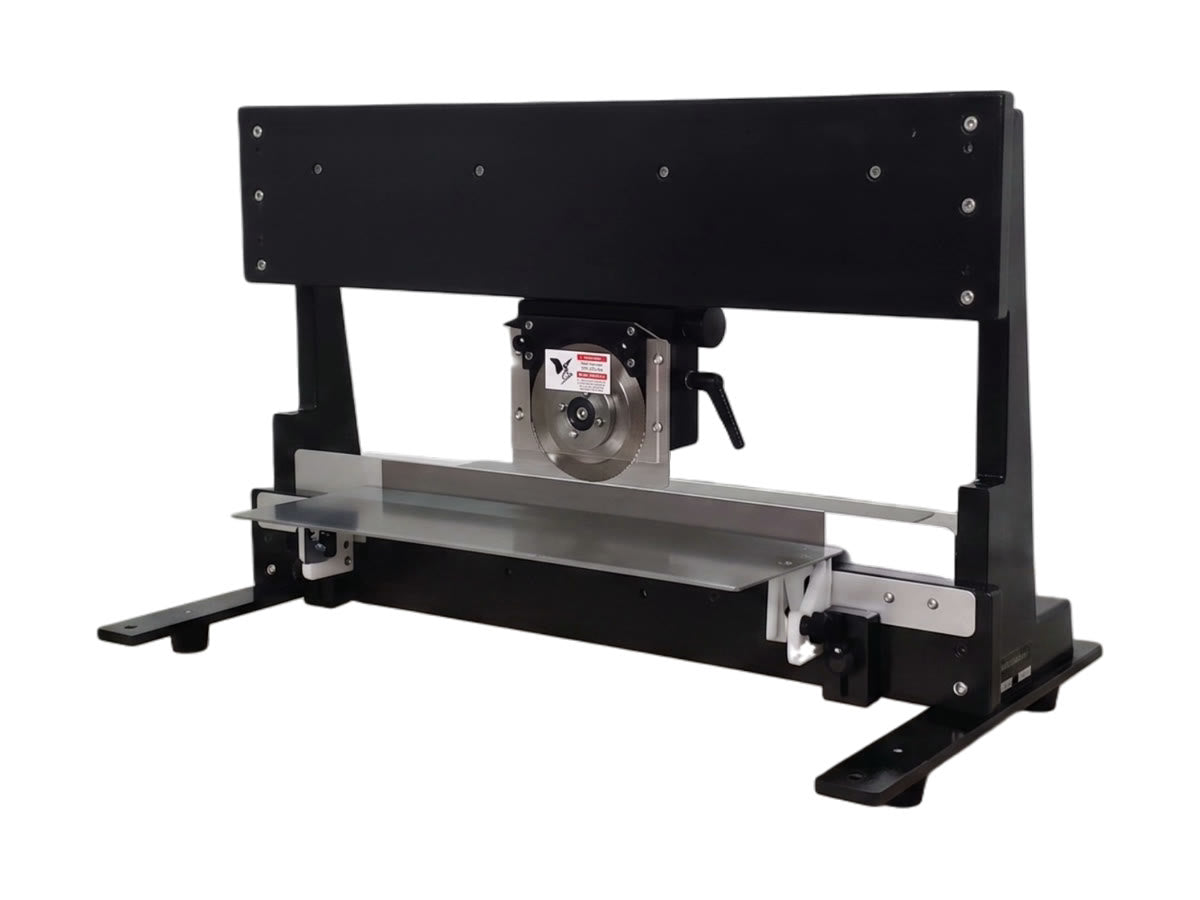

VPD3-1M V-cut PCB depaneler VPD3-1M
Maximum Cut Length
290 mm (11.4″)
Board Thickness
0.6 to 1.9 mm (0.024″ to 0.075″)
Parts Near the Score
Down to 2 mm (0.079″)
Ships in under 3 business days if in stock · USAMax lead time 2 to 4 weeks, depending on quantityGet a quote

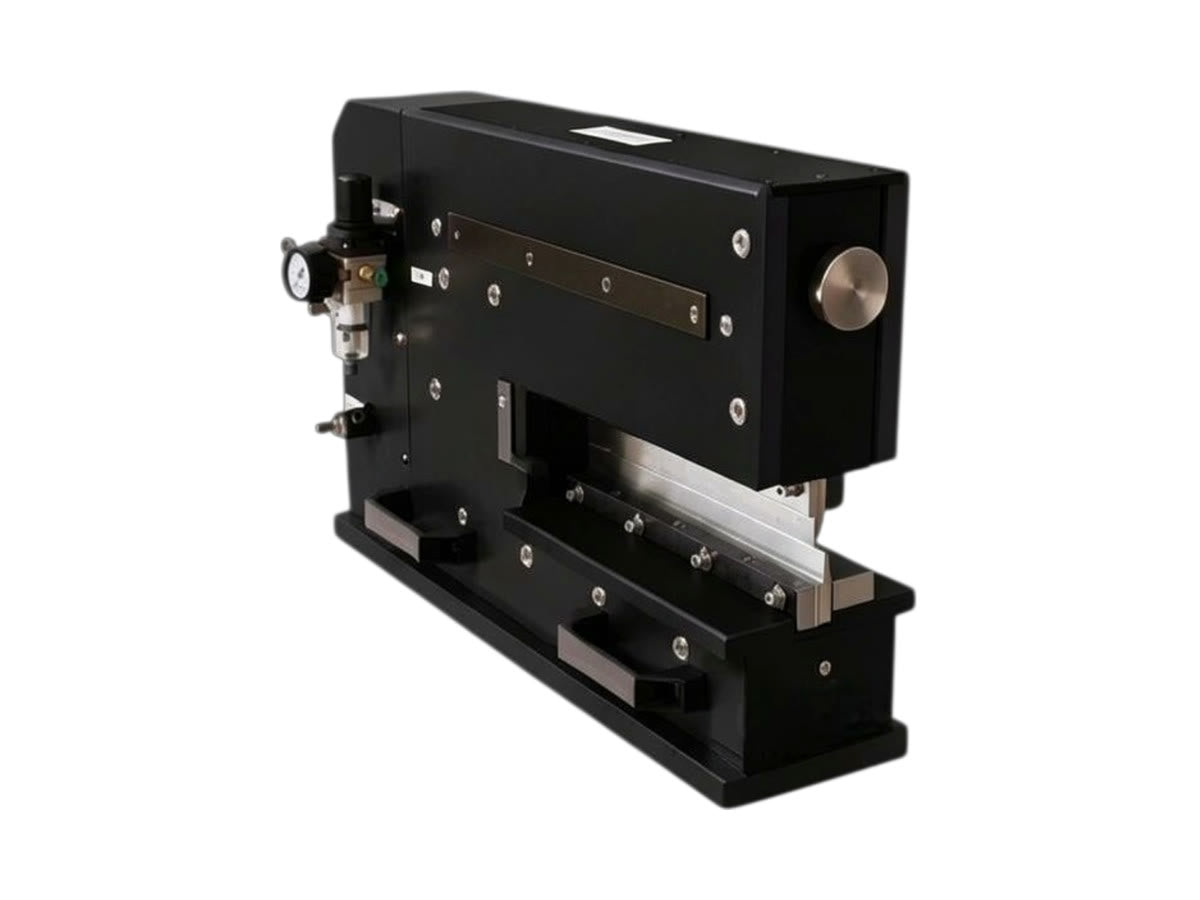

VPD5-330 V-cut PCB depaneler VPD5-330
Maximum Cut Length
330 mm (13 in)
Board Thickness
0.6 to 2.54 mm (0.024″ to 0.100″)
Parts Near the Score
Down to 0.5 mm (0.020″)
Ships in under 3 business days if in stock · USAMax lead time 2 to 4 weeks, depending on quantityGet a quote
VPD3-1M Starter Kit V-cut PCB depaneler VPD3-1M Starter Kit
Machine
VPD3-1M manual depaneler: 290 mm (11.4″) cut, no air or power
Spare Blades
VPD3-1CB circular and VPD3-1LB linear
Blade Program
We track blade life on your schedule and remind you before a blade dulls
Ships in under 3 business days if in stock · USAMax lead time 2 to 4 weeks, depending on quantityGet a quote
VPD5-330 Starter Kit V-cut PCB depaneler VPD5-330 Starter Kit
Machine
VPD5-330 pneumatic depaneler: 330 mm (13″) cut, foot pedal, CE marked
Spare Blades
VPD5-330LK matched linear blade pair
Blade Program
We track blade life on your schedule and remind you before edge quality drifts
Ships in under 3 business days if in stock · USAMax lead time 2 to 4 weeks, depending on quantityGet a quote

Depaneling spares

Blades and parts for the VPD3-1M and VPD5-330.

7 SKUs See the family page
VPD5-330-P13 V-cut blade VPD5-330-P13
Material
Anodized aluminum and steel
Mount
Single bolt, one hex wrench
Fits
VPD5-330

$209.00

Typically in stock, 10 working days max · USA

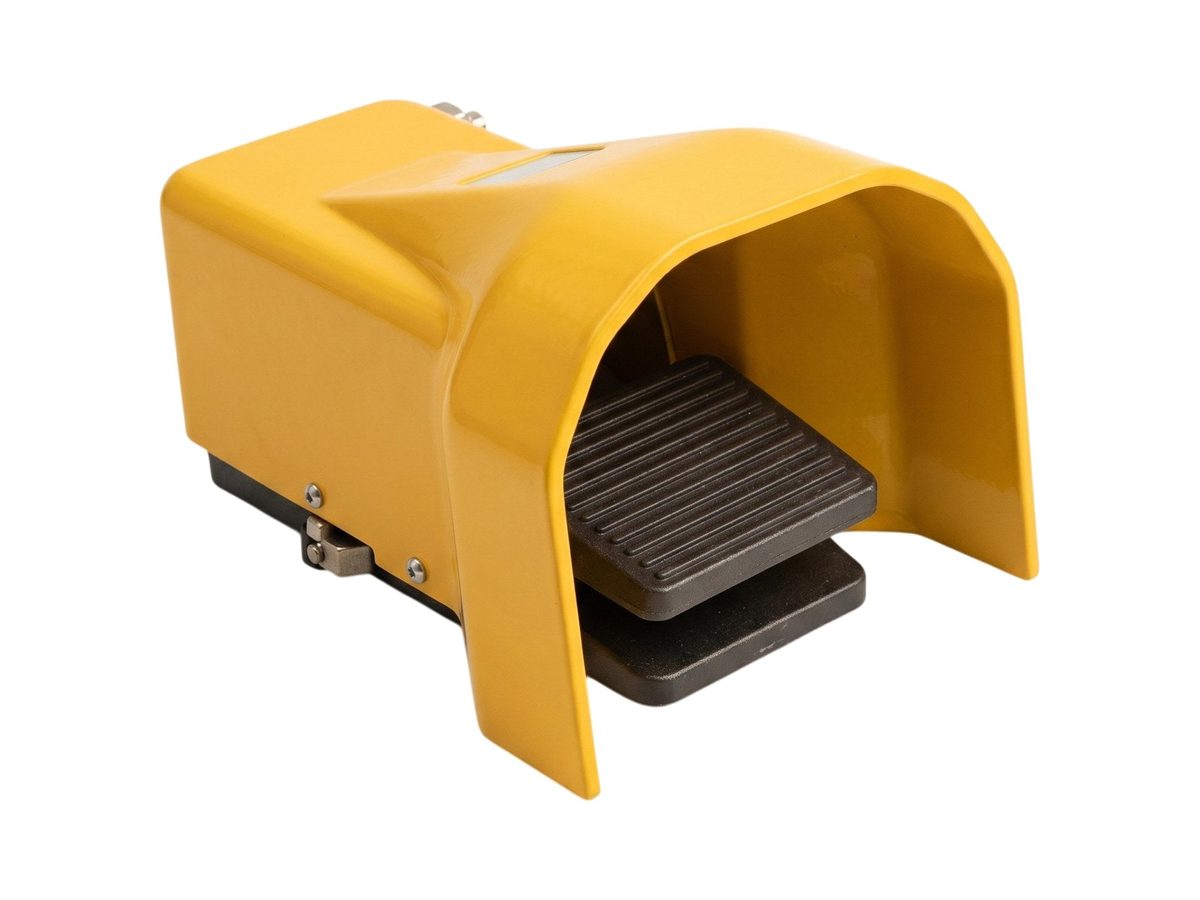

VPD5-330-P04 V-cut blade VPD5-330-P04
Type
Pneumatic foot switch
Air
Standard shop air, 0.4 to 0.6 MPa (58 to 87 psi)
Fits
VPD5-330

$447.00

Typically in stock, 10 working days max · USA

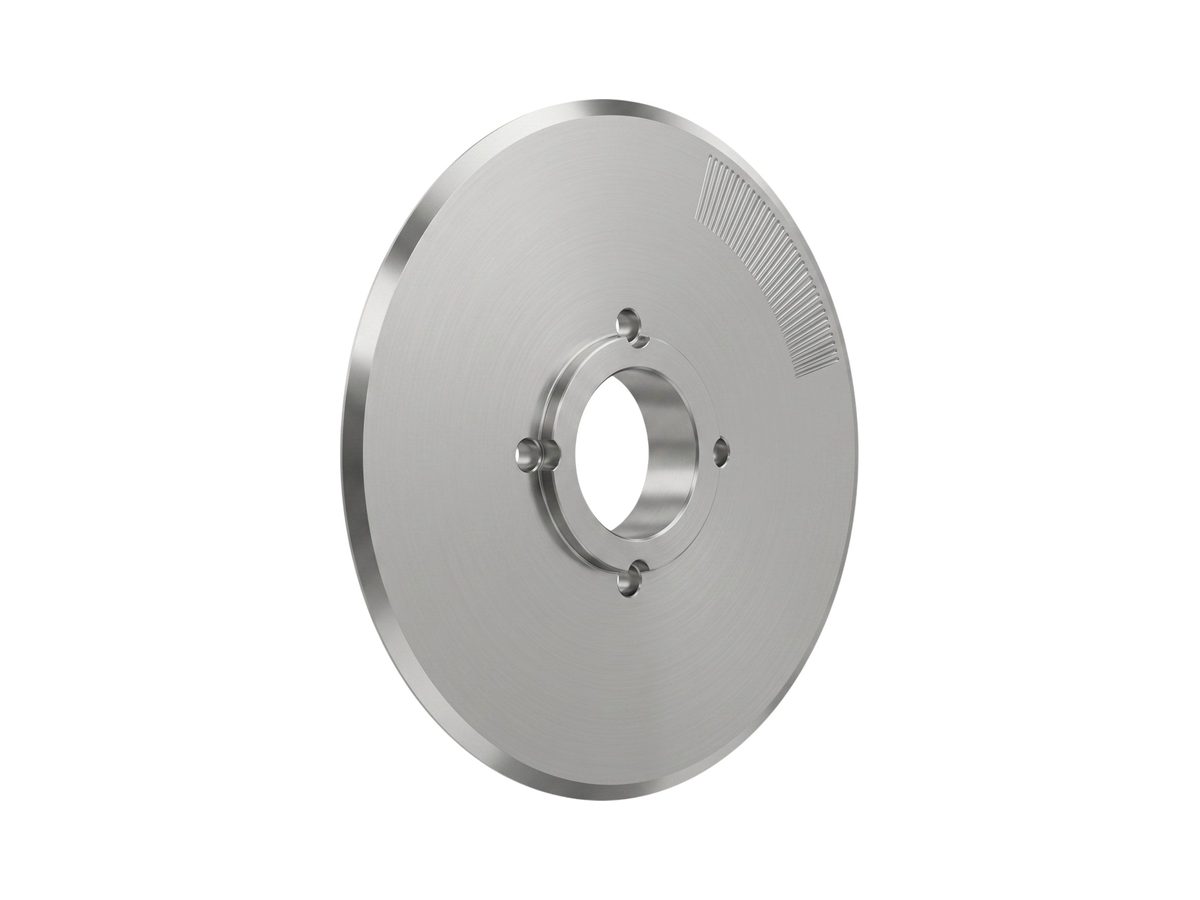

VPD3-1CB V-cut blade VPD3-1CB
Thickness
5.5 mm (0.217″)
Edge Angle
20°
Material
Tool steel

$758.00

Typically in stock, 10 working days max · USA

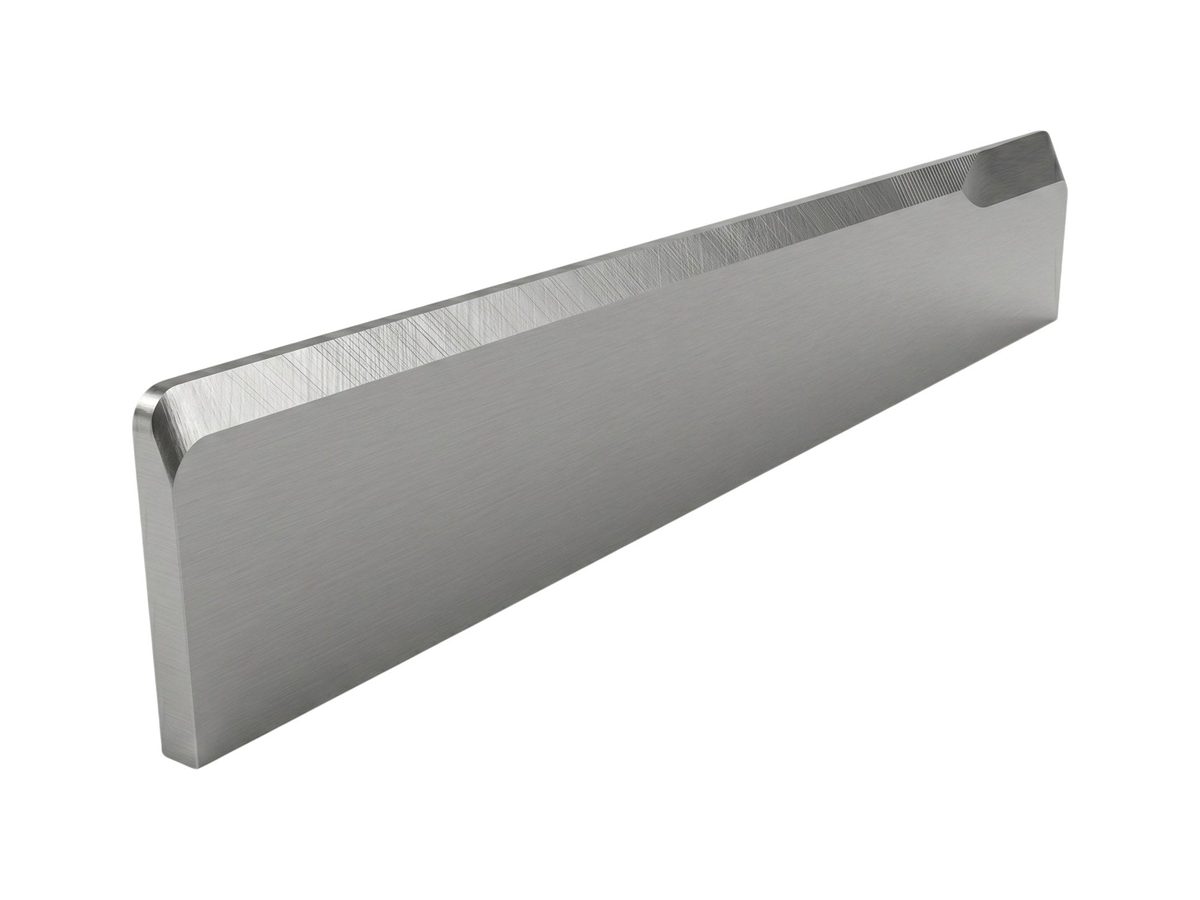

VPD3-1LB V-cut blade VPD3-1LB
Type
Stationary linear V-blade
Profile
Standard profile included

$1,367.00

Typically in stock, 10 working days max · USA
VPD3-1CB + VPD3-1LB V-cut blade VPD3-1CB + VPD3-1LB
Contents
VPD3-1CB circular blade and VPD3-1LB linear blade
Material
Tool steel
Blade Life
Up to 100,000 cycles per blade on FR4, 50,000 or more typical

$1,913.00

Typically in stock, 10 working days max · USA

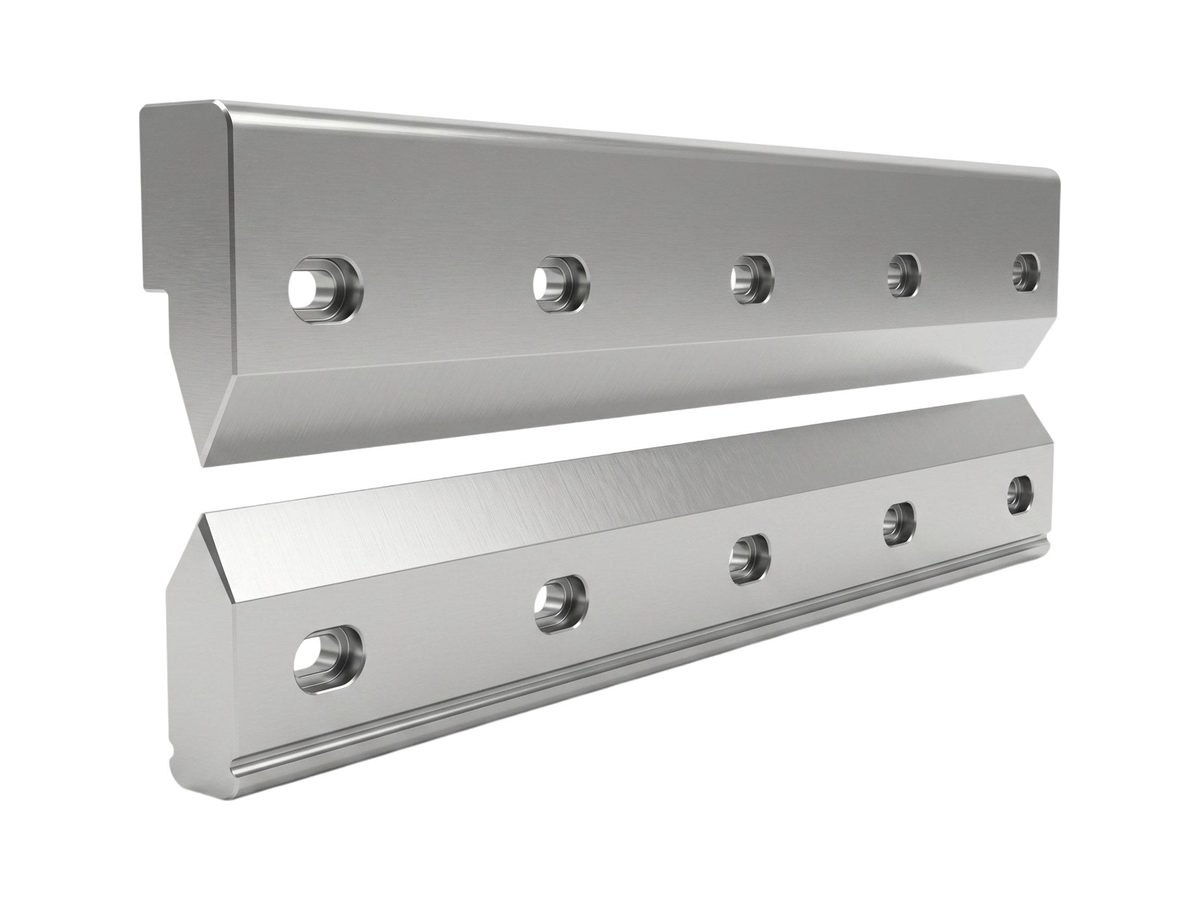

VPD5-330LK V-cut blade VPD5-330LK
Type
Matched upper and lower linear V-blades
Material
Precision-ground tool steel
Blade Life
Up to 100,000 cycles per blade on FR4, 50,000 or more typical

$2,280.00

Typically in stock, 10 working days max · USA

Rack spares

Kits and parts for 50-slot magazine racks.

6 SKUs See the family page
FRAME-PLATE-KIT magazine rack spare FRAME-PLATE-KIT
Covers
The complete frame of one rack
Fits
B0103 / B0104 / B0105, B0106 / B0107, B0108 and B0109 chassis
Contents
8 parts, 4 part numbers

From $159.00

Typically in stock, 10 working days max · USAChoose your chassis
SIDE-PANEL-KIT magazine rack spare SIDE-PANEL-KIT
Covers
Both side-panel frames of one rack
Fits
B0101, B0103 / B0104, B0106 / B0107 and B0108 / B0109 chassis
Rating
80 °C (176 °F) or 120 °C (248 °F)

From $60.00

Typically in stock, 10 working days max · USAChoose your chassis
RACK-WEAR-KIT magazine rack spare RACK-WEAR-KIT
Services
One gear-adjustable rack
Fits
B0103G, B0105GP, B0106G, B0108G and B0109G racks
Contents
25 parts, 5 part numbers

$99.00

Typically in stock, 10 working days max · USAChoose your chassis
RACK-SPARE-3 magazine rack spare RACK-SPARE-3
Fits
B0103 / B0104, B0106 / B0107 and B0108 / B0109 chassis
Rating
80 °C (176 °F), or 120 °C (248 °F) for B0103 / B0104 and B0106 / B0107
Sold
Per panel

From $86.00

Typically in stock, 10 working days max · USAChoose your chassis
RACK-SPARE-2 magazine rack spare RACK-SPARE-2
Fits
Gear-adjustable B0103, B0106, B0108 and B0109 racks
Rating
80 °C (176 °F), or 120 °C (248 °F) for B0103 and B0106
Sold
Per panel

From $97.00

Typically in stock, 10 working days max · USAChoose your chassis
RACK-SPARE-1 magazine rack spare RACK-SPARE-1
Fits
B0103 / B0104, B0105, B0106 / B0107, B0108 and B0109 chassis
Sold
Per board. A rack uses two, top and bottom

From $54.00

Typically in stock, 10 working days max · USAChoose your chassis

Bundles and kits

Racks with their wear kit, depanelers with spare blades.

13 SKUs See the family page
VPD3-1CB + VPD3-1LB bundle VPD3-1CB + VPD3-1LB
Contents
VPD3-1CB circular blade and VPD3-1LB linear blade
Material
Tool steel
Blade Life
Up to 100,000 cycles per blade on FR4, 50,000 or more typical

$1,913.00

Typically in stock, 10 working days max · USA
B0109GM-200C Bundle bundle B0109GM-200C Bundle
Adjustable PCB Width
50 to 460 mm (1.97″ to 18.11″)
Maximum PCB Size
535 × 460 mm (21.06″ × 18.11″)
Temperature Range
−20 °C to +200 °C (−4 °F to 392 °F)

$569.00

Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
B0108GM-200C Bundle bundle B0108GM-200C Bundle
Adjustable PCB Width
50 to 390 mm (1.97″ to 15.35″)
Maximum PCB Size
535 × 390 mm (21.06″ × 15.35″)
Temperature Range
−20 °C to +200 °C (−4 °F to 392 °F)

$502.00

In stock · ships in under 24 h · USA
B0106GM-200C Bundle bundle B0106GM-200C Bundle
Adjustable PCB Width
50 to 330 mm (1.97″ to 12.99″)
Maximum PCB Size
460 × 330 mm (18.11″ × 12.99″)
Temperature Range
−20 °C to +200 °C (−4 °F to 392 °F)

$411.00

In stock · ships in under 24 h · USA
B0105GPN-80C Bundle bundle B0105GPN-80C Bundle
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$265.00

In stock · ships in under 24 h · USA
B0105GPM-120C Bundle bundle B0105GPM-120C Bundle
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +120 °C (−4 °F to 248 °F)

$280.00

In stock · ships in under 24 h · USA
B0103GM-200C Bundle bundle B0103GM-200C Bundle
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +200 °C (−4 °F to 392 °F)

$335.00

In stock · ships in under 24 h · USA
B0109GN-80C Bundle bundle B0109GN-80C Bundle
Adjustable PCB Width
50 to 460 mm (1.97″ to 18.11″)
Maximum PCB Size
535 × 460 mm (21.06″ × 18.11″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$490.00

Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
B0108GN-80C Bundle bundle B0108GN-80C Bundle
Adjustable PCB Width
50 to 390 mm (1.97″ to 15.35″)
Maximum PCB Size
535 × 390 mm (21.06″ × 15.35″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$414.00

Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
B0106GN-80C Bundle bundle B0106GN-80C Bundle
Adjustable PCB Width
50 to 330 mm (1.97″ to 12.99″)
Maximum PCB Size
460 × 330 mm (18.11″ × 12.99″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$339.00

In stock · ships in under 24 h · USA
B0103GN-80C Bundle bundle B0103GN-80C Bundle
Adjustable PCB Width
50 to 250 mm (1.97″ to 9.84″)
Maximum PCB Size
355 × 250 mm (13.98″ × 9.84″)
Temperature Range
−20 °C to +80 °C (−4 °F to 176 °F)

$273.00

In stock · ships in under 24 h · USA
VPD5-330 Starter Kit bundle VPD5-330 Starter Kit
Machine
VPD5-330 pneumatic depaneler: 330 mm (13″) cut, foot pedal, CE marked
Spare Blades
VPD5-330LK matched linear blade pair
Blade Program
We track blade life on your schedule and remind you before edge quality drifts
Ships in under 3 business days if in stock · USAMax lead time 2 to 4 weeks, depending on quantityGet a quote
VPD3-1M Starter Kit bundle VPD3-1M Starter Kit
Machine
VPD3-1M manual depaneler: 290 mm (11.4″) cut, no air or power
Spare Blades
VPD3-1CB circular and VPD3-1LB linear
Blade Program
We track blade life on your schedule and remind you before a blade dulls
Ships in under 3 business days if in stock · USAMax lead time 2 to 4 weeks, depending on quantityGet a quote
PCB magazine rack loaded with circuit boards
Loaded and ready for the line
360° view

[ Further information ]

[ Next step ]

Not sure where to start?
The finder names the part.

Find my rack Full catalog Get a quote Ask a question

ESD PCB Magazine Racks

20 SKUs View the collection →
B0105GPN-80C80 °C

B0105GPN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack with conductive PS base in place of galvanized steel, the lightest rack in the magazine catalog.

External dimensions (L × W × H) 14″ × 13″ × 22″ 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Max board size (L × W) 14″ × 10″ 355 × 250 mm (13.98″ × 9.84″)
Gear track ESD-Safe$179.00
View
Best seller
B0103GN-80C80 °C

B0103GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack for SMT Loaders

50-slot ESD magazine rack built for in-line SMT loaders and unloaders.

External dimensions (L × W × H) 14″ × 13″ × 22″ 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Max board size (L × W) 14″ × 10″ 355 × 250 mm (13.98″ × 9.84″)
Gear track ESD-Safe$188.00
View
B0104N-80C80 °C

B0104N-80C · 50-Slot Screw-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack with screw-clamp width adjustment, precision mechanical, vibration-resistant, holds position through thousands of load cycles.

External dimensions (L × W × H) 14″ × 13″ × 22″ 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Max board size (L × W) 14″ × 10″ 355 × 250 mm (13.98″ × 9.84″)
Set-once screw ESD-Safe$188.00
View
B0105GPM-120C120 °C

B0105GPM-120C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack with conductive PS base rated to 120 °C (248 °F), covers most MSD low-bake profiles (90–110 °C) without stepping up to a metal-base 200 °C rack.

External dimensions (L × W × H) 14″ × 13″ × 22″ 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Max board size (L × W) 14″ × 10″ 355 × 250 mm (13.98″ × 9.84″)
Gear · 120 °C bake ESD-Safe$195.00
View
B0103GM-200C200 °C

B0103GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.

External dimensions (L × W × H) 14″ × 13″ × 22″ 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Max board size (L × W) 14″ × 10″ 355 × 250 mm (13.98″ × 9.84″)
Gear · 200 °C ESD-Safe$253.00
View
B0104M-200C200 °C

B0104M-200C · 50-Slot Screw-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack with screw-clamp width adjustment, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.

External dimensions (L × W × H) 14″ × 13″ × 22″ 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Max board size (L × W) 14″ × 10″ 355 × 250 mm (13.98″ × 9.84″)
Screw · 200 °C ESD-Safe$253.00
View
B0106GN-80C80 °C

B0106GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack on the large-format chassis, sized for boards up to 460 × 330 mm (18.11″ × 12.99″).

External dimensions (L × W × H) 18″ × 16″ × 22″ 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″)
Max board size (L × W) 18″ × 13″ 460 × 330 mm (18.11″ × 12.99″)
Gear track ESD-Safe$257.00
View
B0103GL HT-300C300 °C

B0103GL HT-300C · 50-Slot All-Aluminum 300 °C ESD PCB Magazine Rack

50-slot all-aluminum ESD magazine rack rated to 300 °C, built for aerospace cure, lead-free reflow direct loading, and high-heat stress testing.

External dimensions (L × W × H) 14″ × 13″ × 22″ 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Max board size (L × W) 14″ × 10″ 355 × 250 mm (13.98″ × 9.84″)
300 °C all-aluminum ESD-Safe$282.00
View
B0103GC BELT-80C80 °C

B0103GC BELT-80C · 50-Slot Belt-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack with continuous belt adjustment covering 10–250 mm (0.394″–9.84″) of board width, no stepped clicks, no fixed indices.

External dimensions (L × W × H) 14″ × 13″ × 22″ 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Max board size (L × W) 14″ × 10″ 355 × 250 mm (13.98″ × 9.84″)
Continuous belt ESD-Safe$322.00
View
B0106GM-200C200 °C

B0106GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack on the large-format chassis, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.

External dimensions (L × W × H) 18″ × 16″ × 22″ 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″)
Max board size (L × W) 18″ × 13″ 460 × 330 mm (18.11″ × 12.99″)
Gear · 200 °C ESD-Safe$333.00
View
B0108GN-80C80 °C

B0108GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack on the extra-large-format chassis, the bridge between large-format B0106 and maximum-format B0109.

External dimensions (L × W × H) 21″ × 18″ × 22″ 535 × 460 × 569 mm (21.06″ × 18.11″ × 22.40″)
Max board size (L × W) 21″ × 15″ 535 × 390 mm (21.06″ × 15.35″)
Gear track ESD-Safe$336.00
View
B0106GL HT-300C300 °C

B0106GL HT-300C · 50-Slot All-Aluminum 300 °C ESD PCB Magazine Rack

50-slot ESD magazine rack with the same all-aluminum 300 °C build as the standard-format B0103GL HT, just sized for boards up to 460 × 330 mm (18.11″ × 12.99″).

External dimensions (L × W × H) 18″ × 16″ × 22″ 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″)
Max board size (L × W) 18″ × 13″ 460 × 330 mm (18.11″ × 12.99″)
300 °C all-aluminum ESD-Safe$356.00
View
B0109GN-80C80 °C

B0109GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack on the maximum-format chassis, sized for boards to 535 × 460 mm (21.06″ × 18.11″): backplanes, motherboards, and oversized industrial PCBs up to 535 × 460 mm (21.06″ × 18.11″).

External dimensions (L × W × H) 21″ × 21″ × 22″ 535 × 530 × 569 mm (21.06″ × 20.87″ × 22.40″)
Max board size (L × W) 21″ × 18″ 535 × 460 mm (21.06″ × 18.11″)
Gear track ESD-Safe$416.00
View
B0106GC BELT-80C80 °C

B0106GC BELT-80C · 50-Slot Belt-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack on the large-format chassis, with continuous belt adjustment covering 10–330 mm (0.394″–12.99″) of board width, no stepped clicks, no fixed indices.

External dimensions (L × W × H) 18″ × 16″ × 22″ 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″)
Max board size (L × W) 18″ × 13″ 460 × 330 mm (18.11″ × 12.99″)
Continuous belt ESD-Safe$427.00
View
B0108GM-200C200 °C

B0108GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack on the extra-large-format chassis, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.

External dimensions (L × W × H) 21″ × 18″ × 22″ 535 × 460 × 569 mm (21.06″ × 18.11″ × 22.40″)
Max board size (L × W) 21″ × 15″ 535 × 390 mm (21.06″ × 15.35″)
Gear · 200 °C ESD-Safe$429.00
View
B0109GM-200C200 °C

B0109GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack on the maximum-format chassis, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.

External dimensions (L × W × H) 21″ × 21″ × 22″ 535 × 530 × 569 mm (21.06″ × 20.87″ × 22.40″)
Max board size (L × W) 21″ × 18″ 535 × 460 mm (21.06″ × 18.11″)
Gear · 200 °C ESD-Safe$499.00
View
B0109GL HT-300C300 °C

B0109GL HT-300C · 50-Slot All-Aluminum 300 °C ESD PCB Magazine Rack

50-slot ESD magazine rack, the 300 °C rack for boards to 535 × 460 mm (21.06″ × 18.11″).

External dimensions (L × W × H) 21″ × 21″ × 22″ 535 × 530 × 569 mm (21.06″ × 20.87″ × 22.40″)
Max board size (L × W) 21″ × 18″ 535 × 460 mm (21.06″ × 18.11″)
300 °C all-aluminum ESD-Safe$519.00
View
B0109GC BELT-80C80 °C

B0109GC BELT-80C · 50-Slot Belt-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack on the maximum-format chassis, with continuous belt adjustment covering 10–460 mm (0.394″–18.11″) of board width.

External dimensions (L × W × H) 21″ × 21″ × 22″ 535 × 530 × 563 mm (21.06″ × 20.87″ × 22.17″)
Max board size (L × W) 21″ × 18″ 535 × 460 mm (21.06″ × 18.11″)
Continuous belt ESD-Safe$541.00
View
B0110GN-80C80 °C

B0110GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack on the extra-long-format chassis, sized for the longest boards in the catalog: backplanes, motherboards, and oversized industrial PCBs up to 620 × 460 mm (24.41″ × 18.11″).

External dimensions (L × W × H) 25″ × 21″ × 22″ 630 × 530 × 563 mm (24.80″ × 20.87″ × 22.17″)
Max board size (L × W) 24″ × 18″ 620 × 460 mm (24.41″ × 18.11″)
Gear track ESD-Safe$695.00
View
B0110GC BELT-80C80 °C

B0110GC BELT-80C · 50-Slot Belt-Adjustable ESD PCB Magazine Rack

50-slot ESD magazine rack on the extra-long-format chassis, with continuous belt adjustment covering 10–460 mm (0.394″–18.11″) of board width, the longest board format in the catalog.

External dimensions (L × W × H) 25″ × 21″ × 22″ 630 × 530 × 563 mm (24.80″ × 20.87″ × 22.17″)
Max board size (L × W) 24″ × 18″ 620 × 460 mm (24.41″ × 18.11″)
Continuous belt ESD-Safe$955.00
View

ESD PCB Trays and Racks

9 SKUs View the collection →
D38085 °C

D380 · ESD PCB Turntable

ESD-safe rotating work platform, place the assembly, spin it, work all 360 degrees without picking up the board.

External dimensions (L × W × H) Ø 15″ × 0.5″ Ø 380 × 12 mm (14.96″ × 0.472″)
Max board size (L × W) 12″ × 10″ 300 × 250 mm (11.81″ × 9.84″)
ESD turntable ESD-Safe$133.00
View
Best seller
D50085 °C

D500 · ESD Turntable for PCB Assembly

ESD-safe rotating work platform sized for larger PCB assemblies and mechanical builds, 500 mm (20″) disc, 15 mm (0.591″) low profile, 250 lb (113 kg) capacity.

External dimensions (L × W × H) Ø 20″ × 0.6″ Ø 500 × 15 mm (19.69″ × 0.591″)
Max board size (L × W) 16″ × 14″ 400 × 350 mm (15.75″ × 13.78″)
ESD turntable ESD-Safe$192.00
View
PCBH-C80 °C

PCBH-C · ESD PCB Holder, 25 Slots (Pack of 10)

Compact vertical-angled board holder built for the bench, 265 × 205 mm (10.43″ × 8.07″) footprint, 95 mm (3.74″) tall, fits next to a soldering iron or microscope without crowding the workspace. Slot 3 mm (0.118″) wide × 5 mm (0.197″) deep, 10 mm (0.394″) pitch.

External dimensions (L × W × H) 10″ × 8″ × 4″ 265 × 205 × 95 mm (10.43″ × 8.07″ × 3.74″)
Max board size (L × W) 6″ × 6″ 152 × 152 mm (5.98″ × 5.98″)
Angled holder ESD-Safe
PCBH-C slot type
$32.50per unit Pack of 10 · $325.00
View
Best seller
RA-24 Mini80 °C

RA-24 Mini · Deep-Slot ESD PCB Rack for Thick and Populated Boards (Pack of 10)

Deep-slot rack for thick boards: slot 3.2 mm (0.126″) wide × 7.7 mm (0.303″) deep, 16 mm (0.630″) pitch, 25 slots

External dimensions (L × W × H) 17″ × 6″ × 1″ 435 × 160 × 30 mm (17.13″ × 6.30″ × 1.18″)
Max board size (L × W) 16″ × 9″ 400 × 220 mm (15.75″ × 8.66″)
Slotted edge ESD-Safe
RA-24 Mini slot type
$34.70per unit Pack of 10 · $347.00
View
RA-18C80 °C

RA-18C · ESD PCB Tray, Slotted-Edge with Handles (Pack of 10)

Double-sided rack with carry handles: slots 3 mm (0.118″) wide, 7 mm (0.276″) deep top / 7.5 mm (0.295″) bottom, 15 mm (0.591″) pitch

External dimensions (L × W × H) 19″ × 6″ × 1″ 480 × 140 × 35 mm (18.90″ × 5.51″ × 1.38″)
Max board size (L × W) 13″ × 7″ 320 × 180 mm (12.60″ × 7.09″)
Slotted edge ESD-Safe
RA-18C slot type
$35.10per unit Pack of 10 · $351.00
View
RA-16C80 °C

RA-16C · ESD PCB Tray, Slotted-Edge (Pack of 10)

Standard-thickness slotted rack: slot 1.7 mm (0.067″) wide × 4 mm (0.157″) deep, 15 mm (0.591″) pitch, 25 slots

External dimensions (L × W × H) 17″ × 6″ × 0.8″ 428 × 160 × 21 mm (16.85″ × 6.30″ × 0.827″)
Max board size (L × W) 16″ × 10″ 400 × 260 mm (15.75″ × 10.24″)
Slotted edge ESD-Safe
RA-16C slot type
$35.40per unit Pack of 10 · $354.00
View
PCBH-2L-C80 °C

PCBH-2L-C · Angled PCB Holder, ESD, Double-Angle (Pack of 10)

Wide-base, L-shaped, double wide-angle board holder built for inspection and QC. Slot 3 mm (0.118″) wide × 5 mm (0.197″) deep, 10 mm (0.394″) pitch.

External dimensions (L × W × H) 14″ × 11″ × 5″ 355 × 270 × 130 mm (13.98″ × 10.63″ × 5.12″)
Max board size (L × W) 12″ × 8″ 305 × 203 mm (12.01″ × 7.99″)
Angled holder ESD-Safe
PCBH-2L-C slot type
$37.60per unit Pack of 10 · $376.00
View
RA-20C80 °C

RA-20C · Slotted-Edge ESD PCB Rack, 25 Double Slots (Pack of 10)

Double slot at every position: Slot A 3 mm (0.118″) wide × 7.7 mm (0.303″) deep, Slot B 2.1 mm (0.083″) wide × 3 mm (0.118″) deep, 15 mm (0.591″) set pitch

External dimensions (L × W × H) 19″ × 7″ × 2″ 484 × 172 × 50 mm (19.06″ × 6.77″ × 1.97″)
Max board size (L × W) 16″ × 9″ 400 × 220 mm (15.75″ × 8.66″)
Slotted edge ESD-Safe
RA-20C slot type
$41.90per unit Pack of 10 · $419.00
View
Karry-All 3580 °C

Karry-All 35 · Portable ESD PCB Karrier (30-Slot, Pack of 10)

30-slot ESD board carrier in conductive polypropylene, the lightest carrier in the catalog at 2 kg empty.

External dimensions (L × W × H) 14″ × 7″ × 14″ 350 × 175 × 355 mm (13.78″ × 6.89″ × 13.98″)
Max board size (L × W) 14″ × 7″ 350 × 175 mm (13.78″ × 6.89″)
Portable karrier ESD-Safe$44.90per unit Pack of 10 · $449.00
View

Depaneling

4 SKUs View the collection →
VPD3-1M

VPD3-1M · Manual V-Cut PCB Depaneling Machine

Clean V-score cuts on mixed runs and prototypes, no air, no power, a desktop depaneler. One saved batch of boards pays for it.

External dimensions (L × W × H) 30.9″ × 18.1″ × 20.9″ 784 × 460 × 530 mm (30.87″ × 18.11″ × 20.87″)
Manual shearPrice on request
View Request a quote
Best seller
VPD5-330

VPD5-330 · Pneumatic V-Cut PCB Depaneling Machine

Foot-pedal shear for repeat volume, with average board strain under 120 µε, measured with strain gauges.

External dimensions (L × W × H) 29.5″ × 9.1″ × 15.6″ 750 × 230 × 395 mm (29.53″ × 9.06″ × 15.55″)
Pneumatic shearPrice on request
View Request a quote

Rack Spares

6 SKUs View the collection →

Depaneling Spares

6 SKUs View the collection →

Order the right part the first time.

Send us your board size and process, we confirm the exact part number before you buy. Standard manufacturer warranty applies · spares ship from the USA.

Ask an engineer
