Is this cheaper than buying the rack and kit separately?

Yes. The bundle is $490; the B0109GN-80C rack at $416 plus the Rack Wear Kit at $99 is $515 bought on their own, so the bundle saves $25. Same two products, one line on the PO.

Do I need the wear kit on day one?

Not on day one. The kit is insurance against the day a gear rounds off or a lever set gives up, which on a rack that changes board width daily is a question of when. Having it on the shelf turns that into a bench repair instead of a wait for a part.

Does the wear kit fit this exact rack?

Yes, that is the point of the bundle. The kit shipped here is the variant matched to the B0109 chassis. The wear kit fits gear-adjust racks only; screw and belt racks wear at the panels and frame instead.

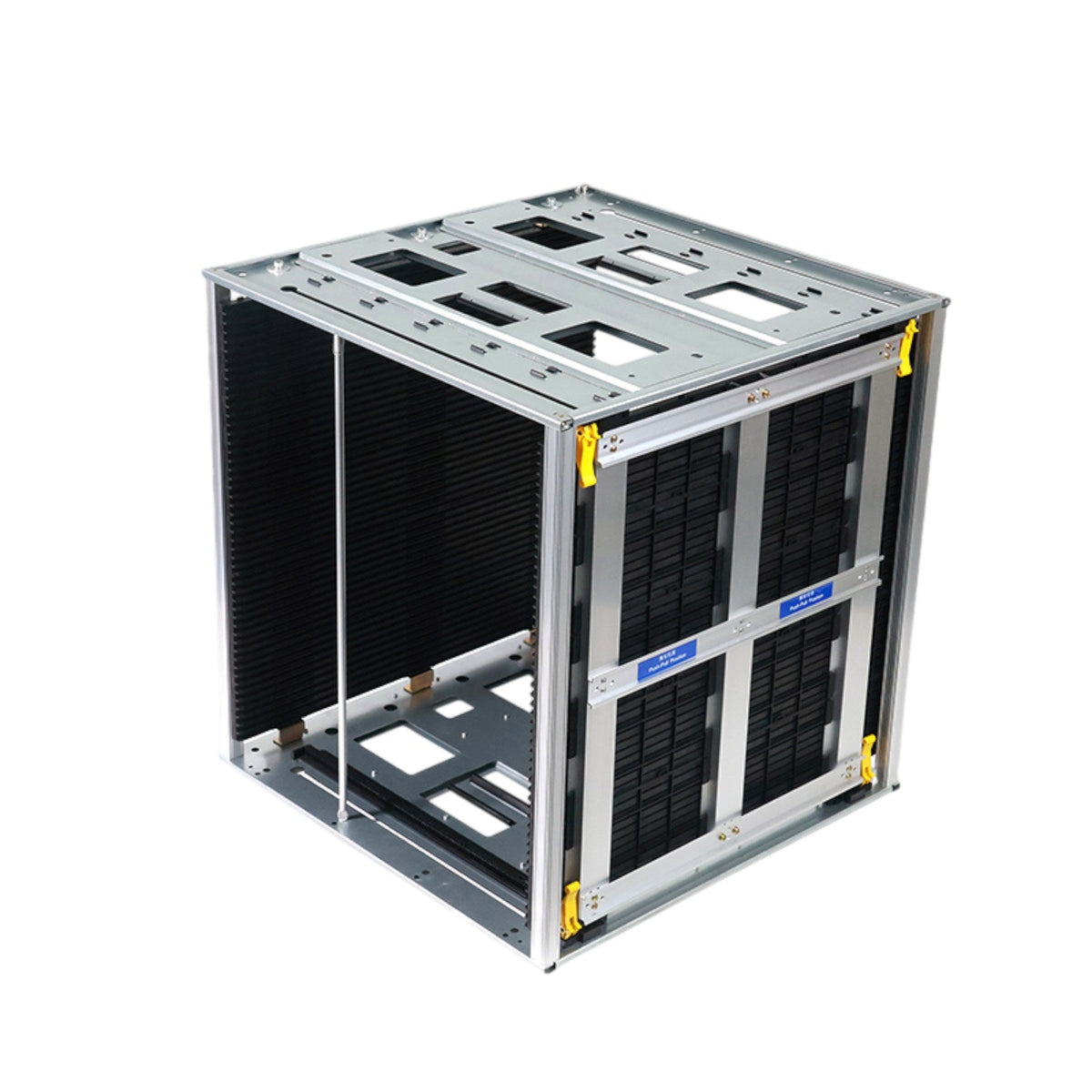

B0109GN-80C rack and wear kit bundle: the B0109GN-80C ESD PCB magazine rack with the Rack Wear Kit, gear tracks, stopper bar, lever sets, gears and slot stoppers

B0109GN-80CBundleRack + Wear Kit Bundle

Rack + Wear Kit · 50 Slots · Gear-Adjustable · 80 °C (176 °F)

B0109GN-80C Rack + Wear Kit Bundle is the B0109GN-80C 50-slot ESD PCB magazine rack plus the Rack Wear Kit that services it, in one order.

In This Bundle: 1 B0109GN-80C rack + 1 Rack Wear Kit (25 wear parts)
Adjustable PCB Width: 50 to 460 mm (1.97″ to 18.11″)
Slot Pitch: 10 mm (0.394″)
Maximum PCB Size: 535 × 460 mm (21.06″ × 18.11″)
Magazine Rack Size: 535 × 530 × 569 mm (21.06″ × 20.87″ × 22.40″)
ESD Rating: Conductive PPE side panels, 10⁴ Ω
Temperature Range: −20 °C to +80 °C (−4 °F to 176 °F)

One line item, priced 5% under buying the two separately. The kit ships in the rack carton, so the spare parts arrive with the rack.

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

~~$515.00~~$490.00Save $25per bundle

ESD safeConductive 10⁴ Ω TemperatureUp to 80 °C (176 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

B0109GN-80C loaded with circuit boards — Loaded and ready for the line

360° view

At a glance

What it does: Feeds SMT loaders and unloaders and holds boards between process steps, with the parts that wear first already on your shelf.
The problem it solves: One rack for every board width from 50 to 460 mm (2 to 18 in), set with a gear instead of swapping racks.
What it fits: In-line loaders and unloaders from ASM SIPLACE, Yamaha, Panasonic and Juki.
Key specs: 50 slots · 10 mm (0.4 in) pitch · up to 80 °C (176 °F) · conductive 10⁴ Ω

Details

Stop swapping racks every time the board width changes.

One rack for every board width on the line. The shift runs, and nobody calls the engineer to the floor.

The engineer, who chooses it: Fits the loaders and unloaders your line already runs, in the heat rating your oven needs. It's the one part of the line you choose once and never think about again.
The operator, who uses it: Set the width, lock it, load the boards. When the line backs up, stack up to five full racks on top of each other.
The buyer, who pays for it: In stock with the price on the page, shipped from the USA in under 24 hours on a card or a PO. When a part wears out years from now, you replace the part, not the rack.

Description

What it does on your line

The B0109GN-80C is a maximum-format 50-slot ESD magazine rack built for in-line SMT automation, board storage, and bench-to-bench transport on wide board lines, backplanes, motherboards, oversized industrial PCBs. Gear-track adjustment sets the board width from 50 to 460 mm (1.97″ to 18.11″) in seconds, with parallelism maintained across all 50 slots, one rack covers the full maximum-format range (up to 535 × 460 mm (21.06″ × 18.11″) boards) without re-tooling.

Construction: 5 interchangeable Conductive PPE side panels per wall, aluminum pillars, galvanized steel base. The mixed-material build provides structural rigidity under repeated loading and inline conveyor handling, while keeping the entire current path conductive, at 10⁴ Ω. Sectioned panels can be swapped individually if one is damaged, the rack stays in service.

Designed for the standard 80 °C ambient envelope (transport, storage, soldering, inspection, cleaning). For bake or cure cycles, see the B0109GM-200C (200 °C) or B0109GL HT-300C (300 °C all-aluminum) siblings on the same maximum-format chassis. For narrow-flex flexibility on the same chassis, see the B0109GC BELT-80C.

Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.

Best uses

SMT loading and unloading: Feeds the loader and takes boards off the unloader.
Between process steps: A full lot moves from cell to cell without anyone handling single boards.
Storage: Boards stay upright and apart on the shelf.
Inspection and QC: Boards wait in their own slots until they are checked.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
Magazine racks also feed boards straight into SMT loaders and unloaders.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−20 to 80 °C (−4 to 176 °F)

B0109GN-80CThis rackStorage and in-line SMT handling

80 °C · 176 °F

B0109GM-200CMSD bake at 90 to 125 °C (194 to 257 °F)

200 °C · 392 °F

B0109GL HT-300CLead-free reflow loading and aerospace cure

300 °C · 572 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Made for storage, moving boards between cells, soldering, inspection and cleaning at normal factory temperatures. For baking boards, the same rack comes in 200 °C (392 °F) and 300 °C (572 °F) versions.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

Every side panel is conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

The gear sets the width between the side walls anywhere from 50 to 460 mm (2 to 18 in).

Technical data

Model	B0109GN-80C
Materials	Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · galvanized steel base
Dimensions (L × W × H)	535 × 530 × 569 mm (21.06″ × 20.87″ × 22.40″)
Slot count	50
Slot width	5 mm (0.197″)
Slot depth	3.5 mm (0.138″)
Slot pitch	10 mm (0.394″)
Adjustable board width	50–460 mm (1.97″–18.11″) via gear-track mechanism
Max board length	535 mm (21.06″)
Max payload	85 kg (187 lb) spread evenly across the slots
Max board size (L × W)	535 × 460 mm (21.06″ × 18.11″), boards to 535 × 460 mm (21.06″ × 18.11″)
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Reference positions	A = 34 mm (1.34″) · B = 40 mm (1.57″), shared with the B0108 chassis
ESD properties	Surface resistance 10⁴ Ω, conductive
Test reports	ESD and RoHS test reports on request
Temperature range	−20 °C to +80 °C (−4 °F to 176 °F)
Adjustment type	Gear track with parallelism monitoring (screw adjustment configuration also available)
Includes	Stopper bar · carrying handles (top and bottom)
Weight	13.2 kg

Overall size

Machine compatibility

Loader / machine	Series	Interface
ASM SIPLACE	All in-line loaders / unloaders	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Yamaha	YSM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Panasonic	NPM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Juki	RS series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Other in-line SMT	Standard-interface loaders	Ask for a fit-check if your line uses a custom fixture

Not sure your loader is on the list? Send us the model and we confirm fit before you order.

Compared to the other versions

Feature	B0109GC BELT-80C	B0109GM-200C	B0109GL HT-300C	B0109GN-80C
Temperature rating	−20 °C to +80 °C (−4 °F to 176 °F)	−20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033	−20 °C to +300 °C (−4 °F to 572 °F), top of the magazine-rack thermal range	−20 °C to +80 °C (−4 °F to 176 °F)
Width adjustment	Continuous belt, no stepped indices	Gear track, parallelism monitored	Gear track, parallelism monitored	Gear track, parallelism monitored
MSD bake per J-STD-033	No. Transfer to a bake-rated rack first	Yes, boards stay in the rack through bake	Yes, boards stay in the rack through bake	No. Transfer to a bake-rated rack first
Frame	Conductive PPE panels · aluminum pillars · steel base	Conductive PPE panels · aluminum pillars · steel base	All-aluminum	Conductive PPE panels · aluminum pillars · steel base
Pick this one when	Belt-set widths for mixed board runs.	MSD bake at 90–125 °C, one container from storage through bake to the loader.	Lead-free reflow direct loading, aerospace cure, high-heat stress testing.	Standard storage, transport and in-line SMT handling.

Replacing another maker's part? Cross-reference your part number

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.
RoHS (EU) 2015/863: The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. This product is RoHS compliant; the test report is available on request.

Full IPC and ESD standards reference for handling, storage and depaneling

Features

Turn the gear to set the board width anywhere from 50 to 460 mm (2 to 18 in). One rack covers every board width in that range.
All 50 slots stay parallel at every width, so boards slide in and out cleanly.
Takes boards from 50 × 50 mm (2 × 2 in) up to 535 × 460 mm (21 × 18 in).
Conductive PPE side panels, aluminum pillars and a galvanized steel base.
Side panels swap one at a time, so a damaged panel never retires the rack.
Holds up to 85 kg (187 lb) of boards, spread evenly across the slots.
Used at contract manufacturers, at electronics plants in aerospace and defense, automotive and medical devices, and in test and repair labs.
Ships from the USA. In-stock orders placed by noon Pacific ship the same business day.

What's in the box

One B0109GN-80C rack, packed flat. It goes together with the supplied screws.
Stopper bar
Carrying handles (top and bottom)
Rack Wear Kit:
2 gear tracks (RACK-SPARE-5), length matched to your chassis, 268 to 460 mm (10.55 to 18.11 in)
2 lever sets (RACK-SPARE-8): four latches, for both side panels
1 stopper bar with spring (RACK-SPARE-7), holds boards seated in their slots
10 plastic gears (RACK-SPARE-9) for the width adjustment
10 ESD slot stoppers (RACK-SPARE-11), conductive clips that close unused slots

Spares available

Rack Wear Kit · Services One 50-Slot Gear-Adjust Rack$99.00

Side Panel Kit · 10 Strips, One Rack (Pack of 10)$60.00

Frame & Plate Kit · Rack Structure for One Rack$159.00

FAQ

Questions

Will the B0109GN-80C drop into my SMT loader / unloader?

The 569 mm (22.40″) chassis height (+6 mm (0.236″) vs B0103/B0106 at 563 mm (22.17″)) and 10 mm (0.394″) slot pitch align with the standard interface used by ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment, but the 535 × 530 mm (21.06″ × 20.87″) footprint is a large one, many in-line loaders are not configured for maximum-format racks out of the box. Confirm with your loader / unloader vendor before ordering. Reference offsets are A=34, B=40, shared with the B0108 chassis, distinct from B0103 / B0106 (B=34) and B0109GL HT-300C (uses A=32 / B=39 due to all-aluminum panel rebuild).

What does “parallelism monitored” gear-track adjustment actually do?

Both side panels travel on a synchronized rack-and-pinion gear track. Turn the adjustment knob on either side and the opposite panel travels the same distance in the same direction, parallelism is mechanically monitored, not just operator-eyeballed. The result: a width spec set on Monday loads the same boards on Friday, and both panels stay parallel through the full 50–460 mm (1.97″–18.11″) travel range.

Can I bake the B0109GN-80C? What’s the temperature ceiling?

The GN-80C variant is rated −20 °C to +80 °C, the standard SMT envelope (transport, storage, soldering, inspection, cleaning). For bake-suitable use on the same maximum chassis, pick the B0109GM-200C (200 °C), which uses the same chassis with the same gear track. For aerospace-grade 300 °C cure, use the B0109GL HT-300C all-aluminum variant.

What’s the difference between this and a slotted-edge rack like RA-18C?

The B0109GN-80C is a maximum-format magazine rack: 50 slots, 10 mm (0.394″) pitch, designed to drop into in-line SMT loader / unloader equipment. The RA-18C is a slotted-edge transport rack: 25 slots at wider pitch, designed for benchtop / between-bench manual transport, not for in-line equipment. Pick magazine racks for SMT-line integration; pick slotted-edge for hand carry / bench-side WIP.

Can I replace a damaged side panel without buying a whole new rack?

Yes. The side panels are made of 5 interchangeable Conductive PPE sections per wall, each individually replaceable. If one section gets cracked or contaminated, swap that section out and the rest of the rack stays in service. Rack spares are sold separately for every magazine-rack chassis we’ve ever shipped, typically in stock.

What ships in the box?

One B0109GN-80C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 570 × 550 × 100 mm (22.44″ × 21.65″ × 3.94″) at 13.2 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Ships flat and goes together with the supplied screws.

How much weight can a loaded rack carry?

The load capacity (weight limit) is up to 85 kg (187 lb), spread evenly across the slots. As a check, 50 carrier plates at 1 kg each come to 50 kg, comfortably inside that. The figure is the whole load in the rack, not per slot.

Can I run anodized aluminum carriers or fixtures in this rack?

You can, and the load path here is conductive PPE side panels, the usual choice for bare boards. If you carry anodized aluminum carriers or fixtures and want no polymer touching them at all, the HT version of this chassis replaces every panel with clear anodized aluminum, so anodized rides on anodized, and it stays conductive, 10⁴ Ω.

Is there a 3D model or STEP file for this rack?

Yes, on request. Dimensional drawings and CAD are not posted on the site, so ask through the documentation request page and the team sends the STEP model for this chassis.

Can you ship to our contract manufacturer or an overseas partner?

Yes. Racks ship FOB origin from the US, and we drop ship to a contract manufacturer, a loader vendor, or your own site abroad. Send the delivery address with the order, and if you have a carrier account we book the shipment on it. One order can go to more than one address.
