RA-24 Mini ESD PCB tray for thick boards loaded with circuit boards

RA-24 MiniDeep-Slot ESD PCB Rack for Thick and Populated Boards (Pack of 10)

Slotted-Edge Rack · 25 Deep Slots · Thick Boards · Pack of 10

RA-24 Mini is a deep-slot ESD PCB rack with 25 slots for thick, multilayer and populated boards up to 2.4 mm (0.094″).

Slots: 25, on a 16 mm (0.630″) pitch
Slot Size: 3.2 mm wide, 7.7 mm deep (0.126″ × 0.303″)
Board Thickness: Up to about 2.4 mm (0.094″)
Maximum PCB Size: 400 × 220 mm (15.75″ × 8.66″)
Rack Size: 435 × 160 × 30 mm (17.13″ × 6.30″ × 1.18″)
ESD Rating: Conductive polypropylene, 10⁴ Ω
Temperature Range: −10 °C to +80 °C (14 °F to 176 °F)

Heavy-copper, multilayer and standard 1.6 mm (0.063″) boards share one rack. Sold in packs of 10, no assembly.

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

$34.70per rack · pack of 10: $347.00

ESD safeConductive 10⁴ Ω TemperatureUp to 80 °C (176 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

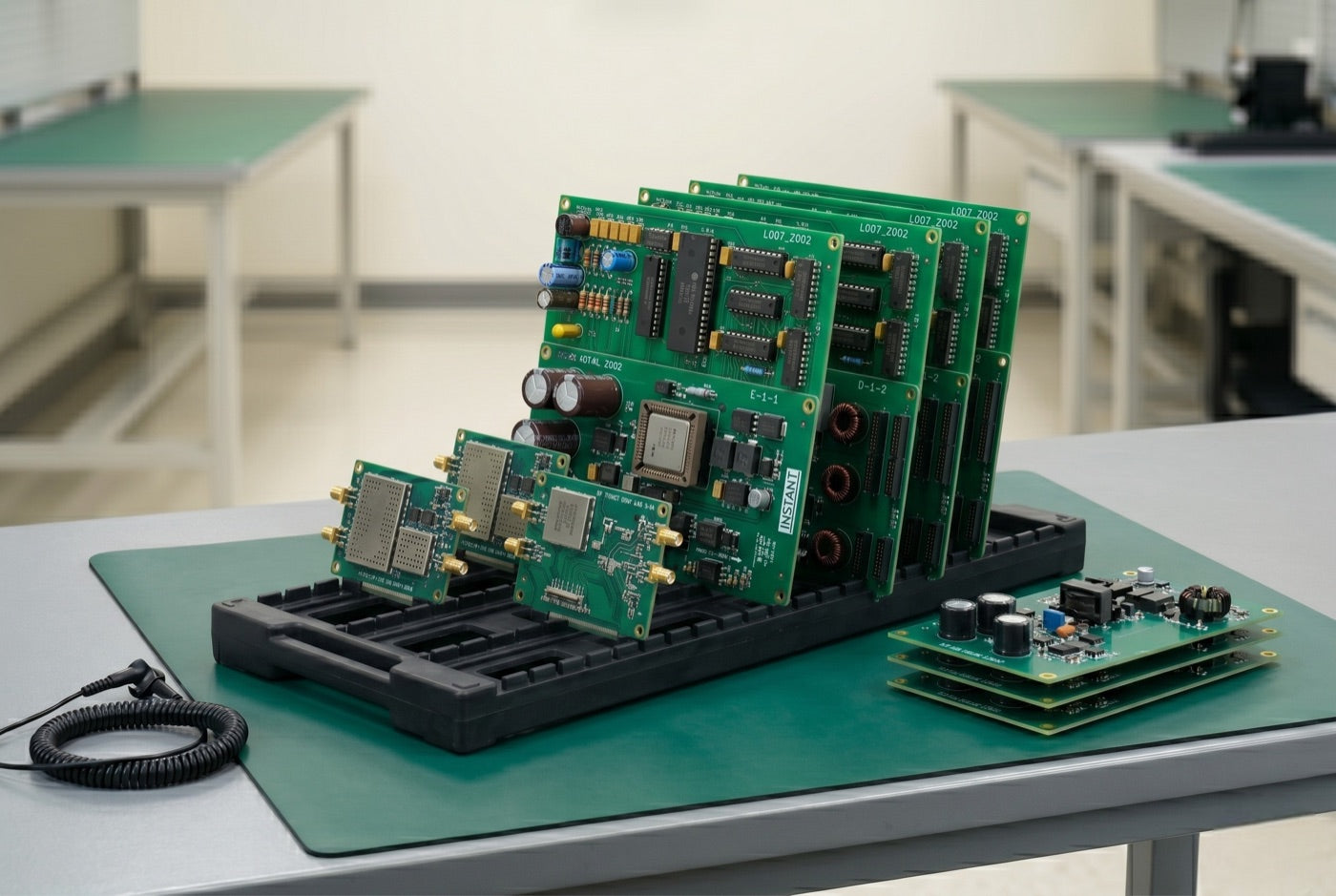

RA-24 Mini loaded with circuit boards — Loaded and ready for the line

360° view

At a glance

What it does: Holds 25 boards on edge and apart, at the bench, on the cart and on the shelf.
The problem it solves: Thick, multilayer and populated boards sit 7.7 mm (0.3 in) deep in a 3.2 mm (0.126 in) slot.
What it fits: Boards from 50 × 50 mm to 400 × 220 mm (2 × 2 in to 15.7 × 8.7 in), up to about 2.4 mm (0.094 in) thick.
Key specs: 25 slots · 16 mm (0.63 in) pitch · conductive 10⁴ Ω · packs of 10

Details

Thick boards, deep slots.

A 7.7 mm (0.3 in) deep slot holds heavy-copper, multilayer and populated boards on edge.

The engineer, who chooses it: Heavy-copper, multilayer and standard 1.6 mm (0.063 in) boards share one rack, up to 400 × 220 mm (15.7 × 8.7 in).
The operator, who uses it: Each board sits deep in its own slot, 16 mm (0.63 in) from the next, so it stays put while the cart rolls.
The buyer, who pays for it: A pack of ten, priced on the page, in stock and shipped within a day. Conductive 10⁴ Ω, with ESD and RoHS test reports on request.

Description

The RA-24 Mini is an ESD PCB tray: a 25-slot conductive polypropylene slotted-edge rack for thicker PCBs, up to 2.4 mm (0.094″): heavy-copper, multilayer, or populated assemblies.

Each slot is 3.2 mm (0.126″) wide and 7.7 mm (0.303″) deep, nearly twice the depth of a standard slot, on a 16 mm (0.630″) pitch. That extra depth is what keeps populated and heavy boards seated through bench-to-bench transport: no tipping, no walking out of the slot mid-handoff.

Boards up to 400 × 220 mm (15.75″ × 8.66″) span the 160 mm (6.30″) rack width and may overhang both sides. Conductive PP at 10⁴ Ω keeps boards protected through production, inspection and storage. The deep-slot pick when one line runs both standard 1.6 mm (0.063″) and heavier 2.4 mm (0.094″) boards.

Where it is used: inspection and QC, hand soldering and rework, test benches and repair depots, wherever thick or populated boards are handled by hand, and on the shelf between process steps. It is a bench and storage rack for electronics manufacturers and contract manufacturers.

Buying for a line? 5 or more packs take 5% off and 10 or more take 10% off, automatically at checkout. See our volume and fleet pricing.

Best uses

At the bench: Boards wait on edge, apart, between process steps.
On the cart: Deep slots hold each board while the cart moves.
On the shelf: Boards stay upright and apart in storage.
Next to the depaneler: Single boards go straight into a slot as they come off the panel.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−10 to 80 °C (14 to 176 °F)

RA-24 MiniThis product−10 to 80 °C

80 °C · 176 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Made for production, storage and bench work at normal factory temperatures.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

The polypropylene itself is conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

Boards stand on edge, up to about 2.4 mm (0.094 in) thick.

Technical data

Model	RA-24 Mini
Material	Conductive polypropylene (PP)
Dimensions (L × W × H)	435 × 160 × 30 mm (17.13″ × 6.30″ × 1.18″)
Slot count	25
Slot width	3.2 mm (0.126″)
Slot depth	7.7 mm (0.303″)
Slot pitch	16 mm (0.630″)
Max board thickness	~2.4 mm (0.094″), heavy-copper / multilayer / populated
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Max board size (L × W)	400 × 220 mm (15.75″ × 8.66″)
ESD properties	System resistance 10⁴ Ω, conductive
RoHS	Compliant, EU Directive (EU) 2015/863
Test reports	ESD and RoHS test reports on request
Temperature range	−10 °C to +80 °C (14 °F to 176 °F)
Chemical resistance	Resistant to non-oxidizing acids, alkalis, and most organic solvents. Not suitable for halogenated hydrocarbons, aromatic solvents, or strong oxidizing acids.
Weight	0.3 kg (0.66 lb) per rack

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.
RoHS (EU) 2015/863: The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. This rack is RoHS compliant; the test report is available on request.

Full IPC and ESD standards reference for handling, storage and depaneling

FAQ

Questions

When should I pick the RA-24 Mini over the RA-16C?

Pick the RA-24 Mini when boards are thicker than standard or populated: its 25 slots are 3.2 mm (0.126″) wide and 7.7 mm (0.303″) deep, for boards up to 2.4 mm (0.094″) thick, heavy-copper and multilayer included. The RA-16C is the rack for standard 1.6 mm (0.063″) boards and takes boards up to 400 × 260 mm (15.75″ × 10.24″). The RA-24 Mini is $34.70 a rack, the RA-16C $35.40.

Which jobs is the RA-24 Mini made for?

Hand work on thick or populated boards: inspection and QC, hand soldering and rework, test benches and repair depots, plus shelf storage between steps. The deep slot keeps populated and heavy-copper boards seated when the rack moves between stations on a cart.

What size and thickness of board does the RA-24 Mini take?

Boards from 50 × 50 mm (1.97″ × 1.97″) to 400 × 220 mm (15.75″ × 8.66″), up to 2.4 mm (0.094″) thick, at −10 °C to +80 °C (14 °F to 176 °F). Boards span the 160 mm (6.30″) rack body and may overhang on both sides, so panels wider than the rack are still fully supported.

How do RA-24 Mini volume discounts work?

$34.70 a rack, sold in packs of 10 at $347.00 a pack. From 5 packs, 5% comes off automatically ($32.97 a rack); from 10 packs, 10% ($31.23 a rack). For a whole line, ask for a fleet quote. Pay by card, or send a PO.

Why the deep 7.7 mm (0.303″) slot? What does it buy me?

Depth is grip. At 7.7 mm (0.303″), nearly twice a standard 4 mm (0.157″) seat, populated and heavy boards are captured far enough into the rail that gravity, vibration and component mass can't lever them out during transport.

Can one rack handle both standard and thick boards?

Yes. The 3.2 mm (0.126″) slot takes standard 1.6 mm (0.063″) boards with clearance to spare and heavy-copper or multilayer boards up to 2.4 mm (0.094″). That makes the RA-24 Mini the pick when one line runs both.

Can our quality team get ESD and RoHS test reports for the RA-24 Mini?

Yes. The RA-24 Mini is conductive polypropylene, 10⁴ Ω, and RoHS compliant under EU Directive (EU) 2015/863. ESD and RoHS test reports go to your quality team on request for the audit file.

How are RA-24 Mini racks packed?

In packs of 10 racks, ready to use with no assembly. Bulk cartons measure 680 × 480 × 480 mm (26.77″ × 18.90″ × 18.90″) at 24 kg (52.9 lb) gross. In-stock packs ship from the USA in under 24 hours, and shipping is calculated at checkout from the weight of the order.

What temperature range is the RA-24 Mini rated for?

−10 °C to +80 °C (14 °F to 176 °F), which covers bench work and storage between process steps. For bake or cure, use the magazine racks: 200 °C (392 °F) in the GM and M models, or the all-aluminum 300 °C (572 °F) HT Series.

How do I clean it without ruining the ESD surface?

Warm water with a mild pH-neutral detergent; IPA 70% for spot cleaning. Never use acetone, aromatic or halogenated solvents, or abrasives: they attack the conductive surface, and the damage does not reverse. Dry fully before boards go back in.

Where do I get the spec sheet or CAD?

The spec sheet PDF is behind the Download spec sheet button on this page, one short form unlocks the whole document library. Drawings and CAD are handled personally: request them by email and the team follows up.
