VPD5-330-P04 — VPD5-330-P04 Pneumatic Foot Pedal Switch for VPD5-330
In stock · Ships from the USA

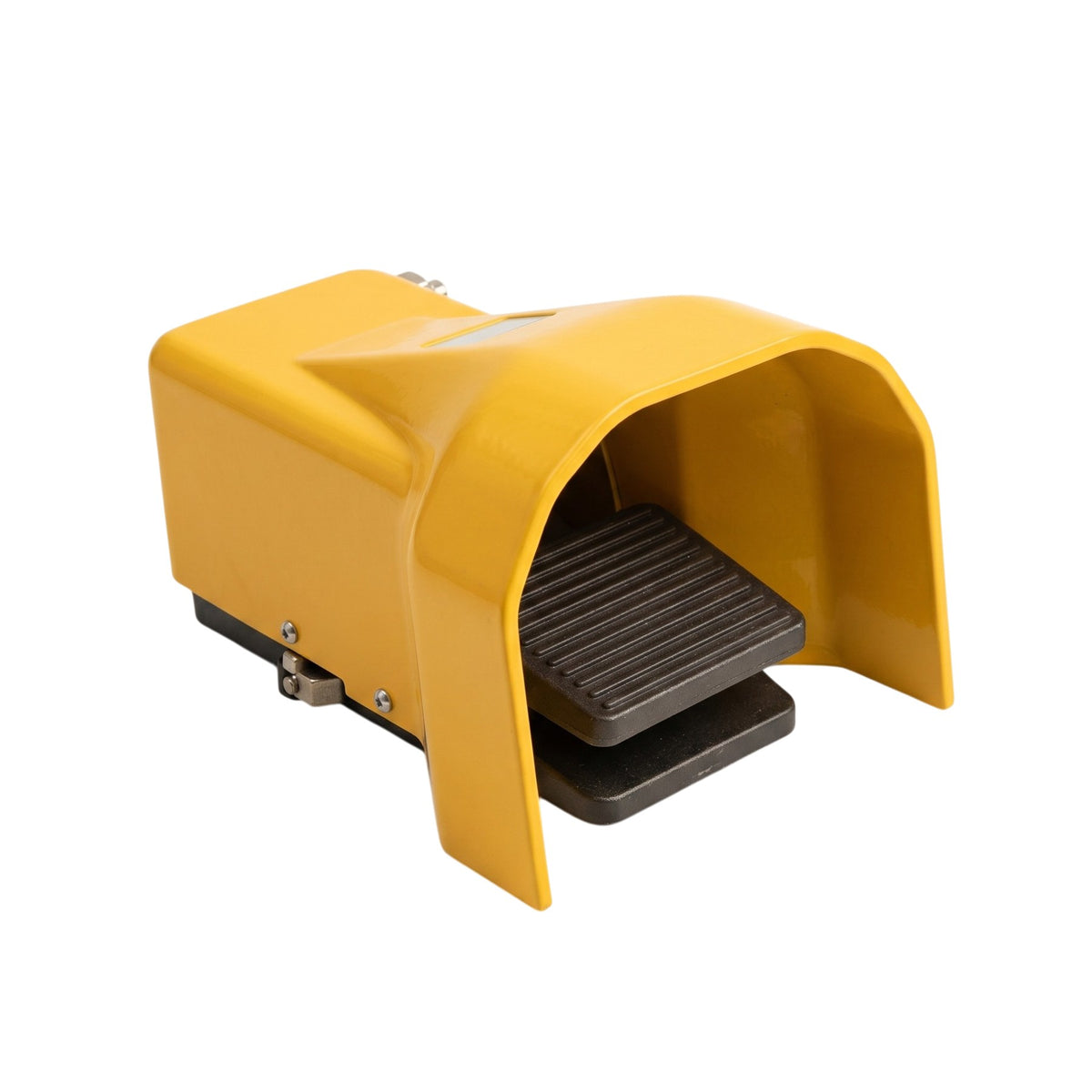

VPD5-330-P04 · Pneumatic Foot Pedal Switch for VPD5-330

VPD5-330-P04In stock · USA

Replacement pneumatic foot-pedal switch for the VPD5-330. Field-replaceable, no service call required. Same OSHA-compliant pedal that ships with the machine.

$525.50 per unit
  • Genuine OEM part
  • In stock, stocked in the USA
  • Field-replaceable, no service call
Ask an engineer
Spec sheet (PDF) Drawings / CAD (by email)
ESD-safe Ships from the USA Spec help included
Buying for the whole line? 20+ units take 10% off, automatic →

On the machine.

REF 01

Find this part on the assembly photo so you can confirm before ordering.

On-machine location

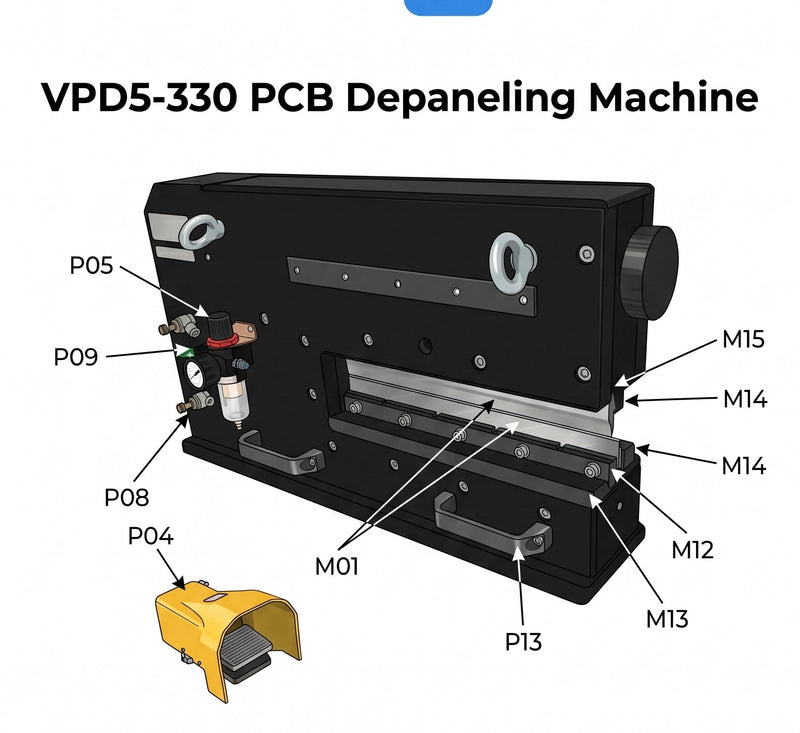

Look for callout P04 on the VPD5-330 assembly photo, the foot pedal connects to the pneumatic cylinder via the air line, mounted on the floor under the bench.

At a glance

REF 02
TypePneumatic foot switch
Air ratingStandard shop air (0.4–0.6 MPa)
OSHA-compliantYes
Cable lengthStandard included
Fits machineVPD5-330
ReplaceableUser

Description

REF 03

Replacement pneumatic foot-pedal switch for the VPD5-330. Field-replaceable, no service call required. Same OSHA-compliant pedal that ships with the machine.

VPD5-330LK detail view 2
FIG. 2VPD5-330-P04

Technical specifications

REF 05
TypePneumatic foot switch
Air ratingStandard shop air (0.4–0.6 MPa)
OSHA-compliantYes
Cable lengthStandard included
Fits machineVPD5-330
ReplaceableUser
PartVPD5-330-P04Rev2026-AUnitsmm / °C
Documentation

Need drawings or CAD models? Request them by email

Volume pricing

REF 09
QuantityPrice per unitYou save
1–19$525.50,
20+$472.9510%
Volume discounts apply automatically in cart50+ units? Distributor pricing →

Already running one of these?

REF B1

Already own a VPD5-330? We supply spare parts for the full installed base of these machines, not just units purchased through pcbracks.com.

Send us your unit’s serial number, a clear photo of the data plate, or the part identifier from your manual when you place the order, and we’ll match the right part. Genuine OEM parts, ground freight from the USA.

Match my part

Engineers also bought

REF 11

Questions engineers ask

REF 12
Is this the same foot pedal that ships with the machine?
Yes. This is the original OSHA-compliant pneumatic switch from the factory.
Can I install it myself?
Yes. Connection is a single push-fit pneumatic fitting + cable mount. No service call required.
Do you sell longer cables?
Standard cable length covers most bench setups. If you need a custom length for a specific cell layout, mention it in the order notes.
