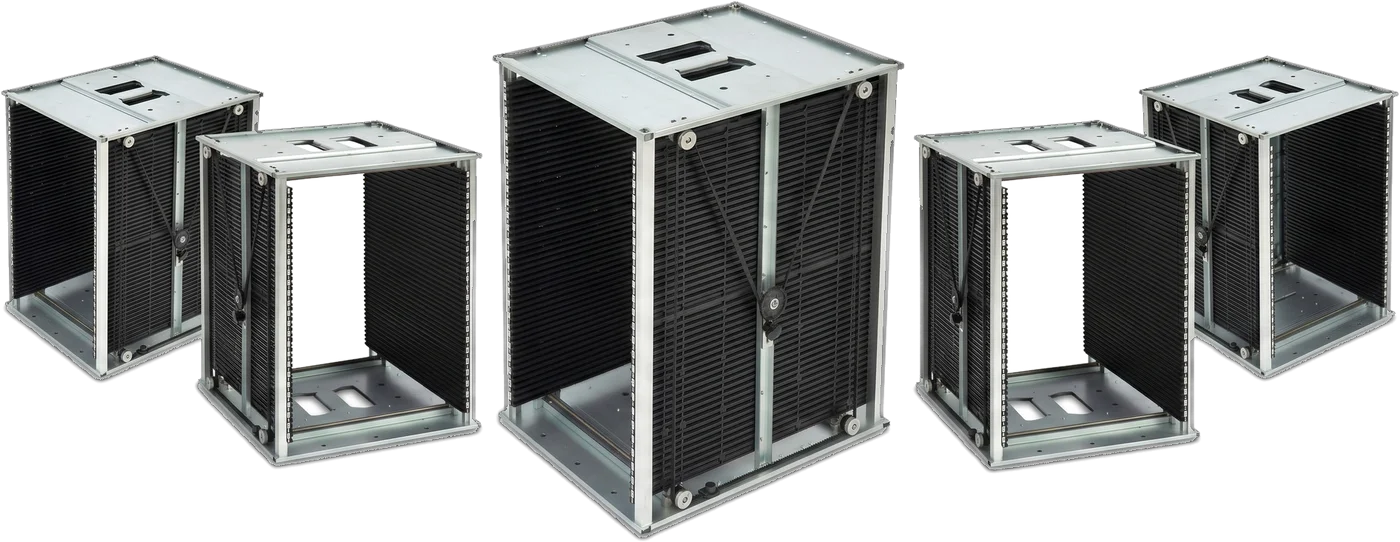

Belt-Adjustable ESD PCB Magazine Racks
Belt adjustment.
Any width, no steps.
A belt sets the board width continuously, down to 10 mm (0.394 in), so narrow and mixed boards sit as securely as wide ones. Four chassis sizes, rated 80 °C (176 °F). In stock, they ship from the USA in under 24 hours.
- Models
- 4 four chassis sizes
- Narrowest board
- 10 mm 0.394 in wide
- Largest board
- 620 × 460 mm 24.41 × 18.11 in, B0110GC
- Heat rating
- 80 °C 176 °F
Free shipping on US orders of $1,000 and up.
Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.
[ Board Size ]
Pick the rack
by board size.
Every belt rack takes boards from 10 mm (0.394 in) wide. Pick the size that fits your largest board.
[ Racks ]
Every belt rack.
Pick yours.
All four are rated 80 °C (176 °F), with 50 slots on a 10 mm (0.394 in) pitch.
Belt racks
Belt adjustment
Continuous width adjustment down to 10 mm (0.394″), no steps.
B0103GC BELT-80C
- Adjustable PCB Width
- 10 to 250 mm (0.39″ to 9.84″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$322.00
In stock · ships in under 24 h · USA
B0106GC BELT-80C
- Adjustable PCB Width
- 10 to 330 mm (0.39″ to 12.99″)
- Maximum PCB Size
- 460 × 330 mm (18.11″ × 12.99″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$427.00
In stock · ships in under 24 h · USA
B0109GC BELT-80C
- Adjustable PCB Width
- 10 to 460 mm (0.39″ to 18.11″)
- Maximum PCB Size
- 535 × 460 mm (21.06″ × 18.11″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$541.00
Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
B0110GC BELT-80C
- Adjustable PCB Width
- 10 to 460 mm (0.39″ to 18.11″)
- Maximum PCB Size
- 620 × 460 mm (24.41″ × 18.11″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$955.00
Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
[ Further information ]
[ Next step ]
Find the right belt rack
for your line.
50-Slot Belt-Adjustable ESD PCB Magazine Rack
$322.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 10 to 250 mm (0.39″ to 9.84″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Magazine Rack Size
- 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
50-Slot Belt-Adjustable ESD PCB Magazine Rack
$427.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 10 to 330 mm (0.39″ to 12.99″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 460 × 330 mm (18.11″ × 12.99″)
- Magazine Rack Size
- 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
50-Slot Belt-Adjustable ESD PCB Magazine Rack
$541.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 10 to 460 mm (0.39″ to 18.11″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 535 × 460 mm (21.06″ × 18.11″)
- Magazine Rack Size
- 535 × 530 × 563 mm (21.06″ × 20.87″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
50-Slot Belt-Adjustable ESD PCB Magazine Rack
$955.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 10 to 460 mm (0.39″ to 18.11″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 620 × 460 mm (24.41″ × 18.11″)
- Magazine Rack Size
- 630 × 530 × 563 mm (24.80″ × 20.87″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
Order the right part the first time.
Send us your board size and process, we confirm the exact part number before you buy. Standard manufacturer warranty applies · spares ship from the USA.
