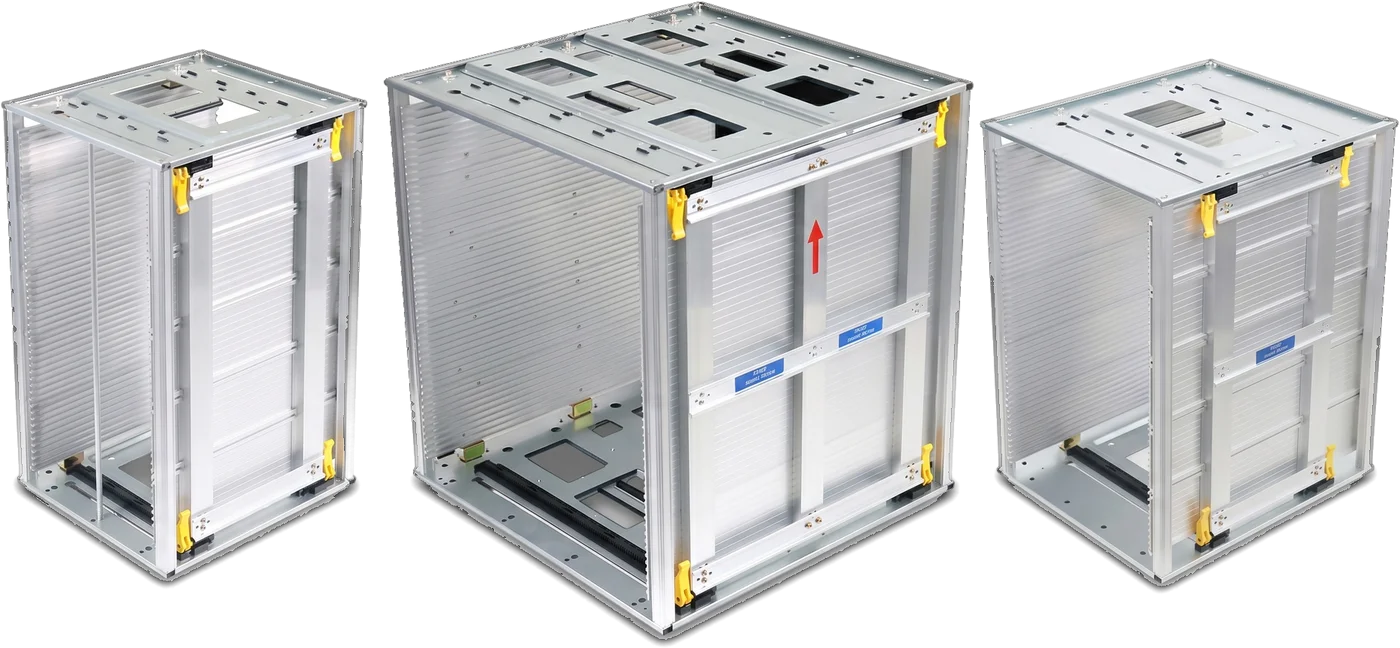

All-Aluminum 300 °C ESD PCB Magazine Racks
High temperature.
One rack from storage through the oven.
All-aluminum racks rated to 300 °C (572 °F), so boards stay in the same rack for lead-free reflow loading, bake and cure. Three chassis sizes, gear-adjustable. In stock, they ship from the USA in under 24 hours.
- Models
- 3 three chassis sizes
- Heat rating
- 300 °C 572 °F
- Largest board
- 535 × 460 mm 21.06 × 18.11 in, B0109GL
- Build
- All-aluminum no plastic parts
Free shipping on US orders of $1,000 and up.
Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.
[ Board Size ]
Pick the rack
by board size.
All three are rated 300 °C (572 °F). Pick the size that fits your largest board.
[ Racks ]
Every 300 °C rack.
Pick yours.
Aluminum side panels, aluminum pillars and a galvanized steel base, with 50 slots on a 10 mm (0.394 in) pitch.
All-aluminum racks
High temperature, 300 °C
All-aluminum racks for reflow loading, bake and cure.
B0103GL HT-300C
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Temperature Range
- −20 °C to +300 °C (−4 °F to 572 °F)
$282.00
In stock · ships in under 24 h · USA
B0106GL HT-300C
- Adjustable PCB Width
- 50 to 330 mm (1.97″ to 12.99″)
- Maximum PCB Size
- 460 × 330 mm (18.11″ × 12.99″)
- Temperature Range
- −20 °C to +300 °C (−4 °F to 572 °F)
$356.00
In stock · ships in under 24 h · USA
B0109GL HT-300C
- Adjustable PCB Width
- 50 to 460 mm (1.97″ to 18.11″)
- Maximum PCB Size
- 535 × 460 mm (21.06″ × 18.11″)
- Temperature Range
- −20 °C to +300 °C (−4 °F to 572 °F)
$519.00
Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
[ Further information ]
[ Next step ]
Find the right 300 °C rack
for your oven.
50-Slot All-Aluminum 300 °C ESD PCB Magazine Rack
$282.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Magazine Rack Size
- 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
- ESD Rating
- Aluminum side panels, conductive 10⁴ Ω
- Temperature Range
- −20 °C to +300 °C (−4 °F to 572 °F)
50-Slot All-Aluminum 300 °C ESD PCB Magazine Rack
$356.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 330 mm (1.97″ to 12.99″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 460 × 330 mm (18.11″ × 12.99″)
- Magazine Rack Size
- 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″)
- ESD Rating
- Aluminum side panels, conductive 10⁴ Ω
- Temperature Range
- −20 °C to +300 °C (−4 °F to 572 °F)
50-Slot All-Aluminum 300 °C ESD PCB Magazine Rack
$519.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 460 mm (1.97″ to 18.11″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 535 × 460 mm (21.06″ × 18.11″)
- Magazine Rack Size
- 535 × 530 × 569 mm (21.06″ × 20.87″ × 22.40″)
- ESD Rating
- Aluminum side panels, conductive 10⁴ Ω
- Temperature Range
- −20 °C to +300 °C (−4 °F to 572 °F)
Further reading
Baking MSD boards per J-STD-033Why a rack's temperature rating decides whether boards change containers for the bake.Read the guide →- IPC-1601: storage, shelf life and the rackWhy shelf life is never one number, where baking belongs, and how to write storage into a purchase spec.Read the guide →
What “ESD safe” actually meansSurface resistance, the three ESD classes, and how to read a test report.Read the guide →
Order the right part the first time.
Send us your board size and process, we confirm the exact part number before you buy. Standard manufacturer warranty applies · spares ship from the USA.
