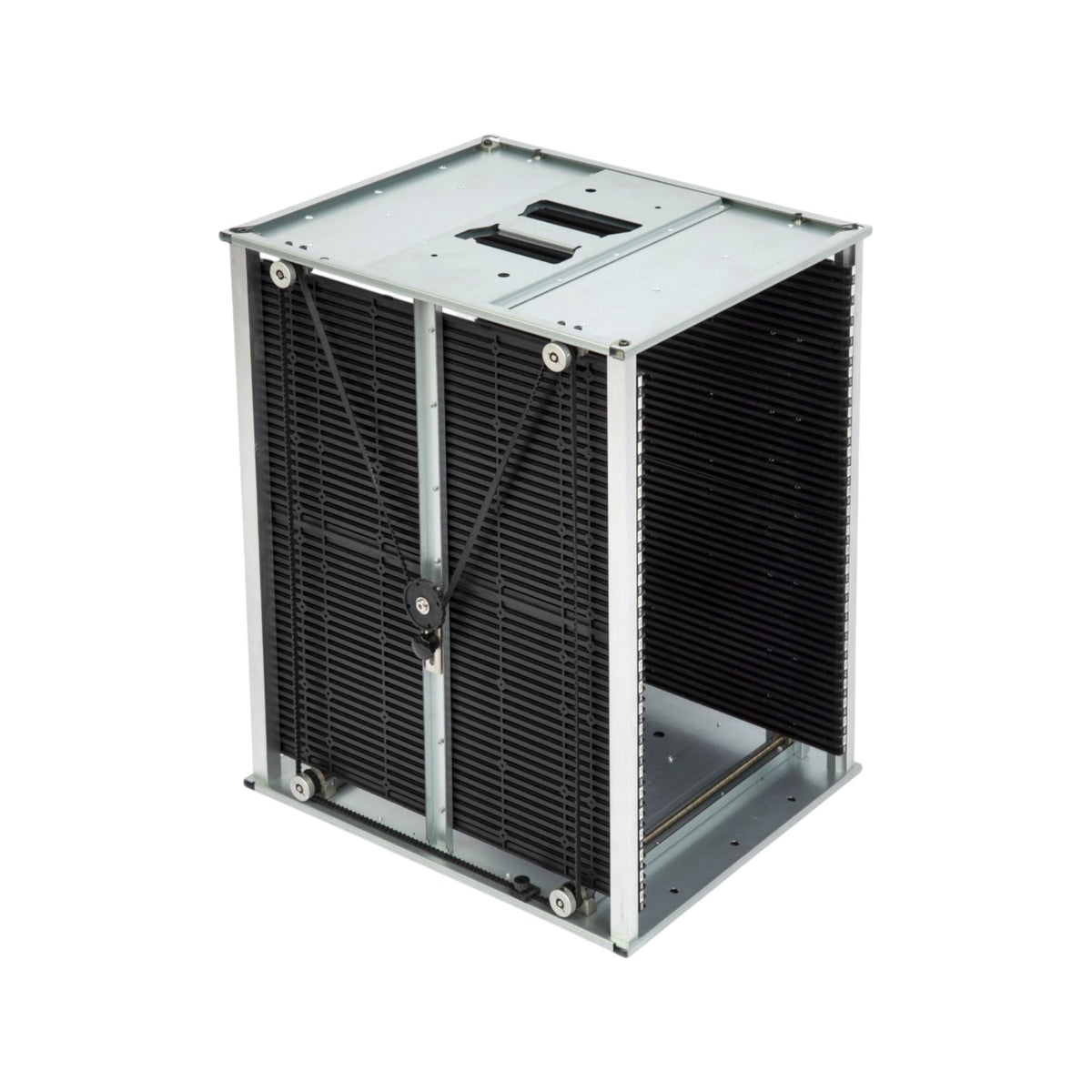

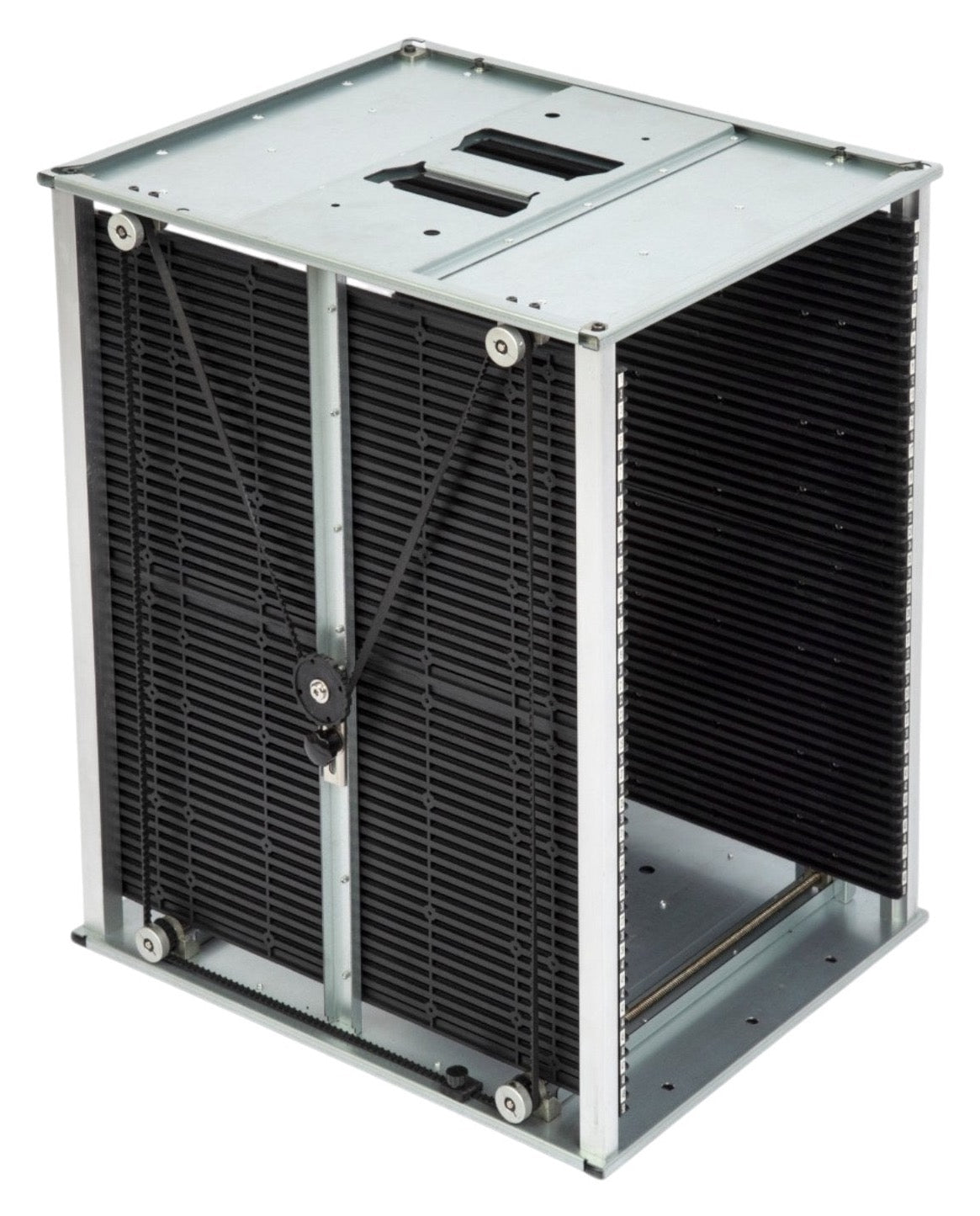

B0103GC BELT-80C ESD PCB magazine rack, three-quarter view: black conductive side panels, aluminum pillars and steel base; 50 slots, 10 mm (0.394 in) pitch, belt adjust 10 to 250 mm (0.394 to 9.84 in), rated 80 °C (176 °F)

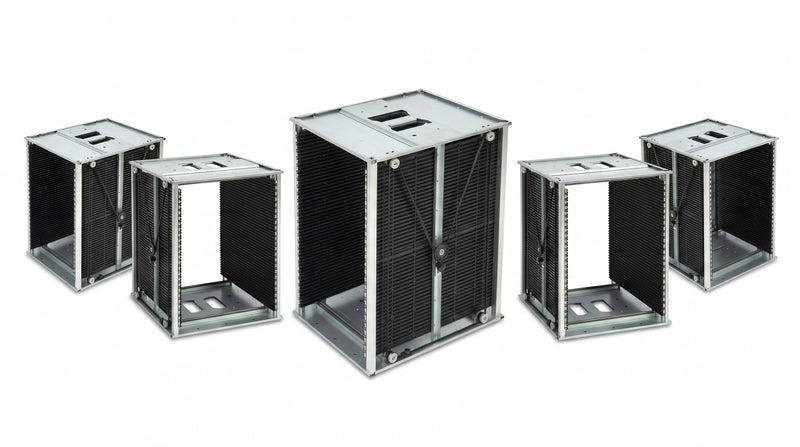

B0103GC BELT-80C50-Slot Belt-Adjustable ESD PCB Magazine Rack

Magazine Rack · 50 Slots · Belt-Adjustable · 80 °C (176 °F)

B0103GC BELT-80C is a 50-slot ESD PCB magazine rack designed for SMT loaders, unloaders, and safe PCB storage between process steps.

Adjustable PCB Width: 10 to 250 mm (0.39″ to 9.84″)
Slot Pitch: 10 mm (0.394″)
Maximum PCB Size: 355 × 250 mm (13.98″ × 9.84″)
Magazine Rack Size: 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
ESD Rating: Conductive PPE side panels, 10⁴ Ω
Temperature Range: −20 °C to +80 °C (−4 °F to 176 °F)

Belt adjustment sets the width continuously, with no steps, down to 10 mm (0.4 in). It includes everything you need to use out of the box (assembly required).

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

$322.00per rack · sold individually

ESD safeConductive 10⁴ Ω TemperatureUp to 80 °C (176 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

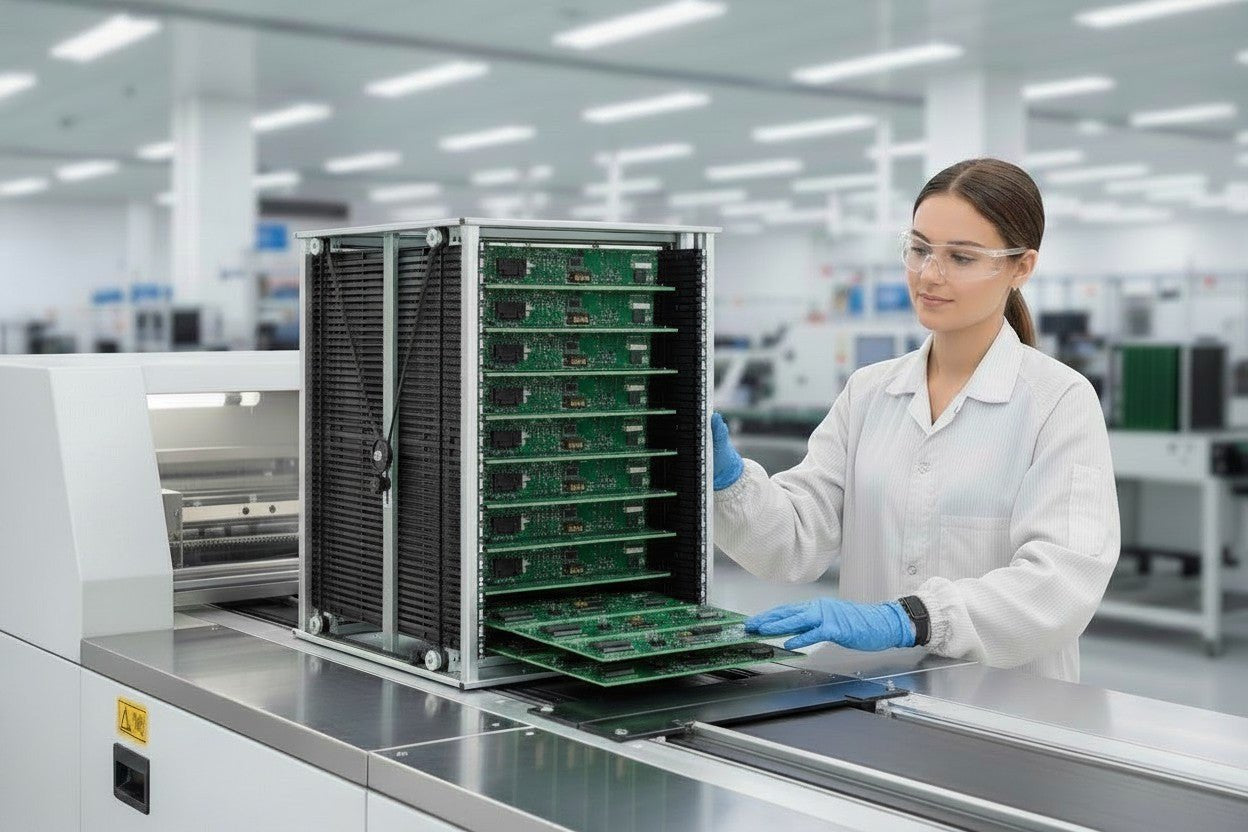

B0103GC BELT-80C loaded with circuit boards — Loaded and ready for the line

360° view

At a glance

What it does: Feeds SMT loaders and unloaders, and holds boards safely between process steps.
The problem it solves: Narrow boards down to 10 mm (0.4 in) wide fit, with the width set continuously and no steps.
What it fits: In-line loaders and unloaders from ASM SIPLACE, Yamaha, Panasonic and Juki.
Key specs: 50 slots · 10 mm (0.4 in) pitch · up to 80 °C (176 °F) · conductive 10⁴ Ω

Details

Narrow boards, no steps.

The belt sets any width from 10 to 250 mm (0.4 to 9.8 in), so narrow boards sit in their slots as securely as wide ones.

The engineer, who chooses it: Fits the loaders and unloaders your line already runs, in the heat rating your oven needs. It's the one part of the line you choose once and never think about again.
The operator, who uses it: Set the width, lock it, load the boards. When the line backs up, stack up to five full racks on top of each other.
The buyer, who pays for it: In stock with the price on the page, shipped from the USA in under 24 hours on a card or a PO. When a part wears out years from now, you replace the part, not the rack.

Description

How belt adjustment works on your line

The B0103GC BELT-80C is a 50-slot ESD magazine rack with continuous belt-driven width adjustment. A hand-driven belt rotates pulleys at the top and bottom of the chassis, turning two captive lead screws in unison, both side panels travel toward or away from each other on the same revolution. The adjustment is continuous (no stepped clicks, no fixed indices), so any board width from 10 mm (0.394″) to 250 mm (9.84″) is reachable.

Construction: 2 interchangeable Conductive PPE side panels, aluminum pillars, galvanized steel base, and 2 H-type stopper plates (vs. the single stopper bar on gear-track variants). The slot is 5 mm (0.197″) wide × 4 mm (0.157″) deep, deeper than the gear-track 3.5 mm (0.138″) slot, for tighter board retention through inline conveyor handling. Surface resistance stays at 10⁴ Ω, conductive.

Designed for the standard 80 °C ambient envelope. For bake or cure cycles, the chassis family also includes the B0103GN-80C / GM-200C gear-track variants and the GL HT-300C all-aluminum sibling.

Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.

Best uses

SMT loading and unloading: Feeds the loader and takes boards off the unloader.
Between process steps: A full lot moves from cell to cell without anyone handling single boards.
Storage: Boards stay upright and apart on the shelf.
Inspection and QC: Boards wait in their own slots until they are checked.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
Magazine racks also feed boards straight into SMT loaders and unloaders.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−20 to 80 °C (−4 to 176 °F)

B0103GC BELT-80CThis rackStorage and in-line SMT handling

80 °C · 176 °F

B0103GM-200CMSD bake at 90 to 125 °C (194 to 257 °F)

200 °C · 392 °F

B0103GL HT-300CLead-free reflow loading and aerospace cure

300 °C · 572 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Made for storage, moving boards between cells, soldering, inspection and cleaning at normal factory temperatures. For baking boards, the same rack comes in 200 °C (392 °F) and 300 °C (572 °F) versions.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

Every side panel is conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

The belt sets the width between the side walls anywhere from 10 to 250 mm (0.4 to 9.8 in).

Technical data

Model	B0103GC BELT-80C
Materials	Conductive PPE side panels (2 × interchangeable) · aluminum pillars · galvanized steel base
Dimensions (L × W × H)	355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Slot count	50
Slot width	5 mm (0.197″)
Slot depth	4 mm (0.157″), deeper than the gear-track 3.5 mm (0.138″)
Slot pitch	10 mm (0.394″)
Adjustable board width	10–250 mm (0.39″–9.84″) via belt (continuous, no stepped increments)
Max board length	355 mm (13.98″)
Max payload	85 kg (187 lb) spread evenly across the slots
Max board size (L × W)	355 × 250 mm (13.98″ × 9.84″)
Min board size (L × W)	50 × 10 mm (1.97″ × 0.394″), 5× narrower than gear-track
Reference positions	A = 34 mm (1.34″) · B = 34 mm (1.34″)
ESD properties	Surface resistance 10⁴ Ω, conductive
Test reports	ESD and RoHS test reports on request
Temperature range	−20 °C to +80 °C (−4 °F to 176 °F)
Adjustment type	Belt (continuous, no stepped increments)
Includes	2 H-type stopper plates · carrying handles (top and bottom)
Weight	9 kg

Overall size

Machine compatibility

Loader / machine	Series	Interface
ASM SIPLACE	All in-line loaders / unloaders	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Yamaha	YSM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Panasonic	NPM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Juki	RS series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Other in-line SMT	Standard-interface loaders	Ask for a fit-check if your line uses a custom fixture

Not sure your loader is on the list? Send us the model and we confirm fit before you order.

Compared to the other versions

Feature	B0103GN-80C	B0103GM-200C	B0103GL HT-300C	B0103GC BELT-80C
Temperature rating	−20 °C to +80 °C (−4 °F to 176 °F)	−20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033	−20 °C to +300 °C (−4 °F to 572 °F), top of the magazine-rack thermal range	−20 °C to +80 °C (−4 °F to 176 °F)
Width adjustment	Gear track, parallelism monitored	Gear track, parallelism monitored	Gear track, parallelism monitored	Continuous belt, no stepped indices
MSD bake per J-STD-033	No. Transfer to a bake-rated rack first	Yes, boards stay in the rack through bake	Yes, boards stay in the rack through bake	No. Transfer to a bake-rated rack first
Frame	Conductive PPE panels · aluminum pillars · steel base	Conductive PPE panels · aluminum pillars · steel base	All-aluminum	Conductive PPE panels · aluminum pillars · steel base
Pick this one when	Standard storage, transport and in-line SMT handling.	MSD bake at 90–125 °C, one container from storage through bake to the loader.	Lead-free reflow direct loading, aerospace cure, high-heat stress testing.	Belt-set widths for mixed board runs.

Replacing another maker's part? Cross-reference your part number

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.
RoHS (EU) 2015/863: The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. This product is RoHS compliant; the test report is available on request.

Full IPC and ESD standards reference for handling, storage and depaneling

Features

The belt sets the board width anywhere from 10 to 250 mm (0.4 to 9.8 in), with no fixed steps.
All 50 slots stay parallel at every width, so boards slide in and out cleanly.
Takes boards from 50 × 10 mm (2 × 0.4 in) up to 355 × 250 mm (14 × 9.8 in).
Conductive PPE side panels, aluminum pillars and a galvanized steel base.
Side panels swap one at a time, so a damaged panel never retires the rack.
Holds up to 85 kg (187 lb) of boards, spread evenly across the slots.
Used at contract manufacturers, at electronics plants in aerospace and defense, automotive and medical devices, and in test and repair labs.
Ships from the USA. In-stock orders placed by noon Pacific ship the same business day.

What's in the box

One B0103GC BELT-80C rack, packed flat. It goes together with the supplied screws.
2 H-type stopper plates
Carrying handles (top and bottom)
Carton 570 × 370 × 115 mm (22.4 × 14.6 × 4.5 in), 9 kg (19.8 lb)

FAQ

Questions

Belt vs. gear-track adjustment, which one do I pick?

Pick belt (this rack) when board widths vary across the full range, 10 mm (0.394″) flex circuits and 250 mm (9.84″) panels run on the same rack. The continuous adjustment hits any width without an indexing limit. Pick gear-track (GN-80C) when board widths are standardized above 50 mm (1.97″) and you want indexed positions for repeatable setups. Trade-off: gear is slightly cheaper and lighter; belt covers the wider range and the narrow-flex use case.

Why is the slot 4 mm (0.157″) deep instead of 3.5 mm (0.138″)?

The deeper slot, 5 mm (0.197″) wide × 4 mm (0.157″) deep vs. 3.5 mm (0.138″) on gear-track variants, gives narrow flex circuits and small-format boards more retention surface during inline conveyor handling. Narrow boards have less mass, so they’re more vulnerable to walking out of a shallow slot during transport vibration. The extra 0.5 mm (0.020″) of slot depth keeps them seated.

Will the B0103GC BELT-80C drop into my SMT loader / unloader?

Yes. The 563 mm (22.17″) chassis height and 10 mm (0.394″) slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The 355 × 320 mm (13.98″ × 12.60″) footprint is identical to the B0103GN-80C, B0103GM-200C, and B0103GL HT-300C variants. The narrow-board capability does not change the loader interface, the loader still picks boards from the standard slot positions.

What are the H-type stopper plates, why two instead of a stopper bar?

Standard gear-track racks use a single stopper bar across the rear of the rack. The belt-adjustable B0103GC uses two H-shaped stopper plates instead, positioned to clear the belt and lead-screw assembly that runs across the rack interior. Function is identical (prevents boards from sliding through during transport); the H-shape just routes around the belt mechanism without interfering.

Can I bake the B0103GC BELT-80C? What’s the temperature ceiling?

The GC BELT-80C variant is rated −20 °C to +80 °C, the standard SMT envelope. The belt mechanism is not currently qualified for higher temperatures. For bake-suitable use, switch to the gear-track B0103GM-200C (200 °C). For aerospace-grade 300 °C cure, use the B0103GL HT-300C all-aluminum variant.

What ships in the box?

One B0103GC BELT-80C magazine rack, sold individually. Includes 2 H-type stopper plates and carrying handles (top and bottom). Packaging size 570 × 370 × 115 mm (22.44″ × 14.57″ × 4.53″) at 9 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Ships flat and goes together with the supplied screws.

How much weight can a loaded rack carry?

The load capacity (weight limit) is up to 85 kg (187 lb), spread evenly across the slots. As a check, 50 carrier plates at 1 kg each come to 50 kg, comfortably inside that. The figure is the whole load in the rack, not per slot.

Can I run anodized aluminum carriers or fixtures in this rack?

You can, and the load path here is conductive PPE side panels, the usual choice for bare boards. If you carry anodized aluminum carriers or fixtures and want no polymer touching them at all, the HT version of this chassis replaces every panel with clear anodized aluminum, so anodized rides on anodized, and it stays conductive, 10⁴ Ω.

Is there a 3D model or STEP file for this rack?

Yes, on request. Dimensional drawings and CAD are not posted on the site, so ask through the documentation request page and the team sends the STEP model for this chassis.

Can you ship to our contract manufacturer or an overseas partner?

Yes. Racks ship FOB origin from the US, and we drop ship to a contract manufacturer, a loader vendor, or your own site abroad. Send the delivery address with the order, and if you have a carrier account we book the shipment on it. One order can go to more than one address.
