50-slot ESD magazine rack on the maximum-format chassis, with continuous belt adjustment covering 10–460 mm of board width, the widest belt range in the catalog. No stepped clicks, no fixed indices. Narrow flex circuits, daughter cards, and full 535 × 460 mm backplanes all run on the same rack inventory. Conductive PS panels + 2 H-type stoppers + galvanized steel base; NASTC ESD-tested, SGS RoHS PASS. Stocked in the USA.
Gear-track racks bottom out at **50 mm board width**. The belt-adjustable B0109GC BELT-80C on the maximum-format chassis covers the full **10–460 mm** range continuously, the widest belt range in the catalog. **10 mm flex circuits, 50 mm daughter cards, and 460 mm backplanes** all run on the same rack inventory.

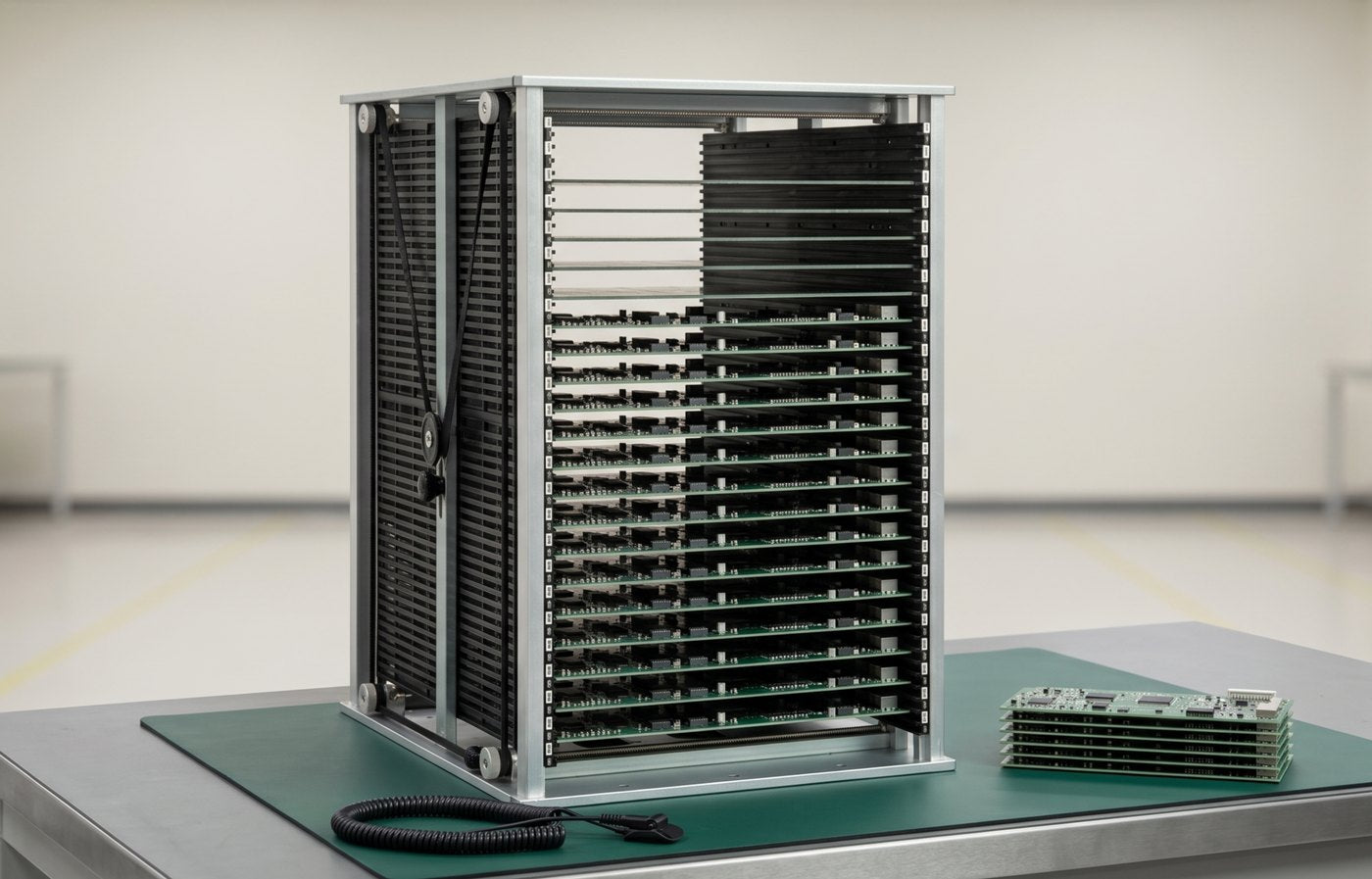

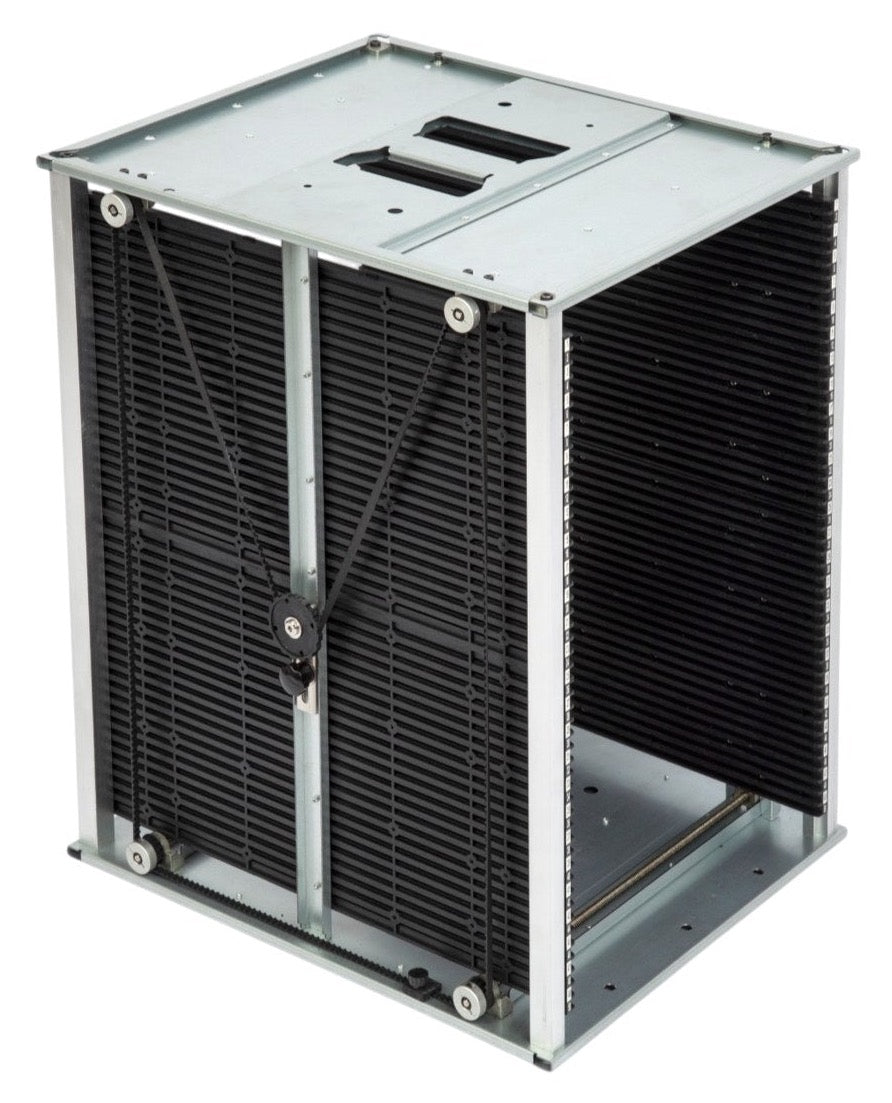

The B0109GC BELT-80C is a maximum-format 50-slot ESD magazine rack with continuous belt-driven width adjustment. A hand-driven belt rotates pulleys at the top and bottom of the chassis, turning two captive lead screws in unison, both side panels travel toward or away from each other on the same revolution. The adjustment is continuous (no stepped clicks, no fixed indices), so any board width from 10 mm to 460 mm is reachable on a single rack, the widest belt range in the catalog.
Construction: 2 interchangeable Conductive PS side panels, aluminum pillars, galvanized steel base, and 2 H-type stopper plates (vs. the single stopper bar on gear-track variants). The slot is 5 mm wide × 4 mm deep, deeper than the gear-track 3.5 mm slot, for tighter board retention through inline conveyor handling. Surface resistance stays in the conductive 10⁴–10⁶ Ω band per ESD Association classification.
Designed for the standard 80 °C ambient envelope. For bake or cure cycles, the maximum-format chassis family also includes the B0109GN-80C / GM-200C gear-track variants and the GL HT-300C all-aluminum sibling.
360° rotation · B0109GC BELT-80C
| Model | B0109GC BELT-80C |
|---|---|
| Materials | Conductive PS side panels (2 × interchangeable) · aluminum pillars · galvanized steel base |
| Dimensions (L × W × H) | 535 × 530 × 563 mm (21.06″ × 20.87″ × 22.17″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 4 mm (0.157″), deeper than the gear-track 3.5 mm |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 10–460 mm (0.39″–18.11″) via belt (continuous, no stepped increments), widest belt range in catalog |
| Max board length | 535 mm (21.06″) |
| Max board size (L × W) | 535 × 460 mm |
| Min board size (L × W) | 50 × 10 mm, 5× narrower than gear-track |
| Reference positions | A = 34 mm · B = 34 mm |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (conductive band per ESD Association) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +80 °C (−4 °F to 176 °F) |
| Adjustment type | Belt (continuous, no stepped increments) |
| Includes | 2 H-type stopper plates · carrying handles (top and bottom) |
| Weight | 15 kg |
Materials: 2 × Conductive PS side panels · aluminum pillars · galvanized steel base · 2 H-type stoppers
Surface res.: 10⁴ – 10⁶ Ω, conductive band per ESD Association
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all **PASS**
Thermal range: −20 °C to +80 °C, standard SMT envelope
Capacity: 50 slots · 10 mm pitch · **10–460 mm adjustable** · max board 535 × 460 mm
RoHS: **PASS**, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: Mixed board widths (10–460 mm) · narrow flex circuits · small-format panels · maximum-format backplanes / motherboards · SMT in-line automation.
Why buy: Aerospace-grade build, stocked in the USA, full B0109 maximum-format chassis family (GN / GM / GC BELT / GL HT) sharing one footprint, mix variants on one purchase order with the same logistics, same compliance package, same volume tier.
