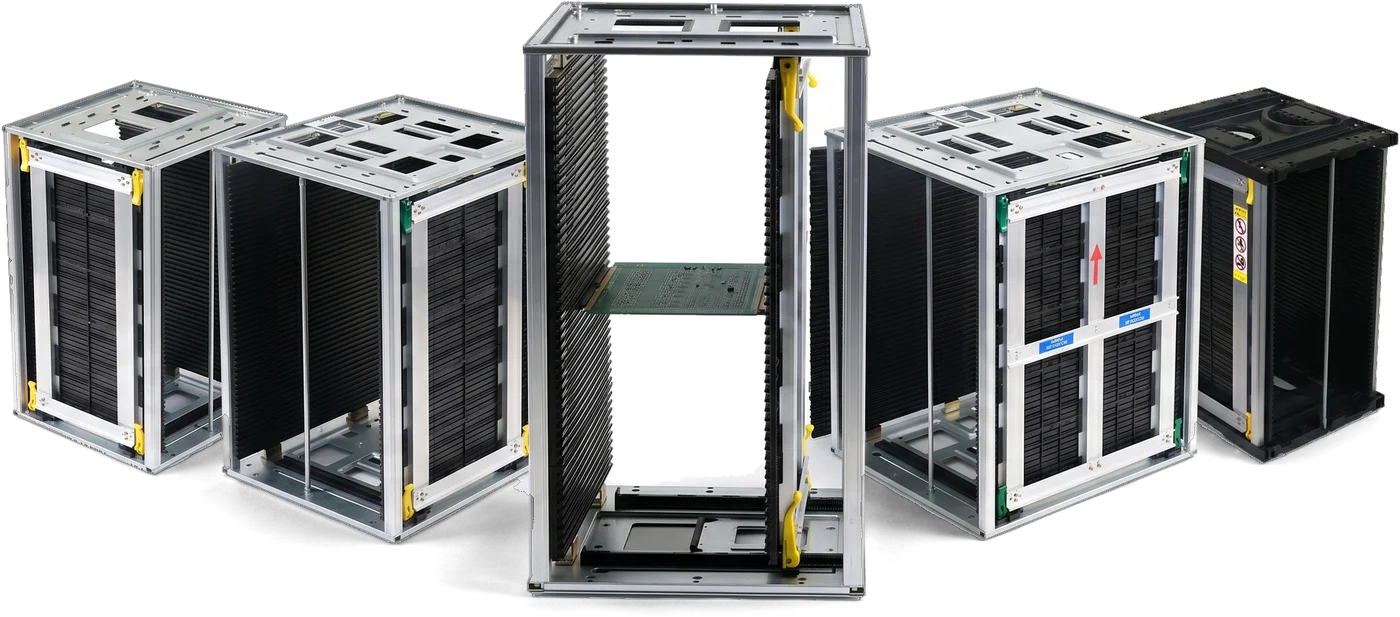

Gear-Adjustable ESD PCB Magazine Racks
Gear adjustment.
Turn one gear to set the width.
A toothed track moves both side panels together, so all 50 slots stay parallel at every width. Six chassis sizes, boards up to 620 × 460 mm (24.41 × 18.11 in), rated 80, 120 or 200 °C (176, 248 or 392 °F). In stock, they ship from the USA in under 24 hours.
- Models
- 11 six chassis sizes
- Board width
- 50 to 460 mm 1.97 to 18.11 in
- Largest board
- 620 × 460 mm 24.41 × 18.11 in, B0110GN
- Heat ratings
- 80 to 200 °C 176 to 392 °F
Domestic shipping
Free shipping on US orders of $1,000 and up.
Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.
Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.
[ Heat Ratings ]
Pick the rack
by heat rating.
Three ratings in the gear series, from 80 °C to 200 °C (176 °F to 392 °F). For 300 °C (572 °F), see the all-aluminum series.
[ Racks ]
Every gear rack.
Pick yours.
Grouped by heat rating. Each rack adjusts from 50 mm (1.97 in) up to its largest board width.
Pick a heat rating
Rated 80 °C (176 °F)
For storage, SMT handling and moving boards between steps.
B0105GPN-80C
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$179.00
In stock · ships in under 24 h · USA
B0103GN-80C
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$188.00
In stock · ships in under 24 h · USA
B0106GN-80C
- Adjustable PCB Width
- 50 to 330 mm (1.97″ to 12.99″)
- Maximum PCB Size
- 460 × 330 mm (18.11″ × 12.99″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$257.00
In stock · ships in under 24 h · USA
B0108GN-80C
- Adjustable PCB Width
- 50 to 390 mm (1.97″ to 15.35″)
- Maximum PCB Size
- 535 × 390 mm (21.06″ × 15.35″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$336.00
Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
B0109GN-80C
- Adjustable PCB Width
- 50 to 460 mm (1.97″ to 18.11″)
- Maximum PCB Size
- 535 × 460 mm (21.06″ × 18.11″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$416.00
Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
B0110GN-80C
- Adjustable PCB Width
- 50 to 460 mm (1.97″ to 18.11″)
- Maximum PCB Size
- 620 × 460 mm (24.41″ × 18.11″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$695.00
Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
B0105GPM-120C
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Temperature Range
- −20 °C to +120 °C (−4 °F to 248 °F)
$195.00
In stock · ships in under 24 h · USARated 200 °C (392 °F)
For MSD bake: boards stay in the same rack from the line through the oven.
B0103GM-200C
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Temperature Range
- −20 °C to +200 °C (−4 °F to 392 °F)
$253.00
In stock · ships in under 24 h · USA
B0106GM-200C
- Adjustable PCB Width
- 50 to 330 mm (1.97″ to 12.99″)
- Maximum PCB Size
- 460 × 330 mm (18.11″ × 12.99″)
- Temperature Range
- −20 °C to +200 °C (−4 °F to 392 °F)
$333.00
In stock · ships in under 24 h · USA
B0108GM-200C
- Adjustable PCB Width
- 50 to 390 mm (1.97″ to 15.35″)
- Maximum PCB Size
- 535 × 390 mm (21.06″ × 15.35″)
- Temperature Range
- −20 °C to +200 °C (−4 °F to 392 °F)
$429.00
In stock · ships in under 24 h · USA
B0109GM-200C
- Adjustable PCB Width
- 50 to 460 mm (1.97″ to 18.11″)
- Maximum PCB Size
- 535 × 460 mm (21.06″ × 18.11″)
- Temperature Range
- −20 °C to +200 °C (−4 °F to 392 °F)
$499.00
Ships in under 24 h if in stock · USAMax lead time 2 to 4 weeks, depending on quantity
[ Further information ]
[ Next step ]
Find the right gear rack
for your line.
B0105GPN-80C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$179.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Magazine Rack Size
- 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
B0103GN-80C
50-Slot Gear-Adjustable ESD PCB Magazine Rack for SMT Loaders
$188.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Magazine Rack Size
- 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
B0105GPM-120C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$195.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Magazine Rack Size
- 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +120 °C (−4 °F to 248 °F)
B0103GM-200C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$253.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Magazine Rack Size
- 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +200 °C (−4 °F to 392 °F)
B0106GN-80C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$257.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 330 mm (1.97″ to 12.99″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 460 × 330 mm (18.11″ × 12.99″)
- Magazine Rack Size
- 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
B0106GM-200C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$333.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 330 mm (1.97″ to 12.99″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 460 × 330 mm (18.11″ × 12.99″)
- Magazine Rack Size
- 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +200 °C (−4 °F to 392 °F)
B0108GN-80C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$336.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 390 mm (1.97″ to 15.35″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 535 × 390 mm (21.06″ × 15.35″)
- Magazine Rack Size
- 535 × 460 × 569 mm (21.06″ × 18.11″ × 22.40″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
B0109GN-80C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$416.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 460 mm (1.97″ to 18.11″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 535 × 460 mm (21.06″ × 18.11″)
- Magazine Rack Size
- 535 × 530 × 569 mm (21.06″ × 20.87″ × 22.40″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
B0108GM-200C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$429.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 390 mm (1.97″ to 15.35″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 535 × 390 mm (21.06″ × 15.35″)
- Magazine Rack Size
- 535 × 460 × 569 mm (21.06″ × 18.11″ × 22.40″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +200 °C (−4 °F to 392 °F)
B0109GM-200C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$499.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 460 mm (1.97″ to 18.11″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 535 × 460 mm (21.06″ × 18.11″)
- Magazine Rack Size
- 535 × 530 × 569 mm (21.06″ × 20.87″ × 22.40″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +200 °C (−4 °F to 392 °F)
B0110GN-80C
50-Slot Gear-Adjustable ESD PCB Magazine Rack
$695.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 460 mm (1.97″ to 18.11″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 620 × 460 mm (24.41″ × 18.11″)
- Magazine Rack Size
- 630 × 530 × 563 mm (24.80″ × 20.87″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
