B0110GN-80C80 °CSpecial order · lead time about 2 to 4 weeks, depending on quantity
The B0110GN-80C is a 50-slot ESD-safe PCB magazine rack with gear-track width adjustment, rated −20 °C to +80 °C (−4 °F to 176 °F). Slot pitch is 10 mm (0.394″), board width adjusts from 50–460 mm (1.97″–18.11″). It ships from the US and fits standard in-line SMT loaders.
One Extra-Long-Format Rack. Backplanes & Motherboards.
Backplanes, motherboards, and oversized industrial PCBs, up to 620 × 460 mm (24.41″ × 18.11″), need a rack sized for them. The B0110GN-80C’s gear-track adjustment covers the full 50–460 mm (1.97″–18.11″) width range on a single extra-long-format chassis: the longest board format in the catalog. Parallelism mechanically monitored across all 50 slots. One rack covers everything from medium-width boards up to full backplanes, less inventory, fewer wrong-rack mistakes on the floor.

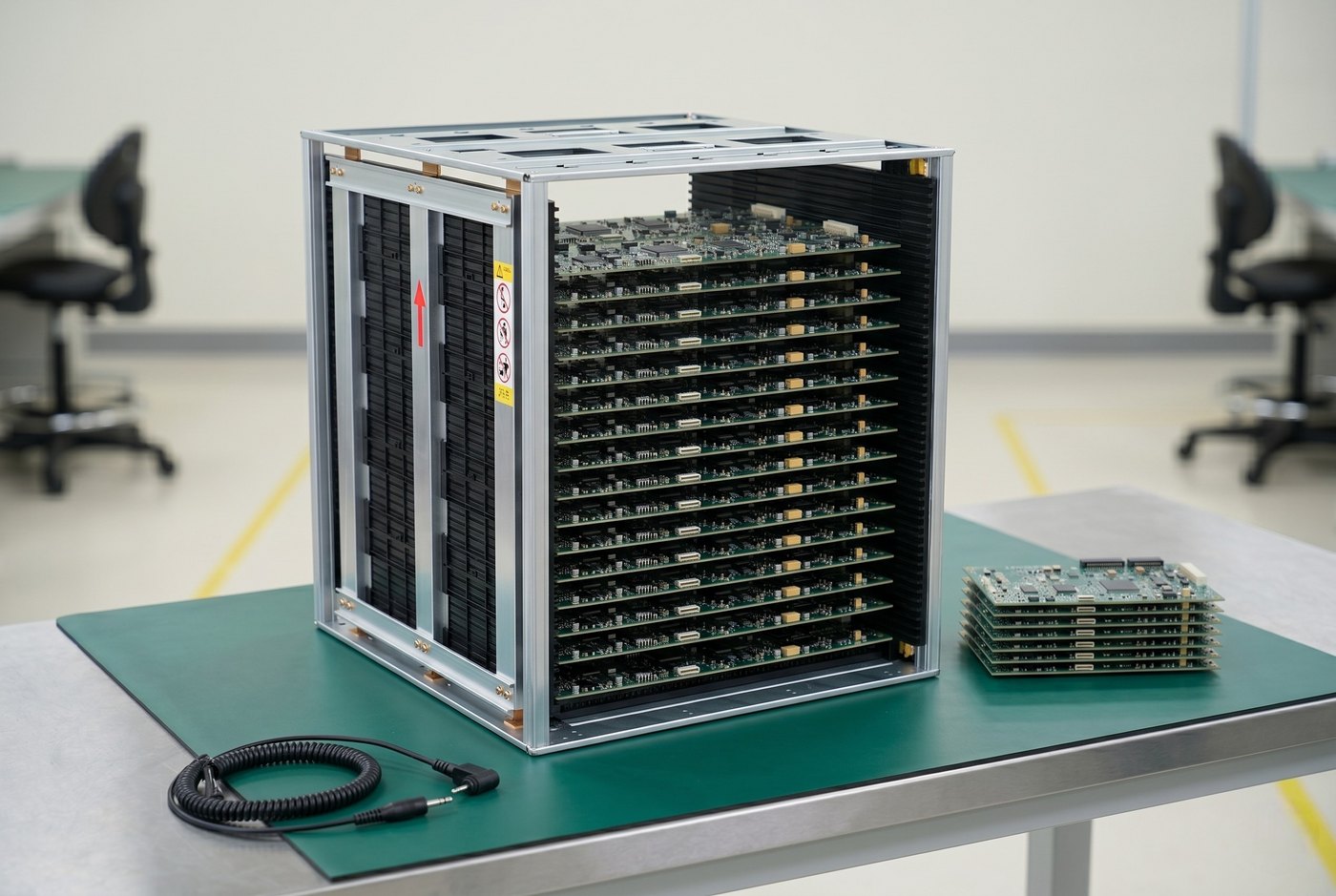

The B0110GN-80C is an extra-long-format 50-slot ESD magazine rack built for in-line SMT automation, board storage, and bench-to-bench transport on the longest board lines, backplanes, motherboards, oversized industrial PCBs. Gear-track adjustment sets the board width from 50 to 460 mm (1.97″ to 18.11″) in seconds, with parallelism maintained across all 50 slots, one rack covers the full extra-long-format range (up to 620 × 460 mm (24.41″ × 18.11″) boards) without re-tooling.
Construction: 2 interchangeable conductive PS side panels per wall, aluminum pillars, galvanized steel base. The mixed-material build provides structural rigidity under repeated loading and inline conveyor handling, while keeping the entire current path in the 10⁴–10⁶ Ω dissipative band under ANSI/ESD S541. A damaged panel can be swapped individually, the rack stays in service.
Designed for the standard 80 °C ambient envelope (transport, storage, soldering, inspection, cleaning). There is no bake-rated version on the extra-long chassis: for bake or cure cycles the B0109GM-200C (200 °C) and B0109GL HT-300C (300 °C all-aluminum) cover boards to 535 × 460 mm (21.06″ × 18.11″). For narrow-flex flexibility on the same extra-long chassis, see the B0110GC BELT-80C.
Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.
FIG. 2B0110GN-80C
B0110GN-80C · Technical specifications
Model
B0110GN-80C
Materials
Conductive PS side panels (2 × interchangeable per wall) · aluminum pillars · galvanized steel base
Dimensions (L × W × H)
630 × 530 × 563 mm (24.80″ × 20.87″ × 22.17″)
Slot count
50
Slot width
5 mm (0.197″)
Slot depth
4 mm (0.157″)
Slot pitch
10 mm (0.394″)
Adjustable board width
50–460 mm (1.97″–18.11″) via gear-track mechanism
Max board length
620 mm (24.41″)
Max board size (L × W)
620 × 460 mm (24.41″ × 18.11″), the longest board format in the catalog
Min board size (L × W)
50 × 50 mm (1.97″ × 1.97″)
Reference positions
A = 34 mm (1.34″) · B = 40 mm (1.57″), shared with the B0108 chassis
ESD properties
Surface resistance 10⁴ – 10⁶ Ω (dissipative band per ANSI/ESD S541)
Thermal range: −20 °C to +80 °C, standard SMT envelope
Capacity: 50 slots · 10 mm (0.394″) pitch · 50–460 mm (1.97″–18.11″) adjustable · max board 620 × 460 mm (24.41″ × 18.11″)
RoHS: PASS, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: SMT in-line automation · standard-temp storage & transport · inspection & QC · extra-long-format (up to 620 × 460 mm (24.41″ × 18.11″)) board lines · backplanes / motherboards / oversized industrial PCBs.
Why buy: Aerospace-grade build, special order with a 2 to 4 week lead time, shipped from the US, the B0110 extra-long pair (GN / GC BELT) sharing one footprint, mix variants on one purchase order with the same logistics, same compliance package, same volume tier.
The ESD Association standard for packaging materials in an EPA. It classifies surface resistance into conductive (below 10⁴ Ω), dissipative (10⁴ to below 10¹¹ Ω) and insulative bands. Our measured 10⁴–10⁶ Ω sits in the dissipative band, the range specified for board handling.
The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. All 20 components of this product were tested and passed (SGS report NGBEC25007648601).
Sold individually. Packaging size 650 × 570 × 120 mm (25.59″ × 22.44″ × 4.72″) at 15 kg (33.1 lb) gross. Special order: built for your order and shipped from the US, lead time about 2 to 4 weeks depending on quantity. Includes stopper bar and carrying handles (top + bottom).

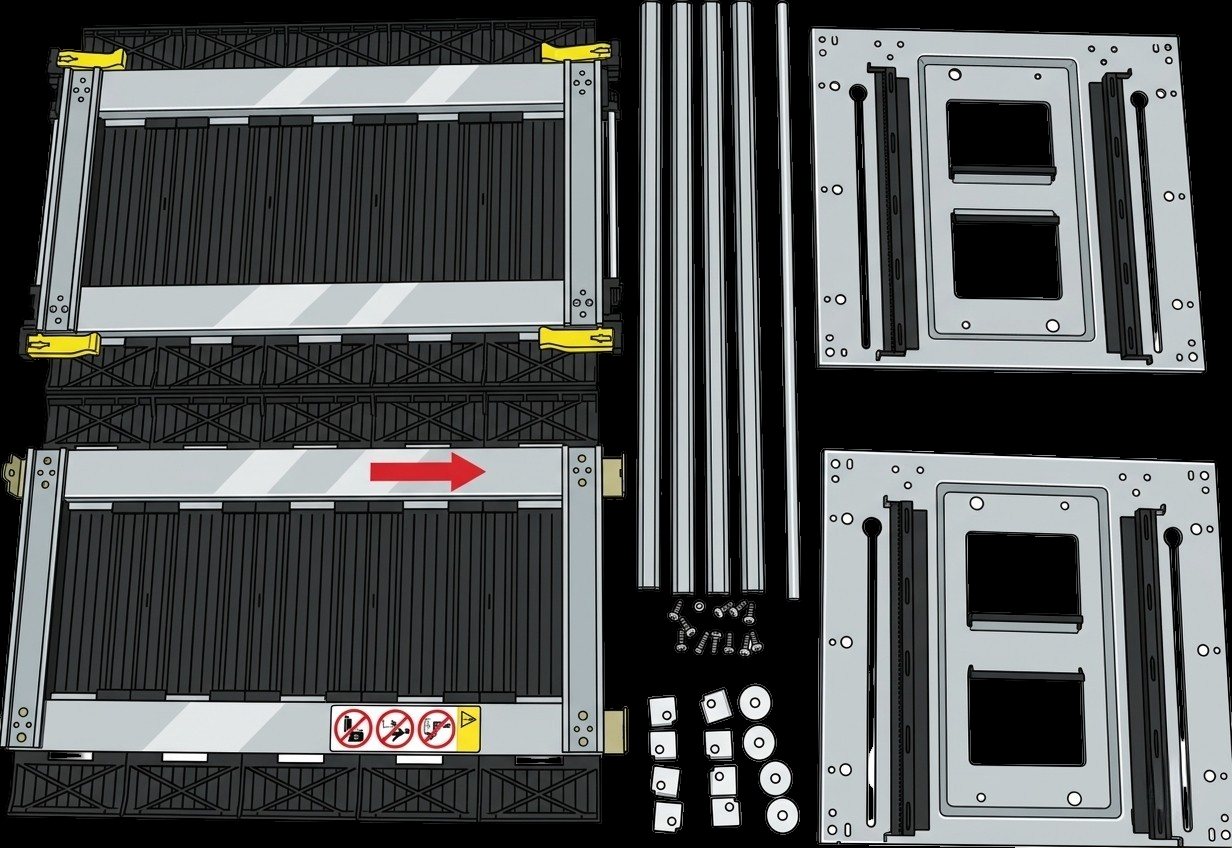

Everything in the carton, laid out. The rack ships flat and goes together with the supplied screws.

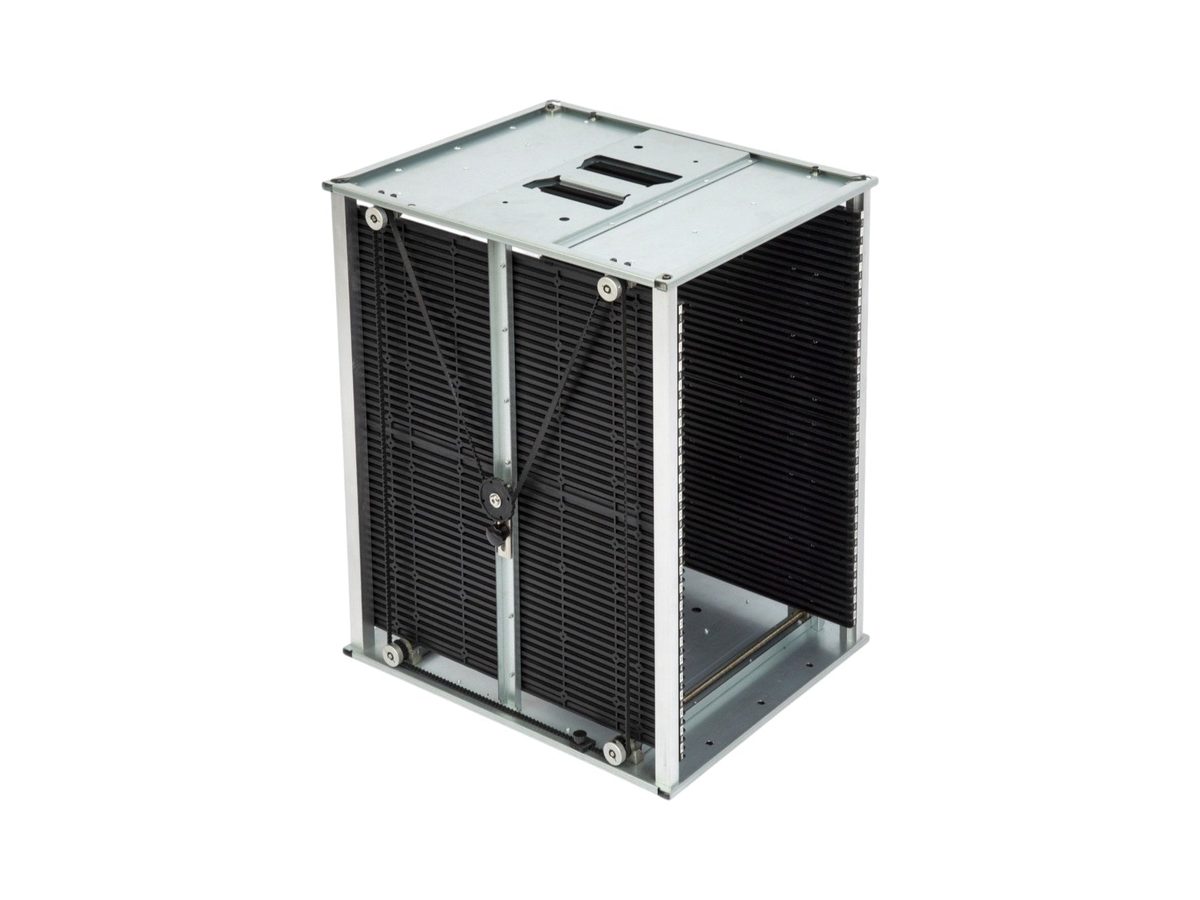

50-slot ESD magazine rack on the extra-long-format chassis, with continuous belt adjustment covering 10–460 mm (0.394″–18.11″) of board width, the longest board format in the catalog.
50-slot ESD magazine rack on the maximum-format chassis, sized for boards to 535 × 460 mm (21.06″ × 18.11″): backplanes, motherboards, and oversized industrial PCBs up to 535 × 460 mm (21.06″ × 18.11″).
Will the B0110GN-80C drop into my SMT loader / unloader?
The 563 mm (22.17″) chassis height, the same as the B0103 and B0106 and 10 mm (0.394″) slot pitch align with the standard interface used by ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment, but the 630 × 530 mm (24.80″ × 20.87″) footprint is the longest in the catalog, many in-line loaders are not configured for extra-long racks out of the box. Confirm with your loader / unloader vendor before ordering. Reference offsets are A=34, B=34, the same as the B0103 and B0106 chassis.
What does “parallelism monitored” gear-track adjustment actually do?
Both side panels travel on a synchronized rack-and-pinion gear track. Turn the adjustment knob on either side and the opposite panel travels the same distance in the same direction, parallelism is mechanically monitored, not just operator-eyeballed. The result: a width spec set on Monday loads the same boards on Friday, and both panels stay parallel through the full 50–460 mm (1.97″–18.11″) travel range, the longest board format in the catalog.
Can I bake the B0110GN-80C? What’s the temperature ceiling?
The GN-80C variant is rated −20 °C to +80 °C, the standard SMT envelope (transport, storage, soldering, inspection, cleaning). There is no bake-rated version on the extra-long chassis. For bake-suitable use, the B0109GM-200C (200 °C) covers boards to 535 × 460 mm (21.06″ × 18.11″); for 300 °C cure, the B0109GL HT-300C all-aluminum rack, same 535 × 460 mm board size.
What’s the difference between this and a slotted-edge rack like RA-18C?
The B0110GN-80C is an extra-long-format magazine rack: 50 slots, 10 mm (0.394″) pitch, designed to drop into in-line SMT loader / unloader equipment. The RA-18C is a slotted-edge transport rack: 25 slots at wider pitch, designed for benchtop / between-bench manual transport, not for in-line equipment. Pick magazine racks for SMT-line integration; pick slotted-edge for hand carry / bench-side WIP.
Can I replace a damaged side panel without buying a whole new rack?
Yes. The side panels are made of 2 interchangeable conductive PS panels per wall, each individually replaceable. If one section gets cracked or contaminated, swap that section out and the rest of the rack stays in service. Rack spares are sold separately for every magazine-rack chassis we’ve ever shipped, typically in stock, 10 working days maximum to supply.
What ships in the box?
One B0110GN-80C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 650 × 570 × 120 mm (25.59″ × 22.44″ × 4.72″) at 15 kg (33.1 lb) gross. Special order: built for your order and shipped from the US, lead time about 2 to 4 weeks depending on quantity. No assembly required.
Can I run anodized aluminum carriers or fixtures in this rack?
You can. The load path here is conductive PS side panels, the usual choice for bare boards. If you carry anodized aluminum carriers or fixtures and want no polymer touching them at all, the all-aluminum HT racks (B0109GL HT-300C, boards to 535 × 460 mm) replace every panel with clear anodized aluminum and stay in the conductive band at 104 to 106 ohms.
Is there a 3D model or STEP file for this rack?
Yes, on request. Dimensional drawings and CAD are not posted on the site, so ask through the documentation request page and the team sends the STEP model for this chassis.
Can you ship to our contract manufacturer or an overseas partner?
Yes. Racks ship FOB origin from the US, and we drop ship to a contract manufacturer, a loader vendor, or your own site abroad. Send the delivery address with the order, and if you have a carrier account we book the shipment on it. One order can go to more than one address.
