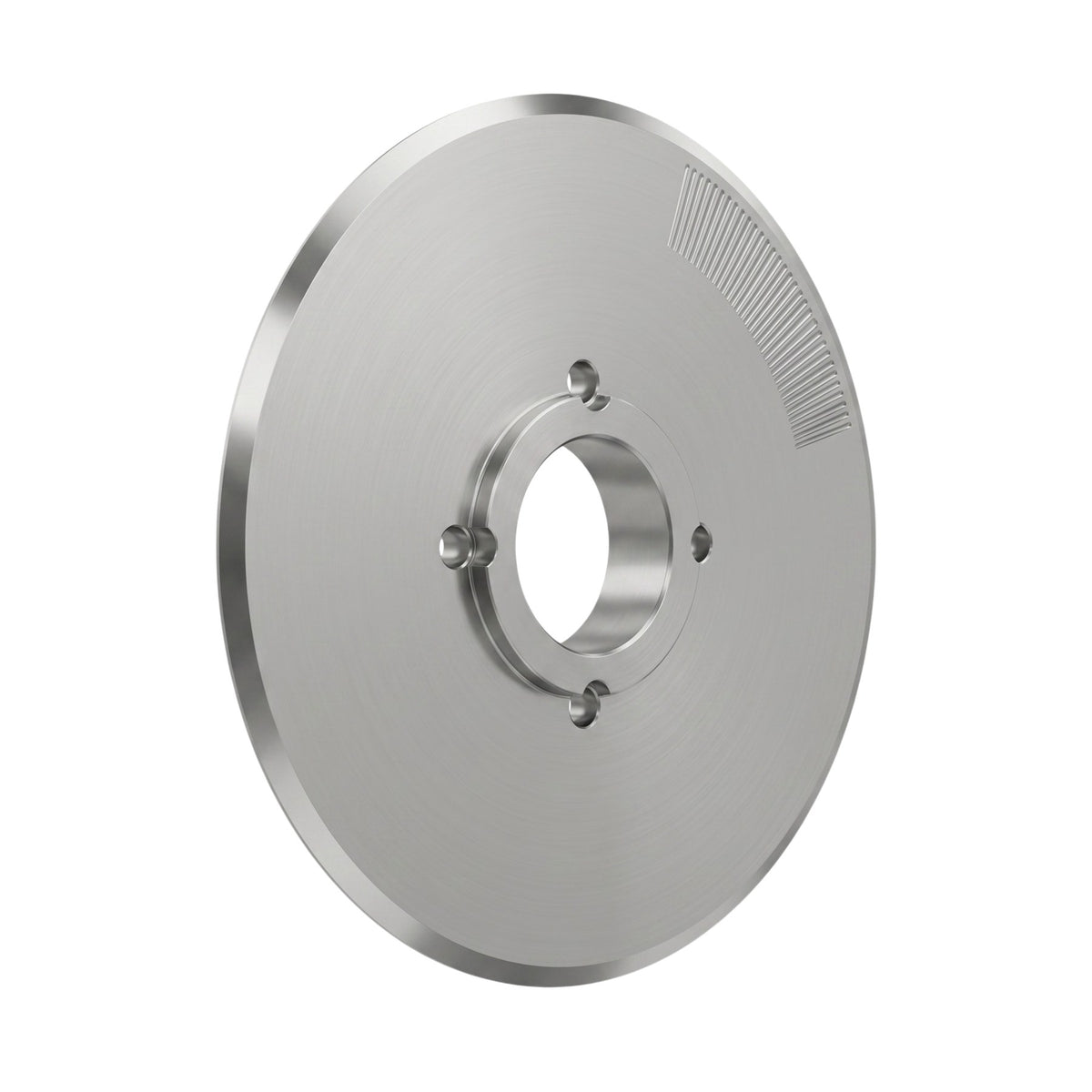

VPD3-1CB Circular Blade for VPD3-1M
Usually in stock, else 1 to 2 weeks

VPD3-1CB · Circular Blade for VPD3-1M

VPD3-1CBUsually in stock, else 1 to 2 weeks · USA

Replaces other makers' part no. VPD3-1CK · fit notes

The VPD3-1CB is the circular replacement knife for the VPD3-1M V-cut PCB depaneler, the blade that passes over the fixed linear blade. It is tool steel, rated for up to 100,000 cutting cycles and user-replaceable at the bench. Usually in stock; if not, it ships from the US in 1 to 2 weeks.

$758.00 per unit
  • Genuine OEM part
  • Usually in stock. If not, ships from the USA in 1 to 2 weeks
  • Field-replaceable, no service call
Subscribe and save up to 15% Saves $75.80 on every delivery

Billed and shipped on your schedule. Your price is locked for 12 months. Skip, pause or cancel anytime from your account.

Ask an engineer

Replacing another maker's part? Cross-reference your part number →

More parts for your VPD3

100,000 cycles per blade

Up to 100,000 cycles per blade, with 50,000+ typical on a working line.

That works out to about $75.80 per 10,000 cycles at full life.

Actual life varies with panel material, thickness and score depth. Run it until the edge tells you, not the calendar.

Add the spare blade. Up to 100,000 cycles, and it is the machine's one consumable.

VPD3-1LB · Stationary Linear Blade for VPD3-1M $1,367.00

A depaneler with a dull blade and no spare is a stopped process. Ship the spare with the machine and it never happens. Or take both as the Blade Pair Kit and save $212.00.

Join the blade program

Tell us your machine and cadence. We track blade life with you and remind you before a dull edge reaches your boards. No commitment, cancel with a reply.

One reminder per cycle, nothing else. Reply to any reminder to stop.

Spec sheet (PDF)Drawings / CAD (by email)
ESD-safe Ships from the USA Spec help included

At a glance

Thickness5.5 mm
Edge angle20°
MaterialTool steel
Fits machineVPD3-1M
ReplaceableUser

What it is, and where it lives.

Engineering drawing for visual confirmation, plus the spare-parts identification photo so you can pinpoint the part on your machine.

Engineering drawing

VPD3-1CB · Circular Blade

On-machine location

Look for callout M15 on the VPD3-1M assembly photo, the circular blade sits on the moving carriage between the upper and lower blade housings.

Description

Replacement circular blade for the moving carriage on the VPD3-1M manual depaneler. 5.5 mm thickness, 20° edge angle. Field-replaceable.

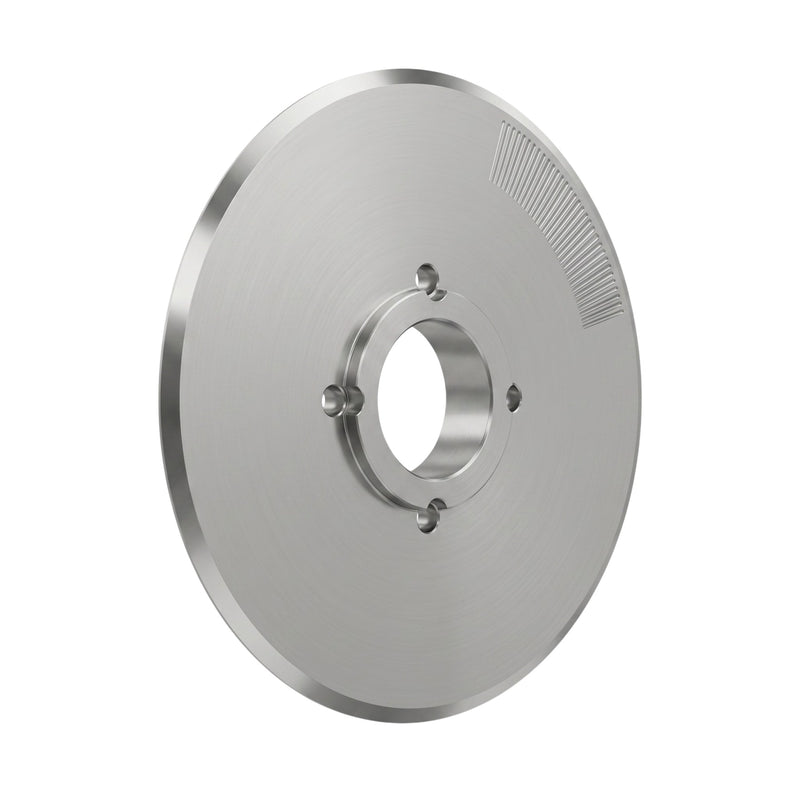

VPD3-1CB Circular Blade for VPD3-1M
FIG. 2VPD3-1CB

VPD3-1CB · Technical specifications

Thickness5.5 mm
Edge angle20°
MaterialTool steel
Fits machineVPD3-1M
ReplaceableUser
PartVPD3-1CBRev2026-AUnitsmm / °C
Documentation Download spec sheet (PDF)

Need drawings or CAD models? Request them by email

Already running one of these?

Already own a VPD3-1M? We supply spare parts for the full installed base of these machines, not just units purchased through pcbracks.com.

Send us your unit’s serial number, a clear photo of the data plate, or the part identifier from your manual when you place the order, and we’ll match the right part. Genuine OEM parts, ground freight from the USA.

Match my part

Further reading

Engineers also bought

Questions engineers ask

Is this the same blade that ships with the machine?
Yes. This is the standard circular blade pre-installed on the VPD3-1M from the factory.
How often should I replace the circular blade?
Blade life depends on board volume and material. Most production cells replace at annual maintenance, or sooner if cut quality drops.
Do I need any special tools to replace it?
No. The blade swap uses a single hex wrench. The Spare Parts List PDF in the VPD3-1M product page covers the procedure.
Do you make custom blades for non-standard board geometries?
Yes. We manufacture custom blade profiles for non-standard score depths, board thicknesses, or component-clearance envelopes. Email info@pcbracks.com with your panel drawing, score-depth spec, and target component clearance, we’ll quote a custom blade matched to your application.
