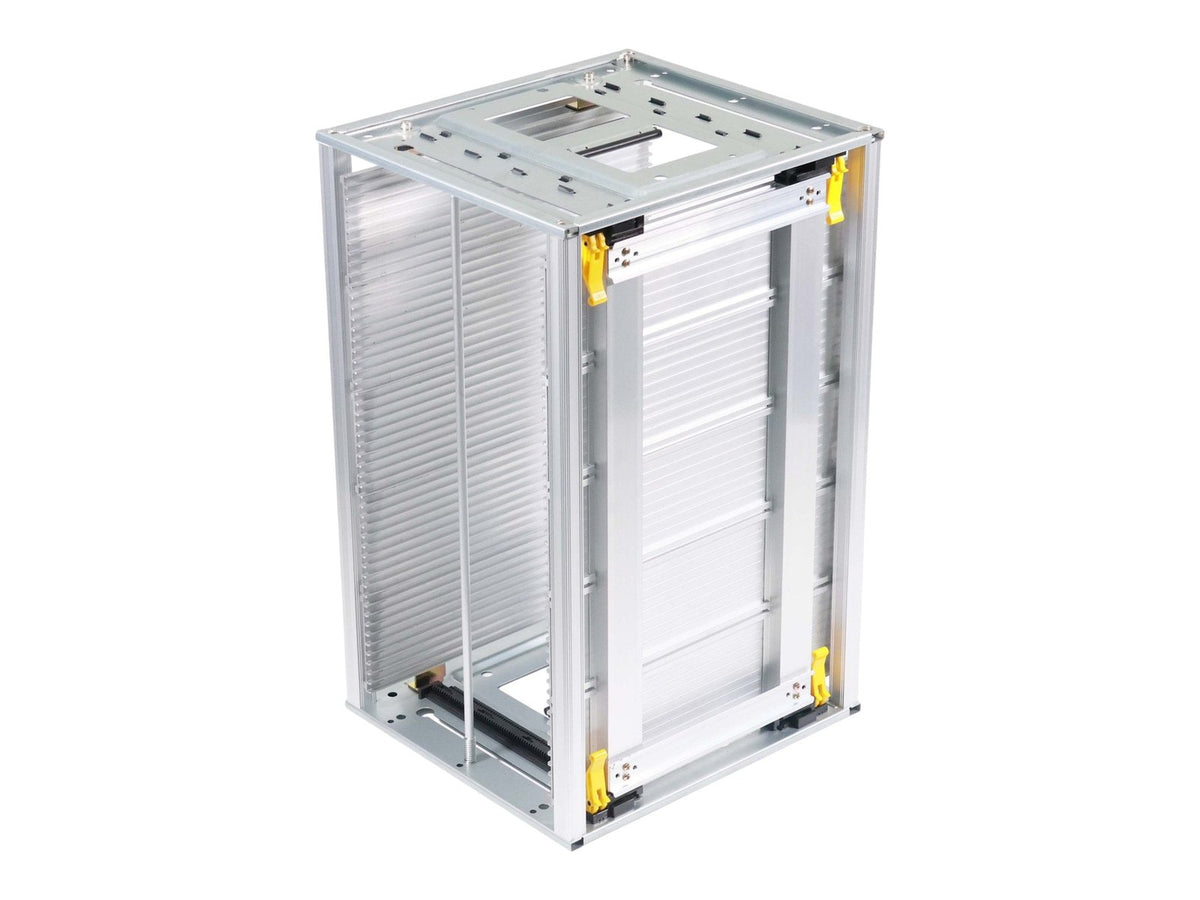

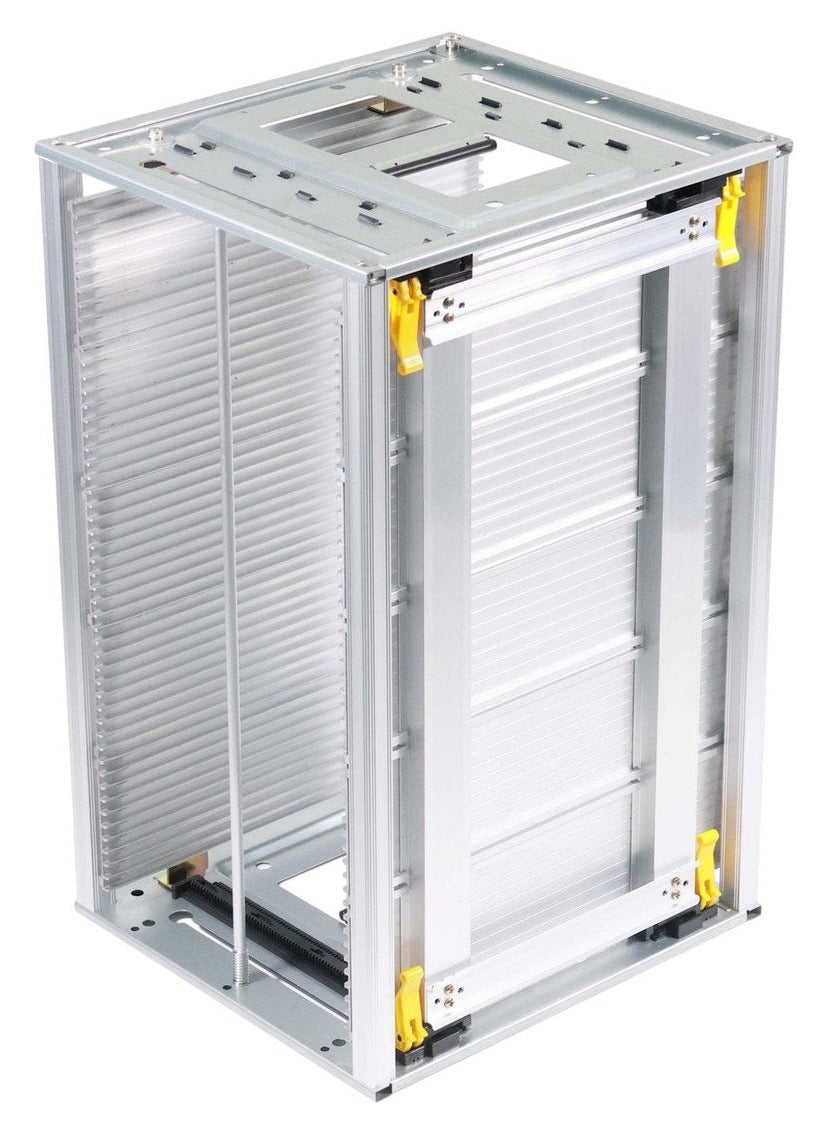

B0103GL HT-300C all-aluminum ESD PCB magazine rack, three-quarter view: aluminum side plates; 50 slots, 10 mm (0.394 in) pitch, gear-track adjust 50 to 250 mm (1.97 to 9.84 in), rated 300 °C (572 °F)

B0103GL HT-300C50-Slot All-Aluminum 300 °C ESD PCB Magazine Rack

Magazine Rack · 50 Slots · All-Aluminum · 300 °C (572 °F)

B0103GL HT-300C is a 50-slot all-aluminum ESD PCB magazine rack for SMT loaders, reflow loading and bake up to 300 °C (572 °F).

Adjustable PCB Width: 50 to 250 mm (1.97″ to 9.84″)
Slot Pitch: 10 mm (0.394″)
Maximum PCB Size: 355 × 250 mm (13.98″ × 9.84″)
Magazine Rack Size: 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
ESD Rating: Aluminum side panels, conductive 10⁴ Ω
Temperature Range: −20 °C to +300 °C (−4 °F to 572 °F)

Gear-track adjustment makes it easy to set the magazine to the required PCB width. It includes everything you need to use out of the box (assembly required).

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

$282.00per rack · sold individually

ESD safeConductive 10⁴ Ω TemperatureUp to 300 °C (572 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

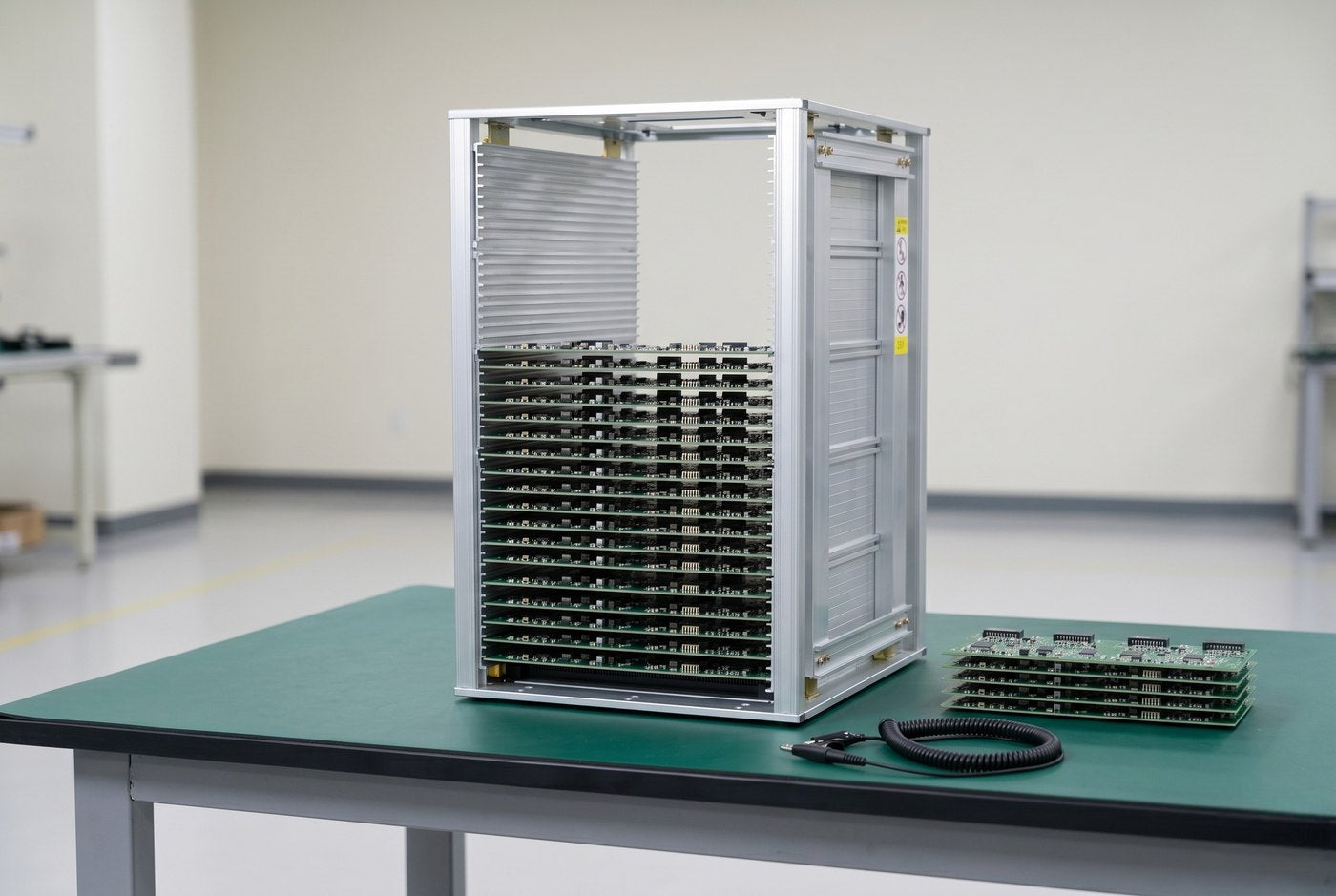

B0103GL HT-300C loaded with circuit boards — Loaded and ready for the line

360° view

At a glance

What it does: Feeds SMT loaders and unloaders, and holds boards safely between process steps.
The problem it solves: Boards stay in one rack from storage through 300 °C (572 °F) reflow and bake.
What it fits: In-line loaders and unloaders from ASM SIPLACE, Yamaha, Panasonic and Juki.
Key specs: 50 slots · 10 mm (0.4 in) pitch · up to 300 °C (572 °F) · conductive 10⁴ Ω

Details

One rack from storage through the oven.

All-aluminum and rated to 300 °C (572 °F), so boards stay in the same rack for reflow and bake.

The engineer, who chooses it: Fits the loaders and unloaders your line already runs, in the heat rating your oven needs. It's the one part of the line you choose once and never think about again.
The operator, who uses it: Set the width, lock it, load the boards. When the line backs up, stack up to five full racks on top of each other.
The buyer, who pays for it: In stock with the price on the page, shipped from the USA in under 24 hours on a card or a PO. When a part wears out years from now, you replace the part, not the rack.

Description

What “all-aluminum” actually changes

The B0103GL HT-300C swaps the standard PPE side panels for 5 × interchangeable aluminum sections per wall, no polymer in the thermal path, so the rack stays dimensionally stable through cycles to 300 °C. Lead-free reflow exit temperatures, IPC/JEDEC J-STD-033 accelerated bake, conformal-coat post-cure, and aerospace high-heat stress testing all run inside the rack’s thermal envelope, load directly from the oven, no cooling step required.

The slot opens to 7.5 mm (0.295″) wide (vs 5 mm (0.197″) on regular gear-track) to clear thicker / warped / populated boards that have grown out of spec after reflow. Same 50-slot capacity, same 10 mm (0.394″) pitch, same gear-track mechanism, same 50–250 mm (1.97″–9.84″) adjustable width range as the B0103GN-80C cousin. The aluminum-panel construction adds 1.7 kg of weight (8 kg vs 6.3 kg empty) for the higher-temperature qualification.

Conductive at 10⁴ Ω and RoHS compliant, like the rest of the B0103 chassis family. The B0103GN-80C and B0103GM-200C cousins offer the same chassis at a lower price for cycles that don’t exceed 80 / 200 °C.

Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.

Best uses

SMT loading and unloading: Feeds the loader and takes boards off the unloader.
Reflow and cure: Boards stay in the rack at up to 300 °C (572 °F).
Between process steps: A full lot moves from cell to cell without anyone handling single boards.
Storage: Boards stay upright and apart on the shelf.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
Magazine racks also feed boards straight into SMT loaders and unloaders.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−20 to 300 °C (−4 to 572 °F)

B0103GN-80CStorage and in-line SMT handling

80 °C · 176 °F

B0103GM-200CMSD bake at 90 to 125 °C (194 to 257 °F)

200 °C · 392 °F

B0103GL HT-300CThis rackLead-free reflow loading and aerospace cure

300 °C · 572 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Rated to 300 °C (572 °F) for lead-free reflow loading, bake and cure. Every part of the rack is metal, so nothing softens in the oven.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

The aluminum panels and frame are conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

The gear sets the width between the side walls anywhere from 50 to 250 mm (2 to 9.8 in).

Technical data

Model	B0103GL HT-300C
Materials	Aluminum side panels (5 × interchangeable per wall, no polymer) · aluminum pillars · galvanized steel base
Dimensions (L × W × H)	355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Slot count	50
Slot width	7.5 mm (0.295″), wider than gear-track 5 mm (0.197″); clears thicker / warped / populated boards
Slot depth	3.5 mm (0.138″)
Slot pitch	10 mm (0.394″)
Adjustable board width	50–250 mm (1.97″–9.84″) via gear-track mechanism
Max board length	355 mm (13.98″)
Max payload	85 kg (187 lb) spread evenly across the slots
Max board size (L × W)	355 × 250 mm (13.98″ × 9.84″)
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Reference positions	A = 34 mm (1.34″) · B = 33 mm (1.30″)
ESD properties	Surface resistance 10⁴ Ω, conductive
Test reports	ESD and RoHS test reports on request
Temperature range	−20 °C to +300 °C (−4 °F to 572 °F), top of the magazine-rack thermal range
Adjustment type	Gear track with parallelism monitoring
Includes	Stopper bar · carrying handles (top and bottom)
Weight	8 kg

Overall size

Machine compatibility

Loader / machine	Series	Interface
ASM SIPLACE	All in-line loaders / unloaders	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Yamaha	YSM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Panasonic	NPM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Juki	RS series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Other in-line SMT	Standard-interface loaders	Ask for a fit-check if your line uses a custom fixture

Not sure your loader is on the list? Send us the model and we confirm fit before you order.

Compared to the other versions

Feature	B0103GC BELT-80C	B0103GN-80C	B0103GM-200C	B0103GL HT-300C
Temperature rating	−20 °C to +80 °C (−4 °F to 176 °F)	−20 °C to +80 °C (−4 °F to 176 °F)	−20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033	−20 °C to +300 °C (−4 °F to 572 °F), top of the magazine-rack thermal range
Width adjustment	Continuous belt, no stepped indices	Gear track, parallelism monitored	Gear track, parallelism monitored	Gear track, parallelism monitored
MSD bake per J-STD-033	No. Transfer to a bake-rated rack first	No. Transfer to a bake-rated rack first	Yes, boards stay in the rack through bake	Yes, boards stay in the rack through bake
Frame	Conductive PPE panels · aluminum pillars · steel base	Conductive PPE panels · aluminum pillars · steel base	Conductive PPE panels · aluminum pillars · steel base	All-aluminum
Pick this one when	Belt-set widths for mixed board runs.	Standard storage, transport and in-line SMT handling.	MSD bake at 90–125 °C, one container from storage through bake to the loader.	Lead-free reflow direct loading, aerospace cure, high-heat stress testing.

Replacing another maker's part? Cross-reference your part number

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.
IPC/JEDEC J-STD-033: The standard for handling, packing and baking moisture-sensitive devices. A rack rated for the bake temperature lets the boards stay in it through the bake.
IPC/JEDEC J-STD-033: The moisture-sensitive-device handling standard. It sets the bake profiles (typically 90–125 °C) used to drive moisture out of MSD boards before reflow, which is why a rack's temperature rating decides whether boards can stay in it through the bake.
RoHS (EU) 2015/863: The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. This product is RoHS compliant; the test report is available on request.

Full IPC and ESD standards reference for handling, storage and depaneling

Features

Turn the gear to set the board width anywhere from 50 to 250 mm (2 to 9.8 in). One rack covers every board width in that range.
All 50 slots stay parallel at every width, so boards slide in and out cleanly.
Takes boards from 50 × 50 mm (2 × 2 in) up to 355 × 250 mm (14 × 9.8 in).
Aluminum side panels, aluminum pillars and a galvanized steel base, with no plastic parts.
Side panels swap one at a time, so a damaged panel never retires the rack.
Holds up to 85 kg (187 lb) of boards, spread evenly across the slots.
Used at contract manufacturers, at electronics plants in aerospace and defense, automotive and medical devices, and in test and repair labs.
Ships from the USA. In-stock orders placed by noon Pacific ship the same business day.

What's in the box

One B0103GL HT-300C rack, packed flat. It goes together with the supplied screws.
Stopper bar
Carrying handles (top and bottom)
Carton 570 × 370 × 100 mm (22.4 × 14.6 × 3.9 in), 8 kg (17.6 lb)

FAQ

Questions

Can metal carriers go straight into this magazine, does anything in the rack shed particles onto the assemblies, and what finish is on the aluminum?

Yes: metal carriers, pallets and fixtures are a routine load for the HT racks. Everything the load touches is aluminum with a clear anodized finish. The conductive PPE panels of the standard gear-track racks are gone from the HT series, so there is no polymer in the load path and nothing that can shed onto an assembly. Anodized on anodized stays clean as well; the pairing that transfers material is anodized on bare metal, and there is no bare metal in the slots. The chassis is conductive, 10⁴ Ω surface resistance, so the carrier and the board on it are grounded through the rack.

What does “all-aluminum” actually change vs the standard 200 °C gear-track racks?

Standard gear-track racks (the GN/GM variants) use 5 × Conductive PPE side-panel sections per wall. PPE softens above ~200 °C and starts off-gassing in cure ovens. The HT series swaps every PPE panel for an aluminum panel, same five interchangeable slots per wall, same gear-track mechanism, no polymer in the thermal path. The chassis is heavier (8 kg vs 6.3 kg empty) and the rack stays dimensionally stable through 300 °C cycles.

Why is the slot 7.5 mm (0.295″) wide instead of 5 mm (0.197″)?

Boards that have just come out of reflow or post-cure are often slightly thicker, warped, or populated with tall components on the bottom side. The 5 mm (0.197″) gear-track slot is fine for raw bare boards, but a 1.6 mm (0.063″) board with 2 mm (0.079″) of solder paste + 1 mm (0.039″) of warp + a populated underside can exceed 5 mm (0.197″). The 7.5 mm (0.295″) HT slot accommodates these without forcing operators to angle boards in or rework the slot. You can still load thinner boards in the wider slot, they just sit with more clearance.

Can I really load boards directly from a lead-free reflow oven?

Yes. The 300 °C ceiling clears typical SAC305 lead-free reflow profiles (peak ~245–260 °C) with significant headroom. The all-aluminum side panels won’t soften, warp, or contaminate the reflow atmosphere. Aerospace cure cycles, conformal-coat post-cure (150–200 °C), and full IPC/JEDEC J-STD-033 bake (including 125 °C accelerated) are all well within the rack’s thermal envelope.

Will the B0103GL HT-300C drop into my SMT loader / unloader?

Yes. The 563 mm (22.17″) chassis height and 10 mm (0.394″) slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The 355 × 320 mm (13.98″ × 12.60″) footprint is identical to the B0103GN-80C / GM-200C / GC BELT-80C variants. Note the unique reference offsets A=34, B=33 on this HT variant (vs A=34, B=34 on GN/GM/GC), ask sales for a fit-check on your specific line if your fixture relies on B-offset positioning.

Do I need 300 °C if my bake only runs at 125 °C?

Probably not. For 125 °C accelerated bake or anything below 200 °C, the metal-base B0103GM-200C (200 °C) is a lower-cost option on the same chassis, with the same conductive 10⁴ Ω build. Pick the GL HT-300C when the process actually needs 200–300 °C (lead-free reflow direct loading, conformal-coat post-cure 150–200 °C, aerospace cure, or thermal stress testing).

What ships in the box?

One B0103GL HT-300C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 570 × 370 × 100 mm (22.44″ × 14.57″ × 3.94″) at 8 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Ships flat and goes together with the supplied screws.

How much weight can a loaded rack carry?

The load capacity (weight limit) is up to 85 kg (187 lb), spread evenly across the slots. As a check, 50 carrier plates at 1 kg each come to 50 kg, comfortably inside that. The figure is the whole load in the rack, not per slot.

Can I run anodized aluminum carriers or fixtures in this rack?

Yes, and this is the rack for it. There is no polymer in the load path: every side panel is aluminum, clear anodized. An anodized carrier then rides on an anodized panel, hard oxide against hard oxide, instead of anodized against bare metal, which is the pairing that transfers material. Surface resistance stays conductive, 10⁴ Ω.

Is there a 3D model or STEP file for this rack?

Yes, on request. Dimensional drawings and CAD are not posted on the site, so ask through the documentation request page and the team sends the STEP model for this chassis.

Can you ship to our contract manufacturer or an overseas partner?

Yes. Racks ship FOB origin from the US, and we drop ship to a contract manufacturer, a loader vendor, or your own site abroad. Send the delivery address with the order, and if you have a carrier account we book the shipment on it. One order can go to more than one address.
