B0105GPM-120C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
B0105GPM-120C120 °CIn stock · ships in under 24 h · USA
The B0105GPM-120C is a 50-slot ESD-safe PCB magazine rack with gear-track width adjustment, rated −20 °C to +120 °C (−4 °F to 248 °F), covers MSD low-bake profiles (90–110 °C). Slot pitch is 10 mm, board width adjusts from 50–250 mm. It ships from California and fits standard in-line SMT loaders.
External dimensions (L × W × H)14″ × 13″ × 22″
355 × 320 × 563 mm
$195.00 per unit
- Adjustable Width: 50–250 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 355 × 250 mm
- Temp Range: −20 / +120 °C
Replacing another maker's part? Cross-reference your part number →
Heads-up: $300 order minimum. Combine spares or add to a rack order.
ESD-safe
Ships from the USA
Spec help included
At a glance
External dimensions (L × W × H)14″ × 13″ × 22″
355 × 320 × 563 mm
355 × 320 × 563 mm
Adjustable Width50–250 mm
Slot Count / Pitch50 @ 10 mm
Max Board (L × W)355 × 250 mm
Temp Range−20 / +120 °C
Light Bake Without Stepping Up to a Metal-Base 200 °C Rack.
Most MSD moisture-removal profiles run at 90–110 °C. Standard 80 °C racks can’t cover them; stepping up to a 200 °C metal-base rack is more capability than the bake actually needs. The all-plastic B0105GPM-120C lands right in the middle, 120 °C ceiling, 4.8 kg empty, full ESD spec, lower cost than the metal alternative.
120 °C bake-suitable
90–110 °C MSD profiles
4.8 kg empty
Conductive PS base
Description
External dimensions (L × W × H): 14″ × 13″ × 22″ · 355 × 320 × 563 mm

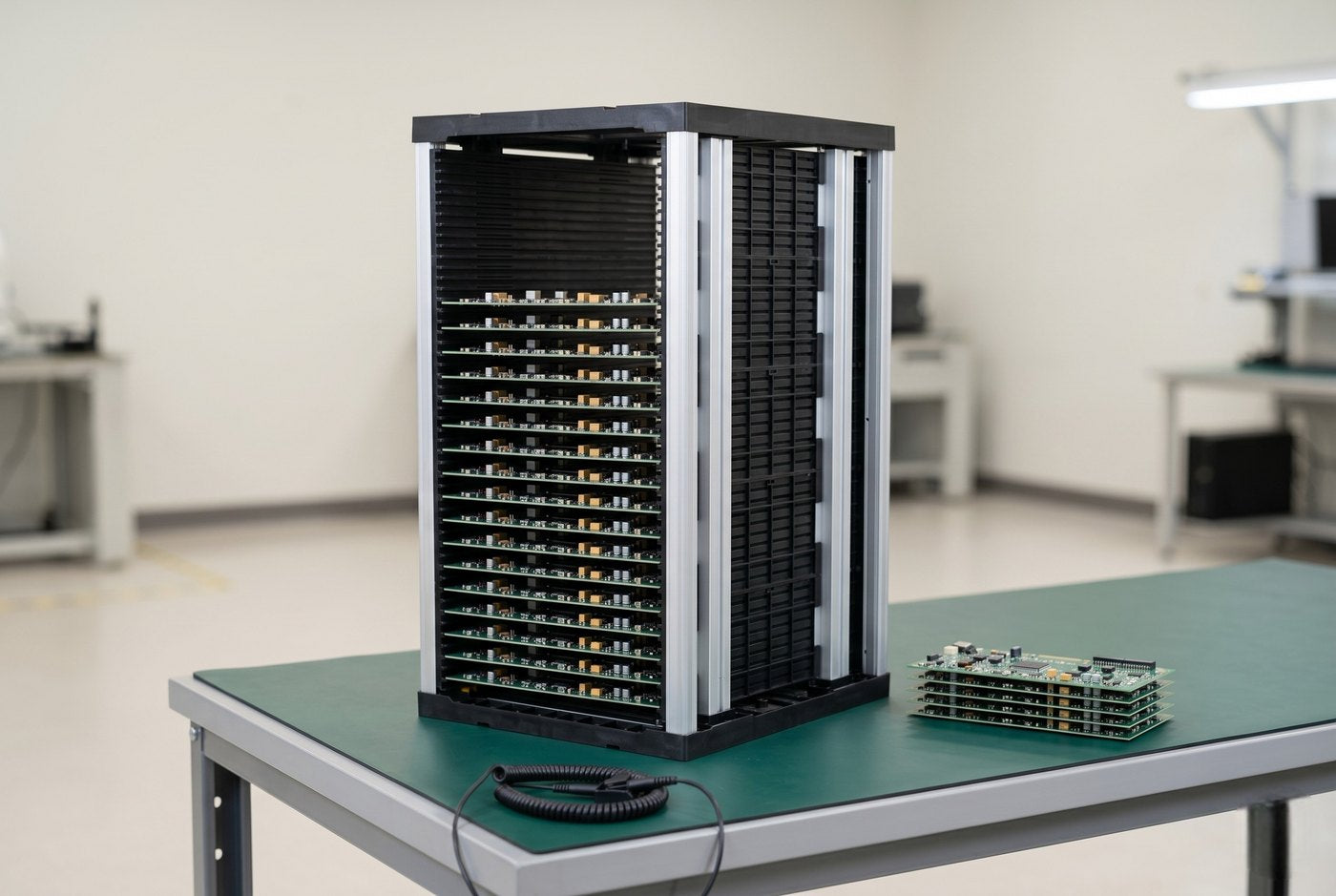

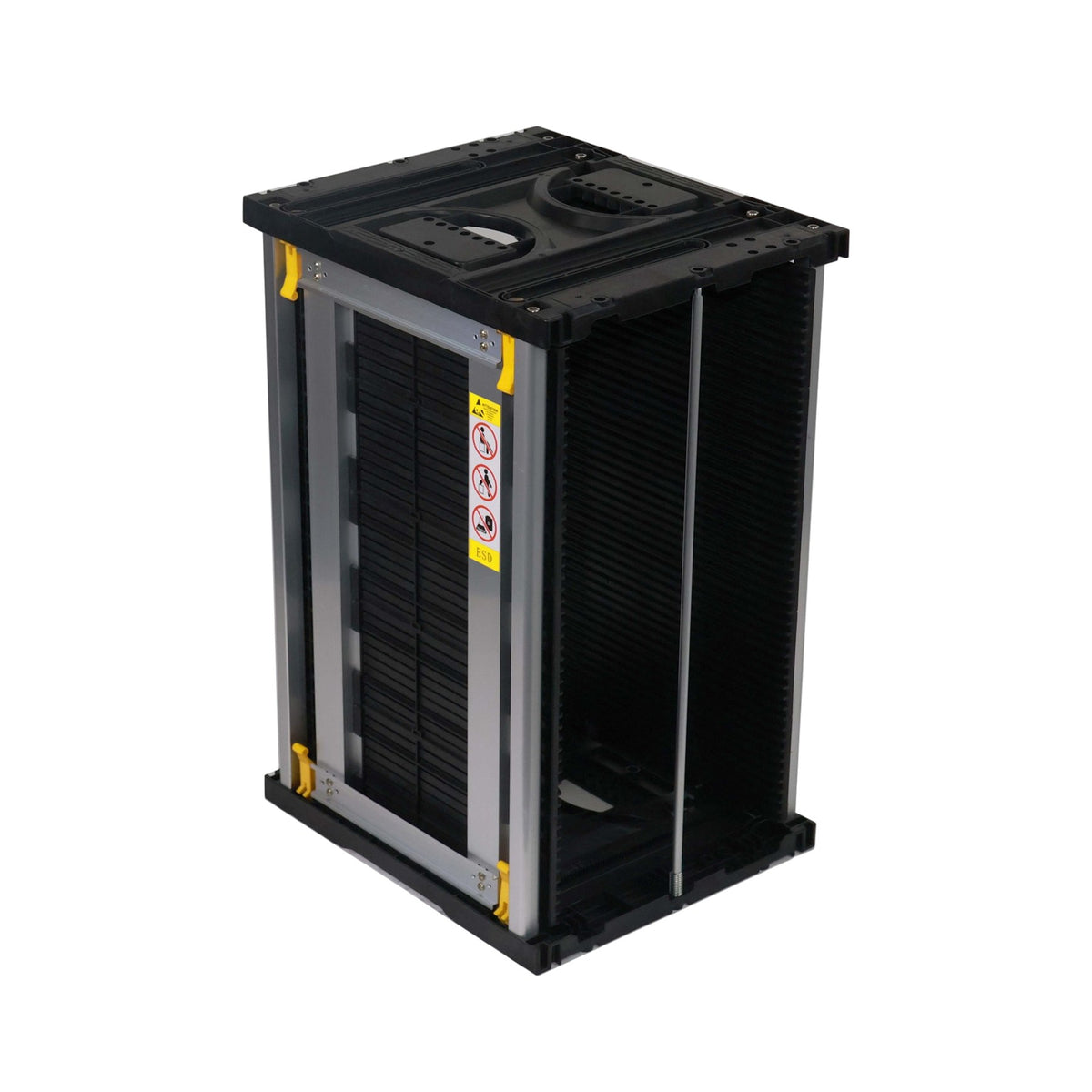

The all-plastic chassis that survives the bake
The B0105GPM-120C is the 120 °C bake-suitable variant on the same all-plastic chassis as the B0105GPN. Same Conductive PS base, same Conductive PPE side panels, same aluminum pillars, same gear-track mechanism, same 50–250 mm width range. The only meaningful difference: temperature qualification, which extends the upper limit from 80 °C to 120 °C and pulls the lower limit back to −20 °C.
Why 120 °C: most MSD moisture-removal bake profiles run at 90–110 °C for extended periods. The GPM-120C covers that range with headroom while keeping the 4.8 kg lightest-in-the-magazine-catalog weight. For bake profiles that exceed 120 °C (full IPC/JEDEC J-STD-033 accelerated 125 °C, or 200 °C cure cycles), step up to the metal-base B0103GM-200C.
Same NASTC ESD report and SGS RoHS certificate as the B0105GPN-80C and the metal-base B0103 family, 10⁴–10⁶ Ω dissipative band (ANSI/ESD S541) across the whole current path. Loader-compatible with ASM SIPLACE / Yamaha YSM / Panasonic NPM / Juki RS standard interfaces.
Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.
See it in motion

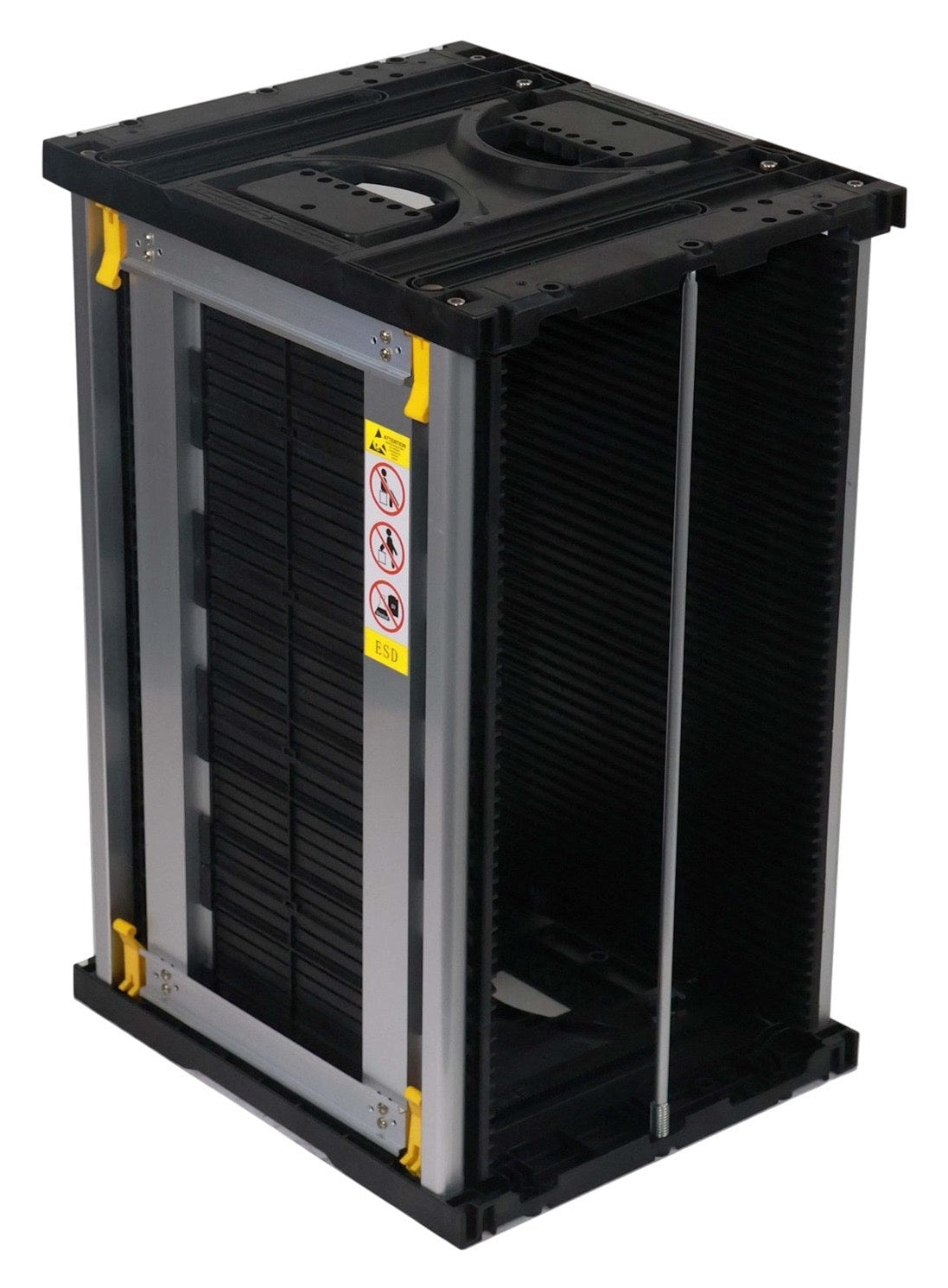

360° turntable rendered from the production CAD model. The geometry shown is the part that ships · B0105GPM-120C
B0105GPM-120C · Technical specifications
| Model | B0105GPM-120C |
|---|---|
| Materials | Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · Conductive PS base (no galvanized steel, all-plastic chassis) |
| Dimensions (L × W × H) | 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 3.5 mm (0.138″) |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 50–250 mm (1.97″–9.84″) via gear-track mechanism |
| Max board length | 355 mm (13.98″) |
| Max board size (L × W) | 355 × 250 mm |
| Min board size (L × W) | 50 × 50 mm |
| Reference positions | A = 34 mm · B = 34 mm |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (dissipative band per ANSI/ESD S541) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +120 °C (−4 °F to 248 °F), covers MSD low-bake profiles (90–110 °C) |
| Adjustment type | Gear track with parallelism monitoring (screw adjustment configuration also available) |
| Includes | Stopper bar · carrying handles (top and bottom) |
| Weight | 4.8 kg, lightest in the magazine catalog (vs 6.3 kg gear / 6.1 kg screw) |
Documentation
Download spec sheet (PDF)

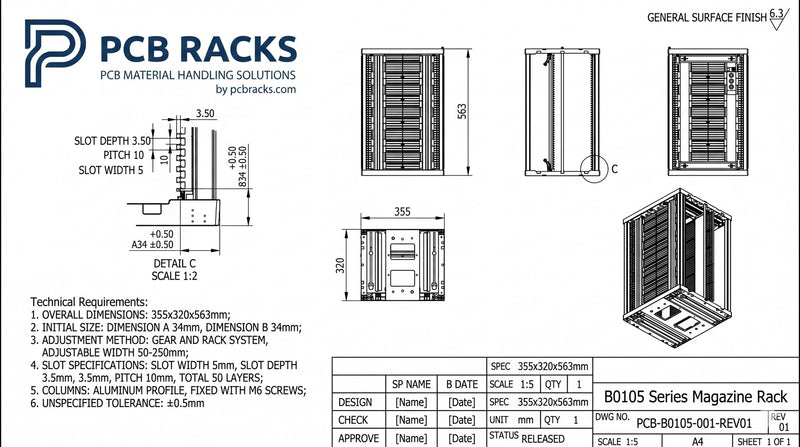

Need drawings or CAD models? Request them by email
Machine compatibility
| Loader / machine | Series | Interface |
|---|---|---|
| ASM SIPLACE | All in-line loaders / unloaders | 563 mm chassis · 10 mm slot pitch |
| Yamaha | YSM series | 563 mm chassis · 10 mm slot pitch |
| Panasonic | NPM series | 563 mm chassis · 10 mm slot pitch |
| Juki | RS series | 563 mm chassis · 10 mm slot pitch |
| Other in-line SMT | Standard-interface loaders | Ask for a fit-check if your line uses a custom fixture |
Not sure your loader is on the list? Send us the model and we confirm fit before you order.
Against the alternatives
| Feature | B0105GPN-80C | B0105GPM-120C |
|---|---|---|
| Temperature rating | −10 °C to +80 °C (14 °F to 176 °F), note the −10 °C low-end (vs −20 °C on metal-base mag racks) | −20 °C to +120 °C (−4 °F to 248 °F), covers MSD low-bake profiles (90–110 °C) |
| Width adjustment | Gear track, parallelism monitored | Gear track, parallelism monitored |
| MSD bake per J-STD-033 | No. Transfer to a bake-rated rack first | Yes, covers MSD low-bake profiles at 90–110 °C |
| Frame | Conductive PPE panels · aluminum pillars · conductive PS base (no steel) | Conductive PPE panels · aluminum pillars · conductive PS base (no steel) |
| Pick this one when | Standard storage, transport and in-line SMT handling. | Warm processes and short low-temperature bake. |
Built for ESD-protected workstations
Materials: 5 × Conductive PPE side panels · aluminum pillars · Conductive PS base (all-plastic chassis)
Surface res.: 10⁴ – 10⁶ Ω, dissipative band per ANSI/ESD S541
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all PASS
Thermal range: −20 °C to +120 °C, MSD low-bake (90–110 °C profiles)
Capacity: 50 slots · 10 mm pitch · 50–250 mm adjustable · max board 355 × 250 mm · 4.8 kg empty
RoHS: PASS, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: MSD low-bake (90–110 °C) on weight-sensitive / non-metallic chassis lines · in-line SMT automation · post-cure storage.
Not for: Bake / cure cycles > 120 °C (use the metal-base B0103GM-200C (200 °C) or B0103GL HT-300C (300 °C all-aluminum)).
Standards referenced
- IPC/JEDEC J-STD-033
- The moisture-sensitive-device handling standard. It sets the bake profiles (typically 90–125 °C) used to drive moisture out of MSD boards before reflow, which is why a rack's temperature rating decides whether boards can stay in it through the bake.
- ANSI/ESD S541
- The ESD Association standard for packaging materials in an EPA. It classifies surface resistance into conductive (below 10⁴ Ω), dissipative (10⁴ to below 10¹¹ Ω) and insulative bands. Our measured 10⁴–10⁶ Ω sits in the dissipative band, the range specified for board handling.
- RoHS (EU) 2015/863
- The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. All 20 components of this product were tested and passed (SGS report NGBEC25007648601).
Full IPC and ESD standards reference for handling, storage and depaneling →
What's in the box
- Sold individually. Packaging size 570 × 370 × 120 mm at 4.8 kg gross, slightly taller carton than metal-base siblings. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Includes stopper bar and carrying handles (top + bottom).
Volume pricing
| Quantity | Price per unit | You save |
|---|---|---|
| 1–19 racks | $195 | Factory-direct price |
| 20+ racks | $175.50 | 10% |
Related parts & spares
Side Panel Kit · 10 Strips, One Rack (Pack of 10)
Ten side strips, a full set for one rack. Pick chassis and temp.
$6.00per unit Pack of 10 · $60.00
Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00Further reading
- Baking MSD boards per J-STD-033Why a rack's temperature rating decides whether boards change containers for the bake.
- Sizing a rack to your boardsThe four measurements that decide fit, including component envelope against slot pitch.
- Gear, screw or belt adjustmentWhich mechanism suits your changeover pattern, and what wears out.
- Will the rack fit my SMT loader?Chassis height, slot pitch and footprint, plus custom-fixture checks.
Engineers also bought
Rack Wear Kit · 50-Slot Magazine Rack Consumables
Every wear part for one gear-adjust rack: tracks, latches, stopper bar, gears, slot stoppers.
$99.00Side Panel Kit · 10 Strips, One Rack (Pack of 10)
Ten side strips, a full set for one rack. Pick chassis and temp.
$6.00per unit Pack of 10 · $60.00Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00
B0103GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack built for in-line SMT loaders and unloaders.
External dimensions (L × W × H)
14″ × 13″ × 22″
355 × 320 × 563 mm
Max board size (L × W)
14″ × 10″
355 × 250 mm
Gear track ESD-Safe$188.00
B0106GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack on the large-format chassis, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.
External dimensions (L × W × H)
18″ × 16″ × 22″
460 × 400 × 563 mm
Max board size (L × W)
18″ × 13″
460 × 330 mm
Gear · 200 °C ESD-Safe$333.00
B0106GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack on the large-format chassis, sized for boards up to 460 × 330 mm.
External dimensions (L × W × H)
18″ × 16″ × 22″
460 × 400 × 563 mm
Max board size (L × W)
18″ × 13″
460 × 330 mm
Gear track ESD-Safe$257.00
B0108GM-200C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
50-slot ESD magazine rack on the extra-large-format chassis, rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.
External dimensions (L × W × H)
21″ × 18″ × 22″
535 × 460 × 569 mm
Max board size (L × W)
21″ × 15″
535 × 390 mm
Gear · 200 °C ESD-Safe$429.00
Questions engineers ask
What temperatures does the B0105GPM-120C actually handle?
Rated −20 °C to +120 °C (−4 °F to 248 °F). The 120 °C ceiling covers most MSD moisture-removal bake profiles (90–110 °C for 24–72 hours) per IPC/JEDEC J-STD-033, with margin. For the full 125 °C accelerated profile or anything cure-related above 120 °C, step up to the metal-base B0103GM-200C (200 °C).
What’s the difference between B0105GPM-120C and B0105GPN-80C?
Same chassis, same materials, same gear-track mechanism, same weight, same ESD spec, the only difference is temperature qualification. The B0105GPN-80C is rated −10 °C to +80 °C (standard SMT envelope, lower cost, no bake). The B0105GPM-120C is rated −20 °C to +120 °C (handles MSD low-bake, slightly higher cost). Pick GPN if your line never sees a bake oven; pick GPM if any of your line involves 90–110 °C moisture removal.
Plastic vs metal-base for 200 °C bake, which one do I pick?
The all-plastic B0105GPM tops out at 120 °C. For bake or cure profiles that exceed 120 °C, switch to the metal-base B0103GM-200C (gear-track) or B0104M-200C (screw). For 300 °C aerospace cure, the all-aluminum B0103GL HT-300C is the only option. The trade-off is weight: 4.8 kg plastic vs 6.3 kg gear-track metal vs 8 kg HT aluminum.
Will the B0105GPM-120C drop into my SMT loader / unloader?
Yes. The 563 mm chassis height and 10 mm slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The 355 × 320 mm footprint is identical to the B0103 / B0104 family and the B0105GPN-80C cousin. All-plastic base does not change the loader interface.
Can I replace a damaged side panel without buying a whole new rack?
Yes. The side panels are made of 5 interchangeable Conductive PPE sections per wall, each individually replaceable, same as the metal-base mag racks. Rack spares are sold separately for every magazine-rack chassis we’ve ever shipped, on a ~1-week lead.
What ships in the box?
One B0105GPM-120C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 570 × 370 × 120 mm at 4.8 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. No assembly required.
