Magazine Rack · 50 Slots · Screw-Adjustable · 80 °C · Set-Once

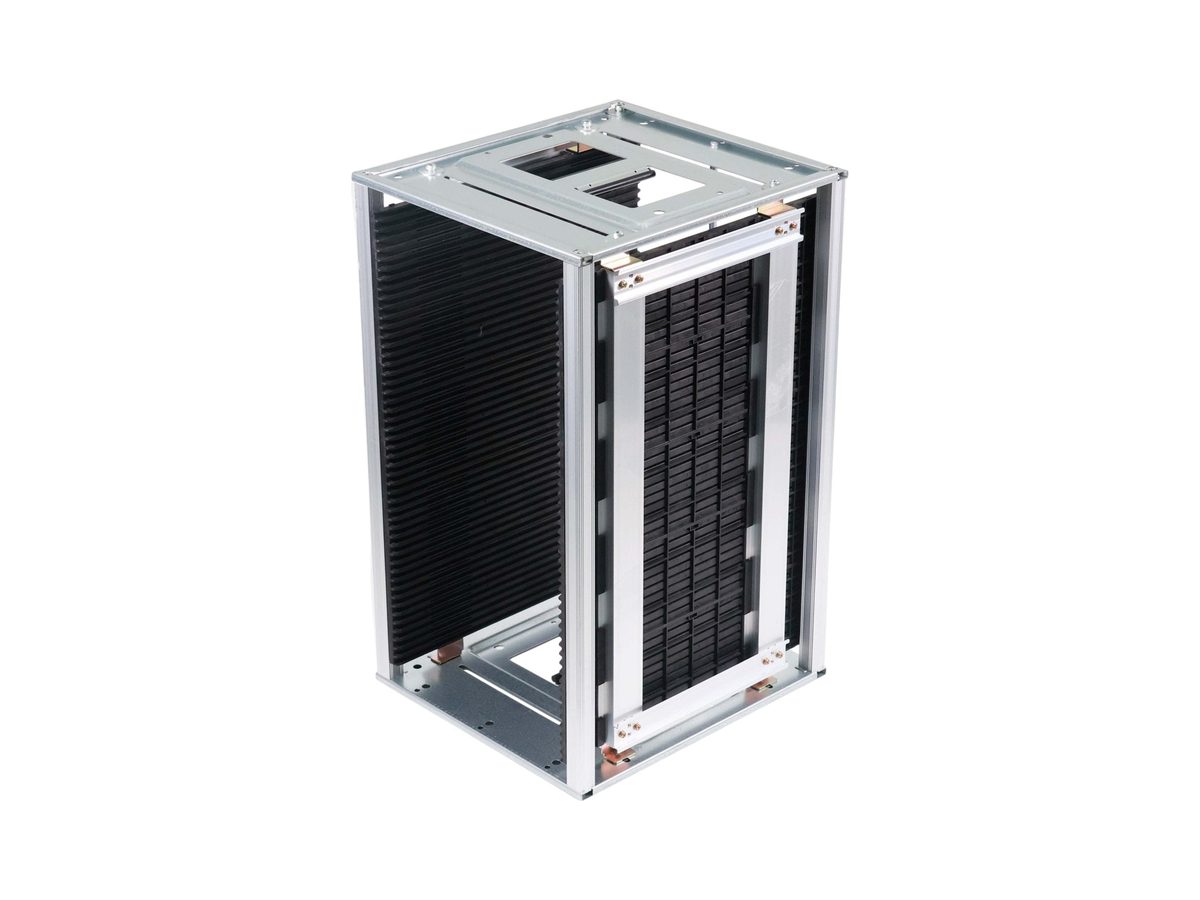

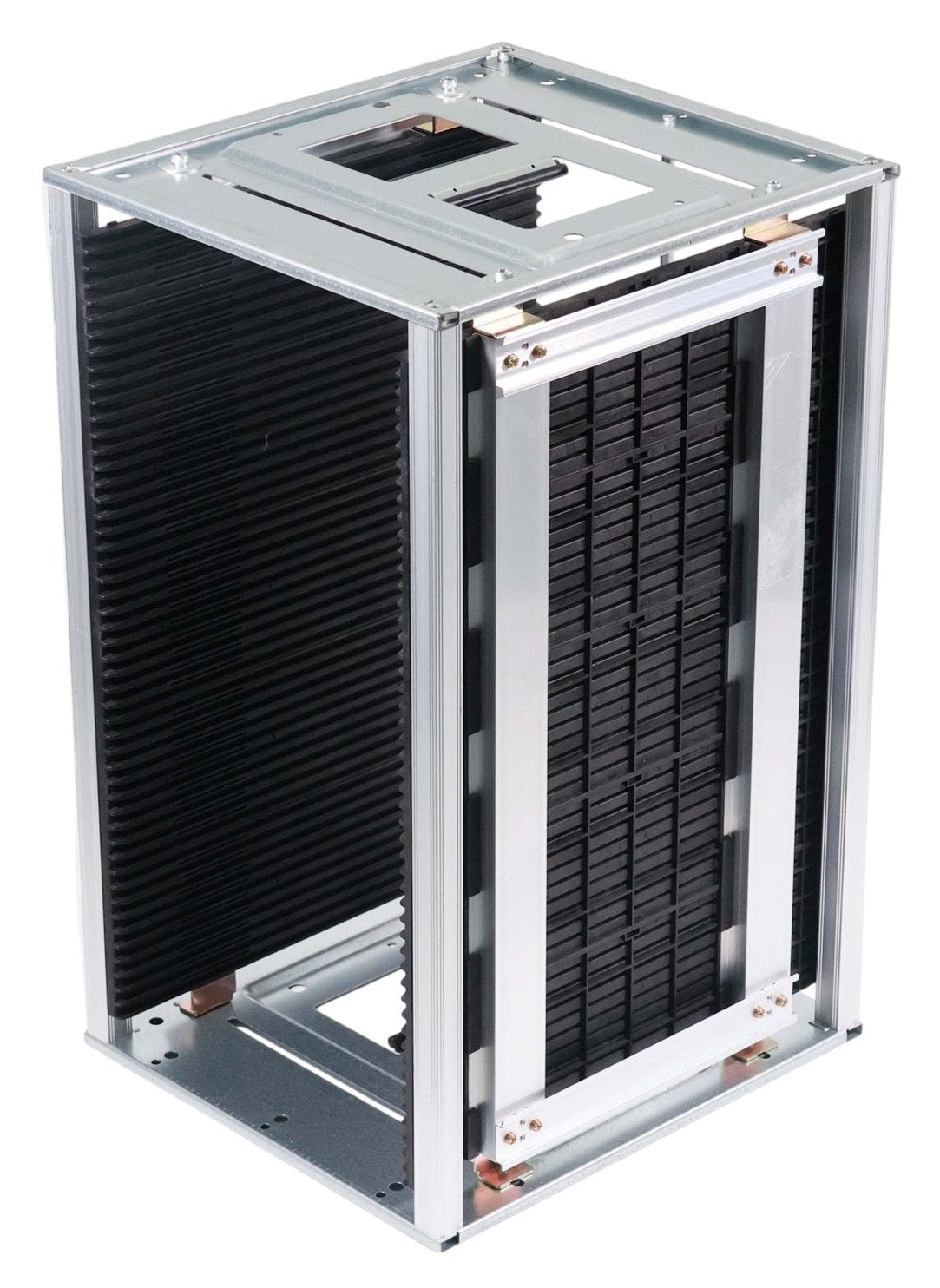

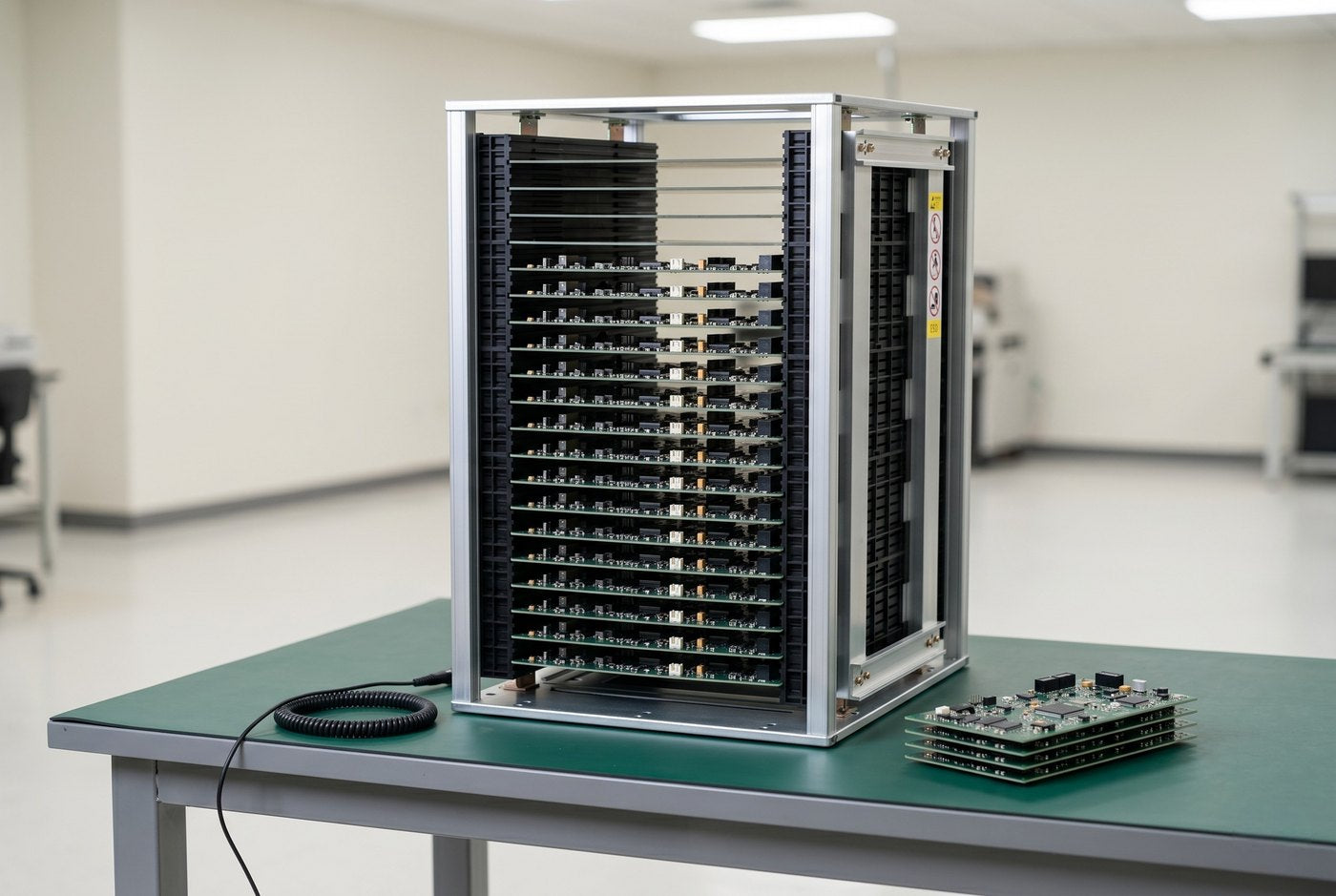

B0104N-80C · 50-Slot Screw-Adjustable ESD PCB Magazine Rack
B0104N-80C80 °CIn stock · ships in under 24 h · USA
The B0104N-80C is a 50-slot ESD-safe PCB magazine rack with screw width adjustment, rated 80 °C (176 °F). Slot pitch is 10 mm, board width adjusts from 50–250 mm. It ships from California and fits standard in-line SMT loaders.
External dimensions (L × W × H)14″ × 13″ × 22″
355 × 320 × 563 mm
$188.00 per unit
- Adjustable Width: 50–250 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 355 × 250 mm
- Temp Range: −20 / +80 °C
Replacing another maker's part? Cross-reference your part number →
Heads-up: $300 order minimum. Combine spares or add to a rack order.
ESD-safe
Ships from the USA
Spec help included
At a glance
External dimensions (L × W × H)14″ × 13″ × 22″
355 × 320 × 563 mm
355 × 320 × 563 mm
Adjustable Width50–250 mm
Slot Count / Pitch50 @ 10 mm
Max Board (L × W)355 × 250 mm
Temp Range−20 / +80 °C
Same Board Width Every Run. Stop Paying for Quick-Change.
Production lines that run the same board width for weeks or months don’t need a quick-change gear-track mechanism. They need a width that stays exactly where it was set and won’t drift under vibration, stacking, or repeated loading. Screw adjustment locks the panel mechanically, set it once, walk away.
Set-once · zero drift
Vibration-resistant
50 slots @ 10 mm pitch
SMT loader compatible
Description
External dimensions (L × W × H): 14″ × 13″ × 22″ · 355 × 320 × 563 mm
How screw adjustment works on your line
The B0104N-80C is a 50-slot ESD magazine rack with screw-clamp width adjustment, precision mechanical, vibration-resistant, locked once and held through thousands of load cycles. Width range is the same 50–250 mm as the gear-track sibling, but the screw mechanism is about 10–15% lower cost and shaves a fraction of a kilo off the empty weight (6.1 kg vs 6.3 kg).
Construction: 5 interchangeable Conductive PPE side panels per wall, aluminum pillars, galvanized steel base, same materials and same compliance as the gear-track variants. The screw mechanism replaces the gear track / pinion assembly with a precision threaded clamp on each side panel. 10⁴–10⁶ Ω dissipative band (ANSI/ESD S541) across all contact points; sectioned panels swap individually if one gets damaged.
Pick the screw variant when your line runs a fixed board width for the duration of the program, you set the width once, lock it, and the rack runs for weeks without re-adjustment. For frequent width changes, the B0103GN-80C gear-track sibling is faster to set. For 200 °C bake on the screw mechanism, use the B0104M-200C.
Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.
See it in motion
360° turntable rendered from the production CAD model. The geometry shown is the part that ships · B0104N-80C
B0104N-80C · Technical specifications
| Model | B0104N-80C |
|---|---|
| Materials | Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · galvanized steel base |
| Dimensions (L × W × H) | 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 3.5 mm (0.138″) |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 50–250 mm (1.97″–9.84″) via screw adjustment mechanism |
| Max board length | 355 mm (13.98″) |
| Max board size (L × W) | 355 × 250 mm |
| Min board size (L × W) | 50 × 50 mm |
| Reference positions | A = 34 mm · B = 34 mm |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (dissipative band per ANSI/ESD S541) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature rating | −20 °C to +80 °C (−4 °F to 176 °F) |
| Adjustment type | Screw (precision mechanical, vibration-resistant, set-once) |
| Includes | Stopper bar · carrying handles (top and bottom) |
| Weight | 6.1 kg |
Documentation
Download spec sheet (PDF)
Need drawings or CAD models? Request them by email
Machine compatibility
| Loader / machine | Series | Interface |
|---|---|---|
| ASM SIPLACE | All in-line loaders / unloaders | 563 mm chassis · 10 mm slot pitch |
| Yamaha | YSM series | 563 mm chassis · 10 mm slot pitch |
| Panasonic | NPM series | 563 mm chassis · 10 mm slot pitch |
| Juki | RS series | 563 mm chassis · 10 mm slot pitch |
| Other in-line SMT | Standard-interface loaders | Ask for a fit-check if your line uses a custom fixture |
Not sure your loader is on the list? Send us the model and we confirm fit before you order.
Against the alternatives
| Feature | B0104M-200C | B0104N-80C |
|---|---|---|
| Temperature rating | −20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033 | 80 °C (176 °F) |
| Width adjustment | Screw set, fixed once | Screw set, fixed once |
| MSD bake per J-STD-033 | Yes, boards stay in the rack through bake | No. Transfer to a bake-rated rack first |
| Frame | Conductive PPE panels · aluminum pillars · steel base | Conductive PPE panels · aluminum pillars · steel base |
| Pick this one when | MSD bake at 90–125 °C, one container from storage through bake to the loader. | Standard storage, transport and in-line SMT handling. |
Built for ESD-protected workstations
Materials: 5 × Conductive PPE side panels · aluminum pillars · galvanized steel base
Surface res.: 10⁴ – 10⁶ Ω, dissipative band per ANSI/ESD S541
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all PASS
Thermal range: −20 °C to +80 °C, standard SMT envelope
Capacity: 50 slots · 10 mm pitch · 50–250 mm adjustable · max board 355 × 250 mm
RoHS: PASS, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: Dedicated single-width production lines · vibration-prone environments · SMT in-line automation · standard-temp storage & transport.
Not for: Bake / cure cycles > 80 °C (use the 200 °C or 300 °C variants on the same chassis).
Standards referenced
- IPC/JEDEC J-STD-033
- The moisture-sensitive-device handling standard. It sets the bake profiles (typically 90–125 °C) used to drive moisture out of MSD boards before reflow, which is why a rack's temperature rating decides whether boards can stay in it through the bake.
- ANSI/ESD S541
- The ESD Association standard for packaging materials in an EPA. It classifies surface resistance into conductive (below 10⁴ Ω), dissipative (10⁴ to below 10¹¹ Ω) and insulative bands. Our measured 10⁴–10⁶ Ω sits in the dissipative band, the range specified for board handling.
- RoHS (EU) 2015/863
- The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. All 20 components of this product were tested and passed (SGS report NGBEC25007648601).
Full IPC and ESD standards reference for handling, storage and depaneling →
What's in the box
- Sold individually. Packaging size 570 × 370 × 100 mm at 6.1 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Includes stopper bar and carrying handles (top + bottom).
Volume pricing
| Quantity | Price per unit | You save |
|---|---|---|
| 1–19 racks | $188 | Factory-direct price |
| 20+ racks | $169.20 | 10% |
Related parts & spares
Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00Further reading
- Sizing a rack to your boardsThe four measurements that decide fit, including component envelope against slot pitch.
- Gear, screw or belt adjustmentWhich mechanism suits your changeover pattern, and what wears out.
- What “ESD safe” actually meansSurface resistance, the S541 bands, and how to read a test report.
- Will the rack fit my SMT loader?Chassis height, slot pitch and footprint, plus custom-fixture checks.
Engineers also bought
Side Panel Kit · 10 Strips, One Rack (Pack of 10)
Ten side strips, a full set for one rack. Pick chassis and temp.
$6.00per unit Pack of 10 · $60.00Frame & Plate Kit · Rack Structure for One Rack
The complete structure for one rack: plates, both side frames and four pillars.
$159.00
Top & Bottom Board · PCB Magazine Rack Spare
Panel that caps the top and bottom of the rack frame.
$63.00Questions engineers ask
Screw vs gear-track adjustment, which one do I pick?
Pick screw (this rack) when your line runs one board width for the duration of a program. The screw mechanism locks the panel position with mechanical precision, zero drift through transport vibration, repeated loading, or thermal cycling. About 10–15% lower cost than the gear-track equivalent, and slightly lighter (6.1 kg vs 6.3 kg). Pick the gear-track B0103GN-80C when board widths change frequently and re-set speed matters.
How “set-once” is the screw clamp? Will it drift?
The screw mechanism is a precision threaded clamp, not a friction lock. Once tightened to the target width, it holds position through thousands of load cycles, transport vibration, and thermal cycling. Re-adjustment is by intent only (loosen, slide, re-tighten), not by accident. For dedicated lines that run the same width for weeks or months, the screw rack is the lower-maintenance pick.
Will the B0104N-80C drop into my SMT loader / unloader?
Yes. The 563 mm chassis height and 10 mm slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The 355 × 320 mm footprint is identical to the B0103 family (gear-track, belt, HT) and the B0104M-200C screw sibling. If your line uses a non-standard fixture, ask sales for a fit-check before ordering.
Can I bake the B0104N-80C? What’s the temperature ceiling?
The N-80C variant is rated 80 °C (176 °F), the standard SMT envelope (transport, storage, soldering, inspection, cleaning). For bake-suitable use on the same screw mechanism, pick the B0104M-200C (200 °C), same chassis, same screw clamp, qualified for IPC/JEDEC J-STD-033 moisture-removal cycles. The screw family does not currently include a 300 °C variant; for that, switch to the B0103GL HT-300C gear-track all-aluminum rack.
Can I replace a damaged side panel without buying a whole new rack?
Yes. The side panels are made of 5 interchangeable Conductive PPE sections per wall, each individually replaceable. If one section gets cracked or contaminated, swap that section out and the rest of the rack stays in service. Rack spares are sold separately for every magazine-rack chassis we’ve ever shipped, on a ~1-week lead.
What ships in the box?
One B0104N-80C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 570 × 370 × 100 mm at 6.1 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. No assembly required.
