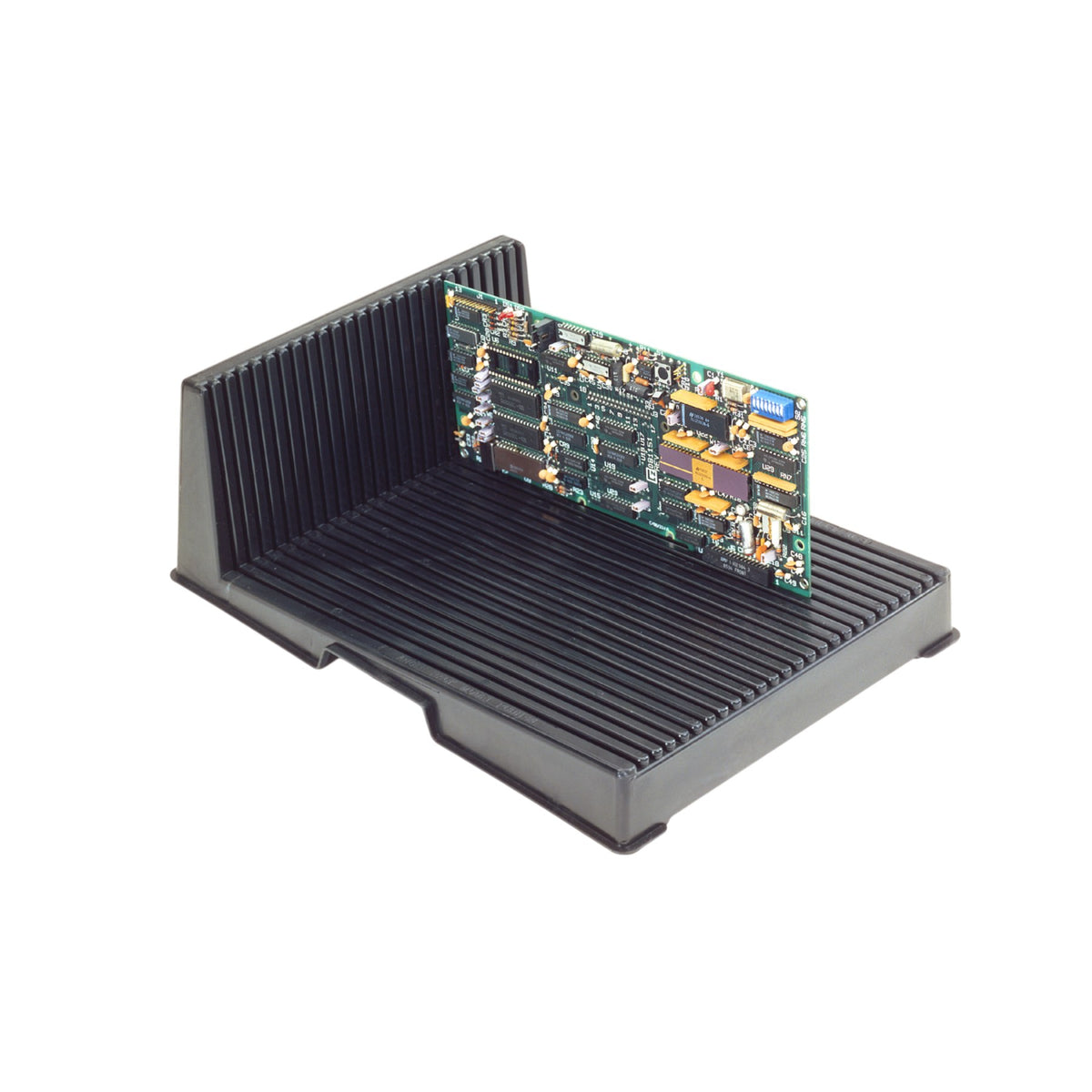

Three-quarter view of the PCBH-2L-C angled ESD PCB holder rack from the opposite side; 25 slots, conductive polypropylene, boards to 305 × 203 mm (12.01 × 7.99 in), pack of 10

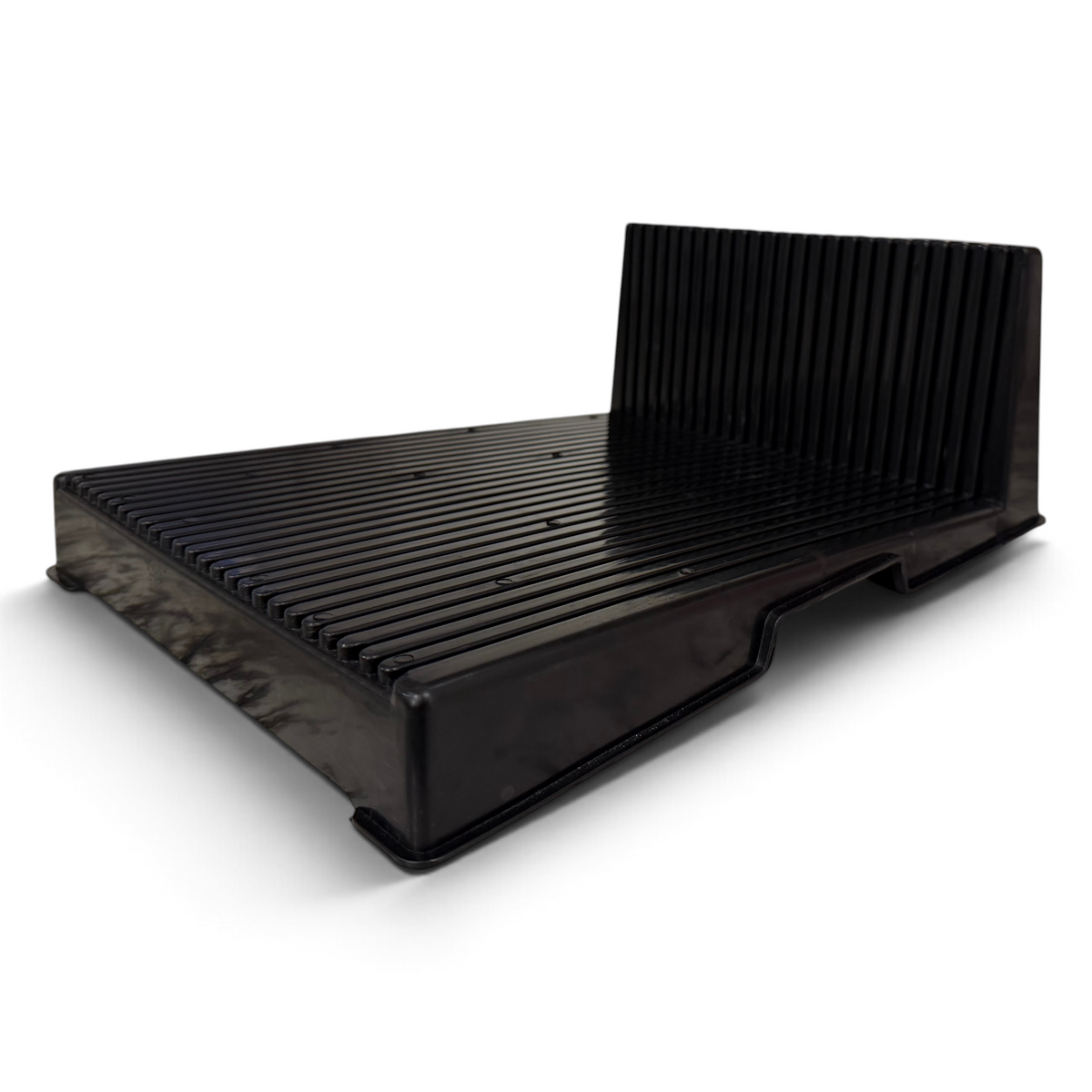

PCBH-2L-CAngled PCB Holder, ESD, Double-Angle (Pack of 10)

Angled PCB Holder · 25 Slots · Wide Base · Pack of 10

PCBH-2L-C is an angled ESD PCB holder that supports each board on two sides, for production benches and storage between process steps.

Slots: 25, on a 10 mm (0.394″) pitch
Slot Size: 3 mm wide, 5 mm deep (0.118″ × 0.197″)
Maximum PCB Size: 305 × 203 mm (12.01″ × 7.99″)
Maximum Board Thickness: 2.4 mm (0.094″)
Holder Size: 355 × 270 × 130 mm (13.98″ × 10.63″ × 5.12″)
ESD Rating: Conductive polypropylene, 10⁴ Ω
Temperature Range: −10 °C to +80 °C (14 °F to 176 °F)

The L-shaped body holds each board at an angle, resting on two sides, and the wide base keeps it steady on the bench. Sold in packs of 10, no assembly.

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

$37.60per holder · pack of 10: $376.00

ESD safeConductive 10⁴ Ω TemperatureUp to 80 °C (176 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

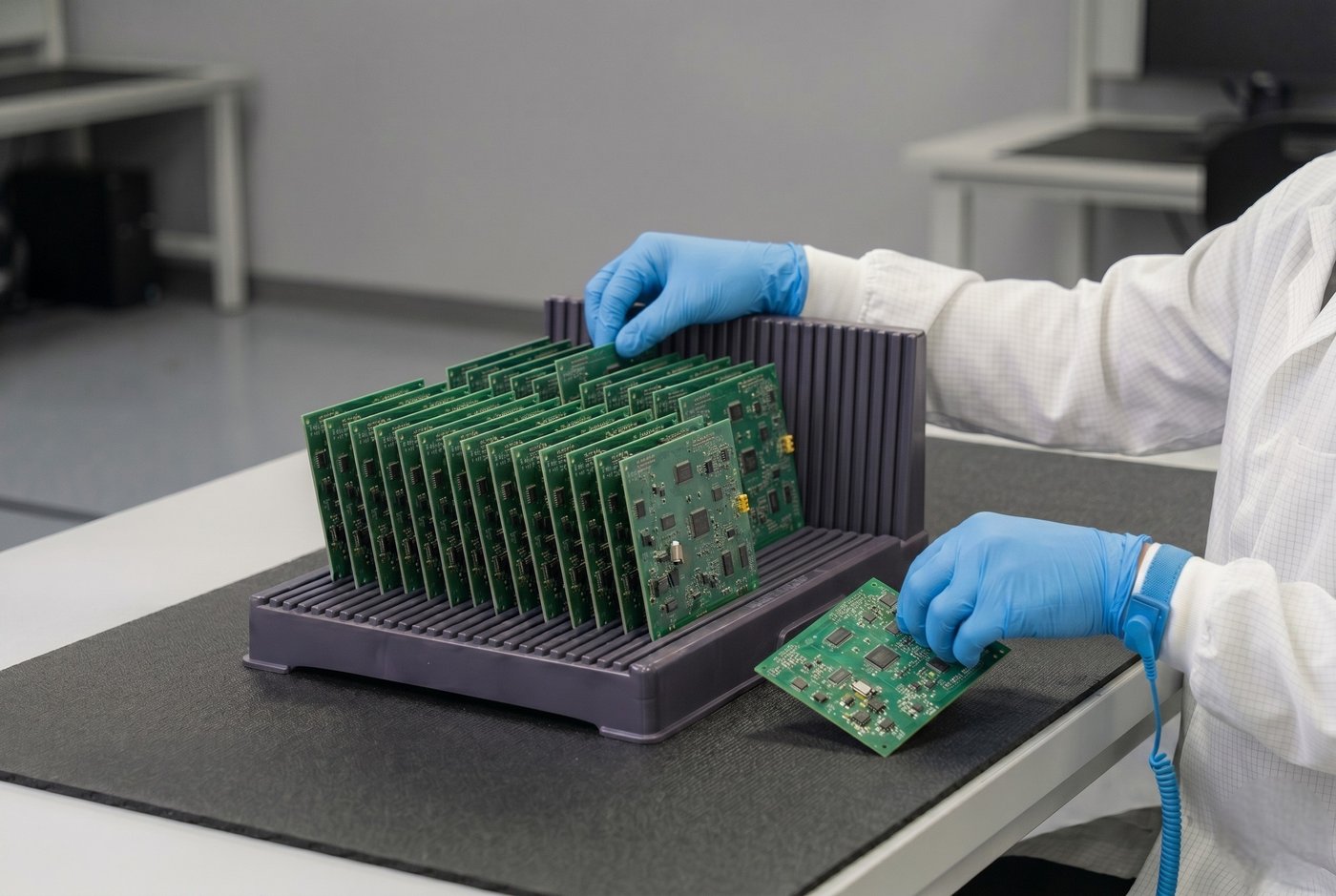

PCBH-2L-C loaded with circuit boards — Loaded and ready for the line

At a glance

What it does: Holds 25 boards at an angle, each supported on two sides.
The problem it solves: Boards stay put without leaning on each other, face up and easy to reach.
What it fits: Boards from 50 × 50 mm to 305 × 203 mm (2 × 2 in to 12 × 8 in), up to 2.4 mm (0.094 in) thick.
Key specs: 25 slots · 10 mm (0.39 in) pitch · conductive 10⁴ Ω · packs of 10

Details

Every board held on two sides.

An L-shaped body holds each board at an angle, resting on two sides instead of one.

The engineer, who chooses it: Each board rests on two sides at an angle, so it stays put without leaning on the board next to it.
The operator, who uses it: Set a board in and it stays where you put it, face up and easy to reach. The wide base keeps the holder steady on the bench.
The buyer, who pays for it: A pack of ten, priced on the page, in stock and shipped within a day.

Description

The PCBH-2L-C is a 25-slot conductive polypropylene wide-base board holder with a double wide-angle, L-shaped design. Each slot is 3 mm (0.118″) wide with a 5 mm (0.197″) depth and a 10 mm (0.394″) pitch, and the angled L-presentation fans boards out for direct visual and physical access to both sides without pulling any one board out of its slot.

The 355 × 270 mm (13.98″ × 10.63″) footprint sits stable on workbenches, inspection tables, and ESD-safe carts. At 130 mm (5.12″) tall, boards sit high enough that operators don’t bend or reach into a flat rack to read marking, solder joints, or component placement. 0.44 kg (0.97 lb) empty, heavier than the PCBH-C, which keeps the holder planted when boards are added or removed.

Conductive PP at 10⁴ Ω keeps boards protected through inspection, QC and hand work. It is the operator-facing workhorse of the inspection bench.

At QC, every board pulled out of a straight rack to be read is one more handling step. On the PCBH-2L-C, solder joints and part markings face the inspector while the board stays in its slot. Industries we serve: aerospace and defense, automotive electronics, medical devices and contract manufacturing.

Buying for a line? 5 or more packs take 5% off and 10 or more take 10% off, automatically at checkout. See our volume and fleet pricing.

Best uses

Production benches: Boards wait at an angle, apart and easy to reach.
Hand assembly: Boards sit face up beside the operator.
Storage between steps: Boards stay supported on two sides until the next step.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−10 to 80 °C (14 to 176 °F)

PCBH-2L-CThis product−10 to 80 °C

80 °C · 176 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Made for production, storage and bench work at normal factory temperatures.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

The polypropylene itself is conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

Boards up to 2.4 mm (0.094 in) thick.

Technical data

Model	PCBH-2L-C
Material	Conductive polypropylene (PP)
Dimensions (L × W × H)	355 × 270 × 130 mm (13.98″ × 10.63″ × 5.12″)
Design	Double wide-angle board holder · L-shaped angled presentation
Slot count	25
Slot width	3 mm (0.118″)
Slot depth	5 mm (0.197″)
Slot pitch	10 mm (0.394″)
Max board thickness	~2.4 mm (0.094″)
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Max board size (L × W)	305 × 203 mm (12.01″ × 7.99″)
ESD properties	Surface resistance 10⁴ Ω, conductive
Temperature range	−10 °C to +80 °C (14 °F to 176 °F)
Chemical resistance	Resistant to non-oxidizing acids, alkalis, and most organic solvents. Not suitable for halogenated hydrocarbons, aromatic solvents, or strong oxidizing acids.
Weight	0.44 kg (0.97 lb) per holder

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.

Full IPC and ESD standards reference for handling, storage and depaneling

FAQ

Questions

Angled PCB holder or ESD turntable: which one for inspection?

Take the angled PCB holder when you inspect a batch: 25 boards fan out at two angles and the inspector reads both faces in the slot. Take an ESD turntable when one large assembly needs work on every side: the D500 turns 360° under boards up to 400 × 350 mm (15.75″ × 13.78″).

Which inspection jobs is the angled PCB holder made for?

Visual inspection and QC of populated boards, anywhere both faces get checked before the board moves on, such as after hand soldering or rework. Electronics manufacturers and contract manufacturers put the PCBH-2L-C at their inspection and QC stations.

Where does the PCBH-2L-C sit: bench, inspection table or cart?

All three. The 355 × 270 mm (13.98″ × 10.63″) base sits stable on workbenches, inspection tables and ESD-safe carts. At 130 mm (5.12″) tall, boards sit high enough that nobody bends over a flat rack to read them, and at 0.44 kg (0.97 lb) empty it stays planted as boards go in and out.

What does an angled PCB holder cost per board position?

$37.60 per holder, sold as a pack of 10 for $376.00. With 25 slots, that is about $1.50 per board position. From 5 packs the price drops to $35.72 per holder, and from 10 packs to $33.84, automatically at checkout.

What size boards does the angled PCB holder take?

Boards from 50 × 50 mm (1.97″ × 1.97″) up to 305 × 203 mm (12.01″ × 7.99″), at up to 2.4 mm (0.094″) thick. Each of the 25 slots is 3 mm (0.118″) wide and 5 mm (0.197″) deep on a 10 mm (0.394″) pitch.

What does the double-angle L-shape actually do?

Boards fan out at two angles instead of standing straight, so an inspector reads both sides of a populated board without pulling it. That is the whole point of the 2L: visual and physical access to both faces at QC and inspection stations.

PCBH-2L-C or PCBH-C, which one do I need?

The 2L-C is the wide-base double-angle stand for inspection and QC where you need both sides of the board. The PCBH-C is the compact single-angle stand for tight benches: soldering, rework, microscope work.

Can our quality team get ESD and RoHS test reports for the PCBH-2L-C?

Yes. The PCBH-2L-C is conductive polypropylene, 10⁴ Ω, and RoHS compliant under EU Directive (EU) 2015/863. ESD and RoHS test reports go to your quality team on request for the audit file.

How are PCBH-2L-C holders packed?

In packs of 10 holders, ready to use. Bulk cartons measure 560 × 420 × 420 mm (22.05″ × 16.54″ × 16.54″) at 10 kg (22 lb) gross. In-stock packs ship from the USA in under 24 hours, and shipping is calculated at checkout from the weight of the order.

What temperature range is the PCBH-2L-C rated for?

−10 °C to +80 °C (14 °F to 176 °F). It is a bench holder for inspection and hand work. For bake or cure, use the magazine racks: 200 °C (392 °F) in the GM and M models, or the all-aluminum 300 °C (572 °F) HT Series.

How do I clean it without ruining the ESD surface?

Warm water with a mild pH-neutral detergent; IPA 70% for spot cleaning. Never use acetone, aromatic or halogenated solvents, or abrasives, and take boards out of the holder before spraying flux remover. Dry fully before boards go back in.

Where do I get the spec sheet or CAD?

The spec sheet PDF is behind the Download spec sheet button on this page, one short form unlocks the whole document library. Drawings and CAD are handled personally: request them by email and the team follows up.
