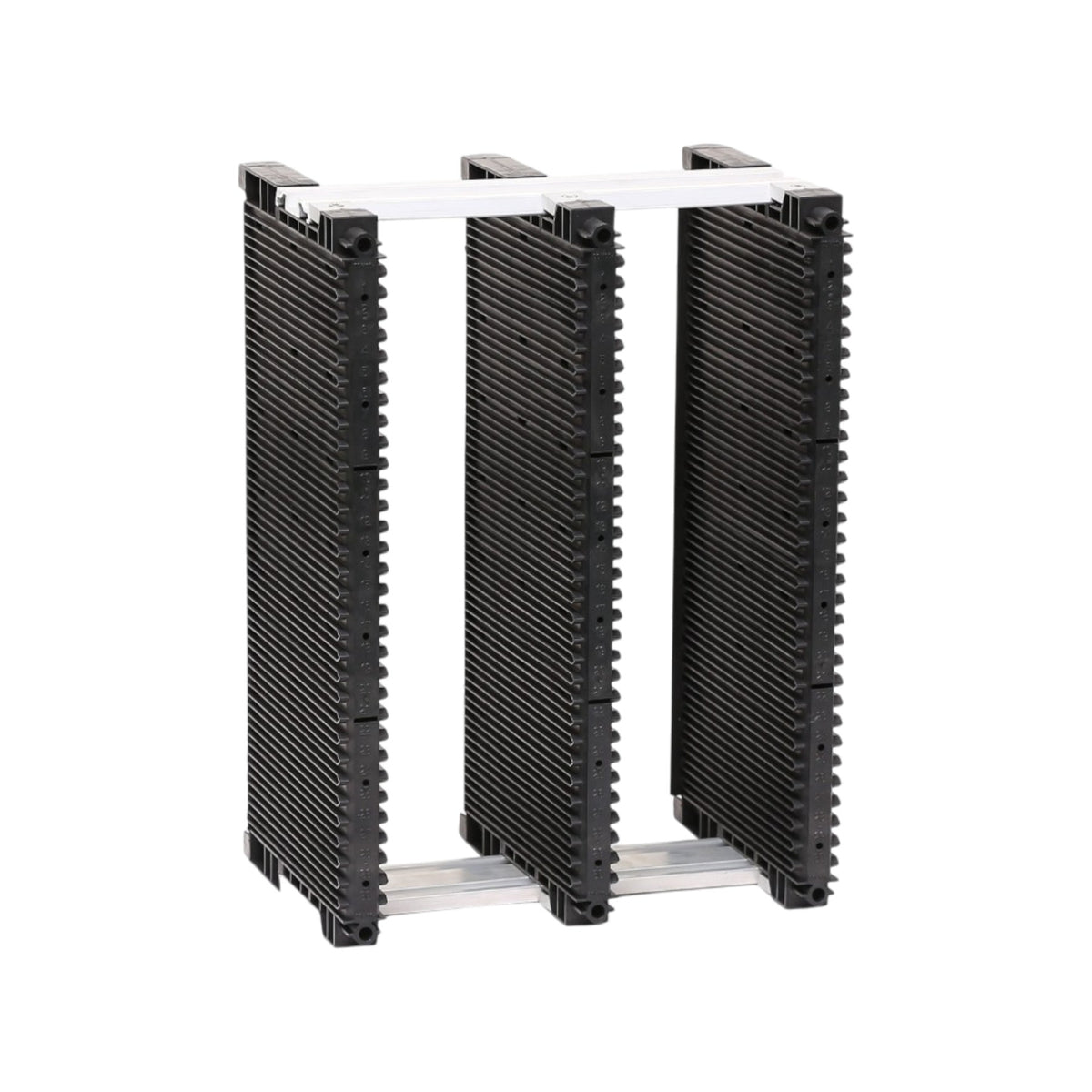

Karry-All 35 portable ESD PCB rack, three-quarter view on white; 30 slots, black conductive panels on aluminum rails, 350 × 175 mm (13.78 × 6.89 in), pack of 10

Karry-All 35Portable ESD PCB Karrier (30-Slot, Pack of 10)

Board Karrier · 30 Slots · Screw-Adjustable · Pack of 10

Karry-All 35 is a 30-slot ESD PCB karrier for moving boards between stations and holding them in storage. It drops into the tote or box you already use.

Slots: 30, numbered, on a 10 mm (0.394″) pitch
Slot Size: 4 mm wide, 3.8 mm deep (0.157″ × 0.150″)
Board Thickness: Up to about 3.2 mm (0.126″)
Maximum PCB Size: 350 × 175 mm (13.78″ × 6.89″)
Karrier Size: 350 × 175 × 355 mm (13.78″ × 6.89″ × 13.98″)
ESD Rating: Conductive polypropylene panels, 10⁴ Ω
Temperature Range: −10 °C to +80 °C (14 °F to 176 °F)

The side panel slides in the aluminum frame and locks with a clamp screw at the board width. Sold in packs of 10, quick assembly.

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

$44.90per karrier · pack of 10: $449.00

ESD safeConductive 10⁴ Ω TemperatureUp to 80 °C (176 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

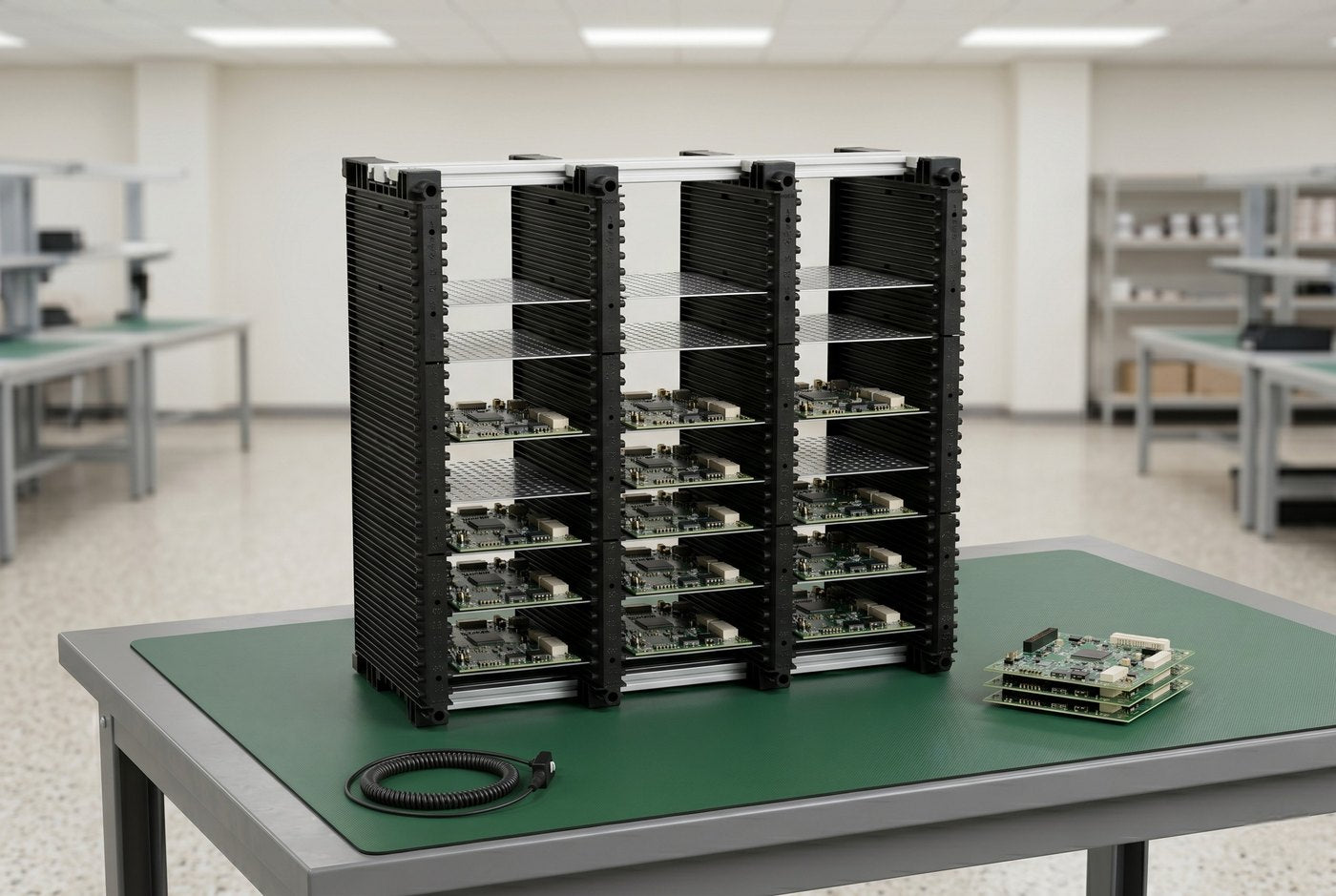

Karry-All 35 loaded with circuit boards — Loaded and ready for the line

At a glance

What it does: Holds 30 boards on edge and apart while they move between stations and wait in storage.
The problem it solves: Boards travel in numbered slots inside the tote or box you already use, instead of loose.
What it fits: Boards from 50 × 50 mm to 350 × 175 mm (2 × 2 in to 13.8 × 6.9 in), up to about 3.2 mm (0.126 in) thick.
Key specs: 30 numbered slots · 10 mm (0.39 in) pitch · conductive 10⁴ Ω · 2 kg (4.4 lb) · packs of 10

Details

Boards move in order, not in a pile.

Thirty numbered slots on a light aluminum frame that drops into your own tote or box.

The engineer, who chooses it: Numbered slots keep a lot in sequence from one station to the next, and the width locks with a clamp screw.
The operator, who uses it: Slide the panel to the board width, tighten the screw, load the slots and drop the karrier into the tote.
The buyer, who pays for it: A pack of ten, priced on the page, in stock and shipped within a day. Conductive 10⁴ Ω, with ESD and RoHS test reports on request.

Description

What the Karry-All 35 actually is

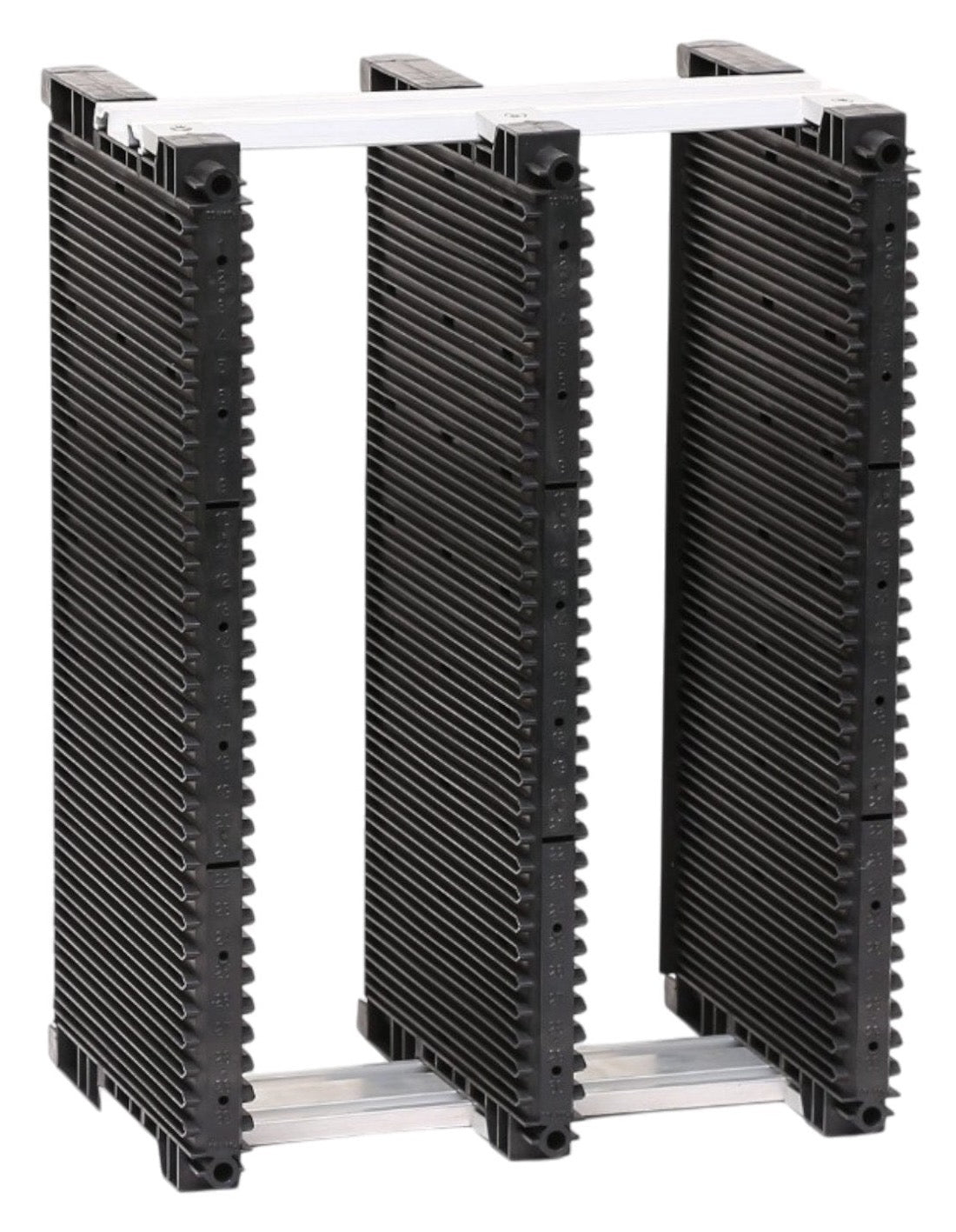

The Karry-All 35 is an ESD conductive PCB carrier, same form as a magazine rack (vertically slotted board rails) but with two key deltas: no rear stopper and screw-set width: a fixed panel plus a mobile panel that slides through the aluminum frame and locks with a clamp screw. The slots themselves are fixed pitch and numbered. Boards sit upright in 30 fixed-pitch slots and the karrier drops into any outer box or tote, the outer container is the enclosure. Hence the name: a karrier for boards, designed to be carried inside something else.

Triple use case: (1) slot separator inside a carton, keeping boards vertically aligned and edge-protected without foam or cardboard inserts; (2) transport karrier when slipped into a transit container, with the outer tote providing dust / FOD / impact protection; (3) storage frame at a station for short-term board staging during inspection, QC, or rework.

Conductive polypropylene (PP) slotted panels on an aluminum frame. Surface resistance is 10⁴ Ω, conductive, the same as the magazine racks. Not for in-line SMT loaders, baking, or any cycle above 80 °C. For inline SMT integration use a B0103-series magazine rack; for benchtop slotted-edge access use an RA-series transport rack.

Buying for a line? 5 or more packs take 5% off and 10 or more take 10% off, automatically at checkout. See our volume and fleet pricing.

Best uses

Between stations: Boards move in their numbered slots inside a tote or box.
Storage: A full karrier waits on the shelf with every board upright and apart.
At the bench: Boards wait on edge between process steps.

Why factories use board karriers

A board is most at risk while it moves and waits: static, scratches, bent edges and mix-ups.
A karrier holds every board upright and apart, each in its own numbered slot.
Conductive panels carry static away instead of letting it build up on the boards.
The boards in one karrier are worth far more than the karrier.

Specs

Temperature rating

−10 to 80 °C (14 to 176 °F)

Karry-All 35This product−10 to 80 °C

80 °C · 176 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Made for moving and storing boards by hand at normal factory temperatures.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

The slotted panels are conductive polypropylene, so static is carried away instead of building up on the boards. ESD and RoHS test reports on request.

Board sizes it takes

The clamp screw locks the movable side panel at the board width.

Technical data

Model	Karry-All 35
Materials	Conductive polypropylene (PP) slotted panels on an aluminum frame, open slotted frame, no rear stopper
Dimensions (L × W × H)	350 × 175 × 355 mm (13.78″ × 6.89″ × 13.98″)
Slot count	30 (vs 50 on magazine racks)
Slot width	4 mm (0.157″)
Slot depth	3.8 mm (0.150″)
Slot pitch	10 mm (0.394″)
Adjustment	Width by screw: mobile side panel slides in the aluminum frame, locked with a clamp screw · slot spacing fixed at 10 mm (0.394″), numbered slots
Max board length	350 mm (13.78″)
Max board size (L × W)	350 × 175 mm (13.78″ × 6.89″)
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Max board thickness	~3.2 mm (0.126″), accommodates 1.6 mm (0.063″), 2.0 mm (0.079″), thicker
ESD properties	Surface resistance 10⁴ Ω, conductive
Temperature range	−10 °C to +80 °C (14 °F to 176 °F), manual handling envelope only (not for bake / cure / SMT line)
Design	Open slotted frame · NO rear stopper · drops into outer box / tote for transport (the outer container is the enclosure)
Chemical resistance	Resistant to non-oxidizing acids, alkalis, most organic solvents · NOT suitable for halogenated hydrocarbons, aromatic solvents, strong oxidizing acids
Weight	2 kg (4.4 lb), lightest carrier in the catalog

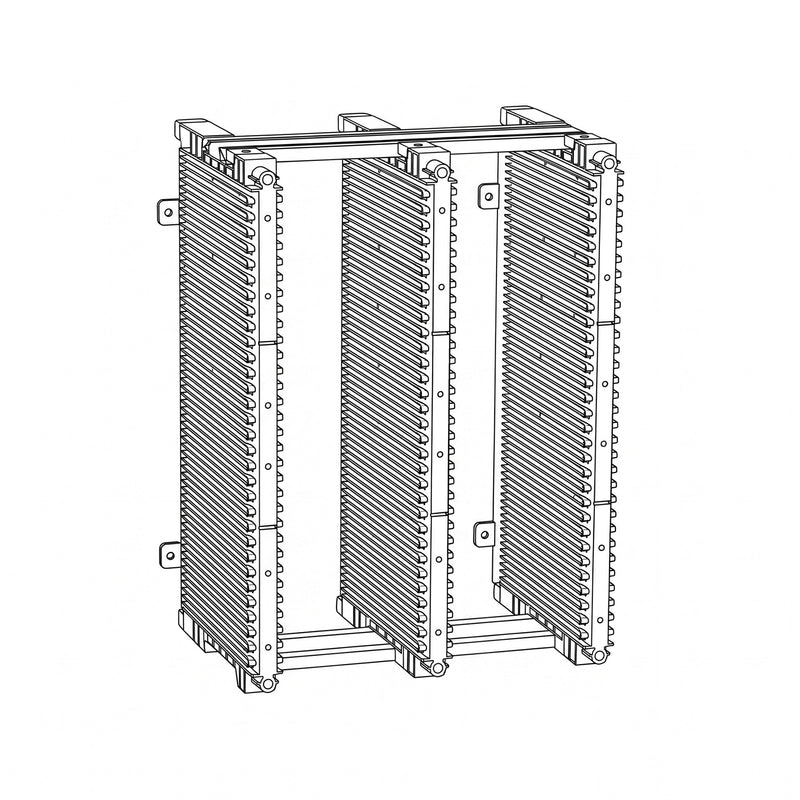

Overall size

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.

Full IPC and ESD standards reference for handling, storage and depaneling

Features

30 numbered slots, each 4 mm wide and 3.8 mm deep (0.157 × 0.150 in), on a 10 mm (0.394 in) pitch.
The movable side panel slides in the aluminum frame and locks with a clamp screw to set the width.
Takes boards from 50 × 50 mm to 350 × 175 mm (1.97 × 1.97 in to 13.78 × 6.89 in), from 1.6 mm (0.063 in) up to about 3.2 mm (0.126 in) thick.
Conductive polypropylene slotted panels on an aluminum frame, 10⁴ Ω.
An open frame, made to drop into the tote or box you already move boards in.
Resists non-oxidizing acids, alkalis and most organic solvents.
2 kg (4.4 lb) per karrier. Sold in packs of 10.

What's in the box

Sold in packs of 10. Volume pricing starts at 5 packs; orders of 10+ ship in a bulk carton (580 × 410 × 280 mm (22.83″ × 16.14″ × 11.02″) at 21 kg gross). Stocked at the US warehouse; in-stock orders ship in under 24 hours. No back stopper, no carrying handles, width set by sliding panel + clamp screw, the karrier is a set of conductive-PP slotted panels on an aluminum frame designed to drop into your existing transport containers.

FAQ

Questions

Is the Karry-All 35 a magazine rack, a slotted-edge rack, or something else?

It’s a karrier, and we list it with the universal racks. Same form as a magazine rack (vertically slotted board rails) but with two key deltas: no rear stopper and screw-set width: a fixed panel plus a mobile panel that slides through the aluminum frame and locks with a clamp screw. The slots themselves are fixed pitch and numbered. The lack of stopper is the defining physical feature: it means the karrier drops into an outer box or tote for transport, with the outer container providing the dust / FOD / impact enclosure. For in-line SMT loaders use a magazine rack; for benchtop slotted-edge access use an RA-series transport rack.

Is it “fully enclosed” or open?

Open. The Karry-All 35 has open ends and no rear stopper, it is NOT a sealed shell, lid, or closed shipping container. The karrier is designed to be placed inside any outer box or tote you already use, and the outer container provides the dust / FOD / impact protection. If you need a fully enclosed sealed shell, use a different category of carrier.

What does 10⁴ Ω surface resistance mean?

It means the Karry-All 35 is conductive, 10⁴ Ω: charge on a board drains away steadily instead of building up. Every rack we sell is stated the same way.

Can I run this through a bake oven or an SMT loader?

No on both. The Karry-All 35 is rated −10 °C to +80 °C for manual handling and storage only, the conductive PP softens above 80 °C and is not qualified for any bake or cure cycle. For bake-suitable use, switch to a B0103GM-200C (200 °C) magazine rack. The Karry-All 35 also has no SMT loader interface, the chassis is sized for benchtop / tote-transport use, not the standardized 563/569 mm (22.17″/22.40″) magazine-rack height that loaders index against.

What chemicals can the conductive PP handle?

Resistant to non-oxidizing acids, alkalis, and most organic solvents typically used in board cleaning. Not suitable for halogenated hydrocarbons (e.g. methylene chloride), aromatic solvents (toluene, xylene), or strong oxidizing acids (concentrated nitric, hot concentrated sulfuric). For aggressive solvent cleaning, consult on alternative carrier materials before specifying.

What ships in the box?

One Karry-All 35 conductive-PP karrier, sold in packs of 10. No back stopper, no carrying handles, width set by sliding panel + clamp screw, the karrier is a set of conductive-PP slotted panels on an aluminum frame. Orders above 10 ship in a bulk carton, 580 × 410 × 280 mm (22.83″ × 16.14″ × 11.02″), 21 kg (46.3 lb) gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Quick assembly: slide the frame through the panel slots and tighten the screw.
