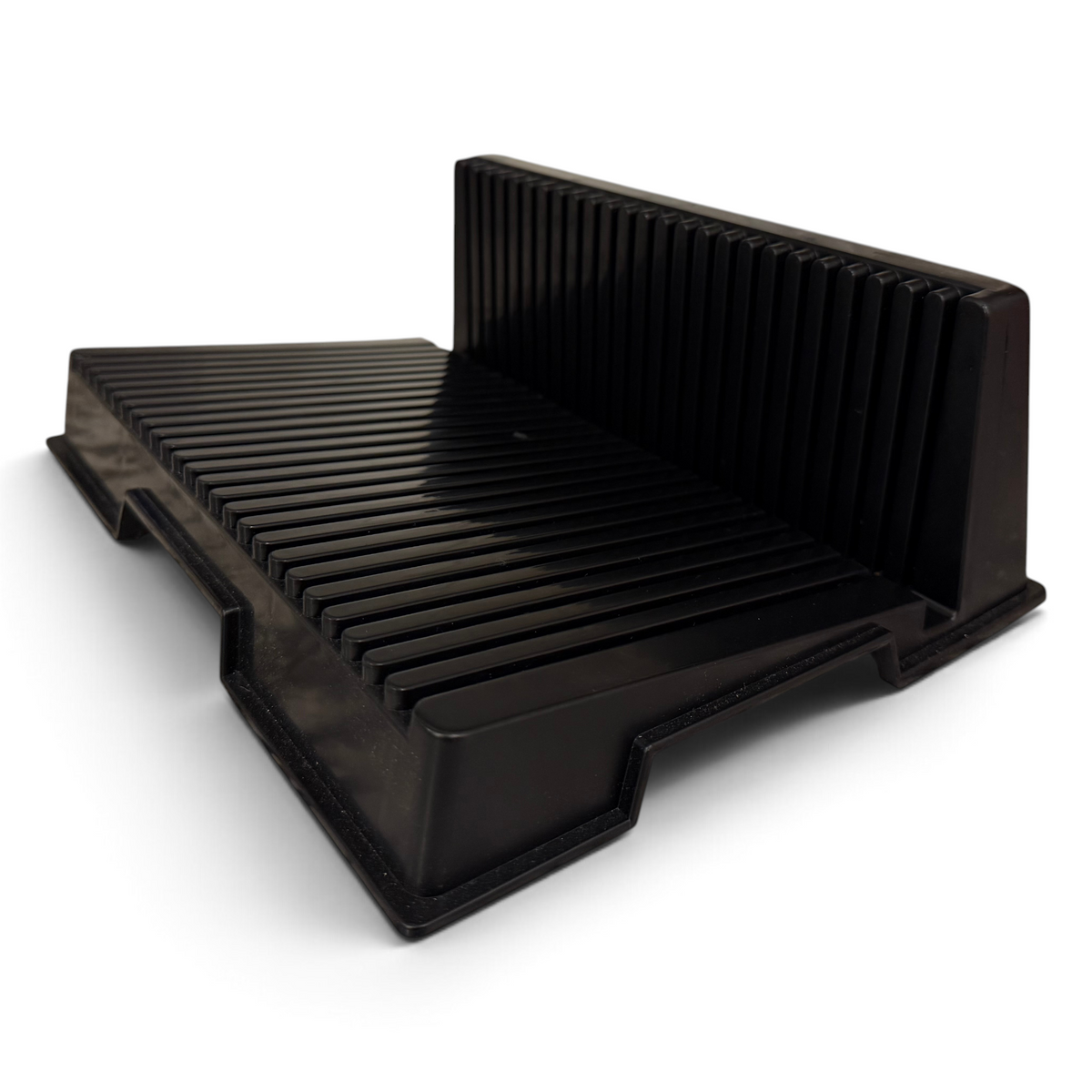

Three-quarter view of the PCBH-C angled ESD PCB holder rack, L-shaped slotted holder on white; 25 slots, conductive polypropylene, boards to 152 × 152 mm (5.98 × 5.98 in), pack of 10

PCBH-CESD PCB Holder, 25 Slots (Pack of 10)

Angled PCB Holder · 25 Slots · Compact · Pack of 10

PCBH-C is a compact angled ESD PCB holder that stands 25 boards at a wide angle on a production bench.

Slots: 25, on a 10 mm (0.394″) pitch
Slot Size: 3 mm wide, 5 mm deep (0.118″ × 0.197″)
Maximum PCB Size: 152 × 152 mm (5.98″ × 5.98″)
Maximum Board Thickness: 2.4 mm (0.094″)
Holder Size: 265 × 205 × 95 mm (10.43″ × 8.07″ × 3.74″)
ESD Rating: Conductive polypropylene, 10⁴ Ω
Temperature Range: −10 °C to +80 °C (14 °F to 176 °F)

Its small footprint fits beside the operator on a crowded bench. For larger boards held on two sides, see the PCBH-2L-C. Sold in packs of 10, no assembly.

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

$32.50per holder · pack of 10: $325.00

ESD safeConductive 10⁴ Ω TemperatureUp to 80 °C (176 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

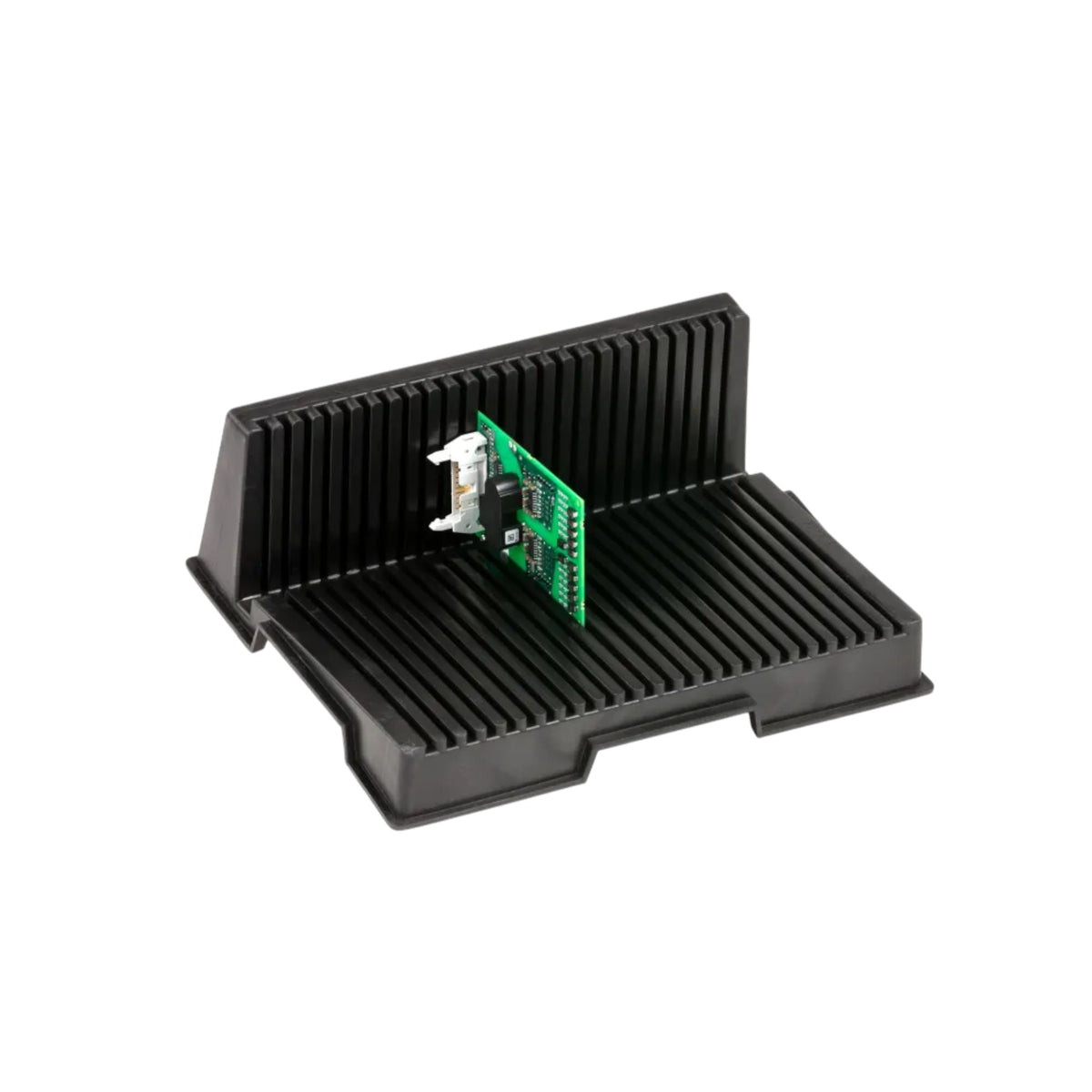

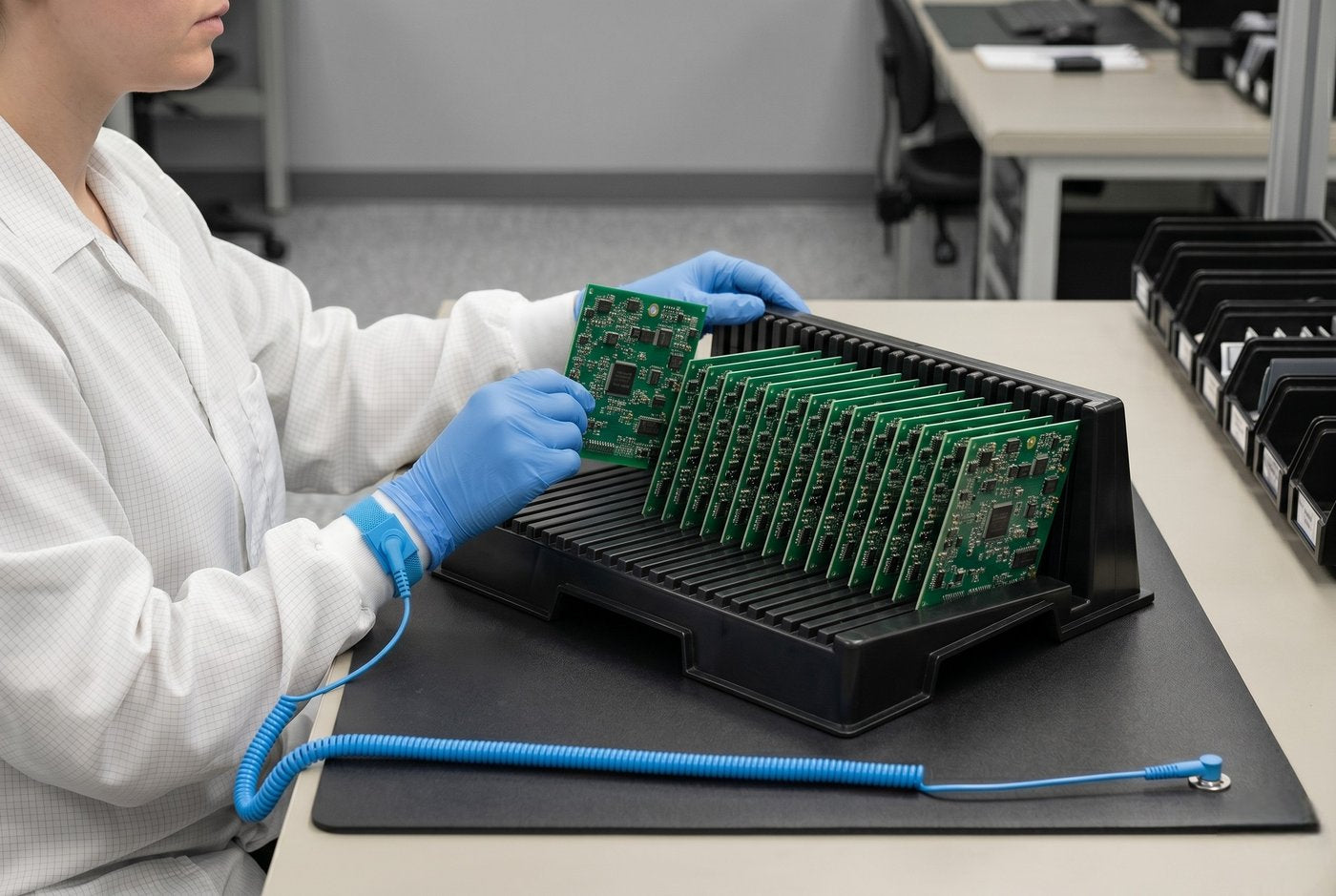

PCBH-C loaded with circuit boards — Loaded and ready for the line

At a glance

What it does: Stands 25 small boards at a wide angle, one per slot.
The problem it solves: Small boards stay upright and apart in a footprint that fits a crowded bench.
What it fits: Boards from 50 × 50 mm to 152 × 152 mm (2 × 2 in to 6 × 6 in), up to 2.4 mm (0.094 in) thick.
Key specs: 25 slots · 10 mm (0.39 in) pitch · conductive 10⁴ Ω · packs of 10

Details

Small boards, small footprint.

A compact angled holder that keeps 25 boards upright and apart beside the operator.

The engineer, who chooses it: Each board stands in its own slot at a wide angle, apart from the next, on a conductive holder.
The operator, who uses it: Set boards in and pick them out with one hand. The compact footprint leaves room to work on the bench.
The buyer, who pays for it: A pack of ten, priced on the page, in stock and shipped within a day.

Description

The PCBH-C is a 25-slot conductive polypropylene circuit board holder built for benchtop use. Each slot is 3 mm (0.118″) wide with a 5 mm (0.197″) depth and a 10 mm (0.394″) pitch, holding boards upright at a wide-angle vertical for clean one-hand insertion and removal during active work.

The compact 265 × 205 mm (10.43″ × 8.07″) footprint fits next to a soldering iron, hot-air station, or microscope without taking over the bench. The 95 mm (3.74″) tall body provides structural support so the holder won’t tip when picked up loaded.

Conductive PP at 10⁴ Ω keeps boards protected through hand soldering, inspection and rework. The 10 mm (0.394″) pitch and benchtop form are made for operator-facing work.

On a production bench, boards waiting for the iron or the scope stand upright and apart in the PCB holder instead of lying flat across the bench, and the wide angle lets the operator take the next board with one hand. Industries we serve: aerospace and defense, automotive electronics, medical devices and contract manufacturing.

Buying for a line? 5 or more packs take 5% off and 10 or more take 10% off, automatically at checkout. See our volume and fleet pricing.

Best uses

Hand soldering: Boards wait upright beside the iron.
Rework: Boards stay apart until each one is worked on.
Production benches: Small boards held in a small footprint.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−10 to 80 °C (14 to 176 °F)

PCBH-CThis product−10 to 80 °C

80 °C · 176 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Made for production, storage and bench work at normal factory temperatures.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

The polypropylene itself is conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

Boards up to 2.4 mm (0.094 in) thick.

Technical data

Model	PCBH-C
Material	Conductive polypropylene (PP)
Dimensions (L × W × H)	265 × 205 × 95 mm (10.43″ × 8.07″ × 3.74″)
Slot type	Single-sided, wide-angle vertical
Slot count	25
Slot width	3 mm (0.118″)
Slot depth	5 mm (0.197″)
Slot pitch	10 mm (0.394″)
Max board thickness	~2.4 mm (0.094″)
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Max board size (L × W)	152 × 152 mm (5.98″ × 5.98″)
ESD properties	Surface resistance 10⁴ Ω, conductive
Temperature range	−10 °C to +80 °C (14 °F to 176 °F)
Chemical resistance	Resistant to non-oxidizing acids, alkalis, and most organic solvents. Not suitable for halogenated hydrocarbons, aromatic solvents, or strong oxidizing acids.
Weight	0.32 kg (0.71 lb) per holder

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.

Full IPC and ESD standards reference for handling, storage and depaneling

FAQ

Questions

What is a PCB holder used for in production?

A PCB holder keeps boards upright and apart at the bench while they wait for the next hand operation: soldering, rework or a look under the microscope. The PCBH-C holds 25 boards on a 265 × 205 mm (10.43″ × 8.07″) footprint, so a full batch stands beside the iron. It is conductive, 10⁴ Ω, so it belongs inside the EPA.

Does the PCBH-C fit beside a soldering iron or a microscope?

Yes, that is what it is sized for. The footprint is 265 × 205 mm (10.43″ × 8.07″) and the body 95 mm (3.74″) tall, the smallest bench footprint in our catalog. It sits next to an iron, a hot-air station or a microscope, and the structure molded into the base keeps it from tipping when you pick it up loaded.

Why stand boards in a circuit board holder instead of laying them flat?

Boards laid flat take up the bench and end up stacked, and stacked boards rub and knock parts. In the PCBH-C every board keeps its own slot, 10 mm (0.394″) from the next, and 25 of them fit in 265 × 205 mm (10.43″ × 8.07″). The operator sees each board on edge and takes the next one with one hand.

What does the PCBH-C cost per board position?

$32.50 per holder, sold as a pack of 10 for $325.00. With 25 slots, that is $1.30 per board position. From 5 packs the price drops to $30.88 per holder, and from 10 packs to $29.25, automatically at checkout.

What size boards does this PCB holder take?

Boards from 50 × 50 mm (1.97″ × 1.97″) up to 152 × 152 mm (5.98″ × 5.98″), at up to 2.4 mm (0.094″) thick. Each of the 25 slots is 3 mm (0.118″) wide and 5 mm (0.197″) deep on a 10 mm (0.394″) pitch.

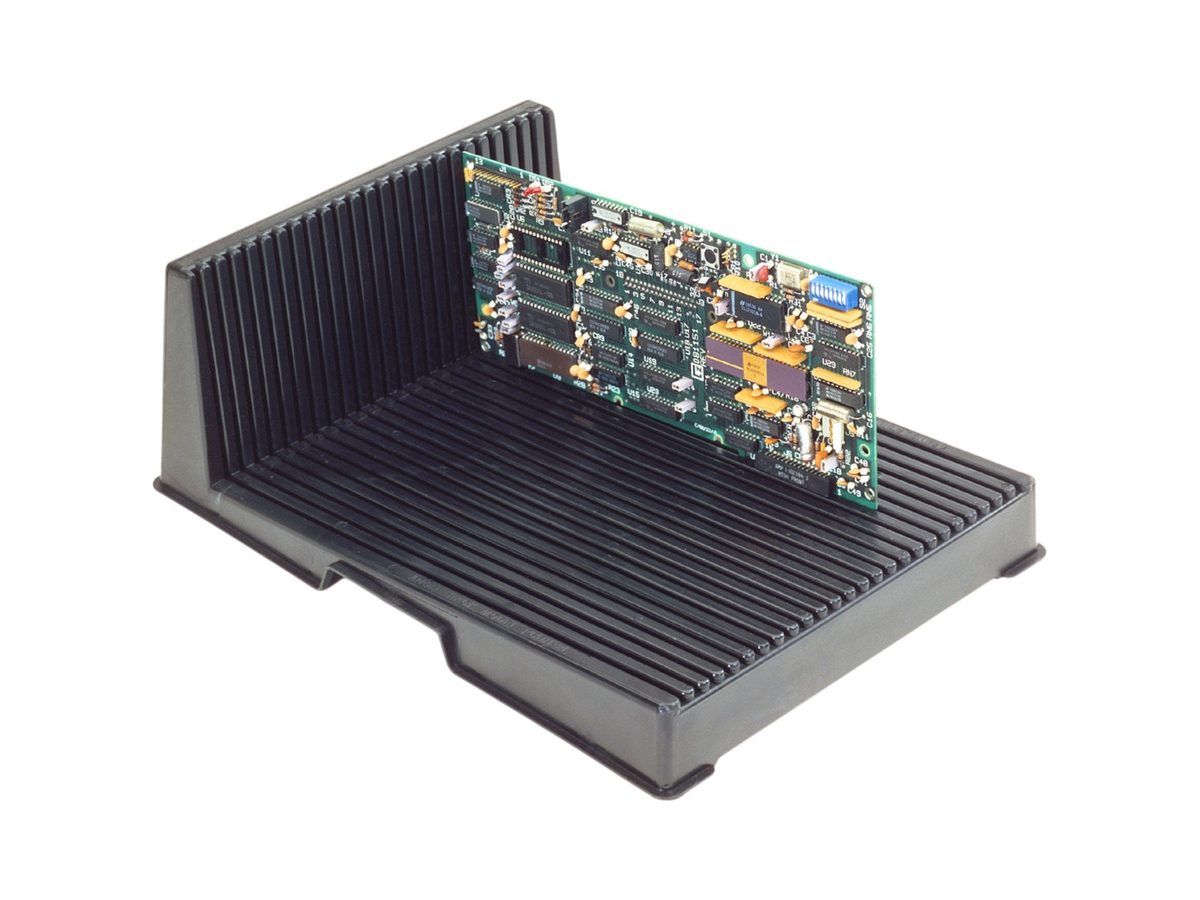

PCBH-C or PCBH-2L-C, which one do I need?

The PCBH-C is the tight-footprint single-angle stand for benches where space is scarce: soldering, rework, microscope work. The PCBH-2L-C is the wide-base double-angle stand that fans boards out so you can see and reach both sides, built for inspection and QC.

Can our quality team get ESD and RoHS test reports for the PCBH-C?

Yes. The PCBH-C is conductive polypropylene, 10⁴ Ω, and RoHS compliant under EU Directive (EU) 2015/863. ESD and RoHS test reports go to your quality team on request for the audit file.

How are PCBH-C holders packed?

In packs of 10 holders, ready to use. Bulk cartons measure 680 × 480 × 480 mm (26.77″ × 18.90″ × 18.90″) at 12 kg (26.5 lb) gross. In-stock packs ship from the USA in under 24 hours, and shipping is calculated at checkout from the weight of the order.

What temperature range is the PCBH-C rated for?

−10 °C to +80 °C (14 °F to 176 °F). It is a bench holder for hand work. For bake or cure, use the magazine racks: 200 °C (392 °F) in the GM and M models, or the all-aluminum 300 °C (572 °F) HT Series.

Does it work with SMT loaders?

It is a benchtop holder for hand work. SMT loaders take the B0103 to B0110 magazine racks.

How do I clean it without ruining the ESD surface?

Warm water with a mild pH-neutral detergent; IPA 70% for spot cleaning. Never use acetone, aromatic or halogenated solvents, or abrasives, and take boards out of the holder before spraying flux remover: repeated overspray does the same damage as deliberate solvent cleaning. Dry fully before boards go back in.

Where do I get the spec sheet or CAD?

The spec sheet PDF is behind the Download spec sheet button on this page, one short form unlocks the whole document library. Drawings and CAD are handled personally: request them by email and the team follows up.
