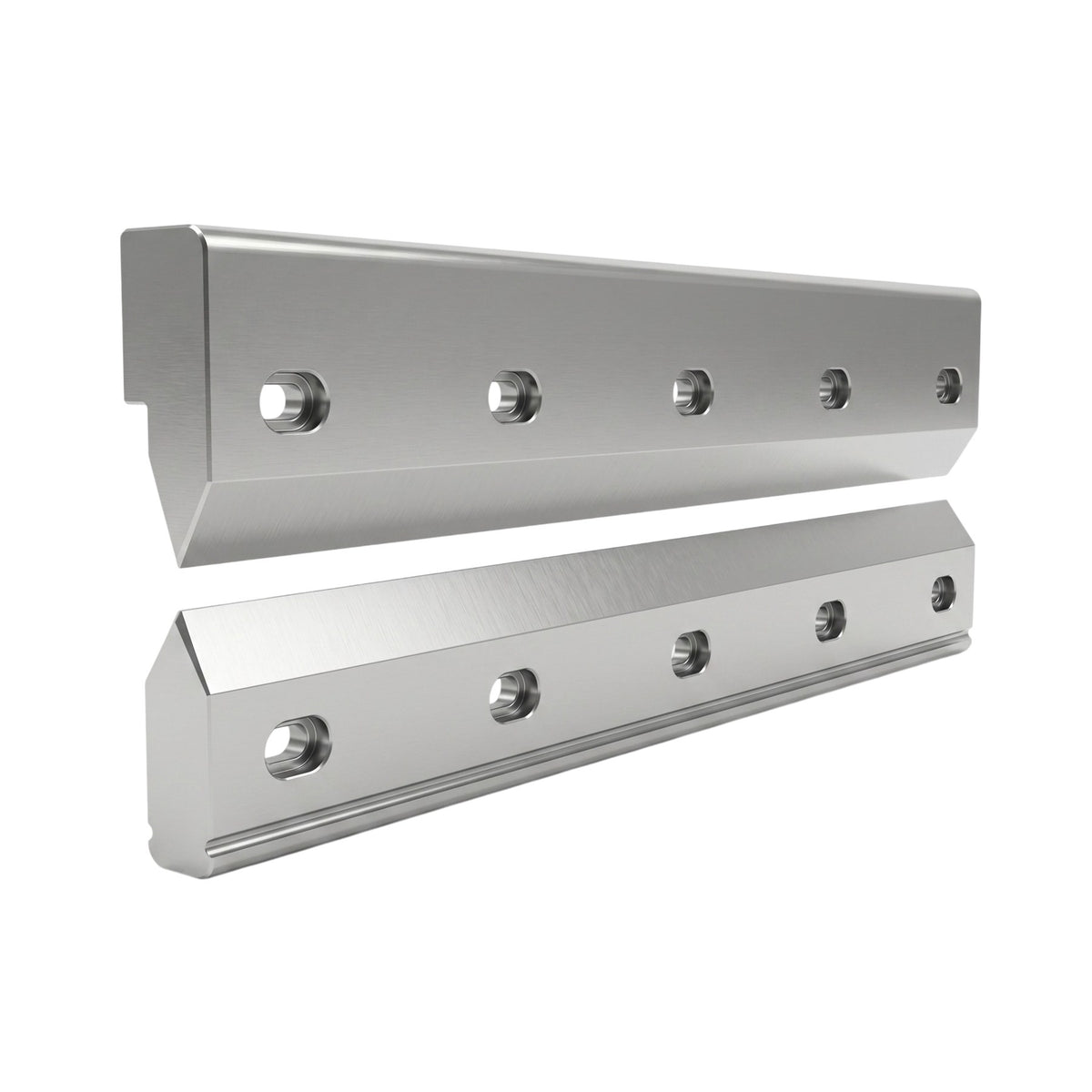

VPD5-330LK Linear Blade Set (Pair) for VPD5-330
Usually in stock, else 1 to 2 weeks

VPD5-330LK · Linear Blade Set (Pair) for VPD5-330

VPD5-330LKUsually in stock, else 1 to 2 weeks · USA

The VPD5-330LK is the replacement knife pair for the VPD5-330 V-cut PCB depaneler. It is made of precision-ground tool steel. Each blade is rated for up to 100,000 cutting cycles and is user-replaceable at the bench. Usually in stock; if not, it ships from the US in 1 to 2 weeks.

$2,280.00 per pair
  • Genuine OEM part
  • Usually in stock. If not, ships from the USA in 1 to 2 weeks
  • Field-replaceable, no service call
Subscribe and save up to 15% Saves $228.00 on every delivery

Billed and shipped on your schedule. Your price is locked for 12 months. Skip, pause or cancel anytime from your account.

Ask an engineer

Replacing another maker's part? Cross-reference your part number →

More parts for your VPD5-330

100,000 cycles per blade

Up to 100,000 cycles per blade, with 50,000+ typical on a working line.

That works out to about $228.00 per 10,000 cycles at full life.

Actual life varies with panel material, thickness and score depth. Run it until the edge tells you, not the calendar.

Join the blade program

Tell us your machine and cadence. We track blade life with you and remind you before a dull edge reaches your boards. No commitment, cancel with a reply.

One reminder per cycle, nothing else. Reply to any reminder to stop.

Spec sheet (PDF)Drawings / CAD (by email)
ESD-safe Ships from the USA Spec help included

At a glance

TypeDual linear V-blade pair
MaterialPrecision-ground tool steel
Typical service life50,000+ cycles, sets seen past 100,000
AlignmentLinear bearing, parallel
Fits machineVPD5-330
ReplaceableUser

What it is, and where it lives.

Engineering drawing for visual confirmation, plus the spare-parts identification photo so you can pinpoint the part on your machine.

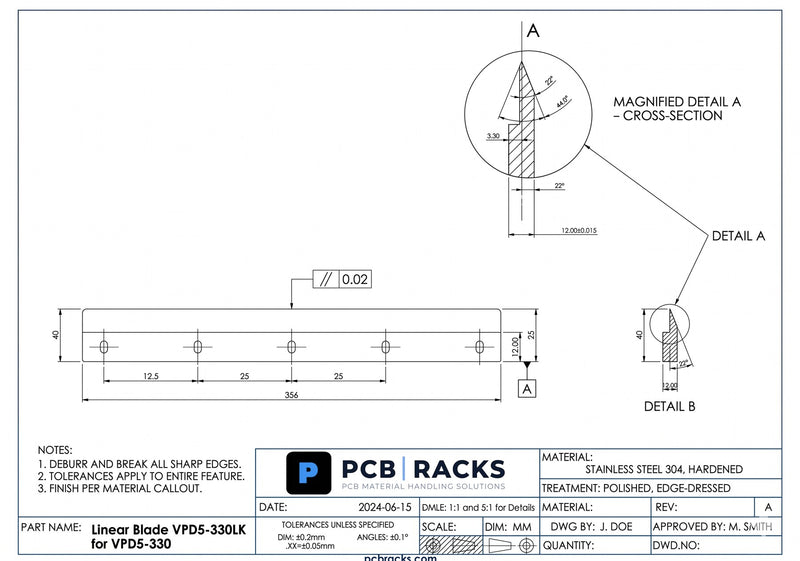

Engineering drawing

VPD5-330LK · Linear Blade Set (Pair)

On-machine location

Look for callout M01 on the VPD5-330 assembly photo, the dual linear blades sit between the upper and lower blade housings, parallel-aligned by the linear bearing.

Description

Replacement dual linear blade pair for the VPD5-330 pneumatic depaneler. Ships as a matched pair. Add your machine’s serial or part number at checkout, or email it to info@pcbracks.com after ordering, and we verify the fit before it ships.

VPD5-330LK Linear Blade Set (Pair) for VPD5-330
FIG. 2VPD5-330LK

Already running one of these?

Already own a VPD5-330? We supply spare parts for the full installed base of these machines, not just units purchased through pcbracks.com.

Send us your unit’s serial number, a clear photo of the data plate, or the part identifier from your manual when you place the order, and we’ll match the right part. Genuine OEM parts, ground freight from the USA.

Match my part

Further reading

Engineers also bought

Questions engineers ask

How do I make sure it fits my machine?
Every VPD5-330 takes the same matched pair. Add your machine’s serial or part number at checkout, or email it to info@pcbracks.com after ordering, and we verify the fit before it ships.
Do blades ship as a matched pair?
Yes. The VPD5-330LK is always a matched pair (upper + lower) so blade alignment is preserved out of the box.
How long do they last?
Blade life depends on daily volume and board material. A typical production cell sees a full shift-life per pair before performance degrades.
Do you make custom blades for non-standard board geometries?
Yes. We manufacture custom blade profiles for non-standard score depths, board thicknesses, or component-clearance envelopes. Email info@pcbracks.com with your panel drawing, score-depth spec, and target component clearance, we’ll quote a custom blade matched to your application.
