B0108GN-80C · 50-Slot Gear-Adjustable ESD Magazine Rack
B0108GN-80C80 °CIn stock · USA
50-slot ESD magazine rack on the extra-large-format chassis, the bridge between large-format B0106 and maximum-format B0109. Sized for boards up to 535 × 390 mm: the rack of choice when boards are too long for B0106 (460 mm) but don’t need the full 460 mm width of B0109. Same gear-track mechanism: 50 to 390 mm in seconds, parallelism maintained across all 50 slots. Conductive PPE panels + aluminum pillars + galvanized steel base; NASTC ESD-tested, SGS RoHS PASS. Stocked in the USA.
$328.10 per unit
- Adjustable Width: 50–390 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 535 × 390 mm
- Temp Range: −20 / +80 °C
ESD-safe
Ships from the USA
Spec help included

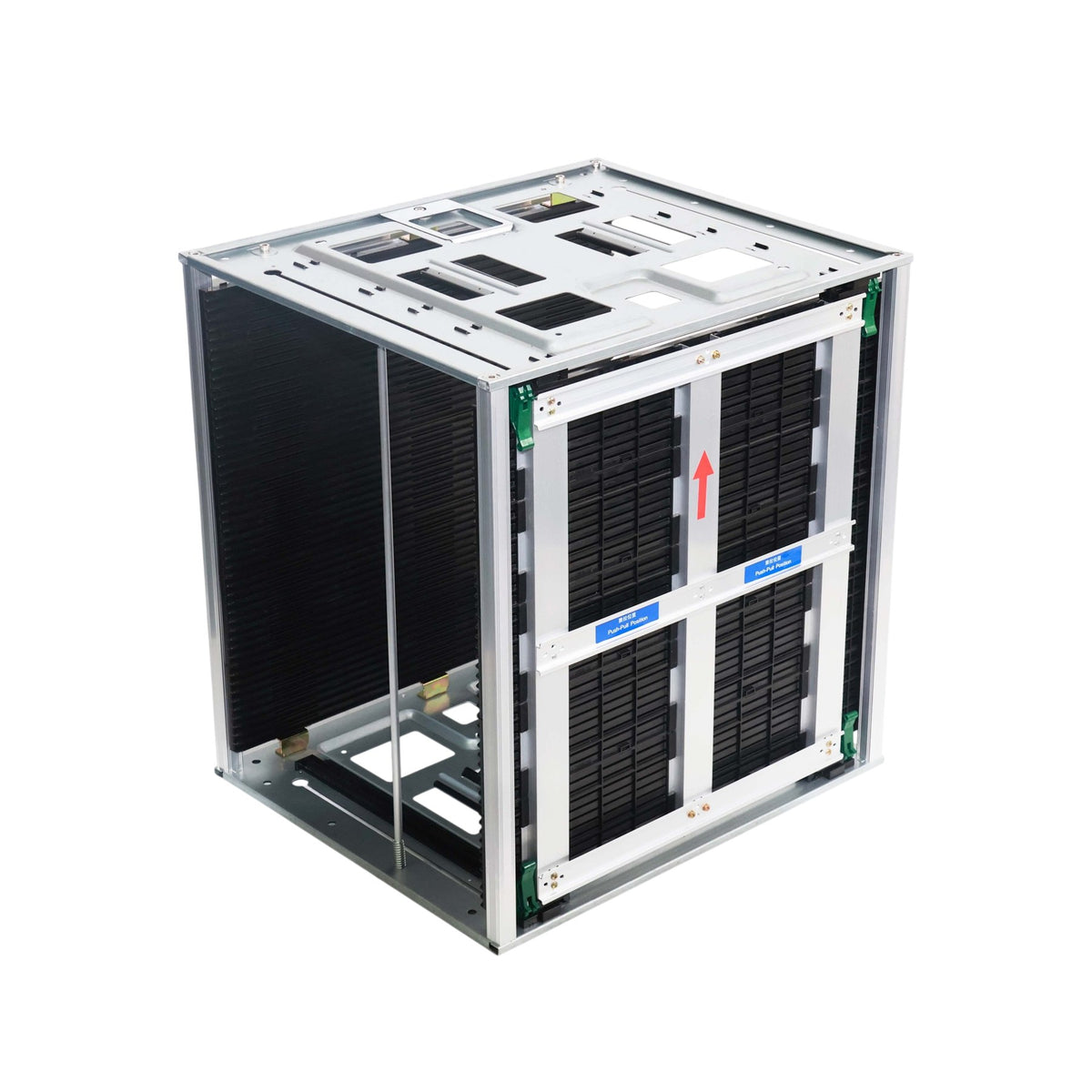

Long Boards That Don’t Need Maximum-Format Width.
REF 01If your boards are **longer than B0106’s 460 mm** but don’t need the full 460 mm width of the B0109 maximum-format chassis, you’re paying for footprint you don’t use. The B0108GN-80C is the **in-between chassis**: 535 mm long (matches B0109) but only 390 mm wide (vs 460 mm), the right size for long, narrow-to-medium-width boards. Same gear-track mechanism, same compliance.
50 slots @ 10 mm pitch
50–390 mm adjustable
535 mm board length
SMT loader compatible
At a glance
REF 02Adjustable Width50–390 mm
Slot Count / Pitch50 @ 10 mm
Max Board (L × W)535 × 390 mm
Temp Range−20 / +80 °C
Description
REF 03What it does on your line

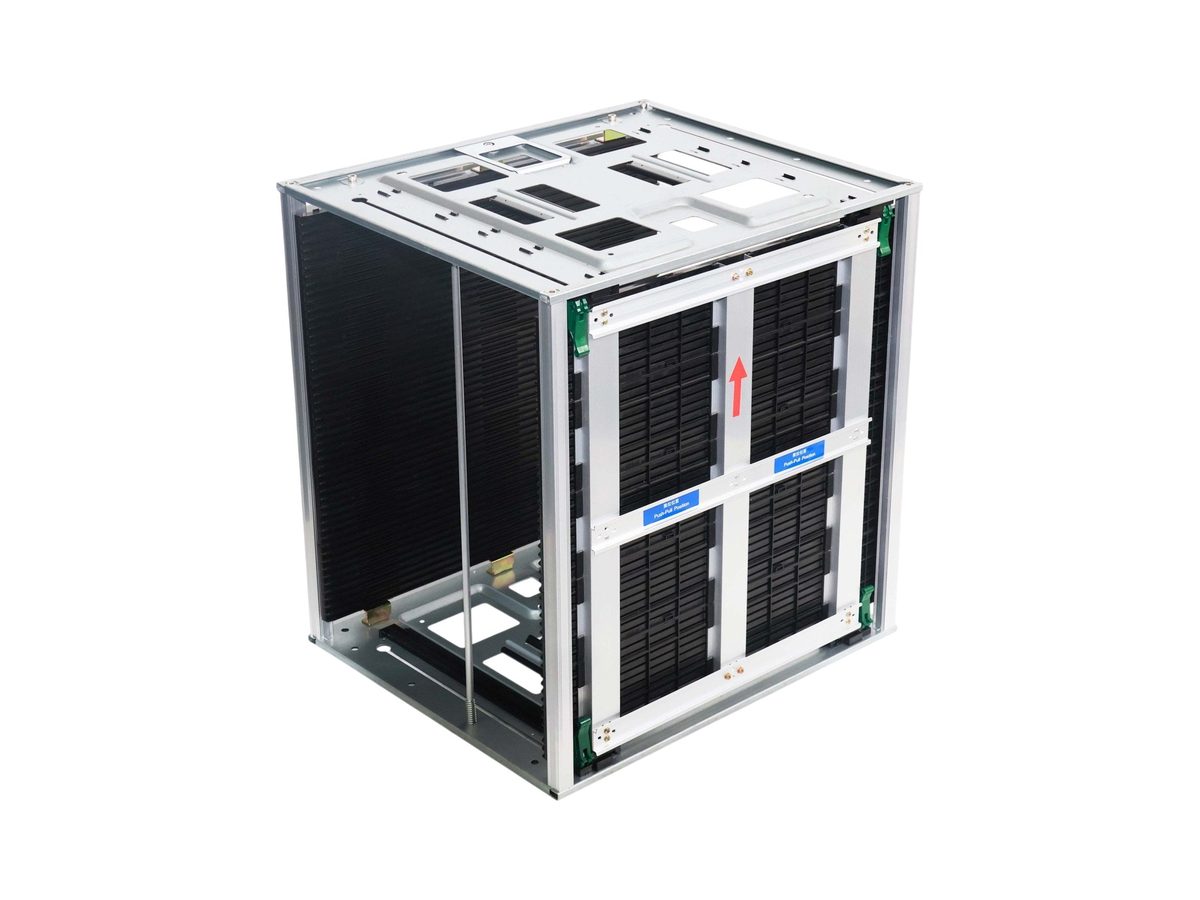

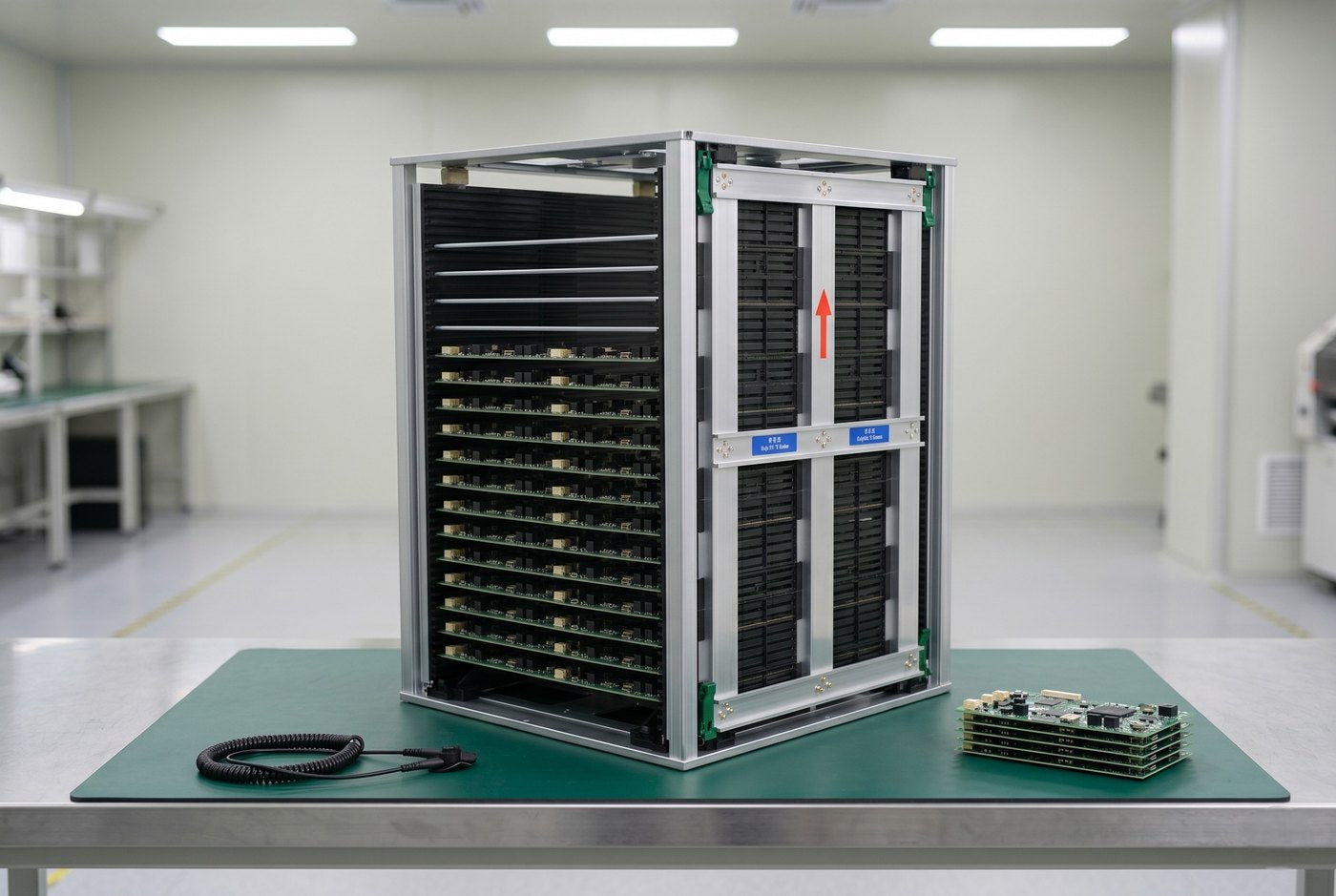

The B0108GN-80C is an extra-large-format 50-slot ESD magazine rack built for in-line SMT automation, board storage, and bench-to-bench transport on long-board lines. Gear-track adjustment sets the board width from 50 to 390 mm in seconds, with parallelism maintained across all 50 slots, one rack covers the full extra-large-format range (up to 535 × 390 mm boards) without re-tooling.
Construction: 5 interchangeable Conductive PPE side panels per wall, aluminum pillars, galvanized steel base. The mixed-material build provides structural rigidity under repeated loading and inline conveyor handling, while keeping the entire current path in the conductive 10⁴–10⁶ Ω band per ESD Association classification. Sectioned panels can be swapped individually if one is damaged, the rack stays in service.
Designed for the standard 80 °C ambient envelope (transport, storage, soldering, inspection, cleaning). For bake or cure cycles, see the B0108GM-200C (200 °C) sibling on the same extra-large chassis. Note: the B0108 chassis is the only B-series chassis without belt or 300 °C HT variants, for continuous belt or 300 °C aerospace cure, see the B0106GC BELT or B0109GL HT-300C.
See it in motion

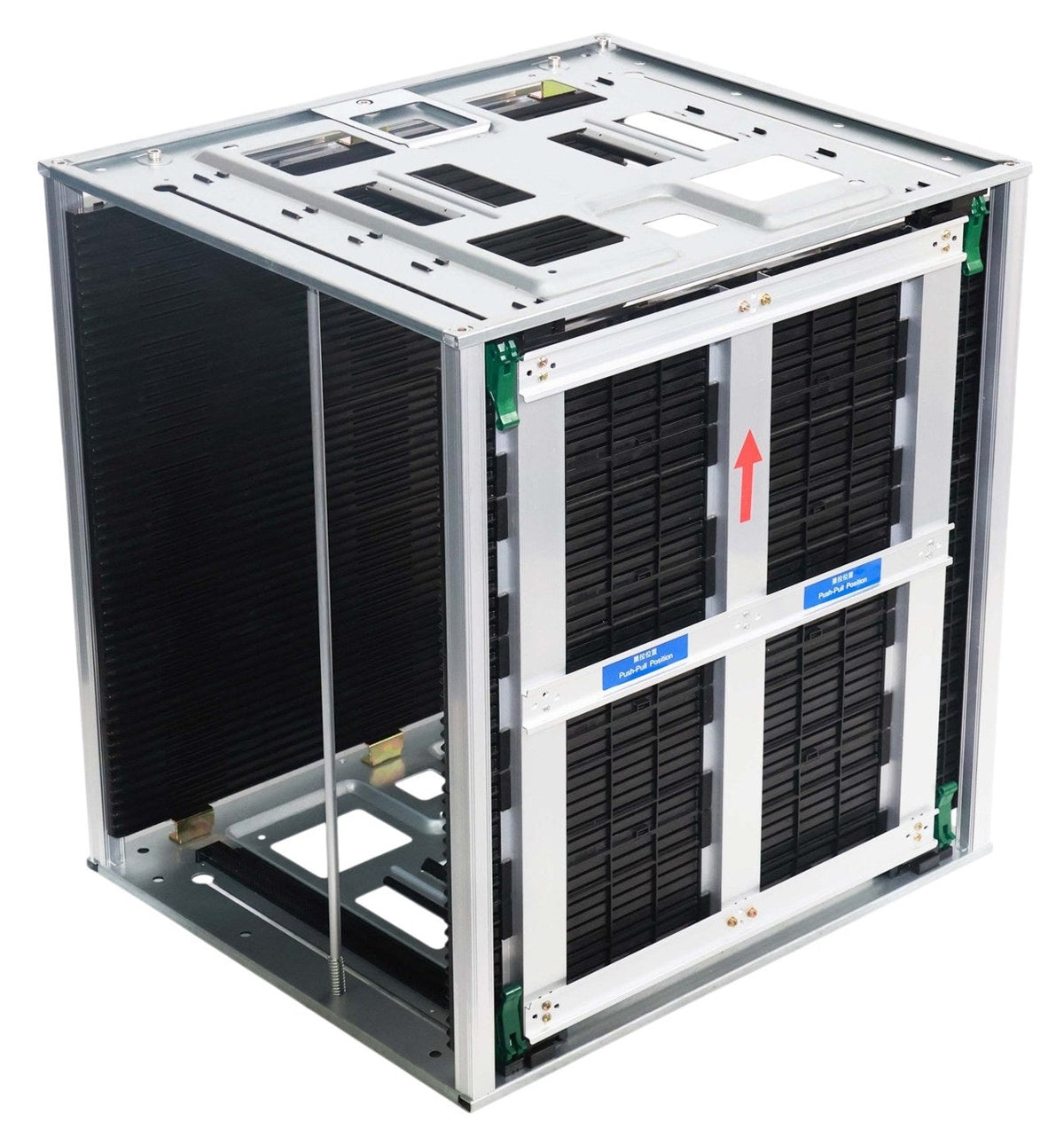

REF 04360° rotation · B0108GN-80C
Technical specifications
REF 05| Model | B0108GN-80C |
|---|---|
| Materials | Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · galvanized steel base |

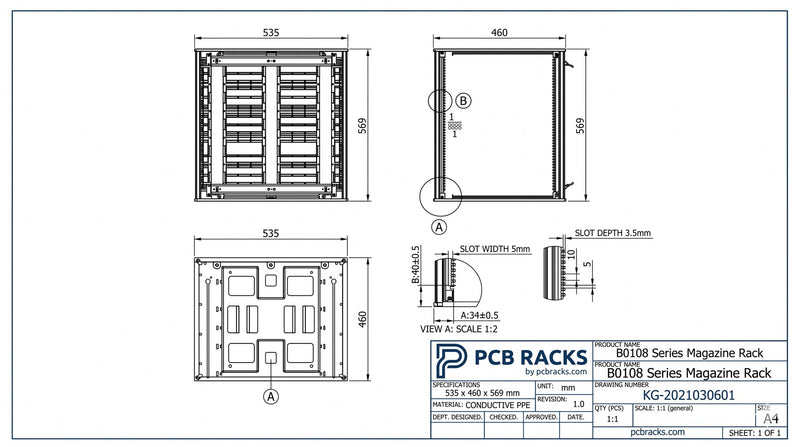

| Dimensions (L × W × H) | 535 × 460 × 569 mm (21.06″ × 18.11″ × 22.40″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 3.5 mm (0.138″) |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 50–390 mm (1.97″–15.35″) via gear-track mechanism |
| Max board length | 535 mm (21.06″) |
| Max board size (L × W) | 535 × 390 mm |
| Min board size (L × W) | 50 × 50 mm |
| Reference positions | A = 34 mm · B = 40 mm, B = 40 unique to B0108 chassis |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (conductive band per ESD Association) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +80 °C (−4 °F to 176 °F) |
| Adjustment type | Gear track with parallelism monitoring (screw adjustment configuration also available) |
| Includes | Stopper bar · carrying handles (top and bottom) |
| Weight | 11 kg |
Documentation
Built for ESD-protected workstations
REF 07Materials: 5 × Conductive PPE side panels · aluminum pillars · galvanized steel base
Surface res.: 10⁴ – 10⁶ Ω, conductive band per ESD Association
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all **PASS**
Thermal range: −20 °C to +80 °C, standard SMT envelope
Capacity: 50 slots · 10 mm pitch · 50–390 mm adjustable · max board 535 × 390 mm
RoHS: **PASS**, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: SMT in-line automation · standard-temp storage & transport · inspection & QC · extra-large-format (up to 535 × 390 mm) board lines · long-board / narrow-width form factors that exceed B0106’s 460 mm length.
Why buy: Aerospace-grade build, stocked in the USA. The B0108 in-between chassis bridges B0106 (460 mm long) and B0109 (535 × 530 with 460 mm width capacity), pay only for the footprint your boards actually need. Volume tiers stack across mixed B0103 / B0106 / B0108 / B0109 chassis orders.
What's in the box
REF 08- Sold individually. Packaging size 570 × 550 × 100 mm at 11 kg gross. Stocked at the US warehouse for same-week ship on standard orders. Includes stopper bar and carrying handles (top + bottom).
Volume pricing
REF 09| Quantity | Price per unit | You save |
|---|---|---|
| 1–19 | $328.10 | , |
| 20+ | $295.29 | 10% |
Related parts & spares
REF 10
B0106GN-80C · 50-Slot Gear-Adjustable ESD Magazine Rack
50-slot ESD magazine rack on the large-format chassis, sized for boards up to 460 × 330 mm.
80 °C Gear track$250.20

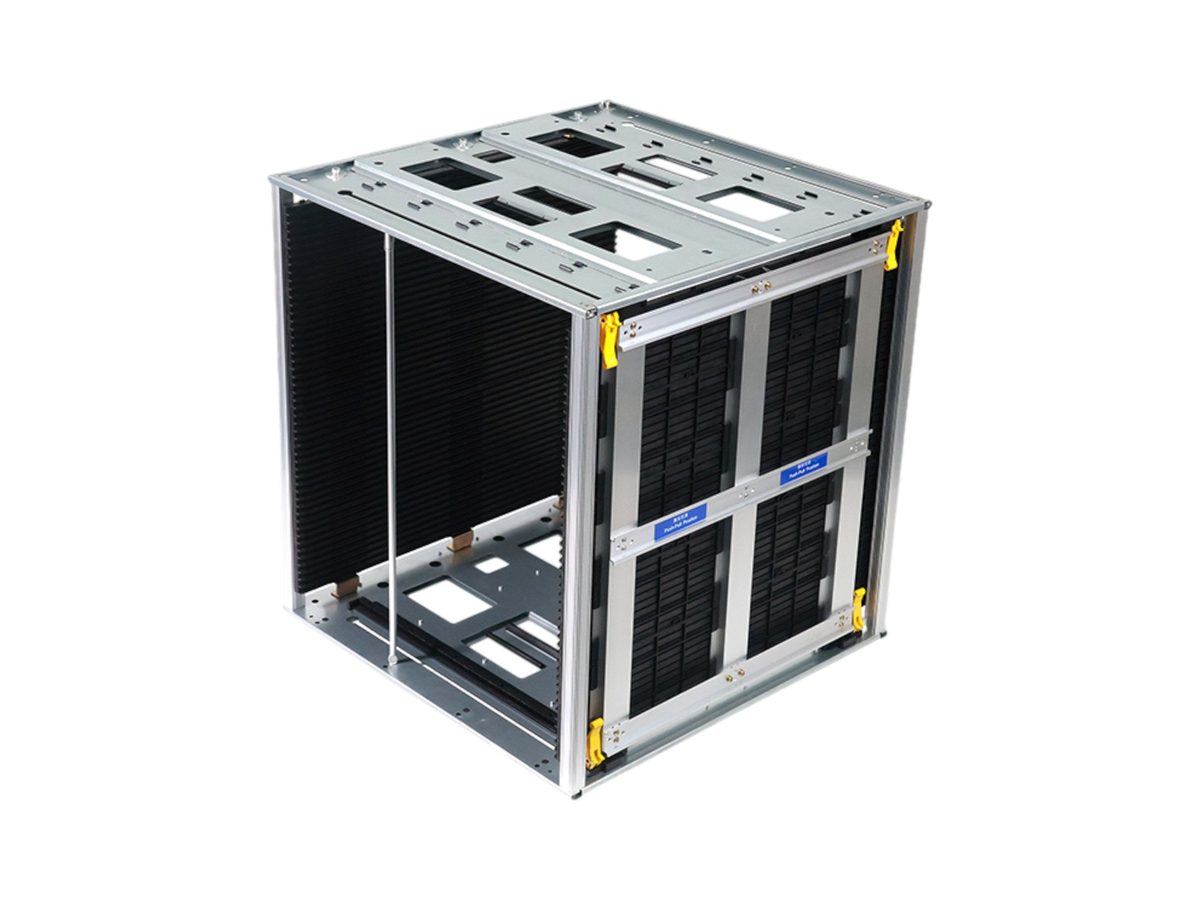

B0109GN-80C · 50-Slot Gear-Adjustable ESD Magazine Rack
50-slot ESD magazine rack on the maximum-format chassis, sized for the widest boards in the catalog: backplanes, motherboards, and oversized industrial PCBs up to 535 × 460 mm.
80 °C Gear track$406.80Engineers also bought
REF 11
B0103GM-200C · 50-Slot Gear-Adjustable ESD Magazine Rack
50-slot ESD magazine rack rated to 200 °C (392 °F), bake-suitable per IPC/JEDEC J-STD-033 moisture-removal profiles.
200 °C Gear · 200 °C$247.80
B0103GN-80C · 50-Slot Gear-Adjustable ESD Magazine Rack
50-slot ESD magazine rack built for in-line SMT loaders and unloaders.
80 °C Gear track$182.40
B0105GPM-120C · 50-Slot Gear-Adjustable ESD Magazine Rack
50-slot ESD magazine rack with conductive PS base rated to 120 °C (248 °F), covers most MSD low-bake profiles (90–110 °C) without stepping up to a metal-base 200 °C rack.
120 °C Gear · 120 °C bake$189.70
B0105GPN-80C · 50-Slot Gear-Adjustable ESD Magazine Rack
50-slot ESD magazine rack with conductive PS base in place of galvanized steel, the lightest rack in the magazine catalog.
80 °C Gear track$173.80Questions engineers ask
REF 12Will the B0108GN-80C drop into my SMT loader / unloader?
The 569 mm chassis height (+6 mm vs B0103/B0106 at 563 mm) and 10 mm slot pitch align with the standard interface used by ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The **535 × 460 mm footprint** is the extra-large-format chassis, loaders configured for B0103 / B0106 racks may need their lock-down position adjusted for the 6 mm height delta and the larger footprint. Reference offsets are **A=34, B=40**, the B=40 dimension is unique to the B0108 chassis (B0103/B0106 use B=34, B0109 uses B=40). Confirm with your loader / unloader vendor before ordering.
What does “parallelism monitored” gear-track adjustment actually do?
Both side panels travel on a synchronized rack-and-pinion gear track. Turn the adjustment knob on either side and the opposite panel travels the same distance in the same direction, parallelism is **mechanically monitored**, not just operator-eyeballed. The result: a width spec set on Monday loads the same boards on Friday, and both panels stay parallel through the full 50–390 mm travel range.
Can I bake the B0108GN-80C? What’s the temperature ceiling?
The GN-80C variant is rated −20 °C to +80 °C, the standard SMT envelope (transport, storage, soldering, inspection, cleaning). For **bake-suitable** use on the same extra-large chassis, pick the [B0108GM-200C (200 °C)](pcb-b0108gm-200c-shop-standalone-rev2.html), which uses the same chassis with the same gear track. **The B0108 chassis does not offer a 300 °C HT variant**, for aerospace-grade 300 °C cure, step up to the [B0109GL HT-300C all-aluminum](pcb-b0109gl-ht-300c-shop-standalone-rev2.html) on the maximum-format chassis or step down to the [B0106GL HT-300C](pcb-b0106gl-ht-300c-shop-standalone-rev2.html) on the large-format chassis.
What’s the difference between this and a slotted-edge rack like RA-18C?
The B0108GN-80C is an **extra-large-format magazine rack**: 50 slots, 10 mm pitch, designed to drop into in-line SMT loader / unloader equipment. The [RA-18C](pcb-ra-18c-shop-standalone-rev2.html) is a **slotted-edge transport rack**: 25 slots at wider pitch, designed for benchtop / between-bench manual transport, not for in-line equipment. Pick magazine racks for SMT-line integration; pick slotted-edge for hand carry / bench-side WIP.
Can I replace a damaged side panel without buying a whole new rack?
Yes. The side panels are made of **5 interchangeable Conductive PPE sections per wall**, each individually replaceable. If one section gets cracked or contaminated, swap that section out and the rest of the rack stays in service. [Rack spares are stocked](pcb-rack-spares-shop-standalone.html) for every magazine-rack chassis we’ve ever shipped.
What ships in the box?
One B0108GN-80C magazine rack, sold individually. Includes **stopper bar** and **carrying handles** (top and bottom). Packaging size 570 × 550 × 100 mm at 11 kg gross. Stocked at the US warehouse, most orders ship the same week. No assembly required.
