B0108GM-200C Rack + Wear Kit Bundle
The B0108GM-200C rack + wear kit bundle ships the B0108GM-200C 50-slot ESD magazine rack together with the Rack Wear Kit that services it, for $502 instead of $528 bought separately. The rack is 200 °C, 10 mm (0.394″) slot pitch, adjustable 50–390 mm (1.97″–15.35″). The kit holds the gear tracks, lever sets, stopper bar, plastic gears and slot stoppers that wear first on a gear-adjust rack, so a worn rack is repaired at the bench instead of idling a line waiting on parts.
- Adjustable Width: 50–390 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 535 × 390 mm
- Temp Range: −20 / +200 °C
Replacing another maker's part? Cross-reference your part number →
At a glance
Description
One rack and its full wear kit in one line item, priced 5% under buying them separately. The kit rides in the rack carton, one shipment.

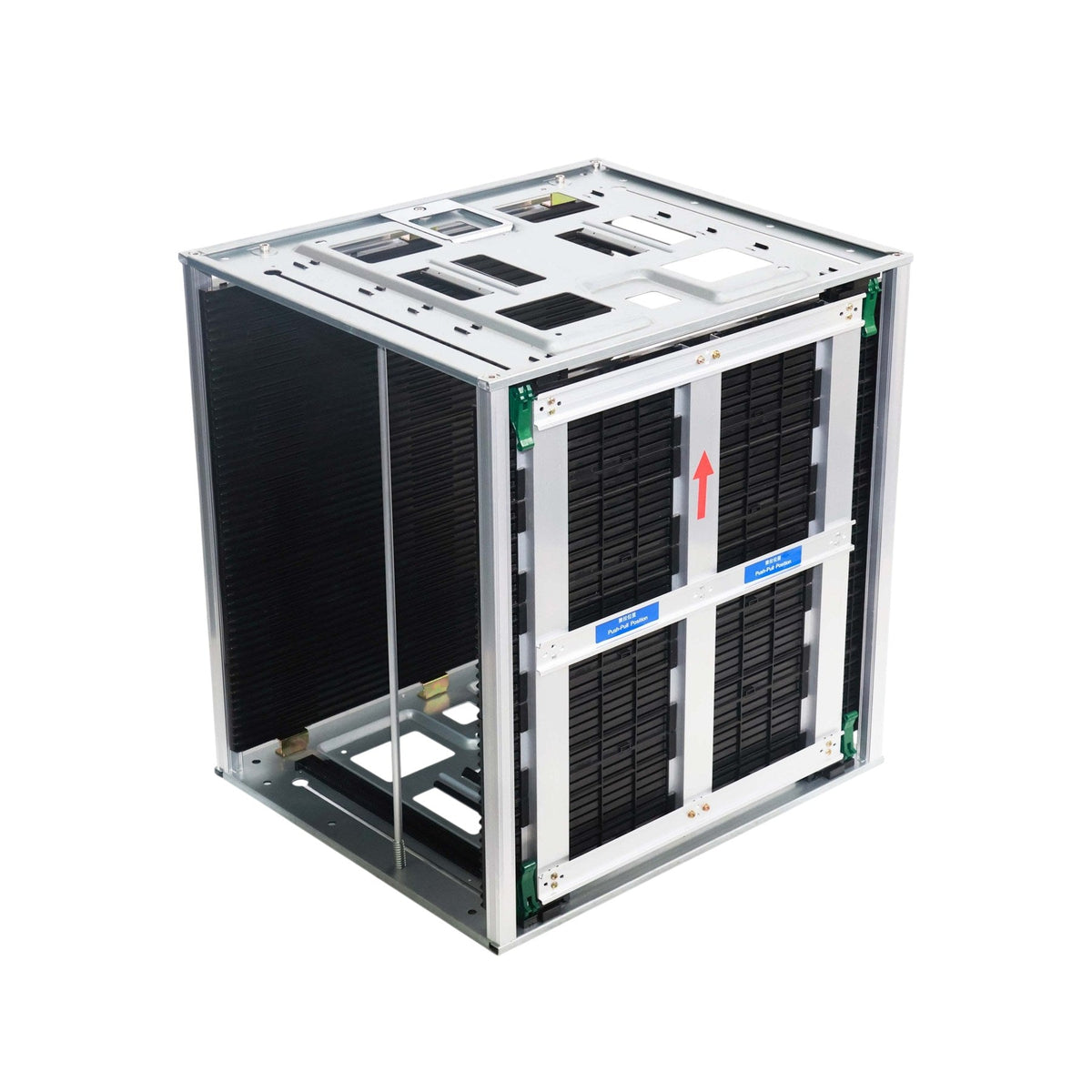

- 1 x B0108GM-200C 50-Slot Gear-Adjustable ESD Magazine Rack
- 1 x Rack Wear Kit for B0108 chassis: gear tracks, latches, stopper bar, gears and slot stoppers
A worn track or latch takes a rack off the line, and the replacement is weeks out when it ships from Asia. This puts the spare set on your shelf the day the rack arrives.
See it in motion
360° turntable rendered from the production CAD model. The geometry shown is the part that ships · B0108GM-200C
B0108GM-200C · Technical specifications
| Model | B0108GM-200C |
|---|---|
| Materials | Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · galvanized steel base |
| Dimensions (L × W × H) | 535 × 460 × 569 mm (21.06″ × 18.11″ × 22.40″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 3.5 mm (0.138″) |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 50–390 mm (1.97″–15.35″) via gear-track mechanism |
| Max board length | 535 mm (21.06″) |
| Max board size (L × W) | 535 × 390 mm |
| Min board size (L × W) | 50 × 50 mm |
| Reference positions | A = 34 mm · B = 40 mm, B = 40 shared with the B0109 chassis |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (dissipative band per ANSI/ESD S541) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +200 °C (−4 °F to 392 °F), bake-suitable per IPC/JEDEC J-STD-033 |
| Adjustment type | Gear track with parallelism monitoring (screw adjustment configuration also available) |
| Includes | Stopper bar · carrying handles (top and bottom) |
| Weight | 11 kg |
Need drawings or CAD models? Request them by email
Machine compatibility
| Loader / machine | Series | Interface |
|---|---|---|
| ASM SIPLACE | All in-line loaders / unloaders | 563 mm chassis · 10 mm slot pitch |
| Yamaha | YSM series | 563 mm chassis · 10 mm slot pitch |
| Panasonic | NPM series | 563 mm chassis · 10 mm slot pitch |
| Juki | RS series | 563 mm chassis · 10 mm slot pitch |
| Other in-line SMT | Standard-interface loaders | Ask for a fit-check if your line uses a custom fixture |
Not sure your loader is on the list? Send us the model and we confirm fit before you order.
Built for ESD-protected workstations
Materials: 5 × Conductive PPE side panels · aluminum pillars · galvanized steel base
Surface res.: 10⁴ – 10⁶ Ω, dissipative band per ANSI/ESD S541
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all PASS
Thermal range: −20 °C to +200 °C, bake-suitable per IPC/JEDEC J-STD-033
Capacity: 50 slots · 10 mm pitch · 50–390 mm adjustable · max board 535 × 390 mm
RoHS: PASS, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: MSD moisture-removal bake (J-STD-033) · in-line SMT automation · post-cure storage · thermal cycling · extra-large-format (up to 535 × 390 mm) board lines · long-board / narrow-width form factors that exceed B0106’s 460 mm length.
Why buy: Aerospace-grade build, stocked in the USA. The B0108 in-between chassis bridges B0106 (460 mm long) and B0109 (535 × 530 with 460 mm width capacity), pay only for the footprint your boards actually need. One workflow from MSD storage through bake through the loader. Volume tiers stack across mixed B0103 / B0106 / B0108 / B0109 chassis orders.
Standards referenced
- IPC/JEDEC J-STD-033
- The moisture-sensitive-device handling standard. It sets the bake profiles (typically 90–125 °C) used to drive moisture out of MSD boards before reflow, which is why a rack's temperature rating decides whether boards can stay in it through the bake.
- ANSI/ESD S541
- The ESD Association standard for packaging materials in an EPA. It classifies surface resistance into conductive (below 10⁴ Ω), dissipative (10⁴ to below 10¹¹ Ω) and insulative bands. Our measured 10⁴–10⁶ Ω sits in the dissipative band, the range specified for board handling.
- RoHS (EU) 2015/863
- The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. All 20 components of this product were tested and passed (SGS report NGBEC25007648601).
Full IPC and ESD standards reference for handling, storage and depaneling →
What's in the box
- 1 × B0108GM-200C magazine rack
- 2 × Gear track (268–460 mm per chassis), P/N RACK-SPARE-5, the toothed rails for this chassis
- 2 × Lever set / rack lock, P/N RACK-SPARE-8, four latches, both side panels
- 1 × Stopper bar with spring, P/N RACK-SPARE-7, holds boards seated in their slots
- 10 × Plastic gear, P/N RACK-SPARE-9, pinions for the width adjustment
- 10 × ESD plastic slot stopper, P/N RACK-SPARE-11, conductive clips that blank unused slots
