B0103GN-80C Rack + Wear Kit Bundle
The B0103GN-80C rack + wear kit bundle ships the B0103GN-80C 50-slot ESD magazine rack together with the Rack Wear Kit that services it, for $273 instead of $287 bought separately. The rack is 80 °C, 10 mm (0.394″) slot pitch, adjustable 50–250 mm (1.97″–9.84″). The kit holds the gear tracks, lever sets, stopper bar, plastic gears and slot stoppers that wear first on a gear-adjust rack, so a worn rack is repaired at the bench instead of idling a line waiting on parts.
- Adjustable Width: 50–250 mm
- Slot Count / Pitch: 50 @ 10 mm
- Max Board (L × W): 355 × 250 mm
- Temp Range: −20 / +80 °C
Replacing another maker's part? Cross-reference your part number →
At a glance
Description
One rack and its full wear kit in one line item, priced 5% under buying them separately. The kit rides in the rack carton, one shipment.
- 1 x B0103GN-80C 50-Slot Gear-Adjustable ESD Magazine Rack
- 1 x Rack Wear Kit for B0103 / B0105 chassis: gear tracks, latches, stopper bar, gears and slot stoppers
A worn track or latch takes a rack off the line, and the replacement is weeks out when it ships from Asia. This puts the spare set on your shelf the day the rack arrives.
See it in motion

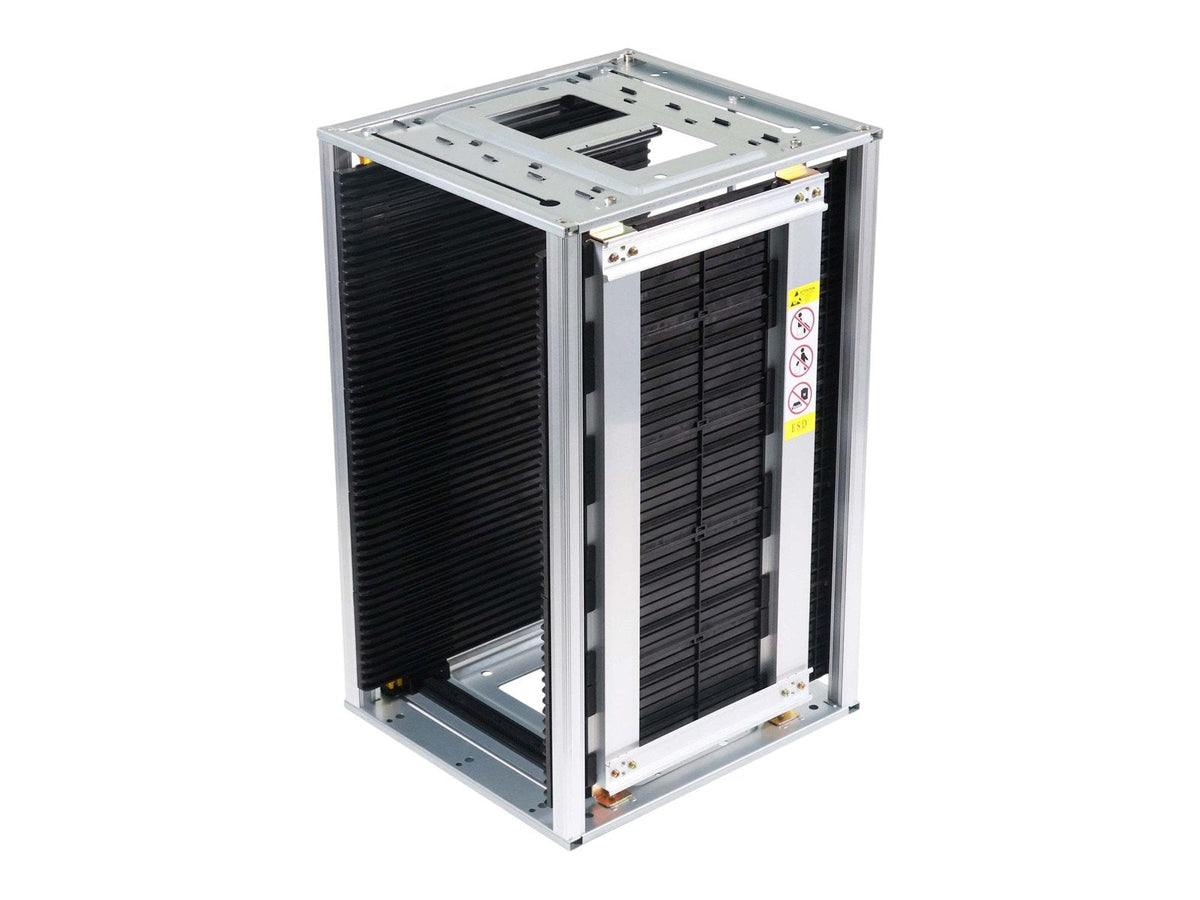

360° turntable rendered from the production CAD model. The geometry shown is the part that ships · B0103GN-80C
B0103GN-80C · Technical specifications
| Model | B0103GN-80C |
|---|---|
| Materials | Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · galvanized steel base |
| Dimensions (L × W × H) | 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″) |
| Slot count | 50 |
| Slot width | 5 mm (0.197″) |
| Slot depth | 3.5 mm (0.138″) |
| Slot pitch | 10 mm (0.394″) |
| Adjustable board width | 50–250 mm (1.97″–9.84″) via gear-track mechanism |
| Max board length | 355 mm (13.98″) |
| Max board size (L × W) | 355 × 250 mm |
| Min board size (L × W) | 50 × 50 mm |
| Reference positions | A = 34 mm · B = 34 mm |
| ESD properties | Surface resistance 10⁴ – 10⁶ Ω (dissipative band per ANSI/ESD S541) |
| ESD test results | NASTC Report 2025AS4693AP (Nov 2025): point-to-point 3.24 × 10⁴ Ω · ground 4.86 × 10⁴ Ω · surface −7 V (spec < 100 V) · decay 0.2 s (spec ≤ 2 s), ALL PASS |
| Temperature range | −20 °C to +80 °C (−4 °F to 176 °F) |
| Adjustment type | Gear track with parallelism monitoring |
| Includes | Stopper bar · carrying handles (top and bottom) |
| Weight | 6.3 kg |
Need drawings or CAD models? Request them by email
Machine compatibility
| Loader / machine | Series | Interface |
|---|---|---|
| ASM SIPLACE | All in-line loaders / unloaders | 563 mm chassis · 10 mm slot pitch |
| Yamaha | YSM series | 563 mm chassis · 10 mm slot pitch |
| Panasonic | NPM series | 563 mm chassis · 10 mm slot pitch |
| Juki | RS series | 563 mm chassis · 10 mm slot pitch |
| Other in-line SMT | Standard-interface loaders | Ask for a fit-check if your line uses a custom fixture |
Not sure your loader is on the list? Send us the model and we confirm fit before you order.
Built for ESD-protected workstations
Materials: 5 × Conductive PPE side panels · aluminum pillars · galvanized steel base
Surface res.: 10⁴ – 10⁶ Ω, dissipative band per ANSI/ESD S541
NASTC test: Report 2025AS4693AP (Nov 2025), point-to-point, ground, voltage, decay all PASS
Thermal range: −20 °C to +80 °C, standard SMT envelope
Capacity: 50 slots · 10 mm pitch · 50–250 mm adjustable · max board 355 × 250 mm
RoHS: PASS, EU Directive (EU) 2015/863. Verified by SGS Report No. NGBEC25007648601 (1 Dec 2025). All 20 components tested, Pb, Hg, Cd, Cr⁶⁺, PBB, PBDE, DEHP, BBP, DBP, DIBP all PASS.
ESD: NASTC Report 2025AS4693AP, tested per SJ/T 10694-2022 and WJ 2146-2016 by MII Anti-Static Products Quality Supervision and Testing Center.
Best for: SMT in-line automation · standard-temp storage & transport · inspection & QC.
Not for: Bake / cure cycles > 80 °C (use the 200 °C or 300 °C variants on the same chassis).
Standards referenced
- ANSI/ESD S541
- The ESD Association standard for packaging materials in an EPA. It classifies surface resistance into conductive (below 10⁴ Ω), dissipative (10⁴ to below 10¹¹ Ω) and insulative bands. Our measured 10⁴–10⁶ Ω sits in the dissipative band, the range specified for board handling.
- RoHS (EU) 2015/863
- The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. All 20 components of this product were tested and passed (SGS report NGBEC25007648601).
Full IPC and ESD standards reference for handling, storage and depaneling →
What's in the box
- 1 × B0103GN-80C magazine rack
- 2 × Gear track (268–460 mm per chassis), P/N RACK-SPARE-5, the toothed rails for this chassis
- 2 × Lever set / rack lock, P/N RACK-SPARE-8, four latches, both side panels
- 1 × Stopper bar with spring, P/N RACK-SPARE-7, holds boards seated in their slots
- 10 × Plastic gear, P/N RACK-SPARE-9, pinions for the width adjustment
- 10 × ESD plastic slot stopper, P/N RACK-SPARE-11, conductive clips that blank unused slots
