Is this cheaper than buying the rack and kit separately?

Yes. The bundle is $265; the B0105GPN-80C rack at $179 plus the Rack Wear Kit at $99 is $278 bought on their own, so the bundle saves $13. Same two products, one line on the PO.

Do I need the wear kit on day one?

Not on day one. The kit is insurance against the day a gear rounds off or a lever set gives up, which on a rack that changes board width daily is a question of when. Having it on the shelf turns that into a bench repair instead of a wait for a part.

Does the wear kit fit this exact rack?

Yes, that is the point of the bundle. The kit shipped here is the variant matched to the B0105 chassis. The wear kit fits gear-adjust racks only; screw and belt racks wear at the panels and frame instead.

B0105GPN-80C rack and wear kit bundle: the B0105GPN-80C ESD PCB magazine rack with the Rack Wear Kit, gear tracks, stopper bar, lever sets, gears and slot stoppers

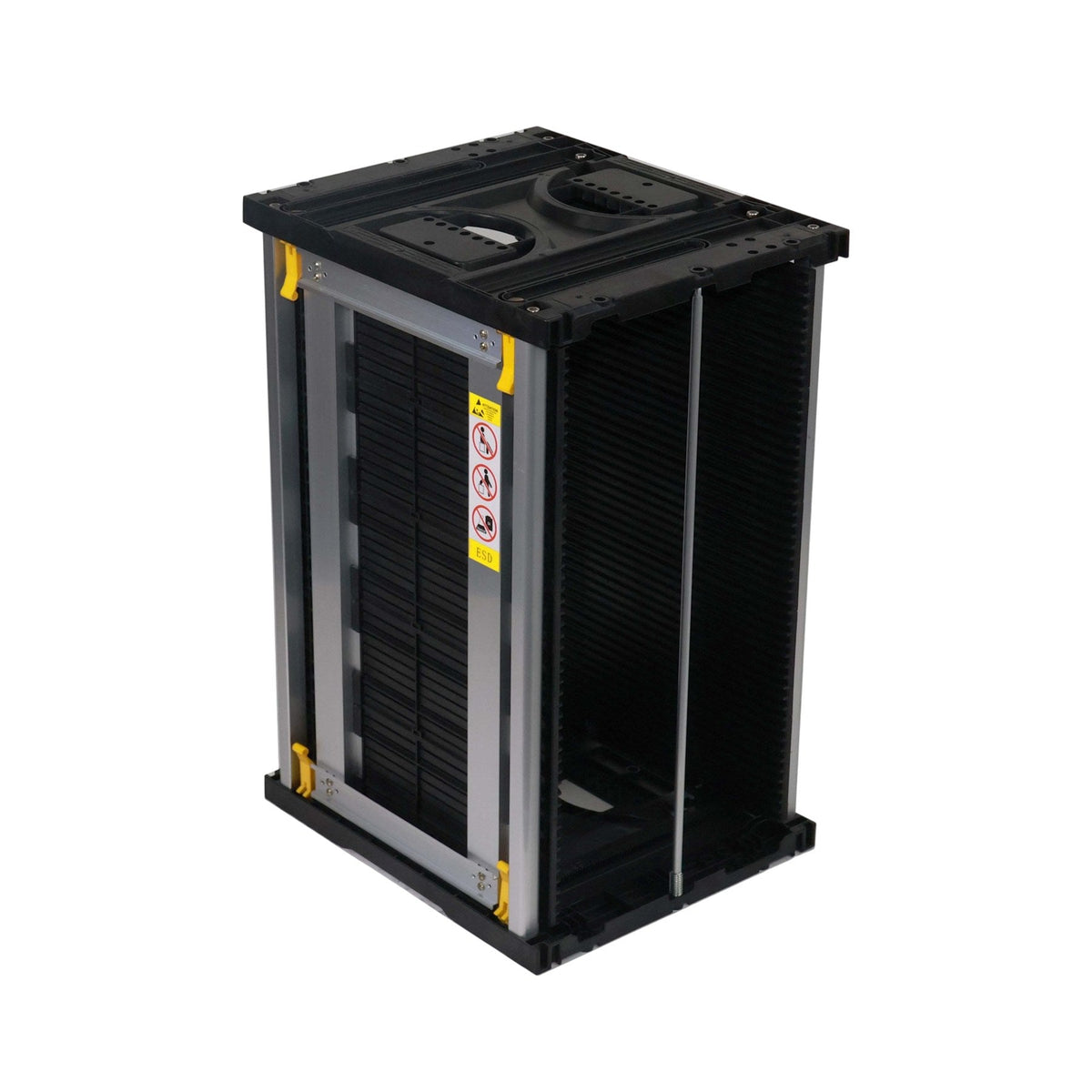

B0105GPN-80CBundleRack + Wear Kit Bundle

Rack + Wear Kit · 50 Slots · Gear-Adjustable · 80 °C (176 °F)

B0105GPN-80C Rack + Wear Kit Bundle is the B0105GPN-80C 50-slot ESD PCB magazine rack plus the Rack Wear Kit that services it, in one order.

In This Bundle: 1 B0105GPN-80C rack + 1 Rack Wear Kit (25 wear parts)
Adjustable PCB Width: 50 to 250 mm (1.97″ to 9.84″)
Slot Pitch: 10 mm (0.394″)
Maximum PCB Size: 355 × 250 mm (13.98″ × 9.84″)
Magazine Rack Size: 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
ESD Rating: Conductive PPE side panels, 10⁴ Ω
Temperature Range: −20 °C to +80 °C (−4 °F to 176 °F)

One line item, priced 5% under buying the two separately. The kit ships in the rack carton, so the spare parts arrive with the rack.

See all specs

Ships from the USA: If in stock, ships today.

Free shipping: US orders of $1,000 and up. Under that, ship on your own UPS or FedEx account (we ask for the number before we ship), or pay ground by weight.

~~$278.00~~$265.00Save $13per bundle

ESD safeConductive 10⁴ Ω TemperatureUp to 80 °C (176 °F)

For purchasing: PO accepted · W-9 and vendor packet by email.

Domestic shipping

Free shipping on US orders of $1,000 and up.

Delivered to your dock, freight paid (DDP). It applies by itself at checkout, with no code. In stock ships in under 24 hours.

Under $1,000? Ship on your own UPS or FedEx account: tick the option in your cart and we ask you for the account number by email before anything ships. Or take the ground rate shown at checkout, priced by the weight of the order.

B0105GPN-80C loaded with circuit boards — Loaded and ready for the line

360° view

At a glance

What it does: Feeds SMT loaders and unloaders and holds boards between process steps, with the parts that wear first already on your shelf.
The problem it solves: One rack for every board width from 50 to 250 mm (2 to 9.8 in), set with a gear instead of swapping racks.
What it fits: In-line loaders and unloaders from ASM SIPLACE, Yamaha, Panasonic and Juki.
Key specs: 50 slots · 10 mm (0.4 in) pitch · up to 80 °C (176 °F) · conductive 10⁴ Ω

Details

Stop swapping racks every time the board width changes.

One rack for every board width on the line. The shift runs, and nobody calls the engineer to the floor.

The engineer, who chooses it: Fits the loaders and unloaders your line already runs, in the heat rating your oven needs. It's the one part of the line you choose once and never think about again.
The operator, who uses it: Set the width, lock it, load the boards. When the line backs up, stack up to five full racks on top of each other.
The buyer, who pays for it: In stock with the price on the page, shipped from the USA in under 24 hours on a card or a PO. When a part wears out years from now, you replace the part, not the rack.

Description

What “all-plastic” actually changes

The B0105GPN-80C is a 50-slot ESD magazine rack with all-plastic construction. The chassis swaps the galvanized-steel base of the B0103 family for a Conductive PS (polystyrene) base, while keeping the same 5 × Conductive PPE side panels and aluminum pillars. Result: same 50-slot capacity, same gear-track mechanism, same 50–250 mm (1.97″–9.84″) width range, 1.5 kg lighter per rack.

Why it matters: across a production floor with 30–50 racks moving daily between stations, 1.5 kg per rack is a meaningful operator-fatigue savings. The all-plastic chassis is also the right pick when your environment requires a non-metallic chassis (cleanroom, high-RF, or specific contamination protocols), and when minimum-weight per loaded transport matters (cart capacity, shelf load).

The plastic base keeps the entire current path conductive, at 10⁴ Ω, and RoHS compliant, like the metal-base B0103 family. Standard 80 °C envelope; for bake-suitability on the same all-plastic chassis, use the B0105GPM-120C. For higher temperatures, switch to a metal-base sibling on the B0103 chassis.

Buying for a line? 20 or more racks, any mix from the magazine rack family, take 10% off automatically at checkout. See our volume and fleet pricing.

Best uses

SMT loading and unloading: Feeds the loader and takes boards off the unloader.
Between process steps: A full lot moves from cell to cell without anyone handling single boards.
Storage: Boards stay upright and apart on the shelf.
Inspection and QC: Boards wait in their own slots until they are checked.

Why factories use PCB racks

A board is most at risk while it waits between steps: static, scratches, bent edges and mix-ups.
A rack holds every board upright and apart, each in its own slot.
A conductive rack carries static away instead of letting it build up on the boards.
Magazine racks also feed boards straight into SMT loaders and unloaders.
The boards in one rack are worth far more than the rack.

Specs

Temperature rating

−20 to 80 °C (−4 to 176 °F)

B0105GPN-80CThis rackStorage and in-line SMT handling

80 °C · 176 °F

B0105GPM-120CLow-temperature bake up to 120 °C (248 °F)

120 °C · 248 °F

−20 °C−4 °F80 °C176 °F120 °C248 °F200 °C392 °F300 °C572 °F

Made for storage, moving boards between cells, soldering, inspection and cleaning at normal factory temperatures. For baking boards, the same rack comes in a 120 °C (248 °F) version.

ESD rating

Conductive 10⁴ Ω

ConductiveOrdinary plastic This rack · 10⁴ Ω

Low resistance: static drains awayHigh resistance: static stays

Every side panel is conductive, so static is carried away instead of building up on the boards. RoHS compliant. ESD and RoHS test reports on request.

Board sizes it takes

The gear sets the width between the side walls anywhere from 50 to 250 mm (2 to 9.8 in).

Technical data

Model	B0105GPN-80C
Materials	Conductive PPE side panels (5 × interchangeable per wall) · aluminum pillars · Conductive PS base (no galvanized steel, all-plastic chassis)
Dimensions (L × W × H)	355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
Slot count	50
Slot width	5 mm (0.197″)
Slot depth	3.5 mm (0.138″)
Slot pitch	10 mm (0.394″)
Adjustable board width	50–250 mm (1.97″–9.84″) via gear-track mechanism
Max board length	355 mm (13.98″)
Max payload	50 kg (110 lb) spread evenly across the slots
Max board size (L × W)	355 × 250 mm (13.98″ × 9.84″)
Min board size (L × W)	50 × 50 mm (1.97″ × 1.97″)
Reference positions	A = 34 mm (1.34″) · B = 34 mm (1.34″)
ESD properties	Surface resistance 10⁴ Ω, conductive
Test reports	ESD and RoHS test reports on request
Temperature range	−20 °C to +80 °C (−4 °F to 176 °F)
Adjustment type	Gear track with parallelism monitoring (screw adjustment configuration also available)
Includes	Stopper bar · carrying handles (top and bottom)
Weight	4.8 kg, lightest in the magazine catalog (vs 6.3 kg gear / 6.1 kg screw)

Overall size

Machine compatibility

Loader / machine	Series	Interface
ASM SIPLACE	All in-line loaders / unloaders	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Yamaha	YSM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Panasonic	NPM series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Juki	RS series	563 mm (22.17″) chassis · 10 mm (0.394″) slot pitch
Other in-line SMT	Standard-interface loaders	Ask for a fit-check if your line uses a custom fixture

Not sure your loader is on the list? Send us the model and we confirm fit before you order.

Compared to the other versions

Feature	B0105GPM-120C	B0105GPN-80C
Temperature rating	−20 °C to +120 °C (−4 °F to 248 °F), covers MSD low-bake profiles (90–110 °C)	−20 °C to +80 °C (−4 °F to 176 °F)
Width adjustment	Gear track, parallelism monitored	Gear track, parallelism monitored
MSD bake per J-STD-033	No. Transfer to a bake-rated rack first	Yes, covers MSD low-bake profiles at 90–110 °C
Frame	Conductive PPE panels · aluminum pillars · conductive PS base (no steel)	Conductive PPE panels · aluminum pillars · conductive PS base (no steel)
Pick this one when	Warm processes and short low-temperature bake.	Standard storage, transport and in-line SMT handling.

Replacing another maker's part? Cross-reference your part number

IPC and industry standards

IPC-1601: The IPC guideline for handling and storing printed boards: keep them clean, dry and protected from damage between fabrication and assembly. Our racks are conductive, 10⁴ Ω.
IPC/JEDEC J-STD-033: The moisture-sensitive-device handling standard. It sets the bake profiles (typically 90–125 °C) used to drive moisture out of MSD boards before reflow, which is why a rack's temperature rating decides whether boards can stay in it through the bake.
RoHS (EU) 2015/863: The EU restriction on hazardous substances in electrical equipment: lead, mercury, cadmium, hexavalent chromium, PBB, PBDE and four phthalates. This product is RoHS compliant; the test report is available on request.

Full IPC and ESD standards reference for handling, storage and depaneling

Features

Turn the gear to set the board width anywhere from 50 to 250 mm (2 to 9.8 in). One rack covers every board width in that range.
All 50 slots stay parallel at every width, so boards slide in and out cleanly.
Takes boards from 50 × 50 mm (2 × 2 in) up to 355 × 250 mm (14 × 9.8 in).
Conductive PPE side panels, aluminum pillars and a conductive plastic base. The lightest magazine rack in the range.
Side panels swap one at a time, so a damaged panel never retires the rack.
Holds up to 50 kg (110 lb) of boards, spread evenly across the slots.
Used at contract manufacturers, at electronics plants in aerospace and defense, automotive and medical devices, and in test and repair labs.
Ships from the USA. In-stock orders placed by noon Pacific ship the same business day.

What's in the box

One B0105GPN-80C rack, packed flat. It goes together with the supplied screws.
Stopper bar
Carrying handles (top and bottom)
Rack Wear Kit:
2 gear tracks (RACK-SPARE-5), length matched to your chassis, 268 to 460 mm (10.55 to 18.11 in)
2 lever sets (RACK-SPARE-8): four latches, for both side panels
1 stopper bar with spring (RACK-SPARE-7), holds boards seated in their slots
10 plastic gears (RACK-SPARE-9) for the width adjustment
10 ESD slot stoppers (RACK-SPARE-11), conductive clips that close unused slots

Spares available

Rack Wear Kit · Services One 50-Slot Gear-Adjust Rack$99.00

Side Panel Kit · 10 Strips, One Rack (Pack of 10)$60.00

Frame & Plate Kit · Rack Structure for One Rack$159.00

FAQ

Questions

Why pick all-plastic instead of metal-base?

Three reasons. (1) Weight: 4.8 kg vs 6.3 kg per rack. Across 30–50 racks moving daily on a floor, that compounds to real operator-fatigue savings and lighter cart loads. (2) Non-metallic chassis: cleanroom, high-RF, or specific contamination protocols sometimes require no exposed metal in the current path. The B0105GPN’s Conductive PS base satisfies that requirement. (3) Cost: the all-plastic chassis is a touch lower cost than the equivalent metal-base B0103GN. Trade-off: slightly less rigid than the galvanized-steel base, pick metal if you stack heavy loads on top of loaded racks.

Why is the temperature range −10 °C instead of −20 °C?

The Conductive PS base’s low-temperature qualification reaches −20 °C, same as the metal-base racks, vs −20 °C for the galvanized-steel-base B0103 family. For most factory floors this is irrelevant (production environments rarely drop below 10 °C indoors), but if your shipping or staging environment regularly hits below −10 °C, switch to the metal-base B0103GN-80C.

Will the B0105GPN-80C drop into my SMT loader / unloader?

Yes. The 563 mm (22.17″) chassis height and 10 mm (0.394″) slot pitch match the standard interface for ASM SIPLACE, Yamaha YSM, Panasonic NPM, Juki RS, and most other in-line SMT loader / unloader equipment. The 355 × 320 mm (13.98″ × 12.60″) footprint is identical to the B0103 / B0104 family. The all-plastic base does not change the loader interface, the loader picks boards from the same standard slot positions.

Can I bake the B0105GPN-80C? What’s the temperature ceiling?

The GPN-80C variant is rated −20 °C to +80 °C. For low-temperature MSD bake on the same all-plastic chassis, pick the B0105GPM-120C (120 °C), suitable for 90–110 °C moisture-removal profiles. For full IPC/JEDEC J-STD-033 bake (up to 125 °C), use the metal-base B0103GM-200C (200 °C) instead. The all-plastic chassis does not currently have a 200 °C variant.

Can I replace a damaged side panel without buying a whole new rack?

Yes. The side panels are made of 5 interchangeable Conductive PPE sections per wall, each individually replaceable, same as the metal-base mag racks. Rack spares are sold separately for every magazine-rack chassis we’ve ever shipped, typically in stock.

What ships in the box?

One B0105GPN-80C magazine rack, sold individually. Includes stopper bar and carrying handles (top and bottom). Packaging size 570 × 370 × 120 mm (22.44″ × 14.57″ × 4.72″) at 4.8 kg gross. Stocked at the US warehouse; in-stock orders ship in under 24 hours. Ships flat and goes together with the supplied screws.

How much weight can a loaded rack carry?

The load capacity (weight limit) of the all-plastic body is 50 kg (110 lb), spread evenly across the slots. For heavier carriers or assemblies, move to a rack built on the aluminum pillar frame, which carries up to 85 kg (187 lb).

Can I run anodized aluminum carriers or fixtures in this rack?

You can, and the load path here is conductive PPE side panels, the usual choice for bare boards. If you carry anodized aluminum carriers or fixtures and want no polymer touching them at all, the HT version of this chassis replaces every panel with clear anodized aluminum, so anodized rides on anodized, and it stays conductive, 10⁴ Ω.

Is there a 3D model or STEP file for this rack?

Yes, on request. Dimensional drawings and CAD are not posted on the site, so ask through the documentation request page and the team sends the STEP model for this chassis.

Can you ship to our contract manufacturer or an overseas partner?

Yes. Racks ship FOB origin from the US, and we drop ship to a contract manufacturer, a loader vendor, or your own site abroad. Send the delivery address with the order, and if you have a carrier account we book the shipment on it. One order can go to more than one address.

B0105GPN-80CBundleRack + Wear Kit Bundle
