RA-19C · Slotted-Edge ESD PCB Rack (Pack of 10)
RA-19CIn stock · USA

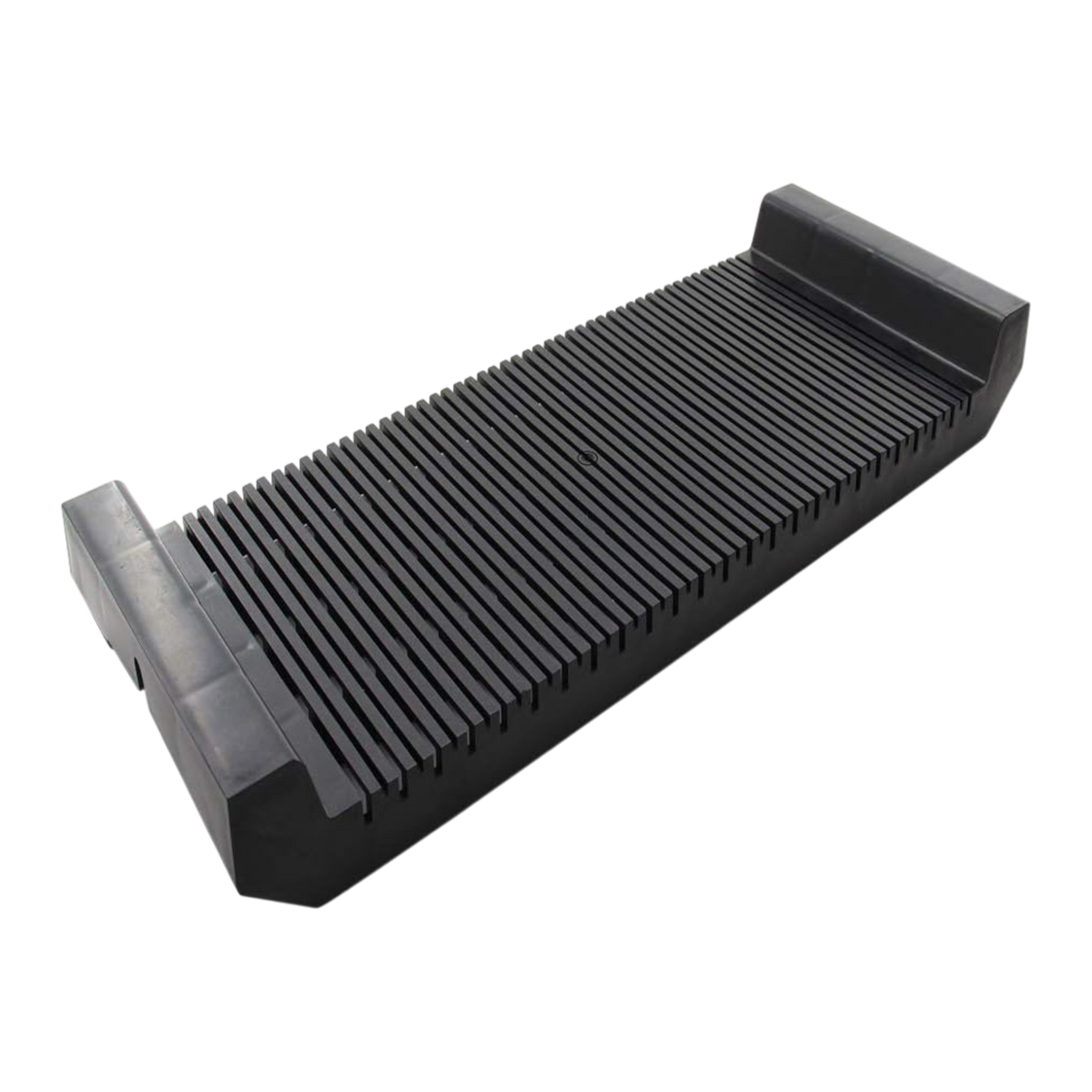

Conductive polypropylene rack with the tightest pitch (12.2 mm) and deepest slot (8 mm) in the slotted-edge series. Pack 25 boards into a compact footprint and lock each one deep enough to survive cart transport between stations. 484 × 172 × 50 mm body, max 2.2 mm board thickness, 10⁴–10⁶ Ω, stocked in the USA.
$375.64 pack of 10
- 12.2 mm pitch
- 8 mm slot D
- 2.8 mm slot W
- 25 slots
- ≤ 2.2 mm board
- RoHS PASS
ESD-safe
Ships from the USA
Spec help included
Floor Space Tight? Pack Boards Closer.
REF 01Wider-pitch racks waste shelf and bench real estate. The RA-19C runs the tightest pitch in the series (12.2 mm), fitting 25 boards into a compact footprint, and the deepest slot (8 mm) seats each board deep enough to stay locked in place during cart transport.
12.2 mm pitch
8 mm slot depth
2.2 mm board thickness
10⁴–10⁶ Ω
At a glance
REF 02Slot Pitch12.2 mm
Slot Depth8 mm
Max Board (L × W)400 × 220 mm
Weight (Empty)0.32 kg
Description
REF 03The RA-19C is a 25-slot conductive polypropylene rack built for high-density storage. Each slot is 2.8 mm wide with a full 8 mm depth and a tight 12.2 mm pitch, the deepest engagement and tightest packing of any rack in the slotted-edge series.
The 172 mm rack width gives a wider base than most universal racks, and the 50 mm tall body provides more structural support during stacking. Boards seat deeper and closer together than standard-pitch alternatives, perfect for high-density WIP, tight floor space, or production lines that need to maximize storage per linear foot.
Max board thickness is 2.2 mm (slightly less than RA-17C/18CP because the slot is narrower at 2.8 mm vs. 3 mm). Boards span the rack and can overhang on both sides. Conductive PP material at 10⁴–10⁶ Ω keeps boards in the conductive range from SMT placement through final inspection.
