ESD PCB Storage Racks
Conductive ESD racks that store 50 boards between process steps and feed straight into SMT loaders. The width adjusts to your board, and in-stock racks ship from the US in under 24 hours.

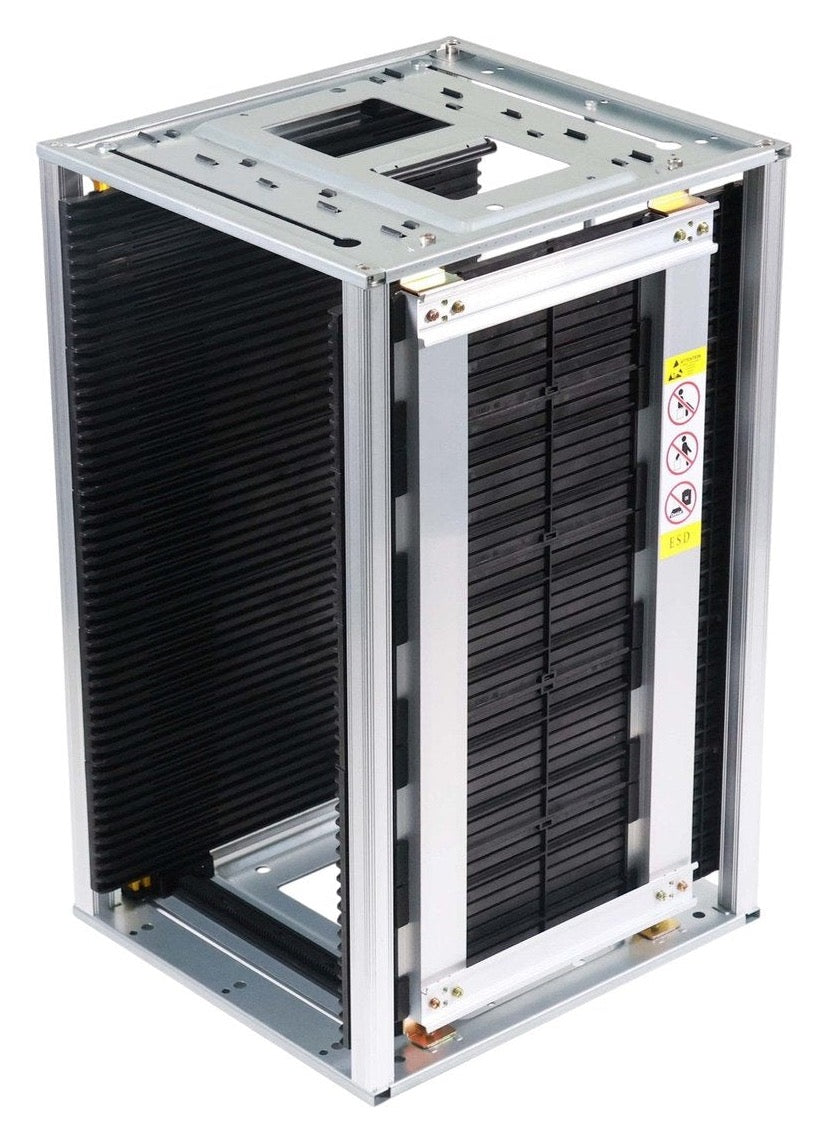

B0103GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
- Slots
- 50, at 10 mm (0.394″) pitch
- Board width
- 50 to 250 mm (1.97″ to 9.84″), gear-track adjust
- Boards
- up to 355 × 250 mm (13.98″ × 9.84″)
- Temperature
- −20 to +80 °C (−4 to 176 °F)
- Fits
- standard in-line SMT loaders and unloaders
- Made for
- IPC board handling, on the line and in storage
Whoever places the order gets this item, the quantity above, the price and a link to buy it. They can pay by card from the link, or ask us for a PO, a formal quote or terms.
For larger boards

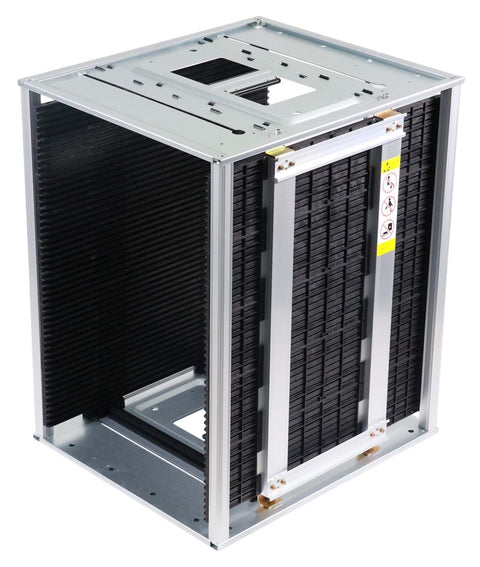

B0106GN-80C · 50-Slot Gear-Adjustable ESD PCB Magazine Rack
Boards up to 460 × 330 mm (18.11″ × 12.99″) in a 460 × 400 × 563 mm (18.11″ × 15.75″ × 22.17″) chassis, 50 slots.
$257.00 each
Not sure which size? Enter your board size →
Questions
Ask Sam. Answers in seconds.
Sam is our spec engineer: sizes, part numbers, ESD, shipping. Tap a question or type your own.
Read all the answers
What is an ESD PCB storage rack?
A conductive rack that holds circuit boards in slots so they never touch while they wait between process steps. SMT magazine racks like the B0103GN-80C also feed boards straight into your loaders.
Which size do I need?
Match the rack to your board: the B0103 takes boards up to 355 × 250 mm (13.98″ × 9.84″), the B0106 up to 460 × 330 mm (18.11″ × 12.99″). The PCB Rack Finder picks it from your board size.
Are they ESD safe?
Yes. They are conductive, 10⁴ to 10⁶ Ω, so charge drains to ground instead of sitting on your boards.
Can they go in a bake oven?
The standard racks are rated to 80 °C (176 °F). The same sizes come rated 200 °C (392 °F) for bake cycles, and all-aluminum racks go to 300 °C (572 °F).
Do they need assembly?
Magazine racks ship flat and go together with the supplied screws.
How fast do they ship?
In-stock racks ship from the US in under 24 hours. 20 or more magazine racks save 10%, applied at checkout.
Fitting out a whole line?
Send the board sizes and your loader model. A bulk quote comes back within one business day.
