Conductive board trays

ESD PCB Trays

ESD trays for PCBs that hold circuit boards on edge, 25 to a tray, so no two boards touch. Conductive, sold in packs of 10, and in stock in the US.

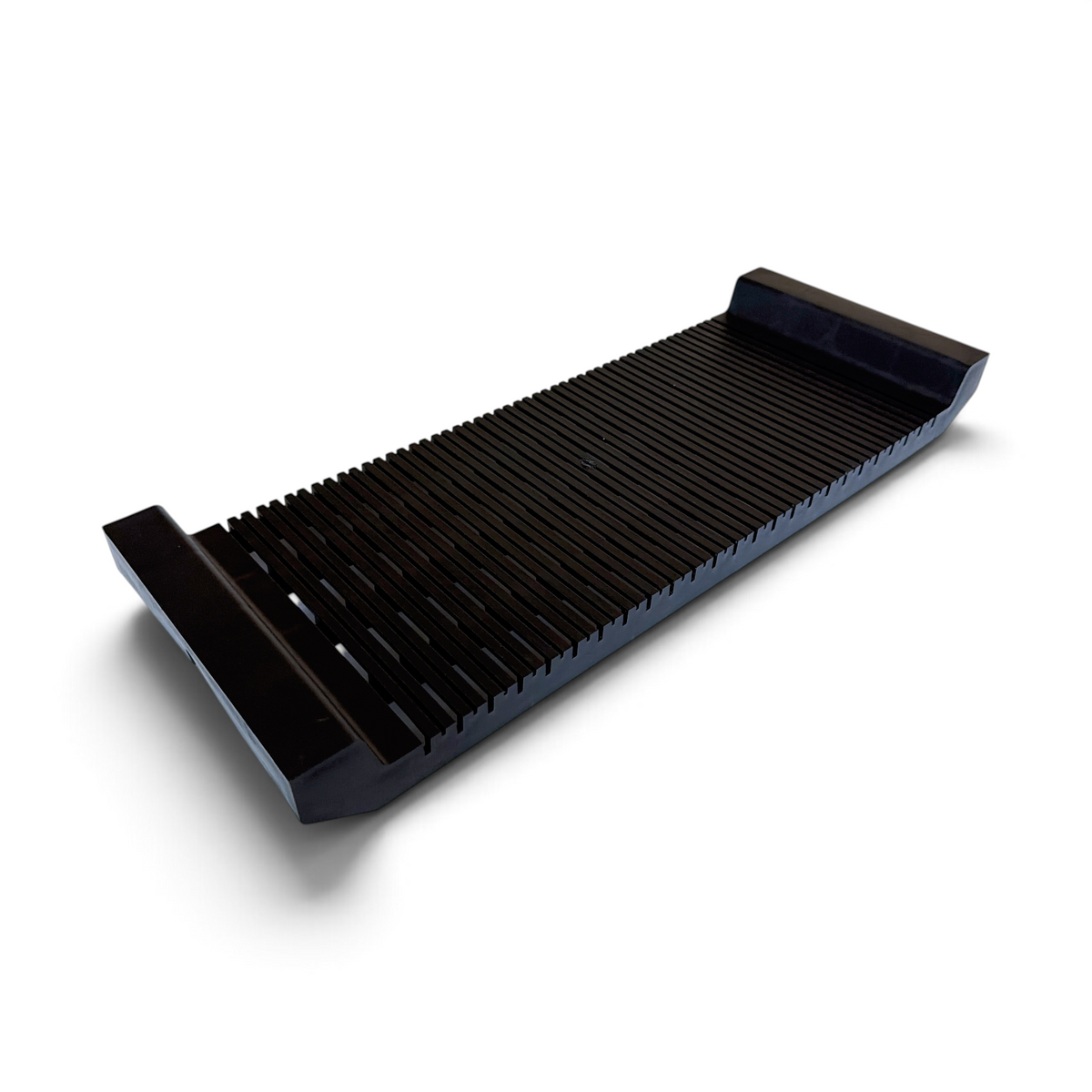

Three-quarter view of the empty RA-20C slotted-edge ESD PCB rack from the other end; 25 slots, 15 mm (0.591 in) pitch, conductive polypropylene, boards to 400 × 220 mm (15.75 × 8.66 in), pack of 10
Our most popular tray

RA-20C · Slotted-Edge ESD PCB Rack (Pack of 10)

$41.90 per rack · $419.00 pack of 10
In stock · ships in under 24 h · USA
Positions
25, a double slot at each
Slot A
3 mm (0.118″) wide, 7.7 mm (0.303″) deep, holds boards for transport
Slot B
2.1 mm (0.083″) wide, for quick access at the bench
Boards
up to 400 × 220 mm (15.75″ × 8.66″)
Pitch
15 mm (0.591″)
Material
conductive polypropylene, chemical resistant
Sold
packs of 10, no assembly needed
Full specs Spec sheet (PDF) Ask an engineer
Three-quarter view of the empty RA-20C slotted-edge ESD PCB rack from the other end; 25 slots, 15 mm (0.591 in) pitch, conductive polypropylene, boards to 400 × 220 mm (15.75 × 8.66 in), pack of 10
Conductive, 10⁴ to 10⁶ Ω
Ships from the US in under 24 h
5+ packs save 5%, 10+ save 10%
An engineer confirms the fit

Smaller footprint

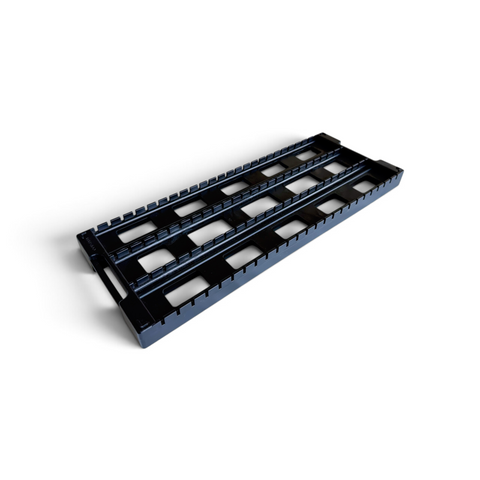

Three-quarter view of the empty RA-24 Mini slotted-edge ESD PCB rack on white; 25 slots, 16 mm (0.630 in) pitch, conductive polypropylene, boards to 400 × 220 mm (15.75 × 8.66 in), pack of 10

RA-24 Mini · Slotted-Edge ESD PCB Rack (Pack of 10)

435 × 160 mm (17.13″ × 6.30″), 25 slots 3.2 mm (0.126″) wide, boards up to 2.4 mm (0.094″) thick.

$34.70 per rack · $347.00 pack of 10

See it

Not sure which tray? Enter your board size →

Questions

Ask Sam. Answers in seconds.

Sam is our spec engineer: sizes, part numbers, ESD, shipping. Tap a question or type your own.

Read all the answers

What is an ESD PCB tray?

A conductive tray with slots that hold circuit boards on edge, one board per slot, so boards never touch and static drains away instead of building up.

How many boards does a tray hold?

25. The RA-20C has a double slot at every position: a deep slot for transport and a shallow one for quick access at the bench.

Are the trays ESD safe?

Yes. They are conductive, 10⁴ to 10⁶ Ω, so charge drains to ground instead of sitting on your boards.

How are they sold?

In packs of 10. Volume pricing applies itself at checkout: 5 or more packs save 5%, 10 or more save 10%.

How fast do they ship?

In-stock trays ship from the US in under 24 hours.

Which tray fits my boards?

Enter your board size in the PCB Rack Finder, or send us the size and an engineer confirms the tray before you order.

Buying trays for a whole line?

Send the board sizes and quantities. A bulk quote comes back within one business day.
