PCB Rack Finder

Find the PCB rack that fits your board, the first time.

Enter your board size, or the part number you use now. See the rack and its price.

Units
Hottest process
Your boards
ESD-safe, always

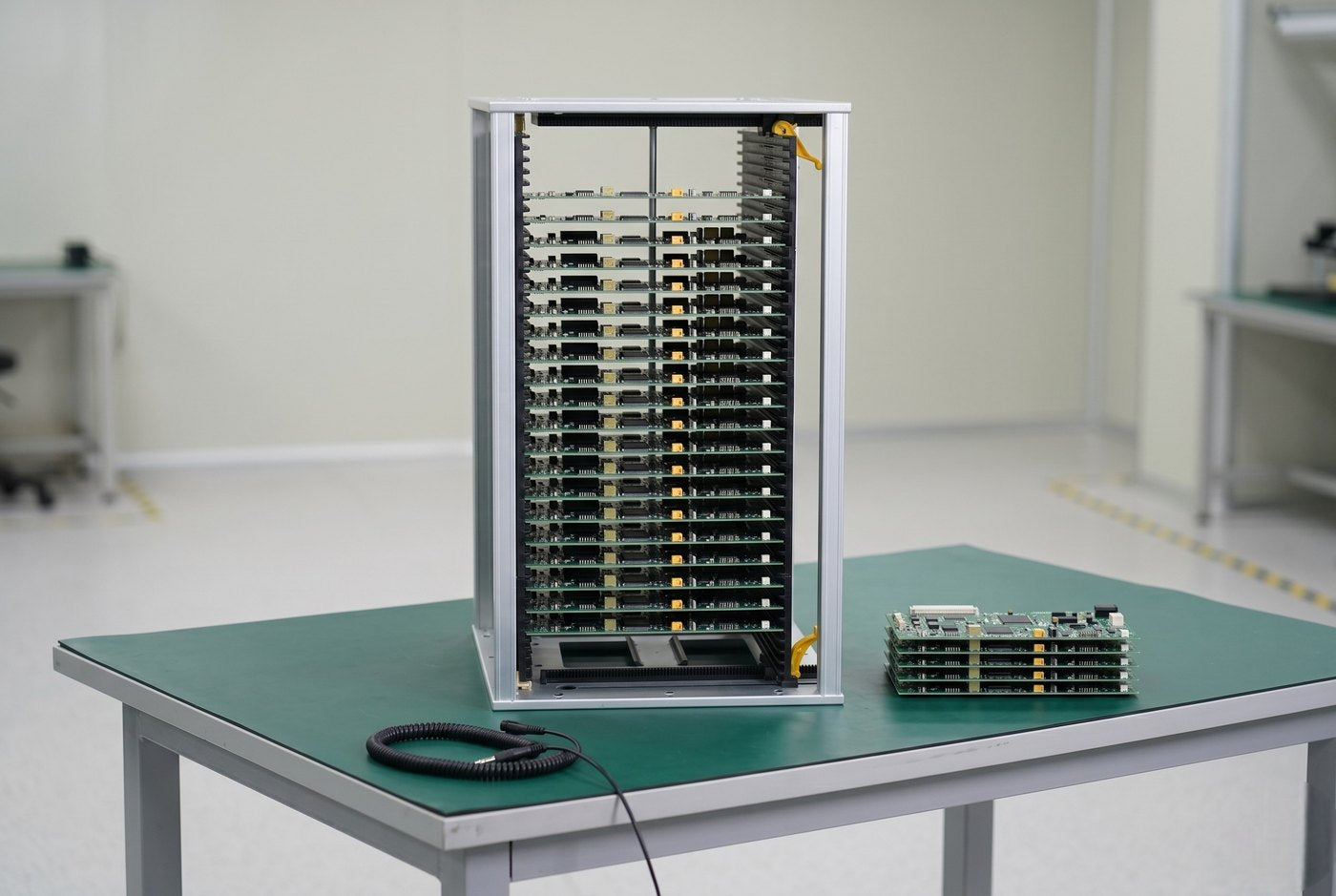

B0103GN-80C ESD PCB magazine rack loaded with boards on an ESD bench
Ships from the US
ESD-safe, every rack
In stock ships in 24 h
20+ magazine racks, 10% off

PCB magazine racks by board size

50 slots. Adjust to the board. Feed your SMT loader.

B0103 ESD PCB magazine rack B0103 · 80 to 300 °C 355 × 250 mm Boards up to 13.98″ × 9.84″From $188.00 B0104 ESD PCB magazine rack B0104 · Screw clamp 355 × 250 mm Boards up to 13.98″ × 9.84″From $188.00 B0105 ESD PCB magazine rack B0105 · Lightest 355 × 250 mm Boards up to 13.98″ × 9.84″From $179.00 B0106 ESD PCB magazine rack B0106 · 80 to 300 °C 460 × 330 mm Boards up to 18.11″ × 12.99″From $257.00 B0108 ESD PCB magazine rack B0108 · 80 to 200 °C 535 × 390 mm Boards up to 21.06″ × 15.35″Special orderFrom $336.00 B0109 ESD PCB magazine rack B0109 · 80 to 300 °C 535 × 460 mm Boards up to 21.06″ × 18.11″Special orderFrom $416.00 B0110 ESD PCB magazine rack B0110 · Extra long 620 × 460 mm Boards up to 24.41″ × 18.11″Special orderFrom $695.00

Fixed-slot PCB racks and holders

RA-20C ESD PCB rack RA-20C · Transport and bench 400 × 220 mm Boards up to 15.75″ × 8.66″ $41.90 per rack, pack of 10 RA-16C ESD PCB rack RA-16C · Standard boards 400 × 260 mm Boards up to 15.75″ × 10.24″ $35.40 per rack, pack of 10 RA-24 Mini ESD PCB rack RA-24 Mini · Thick or populated 400 × 220 mm Boards up to 15.75″ × 8.66″ $34.70 per rack, pack of 10 RA-18C ESD PCB rack RA-18C · Carry handles 320 × 180 mm Boards up to 12.60″ × 7.09″ $35.10 per rack, pack of 10 Karry-All 35 ESD PCB rack Karry-All 35 · Box or tote carrier 350 × 175 mm Boards up to 13.78″ × 6.89″ $44.90 per rack, pack of 10 PCBH-2L-C ESD PCB rack PCBH-2L-C · Inspection angle 305 × 203 mm Boards up to 12″ × 8″ $37.60 per rack, pack of 10 PCBH-C ESD PCB rack PCBH-C · Bench holder 152 × 152 mm Boards up to 6″ × 6″ $32.50 per rack, pack of 10

Already buying from Fancort, Nikko or Botron?

Find the part number you order today. This is our rack for it.

NikkoNK Cert 0525R / 0531R / 0539R / 0546RB0103GN-80CClosest equivalent$188.00eachFancortMagazine Rack BG SeriesB0103GN-80CEquivalent$188.00eachFancortRA-18RA-18CEquivalent$35.10per rackFancortRA-18RA-24 MiniClosest equivalent$34.70per rackFancortRA-24RA-24 MiniClosest equivalent$34.70per rackFancortRA-20RA-20CClosest equivalent$41.90per rackBotronB19025RA-20CClosest equivalent$41.90per rackFancortAngle Rack PCBHPCBH-CEquivalent$32.50per rackElcomPCB Rack, 25 boardsPCBH-CClosest equivalent$32.50per rackElcomPCB Rack, 30 boardsPCBH-2L-CClosest equivalent$37.60per rack

Full PCB rack cross-reference with fit notes →

Order the way your company buys

Card today, or a PO and terms. The cart can go to whoever places the order.

Pay by card Card, PayPal, Apple Pay or ACH at checkout. Go to checkout
Order through purchasing Send the list, the prices and a link to your cart to whoever places the order.
PO or terms A formal quote with your cart already filled in. Terms are offered.

Questions

What size PCB magazine rack do I need?

Take the smallest rack whose largest board clears both edges of yours. Sizes run from 355 × 250 mm (13.98″ × 9.84″) on the B0103 to 620 × 460 mm (24.41″ × 18.11″) on the B0110.

Which PCB rack can go in a bake oven?

A GM rack for moisture bake to 200 °C (392 °F), or an all-aluminum GL HT rack to 300 °C (572 °F). Standard 80 °C (176 °F) racks stay out of the oven.

Can your rack replace my Fancort, Nikko or Botron rack?

Yes, for every number in our cross-reference. Type it in the Part number tab above.

Are your PCB racks ESD-safe?

Yes, every one. Magazine racks measure 10⁴ to 10⁶ Ω, the conductive band of ANSI/ESD S541.

Do you ship outside the US?

Yes. Email info@pcbracks.com before you order and we help with shipping, duties and paperwork.

Board not on the list?

Send the size or the drawing. An engineer names the rack, usually the same day.
