Best Sellers
Best sellers.
A good place to start.
The B0103GN magazine rack, the RA-24 Mini slotted-edge rack, the D500 ESD turntable and the VPD5-330 depaneler. Racks in stock ship from the USA in under 24 hours.
- Products
- 4 racks, a turntable and a depaneler
- Racks ship
- Under 24 h from the USA, when in stock
- ESD rating
- 10⁴ Ω conductive racks
- Depaneler
- Quoted with a ship date
[ Best Sellers ]
Four products.
A good place to start.
Each one links to its family page if you need a different size or rating.
Best sellers
Best sellers
A magazine rack, a slotted-edge rack, an ESD turntable and a depaneler.
D500
- Disc
- Ø 500 mm (19.69″), 15 mm (0.59″) tall
- Load Capacity
- 113 kg (250 lb)
- Largest Board on the Disc
- 400 × 350 mm (15.75″ × 13.78″)
$192.00
In stock · ships in under 24 h · USA
B0103GN-80C
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)
$188.00
In stock · ships in under 24 h · USA
RA-24 Mini
- Slots
- 25, on a 16 mm (0.630″) pitch
- Slot Size
- 3.2 mm wide, 7.7 mm deep (0.126″ × 0.303″)
- Board Thickness
- Up to about 2.4 mm (0.094″)
$34.70 per rack · $347.00 pack of 10
In stock · ships in under 24 h · USA
VPD5-330
- Maximum Cut Length
- 330 mm (13 in)
- Board Thickness
- 0.6 to 2.54 mm (0.024″ to 0.100″)
- Parts Near the Score
- Down to 0.5 mm (0.020″)
[ Further information ]
[ Next step ]
Need a different size?
The finder names the part.

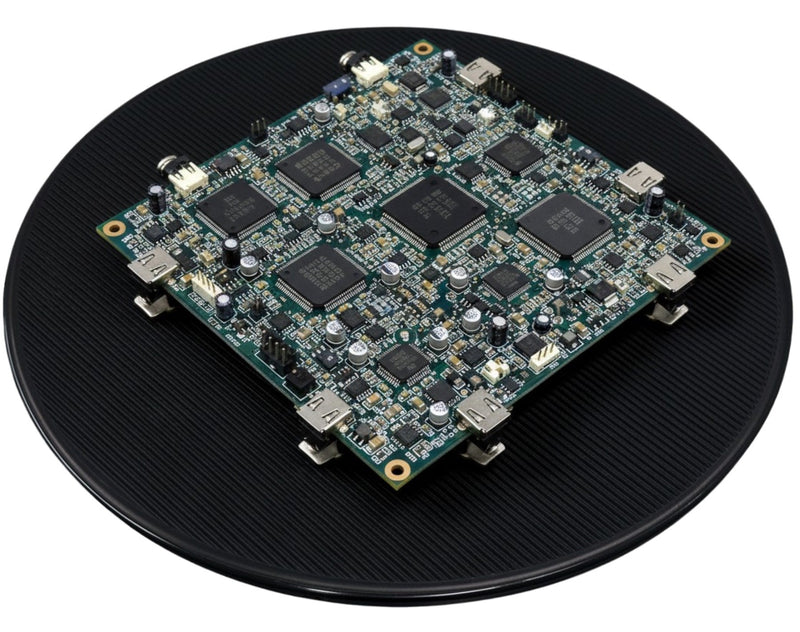

ESD Turntable for PCB Assembly, 500 mm Disc
$192.00 each
If in stock, ships today. Ships from the USA.
- Disc
- Ø 500 mm (19.69″), 15 mm (0.59″) tall
- Load Capacity
- 113 kg (250 lb)
- Largest Board on the Disc
- 400 × 350 mm (15.75″ × 13.78″)
- Rotation
- 360°, free-spinning bearing
- ESD Rating
- Surface ≤ 10⁵ Ω, to ground ≤ 10⁷ Ω
- Temperature Range
- −10 °C to +85 °C (14 °F to 185 °F)
- Power and Air
- None required

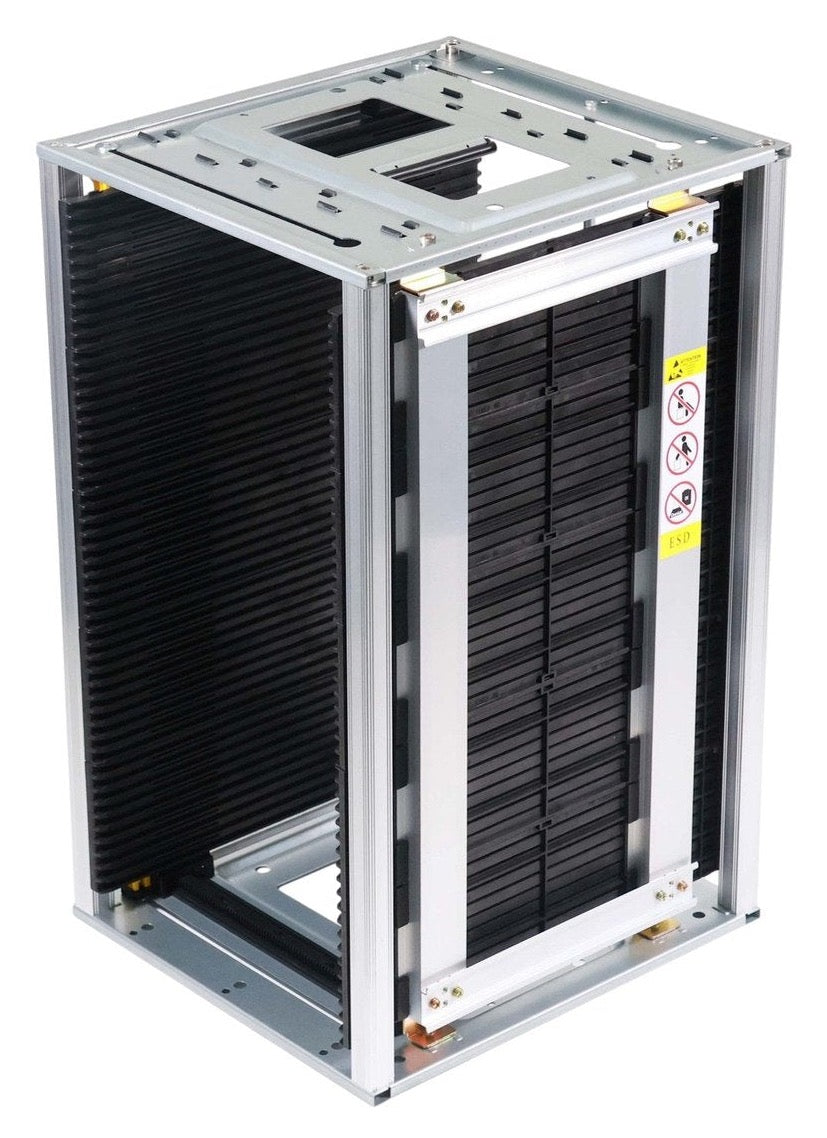

50-Slot Gear-Adjustable ESD PCB Magazine Rack
$188.00 each
If in stock, ships today. Ships from the USA.
- Adjustable PCB Width
- 50 to 250 mm (1.97″ to 9.84″)
- Slot Pitch
- 10 mm (0.394″)
- Maximum PCB Size
- 355 × 250 mm (13.98″ × 9.84″)
- Magazine Rack Size
- 355 × 320 × 563 mm (13.98″ × 12.60″ × 22.17″)
- ESD Rating
- Conductive PPE side panels, 10⁴ Ω
- Temperature Range
- −20 °C to +80 °C (−4 °F to 176 °F)

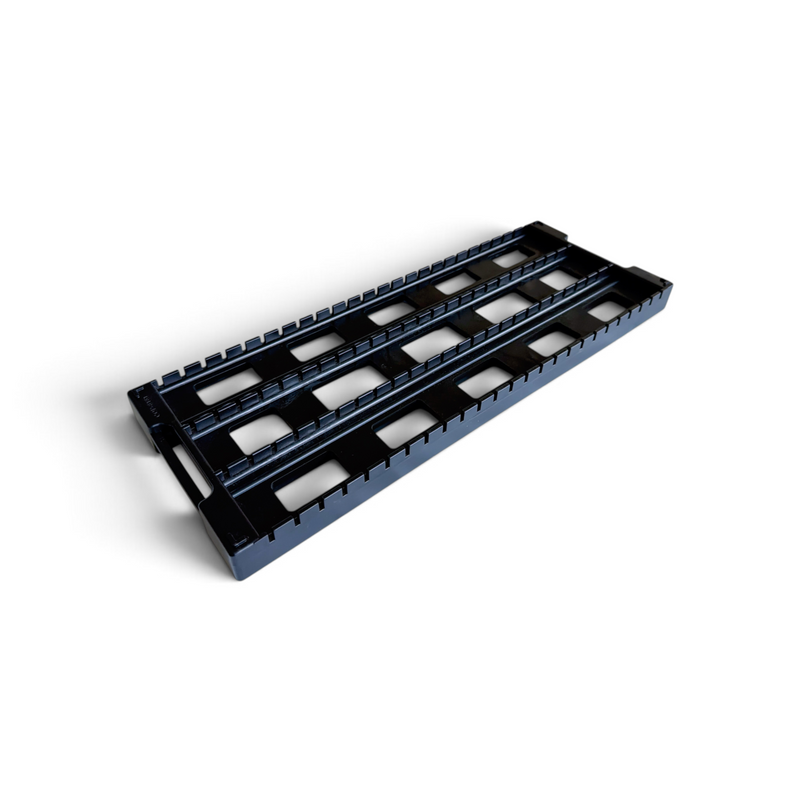

Slotted-Edge ESD PCB Rack (Pack of 10)
$34.70 per rack · pack of 10: $347.00
If in stock, ships today. Ships from the USA.
- Slots
- 25, on a 16 mm (0.630″) pitch
- Slot Size
- 3.2 mm wide, 7.7 mm deep (0.126″ × 0.303″)
- Board Thickness
- Up to about 2.4 mm (0.094″)
- Maximum PCB Size
- 400 × 220 mm (15.75″ × 8.66″)
- Rack Size
- 435 × 160 × 30 mm (17.13″ × 6.30″ × 1.18″)
- ESD Rating
- Conductive polypropylene, 10⁴ Ω
- Temperature Range
- −10 °C to +80 °C (14 °F to 176 °F)

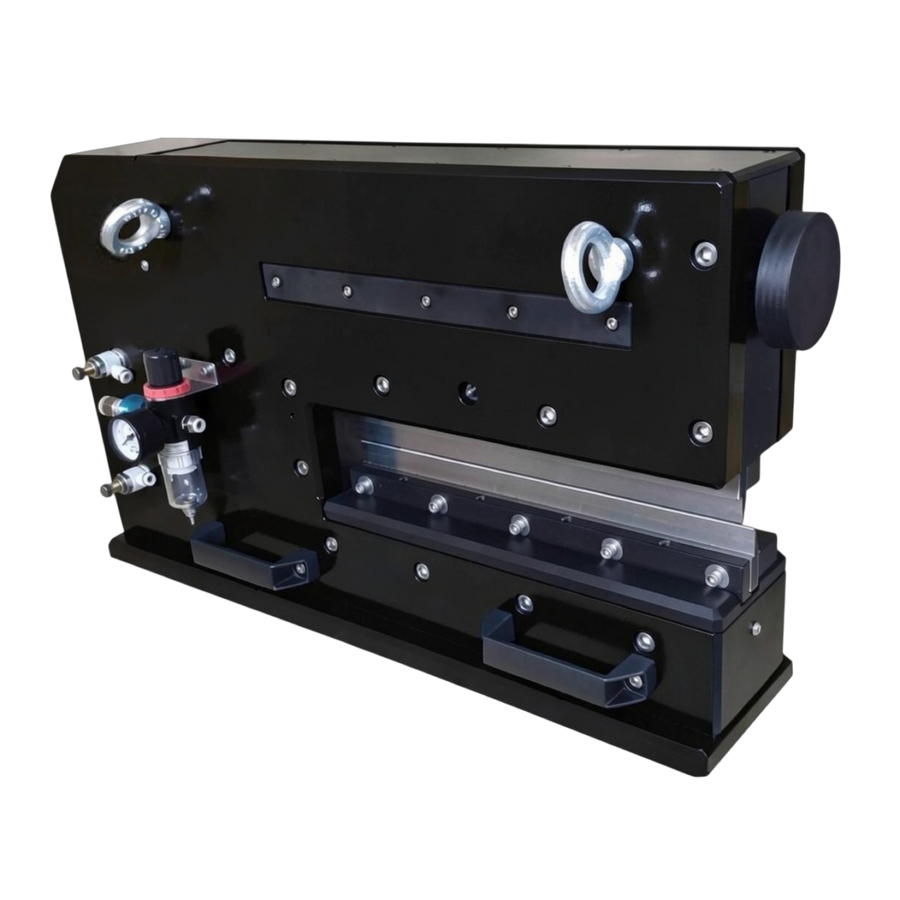

Pneumatic V-Cut PCB Depaneler
Quoted with a ship date
- Maximum Cut Length
- 330 mm (13 in)
- Board Thickness
- 0.6 to 2.54 mm (0.024″ to 0.100″)
- Parts Near the Score
- Down to 0.5 mm (0.020″)
- Component Height
- 20 mm (0.787″) top and bottom
- Air Supply
- 0.4 to 0.6 MPa (58 to 87 psi), no electrical
- Machine Size
- 750 × 230 × 395 mm (29.5″ × 9.1″ × 15.6″), about 125 kg (275 lb)
- Certification
- CE marked
Order the right part the first time.
Send us your board size and process, we confirm the exact part number before you buy. Standard manufacturer warranty applies · spares ship from the USA.
